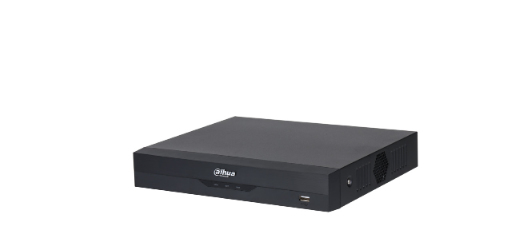

4 Channel Compact 1U 4PoE 1HDD WizSense Network Video Recorder
Introduction
Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.
This AI network video recorder is a highly cost-effective product,
providing functions such as local live view, multi-screen display,
real-time storage on local HDD, fast operation by mouse, and remote
management and control. This product is suitable for face detection and
recognition at entrances and exits, and perimeter protection of people
and vehicles.
Face Detection
Face detection is to detect if there is any human face appearing in the
video. This technology adopts a deep learning algorithm to support face
detection, tracking, optimization and capturing, and then output the
best face snapshot.
Face Recognition
Dahua Face Recognition technology extracts the features of captured
faces and compares them with those in face database to recognize the
person identity.
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling leaves,
bright lights, etc. Enables system to perform secondary recognition for
the targets. Improving alarm accuracy.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
AI Search
Support AI seach by metadata of different targets or uploading face
pictures to device and comparing them with recorded faces by similarity.
Enable operators to quickly and easily search through multi channels and
long duration, efficiently find out when and where a person of interest
appeard.
Smart Fan
The NVR is equipped with a smart fan to achieve high cooling
efficiency. It automatically turns on or turns off according to CPU and
ambient temperature. The fan is long-lasting and low noise, reducing
maintenance costs and improving the user experience.
Specifications
| Performance | |
|---|---|
| Video input channels | 4 channels |
| Video codecs | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration |
| Backup function | Yes |
| Audio codecs | PCM; G711A; G711U; G726 |
| Built-in processor | Yes |
| Playback modes | Pause, Play, Stop |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Recording modes | Manual |
| Maximum frame rate | 30 fps |
| Operating system installed | Embedded LINUX |
| Face detection | Yes |
| Video recording modes | 1080p |
| Hard drive | |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
| Number of HDDs installed | 1 |
| Storage | |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
| Number of HDDs installed | 1 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| VGA (D-Sub) output ports | 1 |
| HDMI output | Yes |
| USB 2.0 ports quantity | 2 |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration |
| Audio RCA inputs | 1 |
| DC-in jack | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Audio RCA outputs | 1 |
| Power over Ethernet (PoE) ports quantity | 4 |
| HDMI ports quantity | 1 |
| Storage relative humidity (H-H) | 30 - 85% |
| Features | |
| Rack mounting | Yes |
| LED indicators | Yes |
| Certification | FCC:47 CFR FCC Part15,SubpartB,Class A CE-EMC:EN 55032:2015,Class A;EN IEC 61000- 3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN 55035:2017;EN 50130- 4:2011+A1:2014 CE-LVD:EN 62368-1:2014+A11:2017 |
| Rack capacity | 1U |
| Product colour | Black |
| Processor | |
| Built-in processor | Yes |
| Power | |
| Output voltage | 53 V |
| Output current | 1.13 A |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Browser supported | Chrome; IE9 or later; Firefox |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 93% |
| Storage temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 30 - 85% |
| Weight & dimensions | |
| Width | 260 mm |
| Depth | 232.7 mm |
| Height | 47.6 mm |
| Weight | 860 g |
| Package width | 117 mm |
| Package depth | 373 mm |
| Package height | 307 mm |
| Package weight | 1.86 kg |
