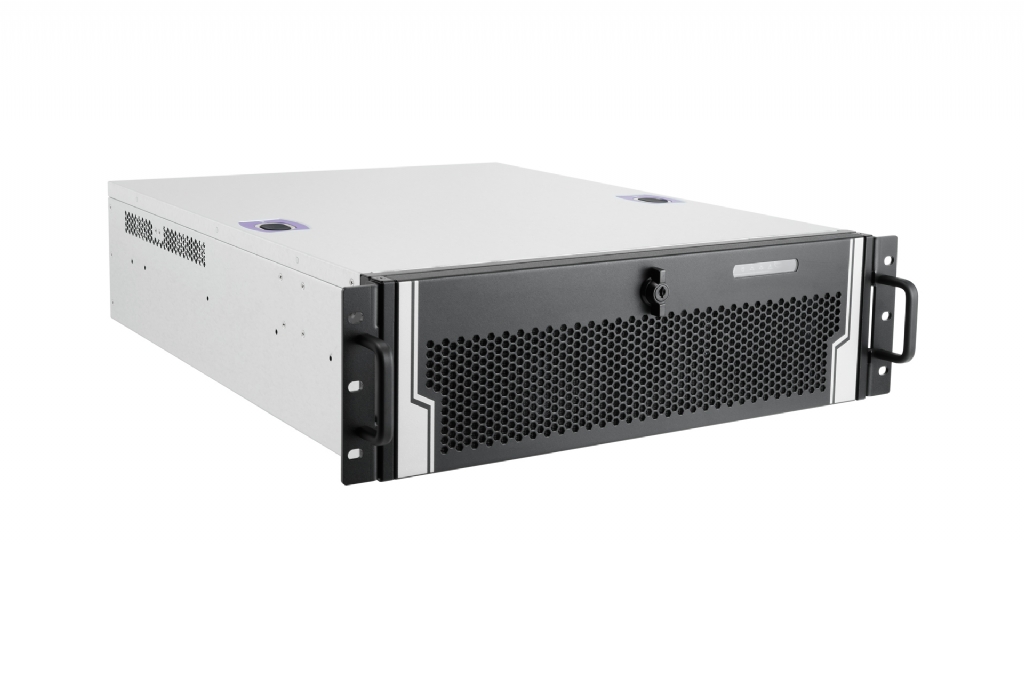

In-Win IW-R300-01N - 3U Feature Rich Short Depth Server Chassis for CCTV Applications
Introduction
| Technical Details | ||
|---|---|---|
| Case Form Factor | 3U Rackmount | |
| Motherboard Compatibility | Mini-ITX, Micro ATX, Standard ATX | |
| Drive Bays | External 5.25' | 4 |
| External 3.5' | 0 | |
| Internal 3.5' | 0 | |
| Internal 2.5' | 0 | |
| Hotswap 3.5' | 0 | |
| Hotswap 2.5' | 2 (With Optional 2x 2.5 SATA Hot-Swap Module - Rear Mounted - See Compatible Products) | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Not Applicable | |
| Expansion Slots | Full Height | 7 |
| Low Profile | 0 | |
| Cooling | 1x 80mm Front PWM Fan 2x Optional 60mm Rear | |
| Power Supply Form Factor | 1U Single or 2U Redundant | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Silver | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | 550 x 482.6 x 133.4mm (DxWxH mm) | |
| Weight | 12.3kg (Approx) | |
