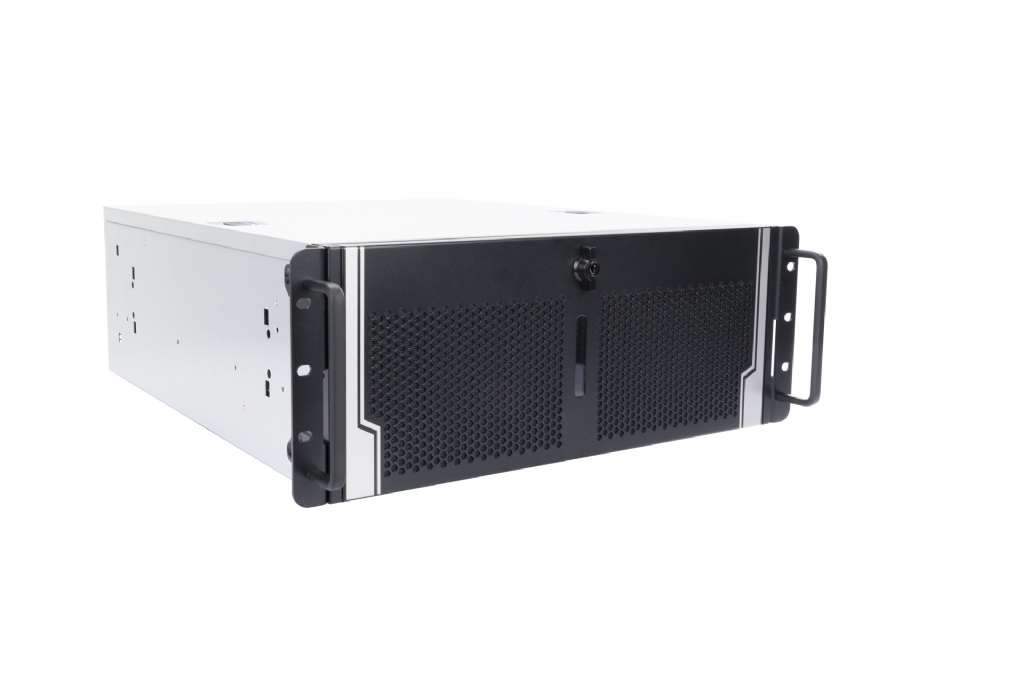

In-Win IW-R400-01N - 4U Rack Server Chassis for Extended Motherboards w/ Lockable Door - Ideal for CCTV Applications
Introduction
| Technical Details | ||
|---|---|---|
| Case Form Factor | 4U Rackmount | |
| Motherboard Compatibility | Mini-ITX, Micro ATX, Standard ATX, Extended ATX | |
| Drive Bays | External 5.25' | 3 |
| External 3.5' | 1 | |
| Internal 3.5' | 4 | |
| Internal 2.5' | 1 | |
| Hotswap 3.5' | 0 | |
| Hotswap 2.5' | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Not Applicable | |
| Expansion Slots | Full Height | 7 |
| Low Profile | 0 | |
| Cooling | 2x 80mm PWM Front Fans 2x Optional 80mm Rear Fans | |
| Power Supply Form Factor | Standard ATX or Mini Redundant | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Silver | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | 525 x 482 x 178 (DxWxH mm) | |
| Weight | 12.3kg (Approx) | |
| What's Included | ||
| ||
