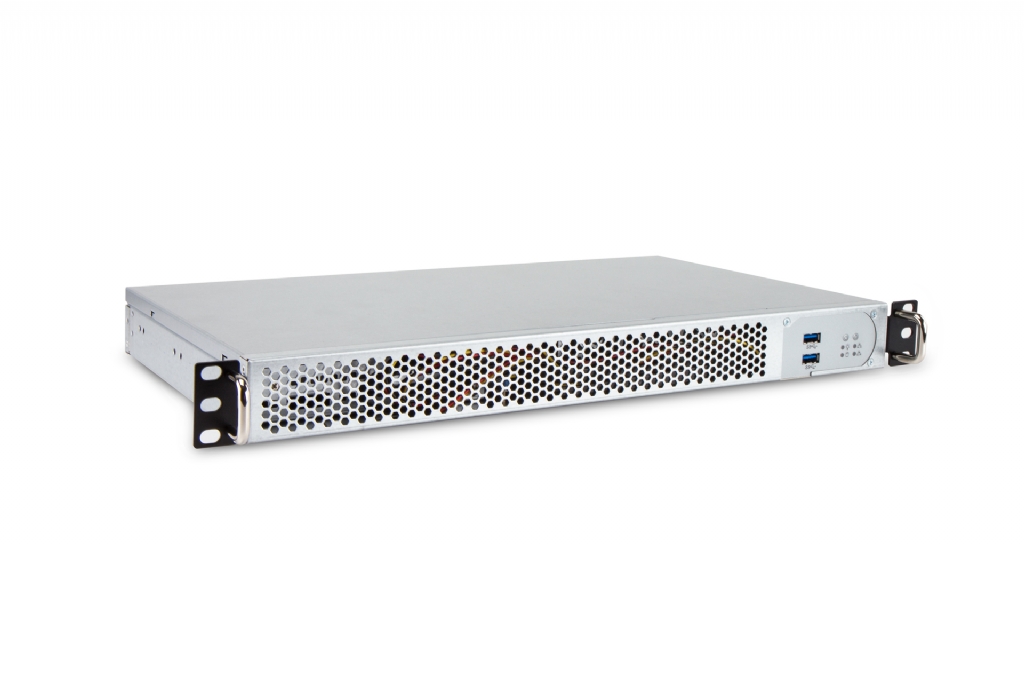

In-Win IW-RF100S - 1U Short Depth Server Chassis - 250mm Depth - Including 265W PSU
Introduction
| Technical Details | ||
|---|---|---|
| Case Form Factor | 1U Rackmount | |
| Motherboard Compatibility | MINI ITX (6.7' x 6.7') | |
| Drive Bays | External 5.25' | 0 |
| External 3.5' | 0 | |
| Internal 3.5' | 2 (or 2x 2.5') | |
| Internal 2.5' | 2 (or 2x 3.5') | |
| Hotswap 3.5' | 0 | |
| Hotswap 2.5' | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Not Applicable | |
| Expansion Slots | Full Height | 0 |
| Low Profile | 0 | |
| Cooling | Supports 40 x 28 mm PWM Fan x 2 (Max up to 3) | |
| Power Supply Form Factor | 1U Flex PSU (265W PSU Included) | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Black | |
| Material | 1.0 mm SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | 250* 482.6 * 44 mm (DxWxH mm) | |
| Weight | 4.20 kg (Approx) | |
| What's Included | ||
| ||
