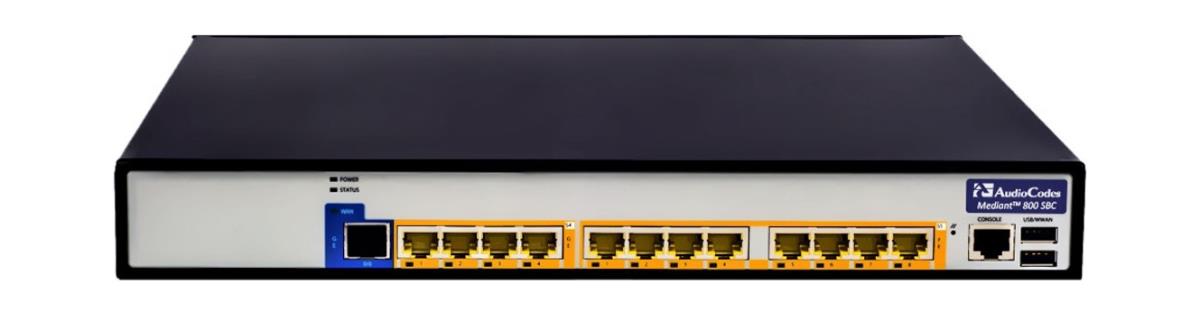

MEDIANT 800B BASE SBC
Introduction
The AudioCodes Mediant 800 enterprise session border controller (E-SBC) and media gateway offers a complete connectivity solution for small-to-medium sized enterprises. Supporting up to 124 voice channels in a 1U platform, the Mediant 800 provides versatile connectivity between TDM and VoIP networks. The Mediant 800 connects IP-PBXs to any SIP trunking service provider, scaling to 400 concurrent sessions. It offers superior performance in connecting any SIP to SIP environment, legacy TDM-based PBX systems to IP networks, and IP-PBXs to the PSTN.
Specifications
| Design | |
|---|---|
| Mounting type | Desktop/Rack mounting |
| Rack capacity | 1U |
| Product colour | Black, Grey |
| Features | |
| Interface | 4 FXS/FXO |
| Voice codecs | AMR, G.722.2, OPUS, Silk, iLBC |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Security | |
| Security algorithms | HTTPS, SRTP, SSH, TLS |
| Firewall security | Yes |
| Authentication method | RADIUS |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 12 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Power | |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Input current | 1.5 A |
| Weight & dimensions | |
| Weight | 2.7 kg |
| Size (imperial) | 48.3 cm (19") |
| Width | 345 mm |
| Depth | 320 mm |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Technical details | |
| Interface | 4 FXS/FXO |
| Voice codecs | AMR, G.722.2, OPUS, Silk, iLBC |
| Size (imperial) | 48.3 cm (19") |
| Harmonized System (HS) code | 85176990 |
| Performance | |
| Mounting type | Desktop/Rack mounting |
| Rack capacity | 1U |
| Product colour | Black, Grey |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
