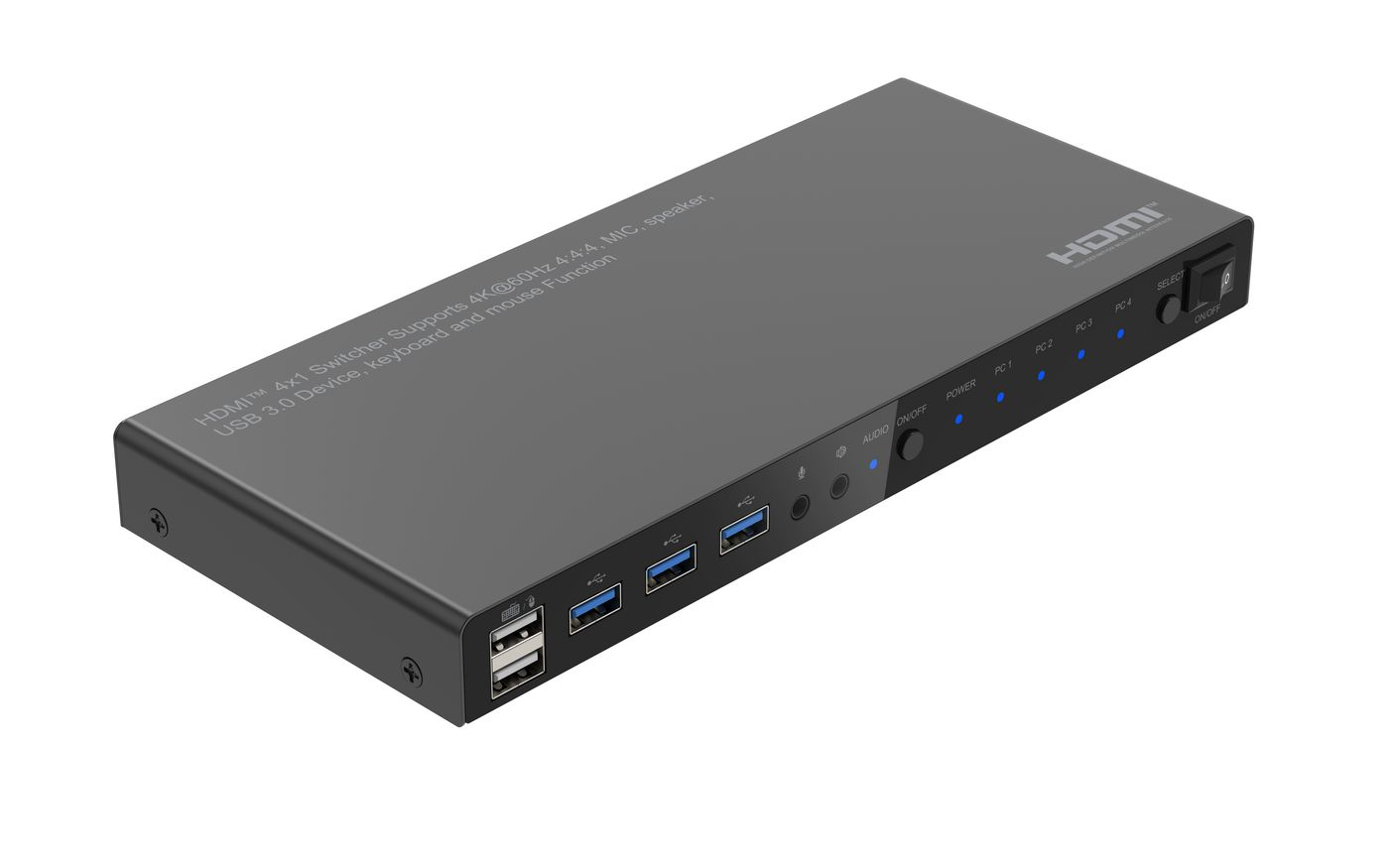

EU Product - 4K@60Hz HDMI KVM swich, 4x1
Introduction
Upgrade your workspace or home entertainment setup with the HDMI 4x1 4K KVM Switch, designed for seamless switching between four HDMI-enabled devices. With support for 4K Ultra HD resolution at 60Hz (4:4:4) and 7.1 surround sound audio, this switch ensures stunning visuals and immersive sound. It features two USB-A ports for a keyboard and mouse, plus three USB 3.0 A ports to connect high-speed peripherals like external drives or webcams.
Designed for efficiency and convenience, this switch lets users share a single keyboard, mouse, and USB devices between four HDMI PCs or other compatible devices. Enjoy hassle-free control with two switching modes: manual port selection via front panel buttons or hotkey switching via the keyboard. Whether for work, gaming, or digital signage applications, this KVM switch delivers exceptional performance and connectivity.
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 9 |
| Console ports | HDMI |
| Display connection | Yes |
| USB connector type | USB Type-A |
| HDMI version | 2.0 |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 3 |
| AC-in ports quantity | 1 |
| HDCP | Yes |
| Performance | |
| HDCP | Yes |
| HD type | 4K Ultra HD |
| Plug and Play | Yes |
| Number of displays supported | 1 |
| High Dynamic Range (HDR) supported | Yes |
| HDCP version | 2.2 |
| Maximum cable length | 10 m |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Plug and Play | Yes |
| Push button | Yes |
| LED indicators | Power |
| Hot keys | Yes |
| Audio support | Yes |
| Display connection | Yes |
| Compliance certificates | CE |
| Design | |
| Wired remote switch | No |
| Integrated cables | No |
| Maximum cable length | 10 m |
| Display switch button | Yes |
| Product colour | Black |
| Rack mounting | No |
| Push button | Yes |
| LED indicators | Power |
| Hot keys | Yes |
| Certification | FCC, CE, RoHS |
| Housing material | Aluminium |
| Video | |
| HD type | 4K Ultra HD |
| Sustainability | |
| Compliance certificates | CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 80% |
| Weight & dimensions | |
| Width | 243 mm |
| Depth | 196 mm |
| Height | 60 mm |
| Weight | 490 g |
| Package width | 243 mm |
| Package depth | 196 mm |
| Package height | 60 mm |
| Package weight | 846 g |
| Packaging data | |
| Package width | 243 mm |
| Package depth | 196 mm |
| Package height | 60 mm |
| Package weight | 846 g |
| Packaging content | |
| Cables included | No |
| Packaging content | 1x Main unit, 1x Power unit and 1x user manual |
| Manual | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Other features | |
| Connectivity technology | Wired |
| Audio support | Yes |
| Push button | Yes |
| Hot keys | Yes |
