EU Product - Reduction for 2x 2.5" HDD Into 3.5" Pos. RHD-225
Introduction

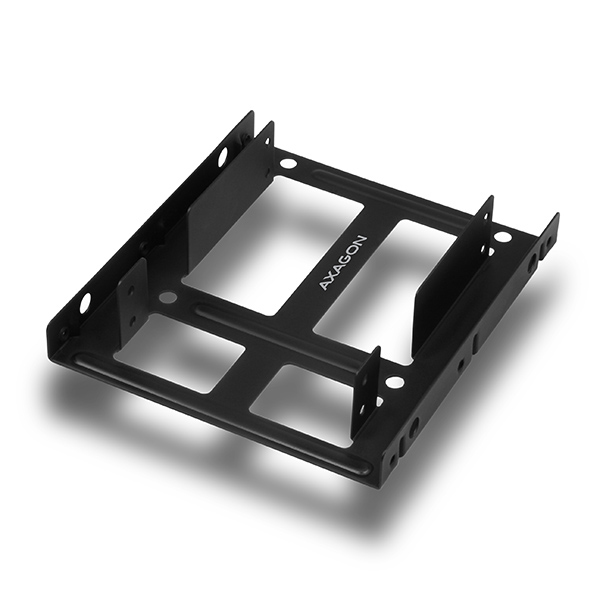

The AXAGON RHD-225 metal frame for mounting two 2.5" HDDs or SSDs into one 3.5" position of the PC housing.
This can provide an easy solution for an internal disk array in compact computers, for example.
To enhance disk cooling, the frame is ready for installation of an extra fan.
Features:
• Supports 2x 2.5" SSDs or hard disks up to 9.5 mm height.
• The frame dimensions and mounting holes correspond to the standard 3.5"position of the PC housing.
• The frame is pressed from a steel sheet and painted black.
• The prepared holes for fan mounting with an 8 cm diameter (the fan is not included)
• Outside dimensions of the frame 102 x 115 x 24 mm (W x D x H).
• Weight 58 g.
Package contains:
• a frame,
• 8 pcs screws for mounting the disks into the frame,
• 4 pcs screws for mounting the frame into the housing,
• packed in a cardboard box.
Specifications
| Technical details | |
|---|---|
| Certification | RoHS |
| Country of origin | China |
| Material | Metal |
| Product colour | Black |
| Compatibility | 2.5" HDD / SSD |
| Quantity per pack | 1 pc(s) |
| Warranty period | 3 year(s) |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 58 g |
| Width | 102 mm |
| Depth | 115 mm |
| Height | 24 mm |
| Packaging data | |
| Screws included | Yes |
| Package width | 147 mm |
| Package height | 30 mm |
| Package depth | 107 mm |
| Package weight | 84 g |
| Quantity per pack | 1 pc(s) |
