Introduction

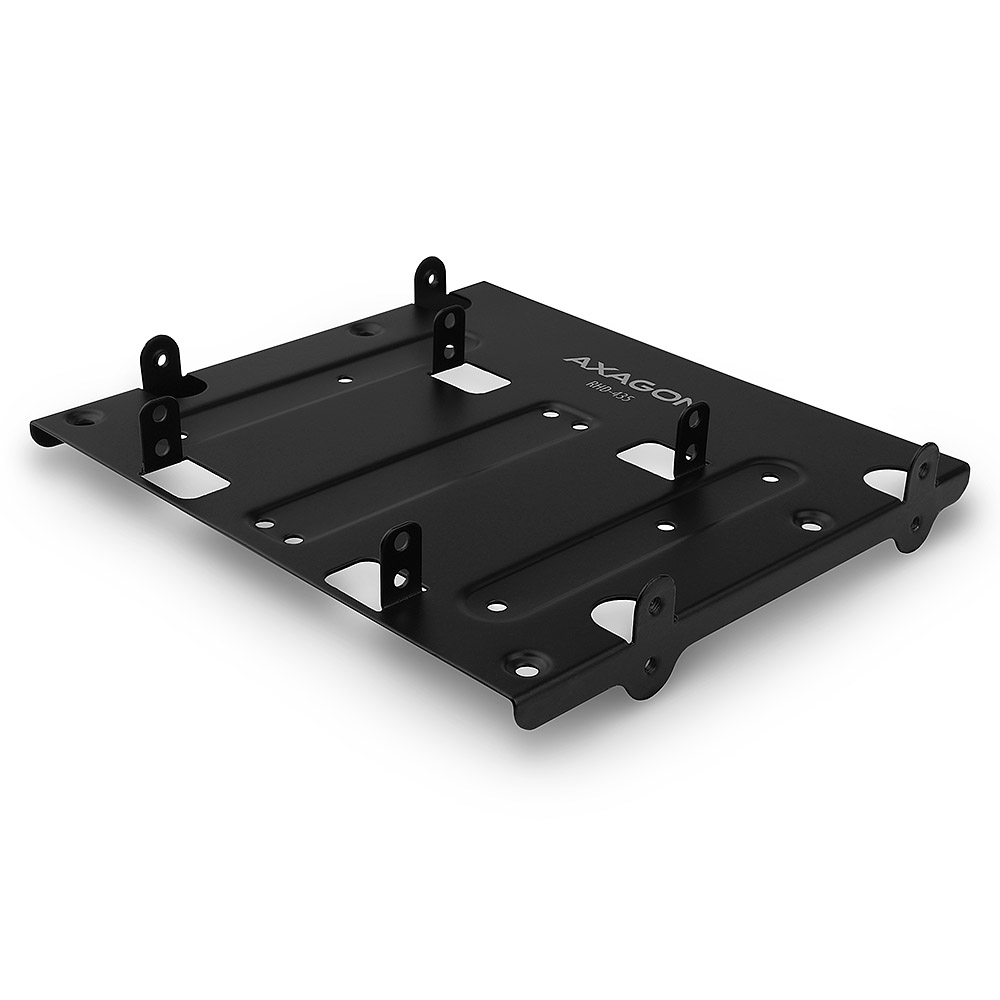

The AXAGON RHD-435 metal frame for mounting up to four 2.5" HDD / SSD or for mount two 2.5" and one 3.5" drives into 5.25" position of the PC case.
This reduction cleverly solves the problem of placing 2.5" or 3.5" disks in different types of computer cases. In the upper position, standard 7 mm SSD and 9.5 mm HDD 2.5" drives can be used. The lower position is for a standard 3.5" hard disk alternatively for 2.5" SSD / HDD without disk height limitation.
Precise holes and supplied screws ensure easy and trouble-free frame installation into the computer case. The metal structure and frame profile help dissipate the heat from the disk.
Features:
• Supports 4x 2.5" SSD or HDD up to 7 and 9.5 mm height.
• Supports 1x 3.5" HDD or 2x 2.5" SSD or HDD any disk height.
• The frame dimensions and mounting holes correspond to the standard 5.25" position of the PC case.
• The frame is made from a steel sheet and painted black.
• Outside dimensions of the frame 146 x 130 x 28 mm, weight 130 g.
Package contains:
• Frame for 4x 2.5" disks or 2x 2.5" + 1x 3.5" disks,
• screws and mounting material for mounting the disks and frame,
• printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
• packed in a cardboard box with a hanging hole.
Specifications
| Technical details | |
|---|---|
| Certification | RoHS |
| Country of origin | China |
| Material | Metal |
| Product colour | Black |
| Compatibility | 2.5" HDD / SSD, 3.5" HDD |
| Quantity per pack | 1 pc(s) |
| Warranty period | 3 year(s) |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 130 g |
| Width | 130 mm |
| Depth | 28 mm |
| Height | 146 mm |
| Packaging data | |
| Screws included | Yes |
| Package width | 150 mm |
| Package height | 165 mm |
| Package depth | 35 mm |
| Package weight | 193 g |
| Quantity per pack | 1 pc(s) |
