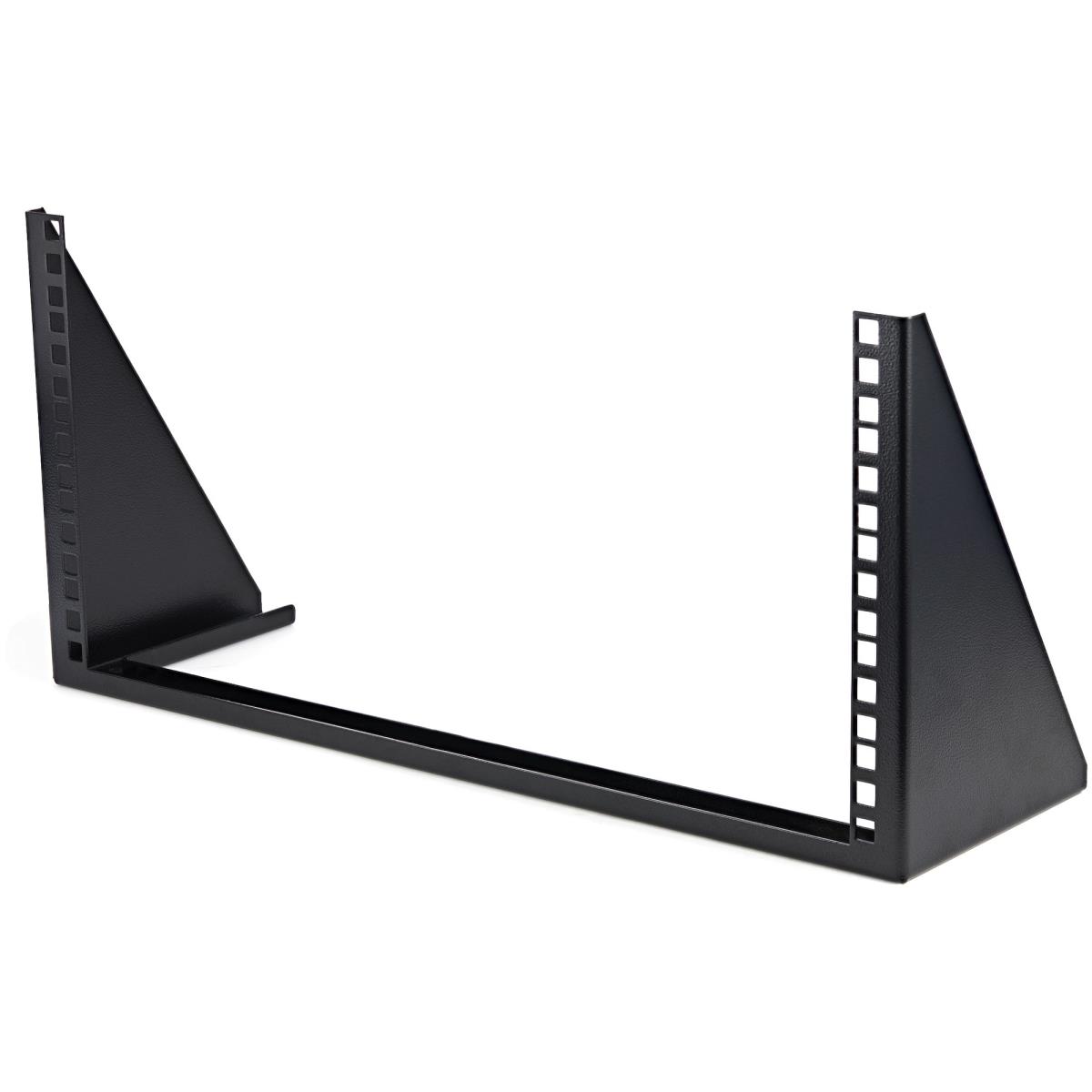

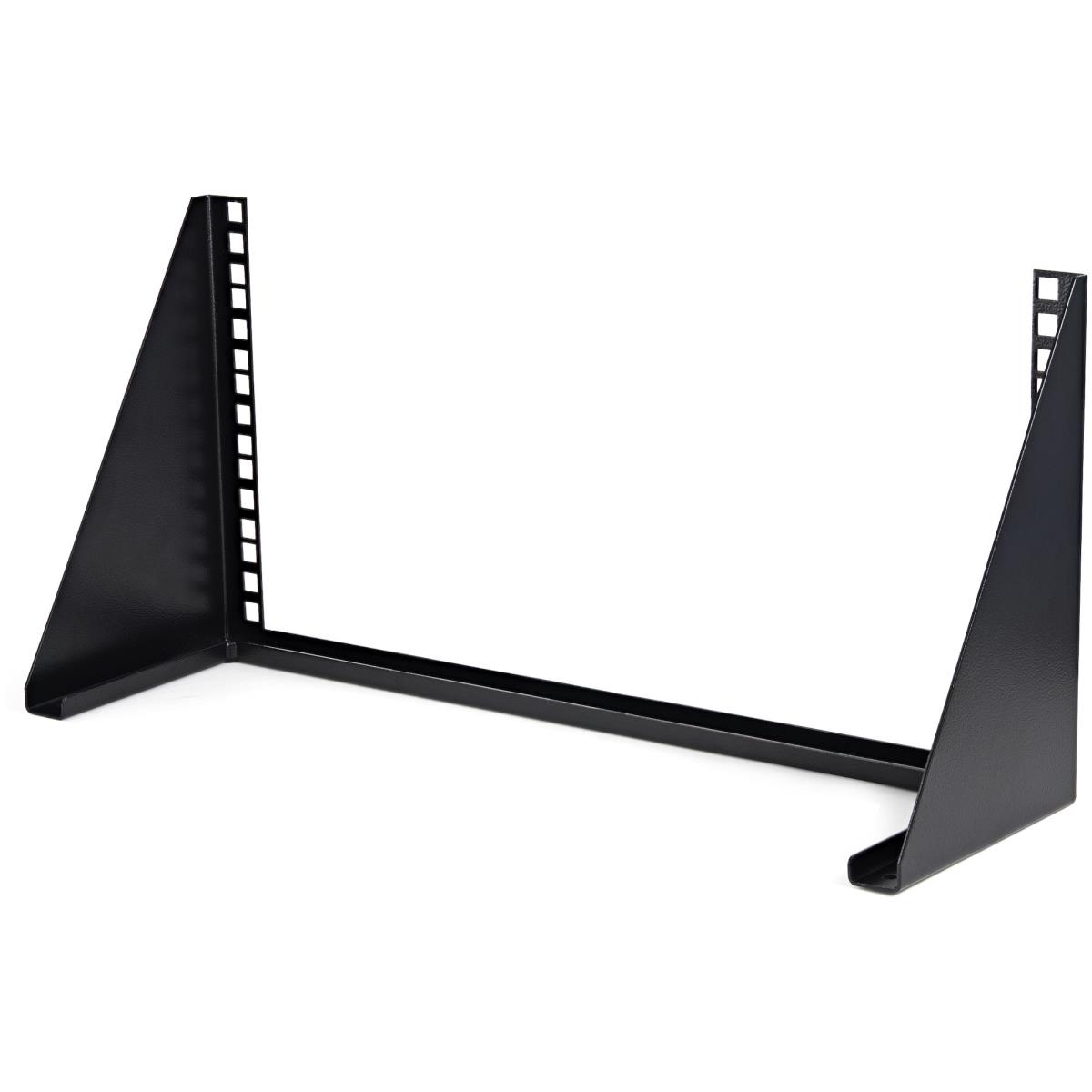

WALL MOUNT PATCH PANEL BRACKET
Introduction
Mount server, network or telecommunications devices vertically with this 5U wall-mountable rack
The RK519WALLV 5U Wallmount Rack Bracket offers a versatile storage solution, allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with the wall) to save space. Alternatively, the 5U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack.
Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework.
Constructed to EIA-310 19in rack standards, the wallmount bracket features a sturdy steel design and is backed by StarTech.com's Lifetime Warranty.
Need additional storage? StarTech.com also offers:
1U 19in Wallmount Bracket
2U 19in Wallmount Bracket
3U 19in Wallmount Bracket
4U 19in Wallmount Bracket
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 259 mm |
| Package width | 562 mm |
| Package height | 181 mm |
| Package weight | 2.2 kg |
| Width | 235 mm |
| Depth | 500 mm |
| Height | 140 mm |
| Weight | 1.4 kg |
| Maximum weight capacity | 90 kg |
| Packaging content | |

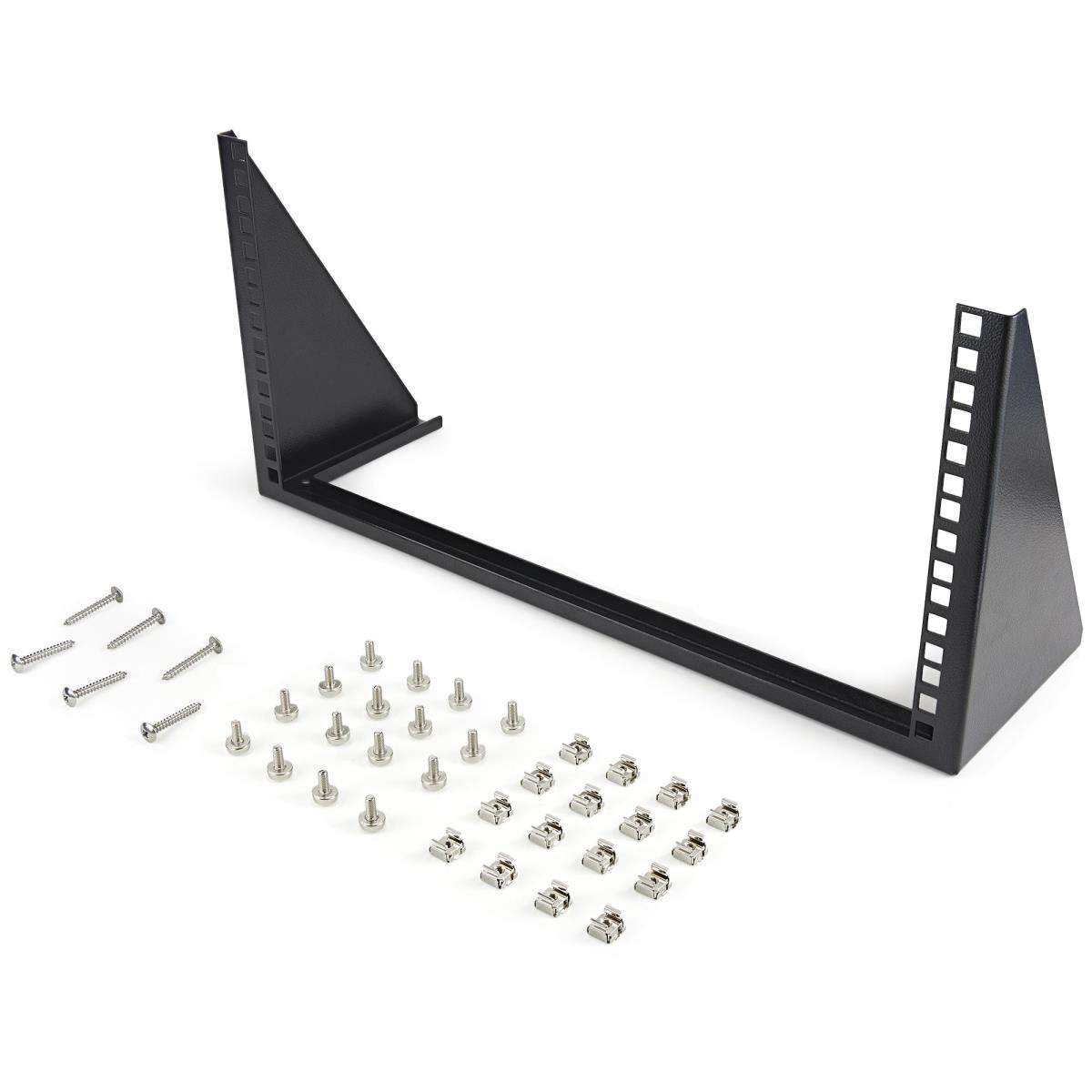

| Nuts included | Yes |
| Number of nuts | 16 |
| Screws included | Yes |
| Number of screws | 22 |
| Features | |
| Frame type | Open |
| Product design | 2-post |
| Rack capacity | 5U |
| Mounting hole shape | Square |
| Type | Wall mounted rack |
| Maximum weight capacity | 90 kg |
| Material | Steel |
| Product colour | Black |
| Packaging data | |
| Nuts included | Yes |
| Number of nuts | 16 |
| Package depth | 259 mm |
| Package width | 562 mm |
| Package height | 181 mm |
| Package weight | 2.2 kg |
| Screws included | Yes |
| Number of screws | 22 |
| Technical details | |
| Package width | 562 mm |
| Package height | 181 mm |
| Type | Wall mounted rack |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | CE, RoHS |
| Rack capacity | 5U |
| Colour | |
| Product colour | Black |
| Material | |
| Material | Steel |
| Logistics data | |
| Master (outer) case width | 560 mm |
| Master (outer) case length | 175 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85381000 |
| Other features | |
| Compliance industry standards | EIA/ECA-310-E |
