AVOCENT SV UNIVERSAL DP/H KVM

Introduction

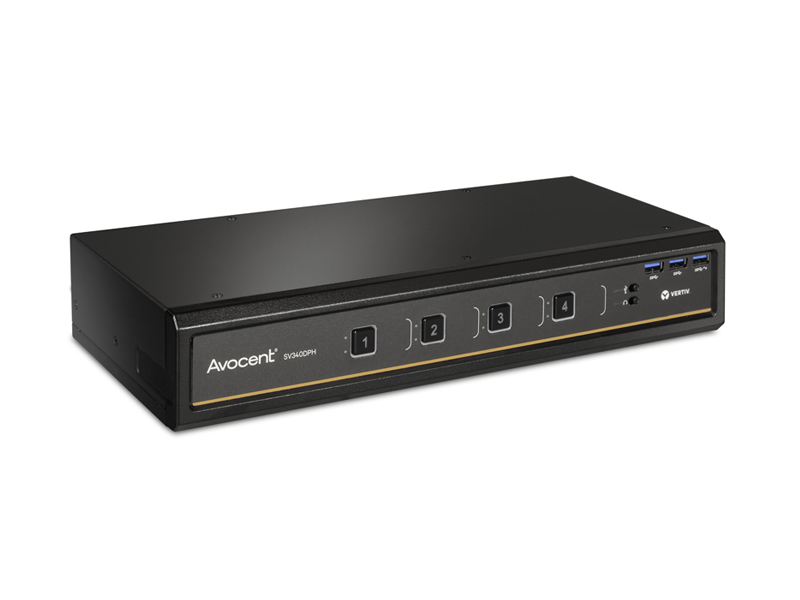

The Vertiv™ Avocent® SwitchView™ Dual head 4 port Desktop KVM switch gives users access to up to 4 computers using a single keyboard, monitor and mouse. It provides the flexibility users need in managing content from multiple computers and makes it easy to copy and paste files between applications. The SV340DPH comes with a universal video port that supports DVI-D, DP or HDMI connections.

Specifications

Ports & interfaces
Console USB ports quantity	3
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A, USB B
USB connector type	USB Type-A, USB Type-B
Number of microphone inputs	5
DisplayPorts quantity	10
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
Headphone outputs	5
USB 2.0 Type-B ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Technical details
Product colour	Black
Rack mounting	No
LED indicators	Yes
Design
Product colour	Black
Rack mounting	No
LED indicators	Yes
Certification	CE, RCM, FCC class A, VCCI, TUV US, TUV Canada
Display
Built-in display	No
Power
Output current	2.5 A
Output voltage	12 V
Power source	AC
AC input frequency	50 - 60 Hz
Input voltage	100 - 240 V
Video
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	348 mm
Depth	127 mm
Height	56 mm
Weight	1.9 kg
Certificates
Certification	CE, RCM, FCC class A, VCCI, TUV US, TUV Canada
