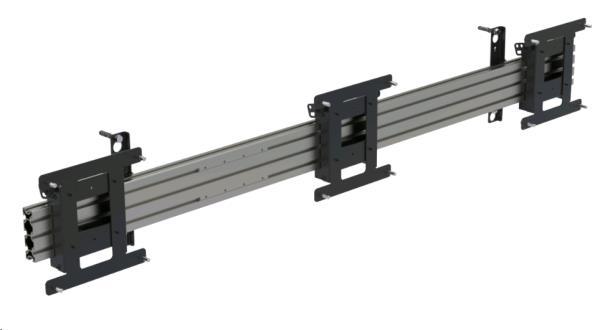

TILT MENU BOARD MOUNT 3X43 PORTRAIT
Introduction
Our wall mounted Menu Board with tilt is designed for three screens (up to 43") in portrait orientation. It supports VESA 100 & 200 configurations and features adjustable tilt for optimal viewing angles. Perfect for dynamic menus or digital signage.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 38.1 cm (15") |
| Maximum weight capacity | 150 kg |
| Panel mounting interface | 200 x 200 mm |
| Number of displays supported | 3 |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 200 x 200 mm |
| Maximum screen size | 109.2 cm (43") |
| Ergonomics | |
| Tilt angle range | 0 - 15° |
| Distance to the wall (min) | 0 mm |
| Cable management | Yes |
| Design | |
| Housing material | Metal |
| Product colour | Aluminium |
| Weight & dimensions | |
| Width | 1580 mm |
| Depth | 80 mm |
| Height | 235.1 mm |
| Weight | 8.81 kg |
| Package width | 1200 mm |
| Package depth | 250 mm |
| Package height | 350 mm |
| Package weight | 9.25 kg |
| Packaging data | |
| Package width | 1200 mm |
| Package depth | 250 mm |
| Package height | 350 mm |
| Package weight | 9.25 kg |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Number of displays supported | 3 |
| Mounting type | Wall |
| Distance to the wall (min) | 0 mm |
| Products per pallet | 15 pc(s) |
| Pallet net width | 80 cm |
| Pallet net weight | 163.8 kg |
| Pallet net height | 190 cm |
| Pallet net length | 120 cm |
| Warranty period | 5 year(s) |
| Compliance certificates | REACH |
| Version | 1.0 |
| Other features | |
| Country of origin | Denmark |
| Products per pallet | 15 pc(s) |
| Logistics data | |
| Products per pallet | 15 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 190 cm |
| Harmonized System (HS) code | 8473308000 |
| Pallet gross weight | 163.8 kg |
