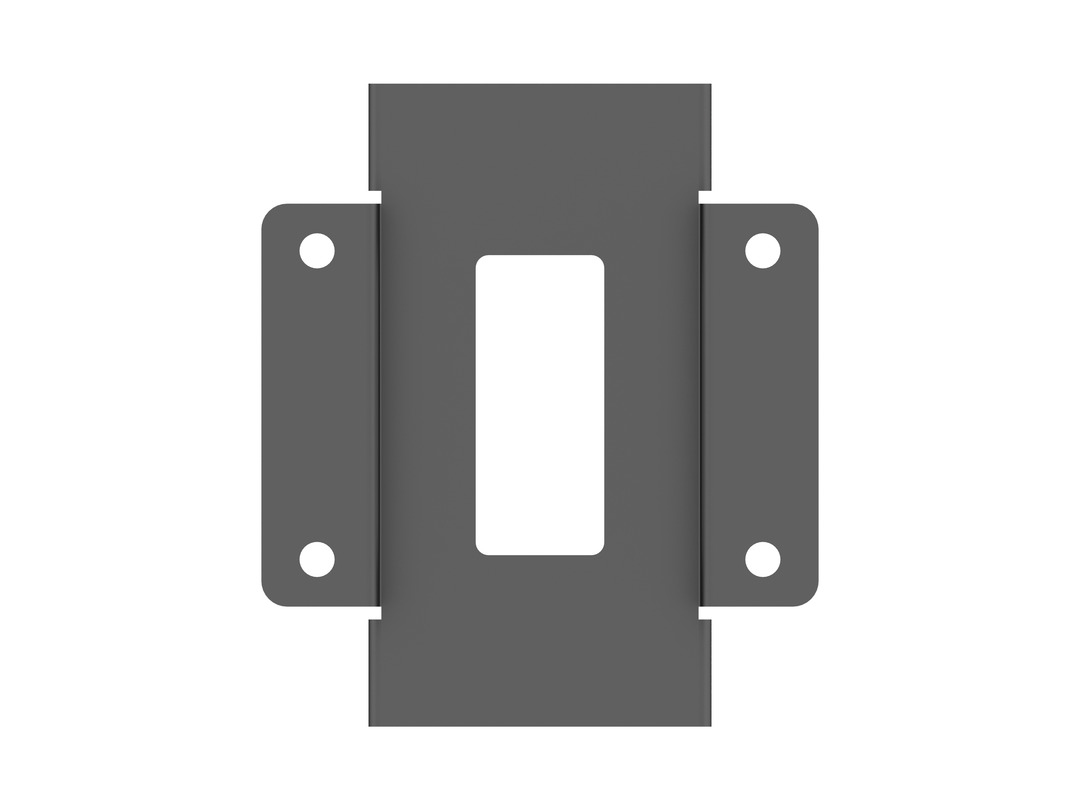

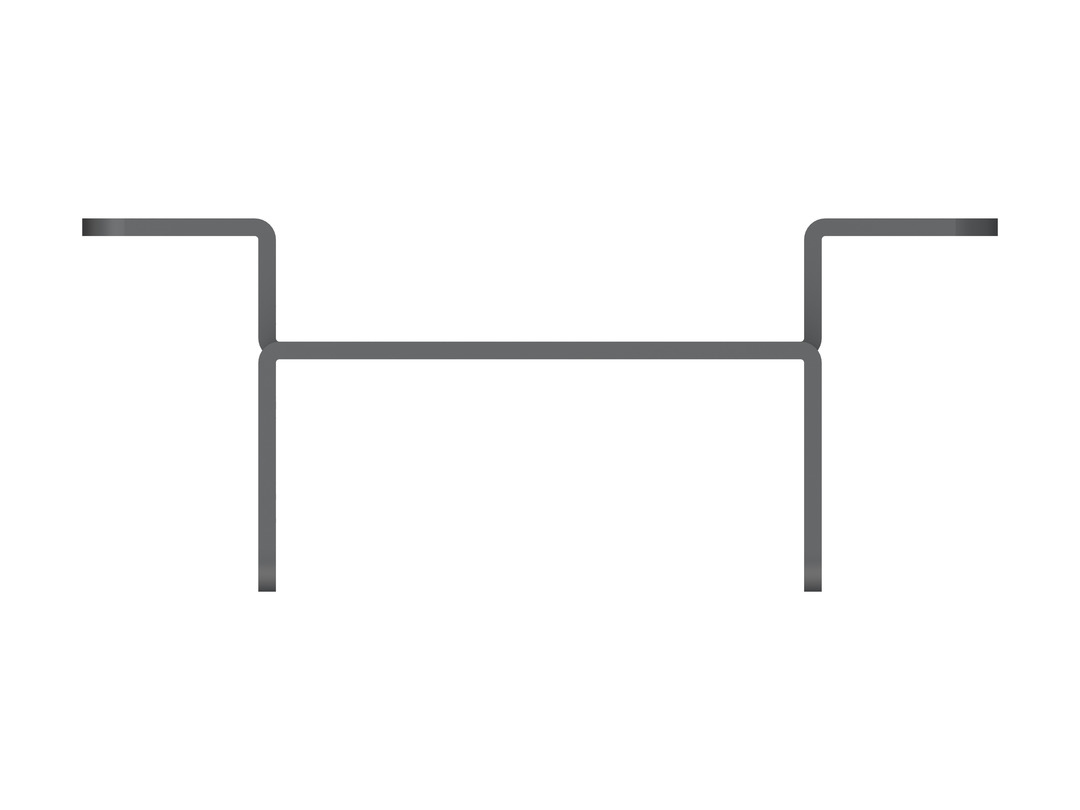

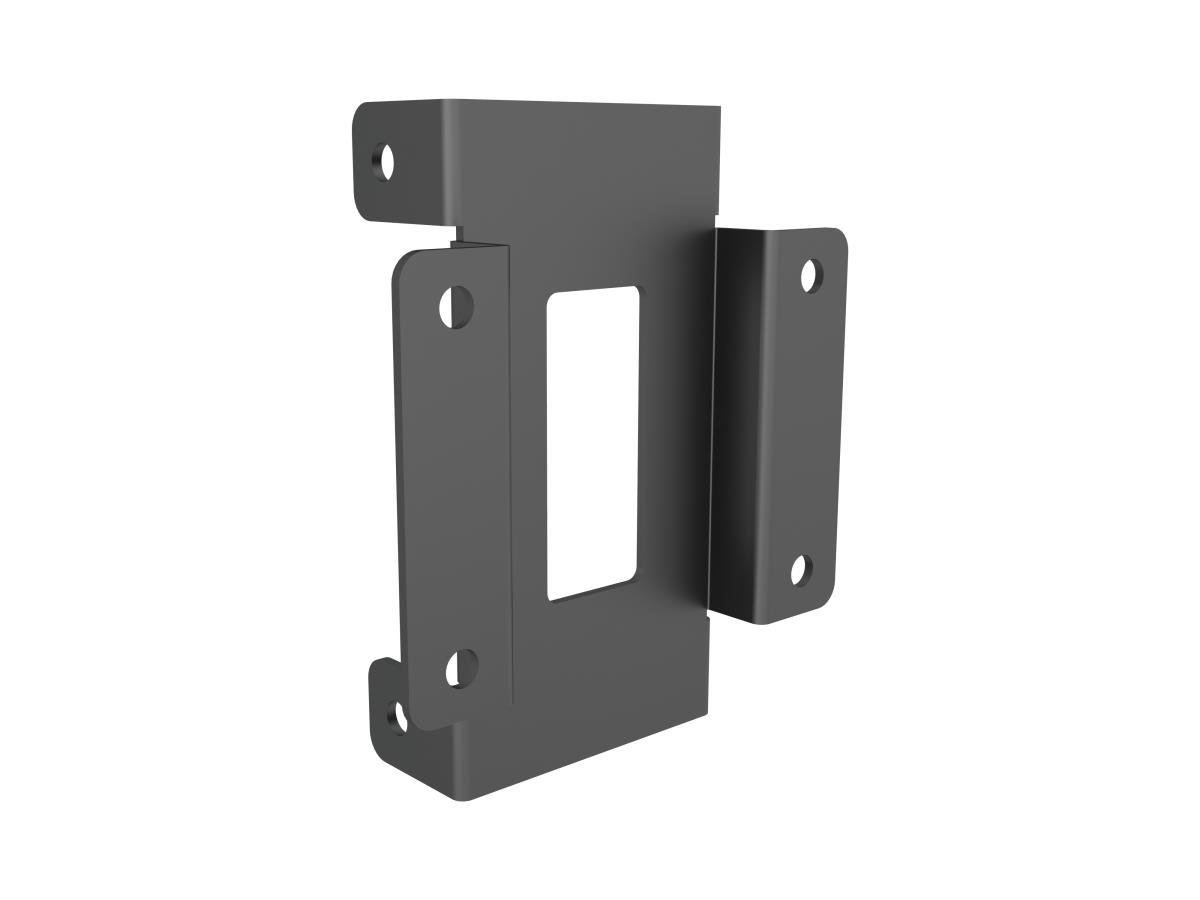

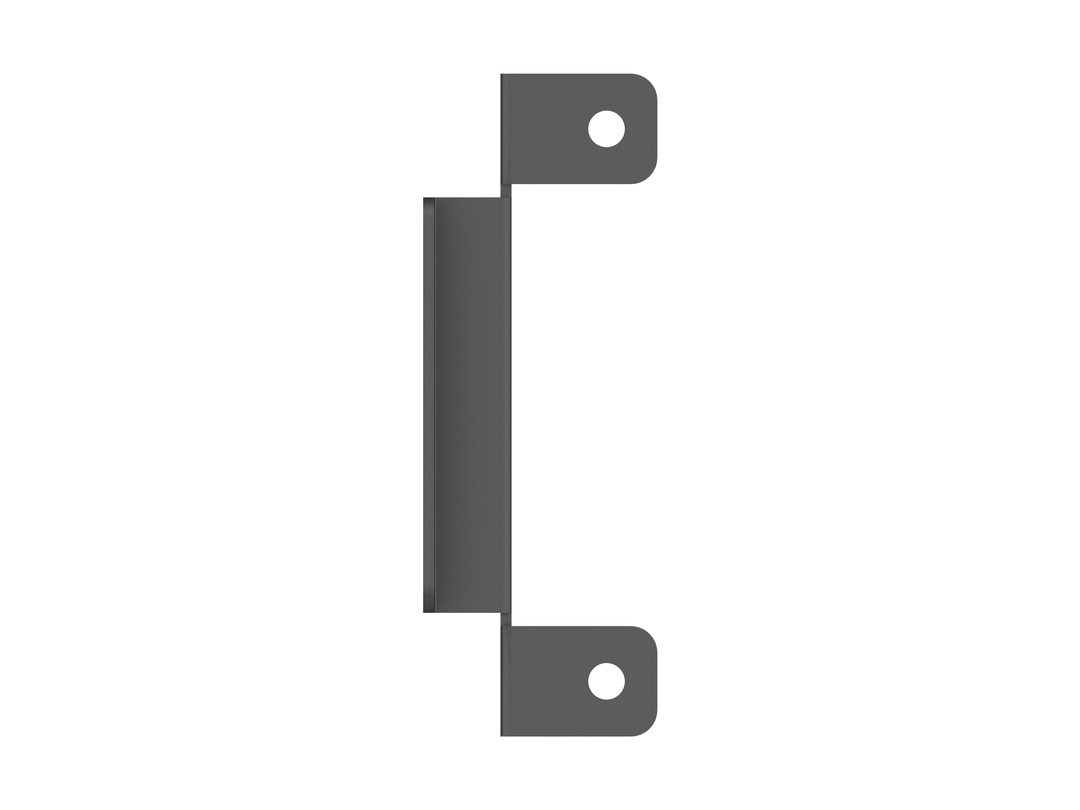

M Pro Series - Connecting plate
Introduction
M Pro Series - Connecting plate is an optional part for the M Pro Series.

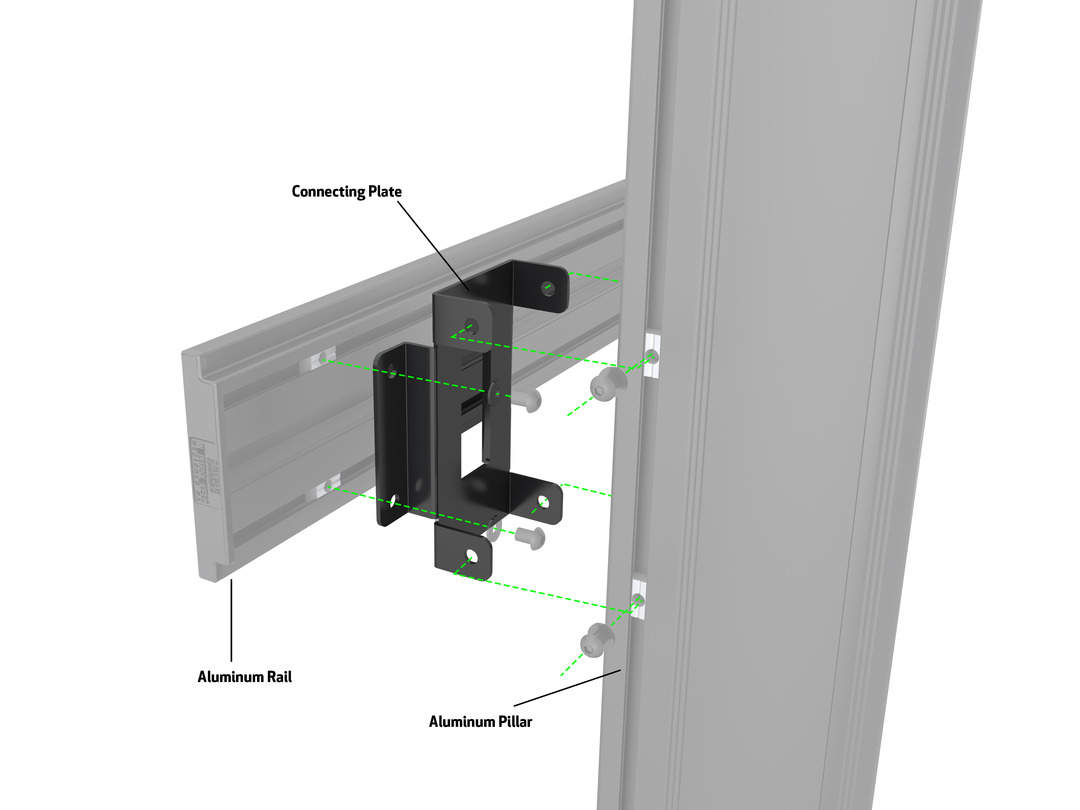

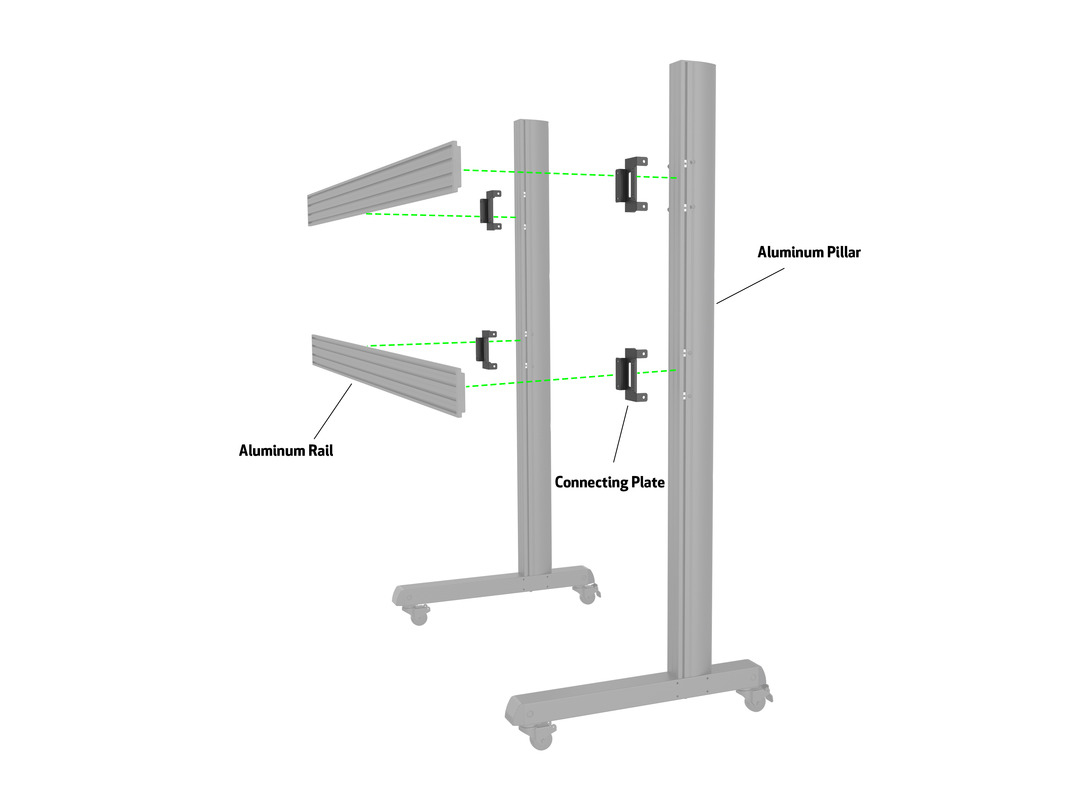

M Wallmount Plate Large - Large Wallmount Plate, Part for Pro Series, steel, mounts rail to pillar.

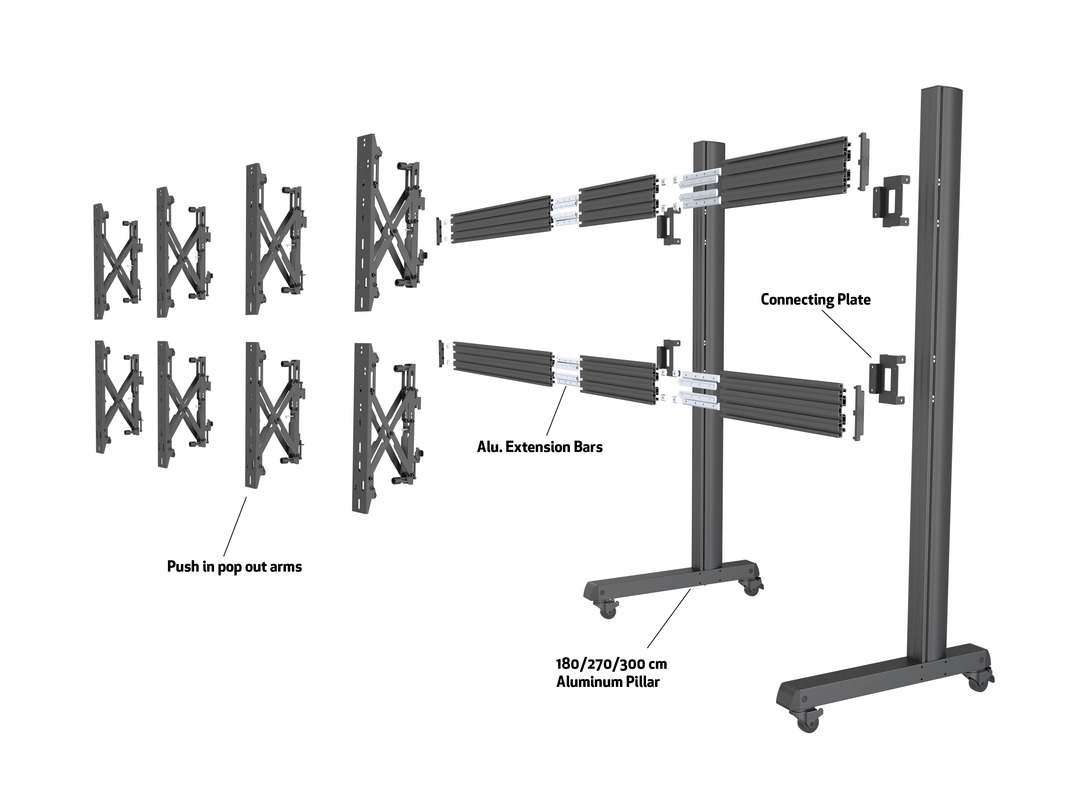

With its modular construction Pro Series parts have vast possibilities to change, update and reconfigure a Pro Series installation. Combine the parts with a Pro Series installation and create a new configuration.
Specifications
| Mounting | |
|---|---|
| Product type | Device plate |
| Maximum weight capacity | 90 kg |
| Product colour | Black |
| Features | |
| Product type | Device plate |
| Maximum weight capacity | 90 kg |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Package type | Box |
| Product colour | Black |
| Package weight | 450 g |
| Package depth | 140 mm |
| Package width | 58 mm |
| Package height | 104 mm |
| Maximum weight capacity | 90 kg |
| Plastic packaging weight | 10 g |
| Paper/cardboard packaging weight | 100 g |
| Metal packaging weight | 0 g |
| Weight & dimensions | |
| Weight | 340 g |
| Width | 155 mm |
| Height | 230 mm |
| Depth | 145 mm |
| Aluminium content weight | 0 g |
| Steel content weight | 340 g |
| Other metals content weight | 0 g |
| Package weight | 450 g |
| Package depth | 140 mm |
| Package width | 58 mm |
| Package height | 104 mm |
| Colour | |
| Product colour | Black |
| Packaging data | |
| Package weight | 450 g |
| Package type | Box |
| Package depth | 140 mm |
| Package width | 58 mm |
| Package height | 104 mm |
| Logistics data | |
| Shipping (inner) case width | 29 cm |
| Shipping (inner) case length | 30.5 cm |
| Shipping (inner) case height | 12 cm |
| Shipping (inner) case gross weight | 5.5 kg |
| Products per shipping (inner) case | 10 pc(s) |
