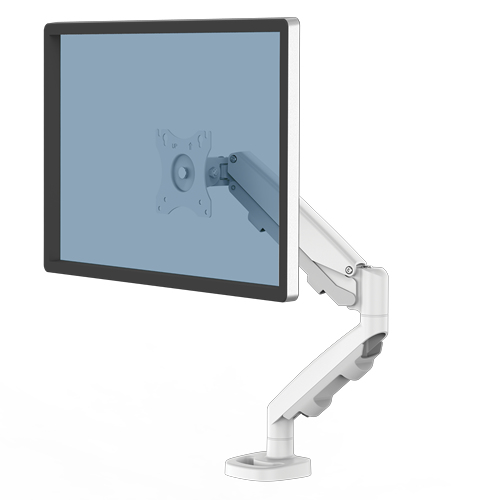

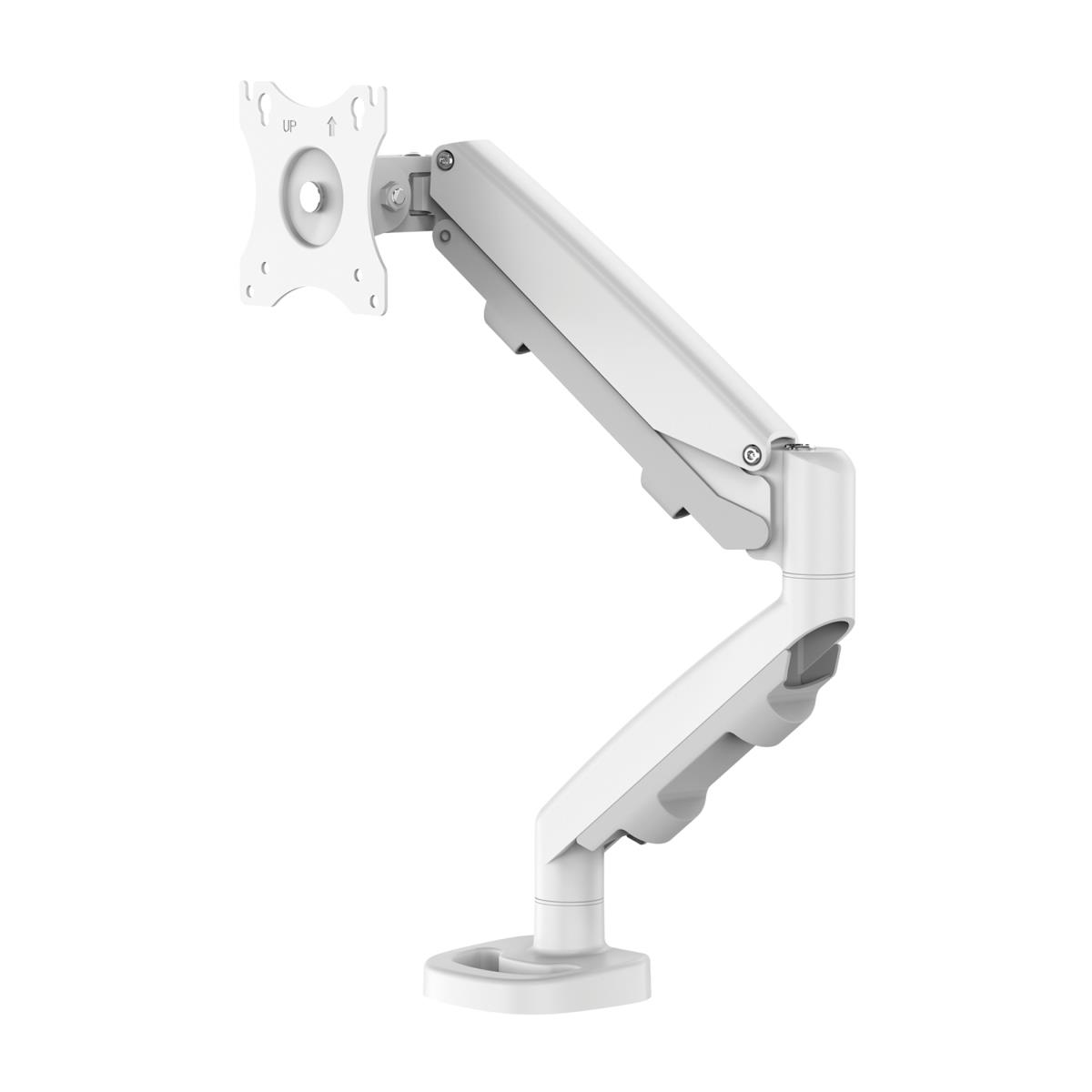

9683201 Eppa Single Monitor Arm - White
Introduction
Fellowes Eppa 9683201. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Maximum screen size: 101.6 cm (40"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -90 - 90°. Product colour: White
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 8 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.5 cm |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Maximum weight capacity | 8 kg |
| Maximum screen size | 101.6 cm (40") |
| Extension arm (max) | 53.8 cm |
| Suitable for TV | No |
| Ergonomics | |
| Adjustable depth | Yes |
| Depth adjustment range | 102 - 538 mm |
| Height adjustment | Yes |
| Height adjustment range | 140 - 406 mm |
| Swivel angle | 360° |
| Tilt angle range | -90 - 90° |
| Angle of rotation | 360° |
| Pan range | 0 - 180° |
| Number of arms | 1 |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | White |
| Housing material | Steel |
| Certification | FIRA International |
| Technical details | |
| Mounting type | Desk |
| Product colour | White |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 575 mm |
| Height | 480 mm |
| Weight | 2.9 kg |
| Package width | 419.1 mm |
| Package depth | 279.4 mm |
| Package height | 111.1 mm |
| Package type | Box |
| Package weight | 3.63 kg |
| Packaging data | |
| Package width | 419.1 mm |
| Package depth | 279.4 mm |
| Package height | 111.1 mm |
| Package type | Box |
| Package weight | 3.63 kg |
| Certificates | |
| Certification | FIRA International |
| Other features | |
| Certification | FIRA International |
| Warranty period | 5 year(s) |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Logistics data | |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 85299097 |
