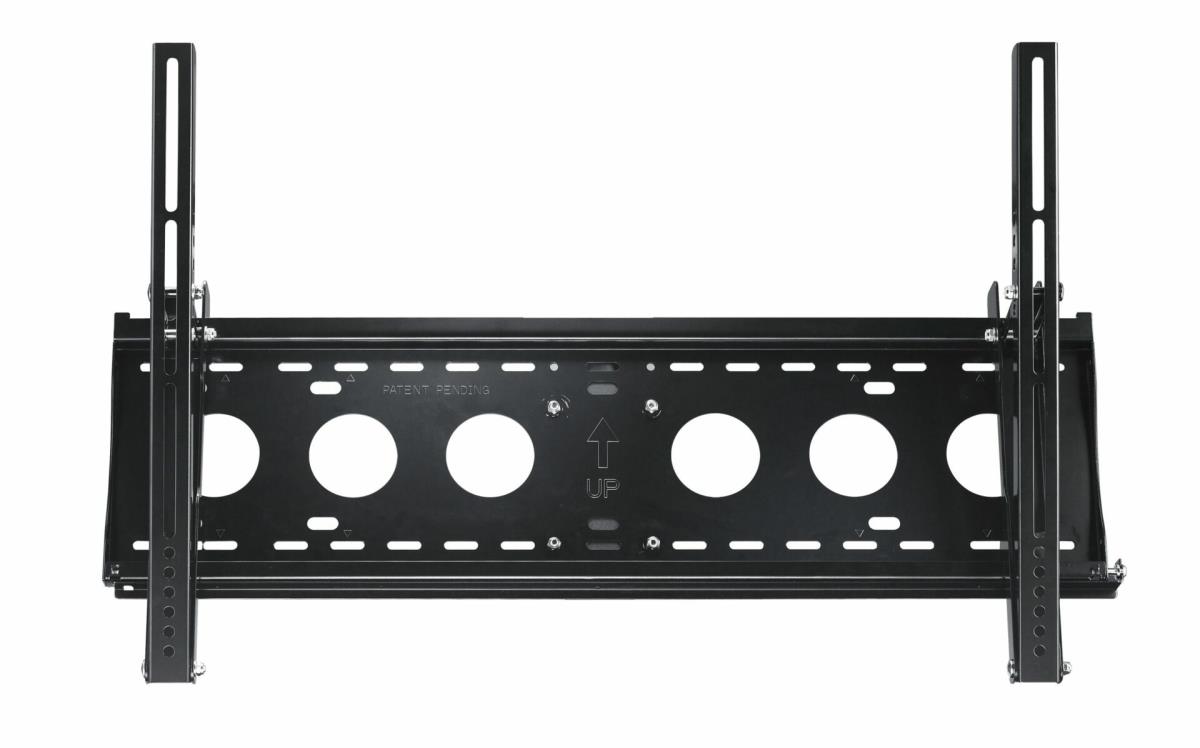

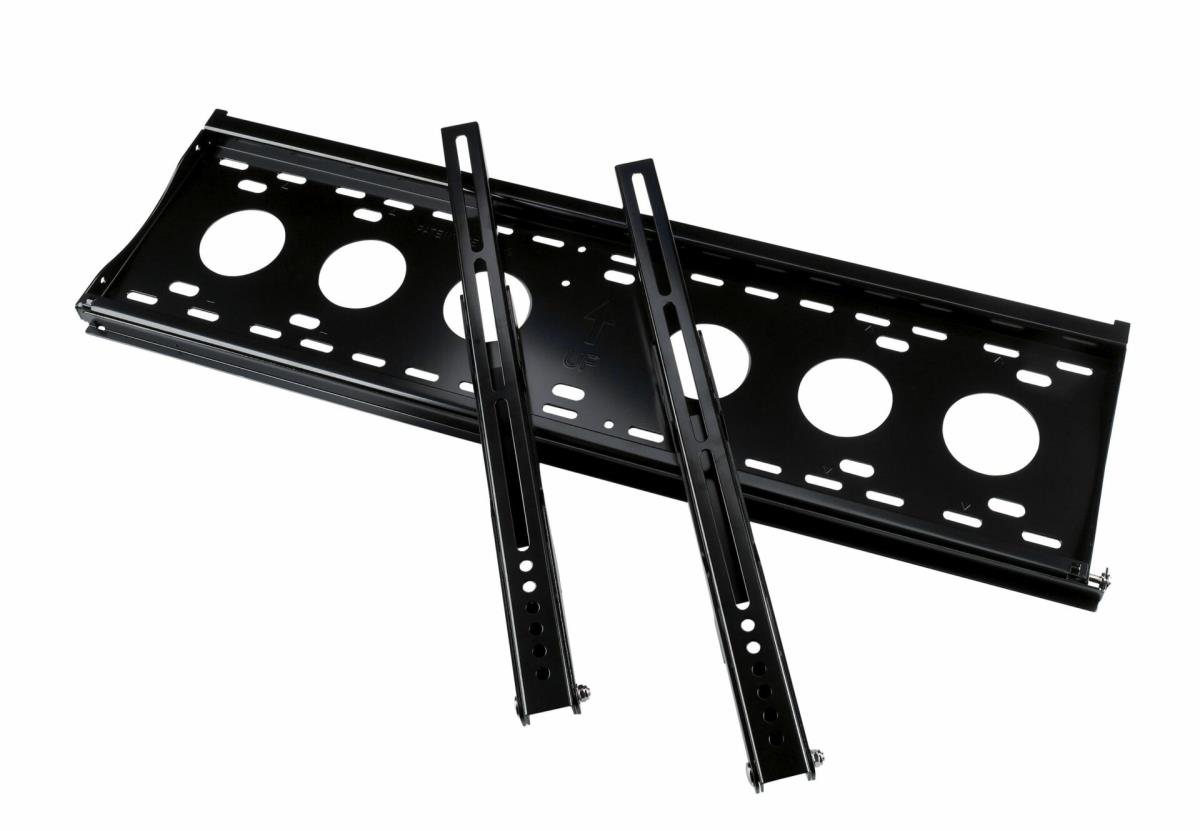

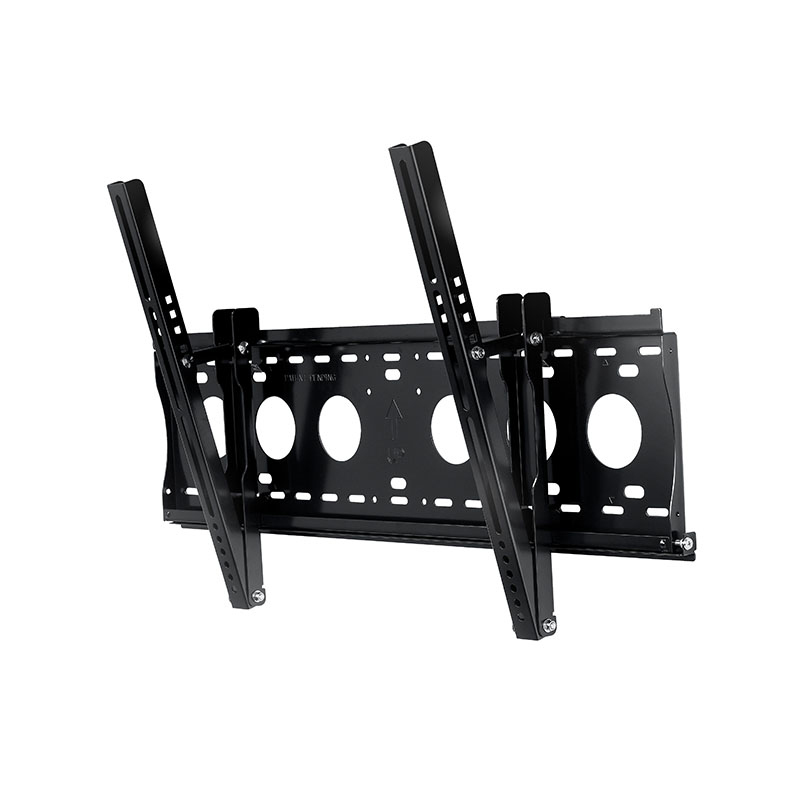

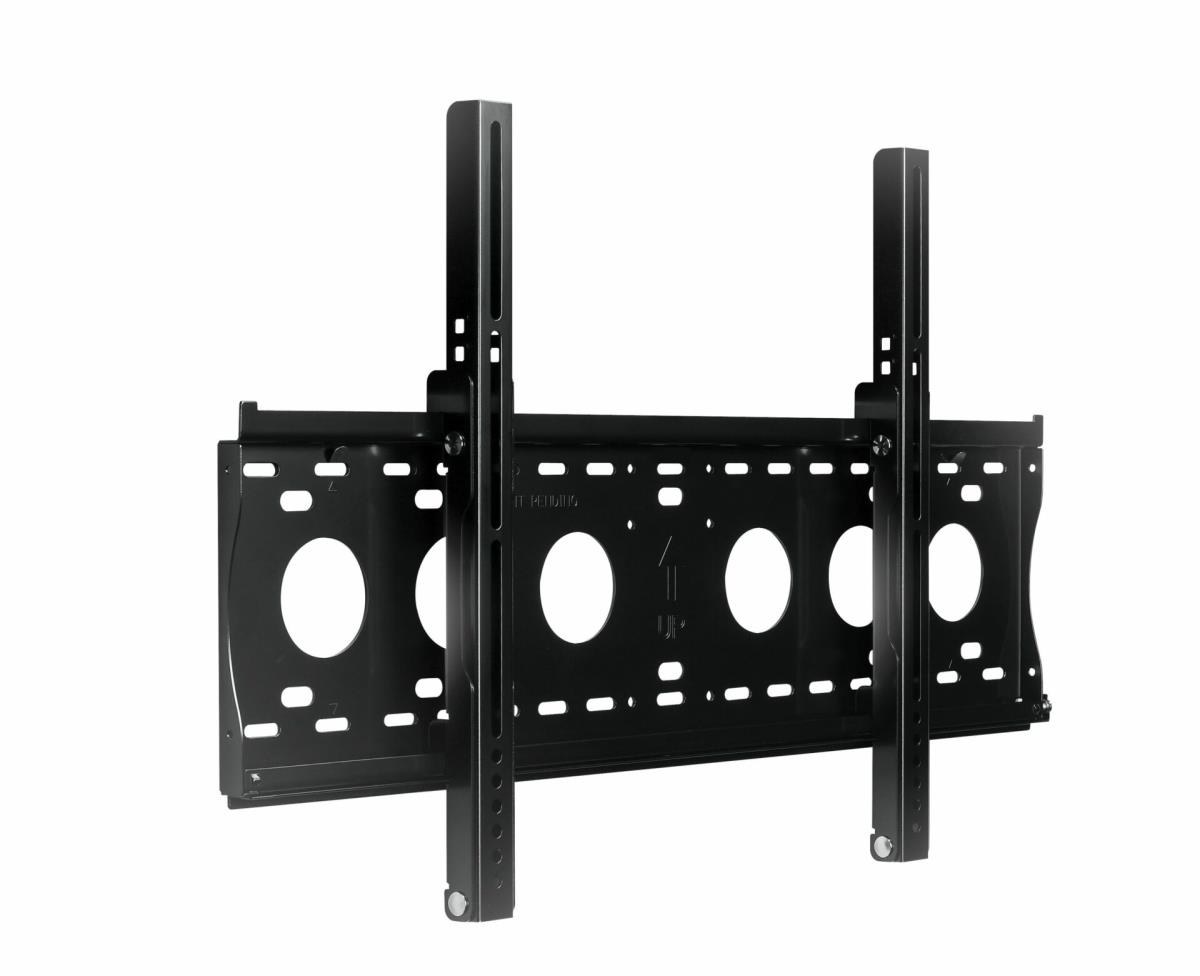

LMK-01 Mounting Kit
Introduction
Wall Mount Kit
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 106.7 cm (42") |
| Maximum weight capacity | 80 kg |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Maximum VESA mount | 750 x 450 mm |
| Maximum screen size | 2.18 m (86") |
| Ergonomics | |
| Tilt angle range | 0 - 15° |
| Tilt adjustment | Yes |
| Design | |
| Housing material | Steel |
| Product colour | Black |
| Weight & dimensions | |
| Width | 788 mm |
| Depth | 48 mm |
| Height | 490 mm |
| Weight | 5.1 kg |
| Package width | 836 mm |
| Package depth | 54 mm |
| Package height | 245 mm |
| Package weight | 5.9 kg |
| Package type | Box |
| Packaging data | |
| Package width | 836 mm |
| Package depth | 54 mm |
| Package height | 245 mm |
| Package weight | 5.9 kg |
| Package type | Box |
| Packaging content | |
| Mounting kit | Yes |
| Manual | Yes |
| Technical details | |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
