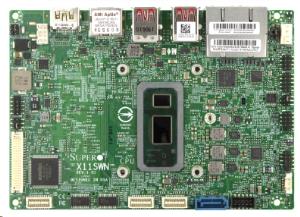

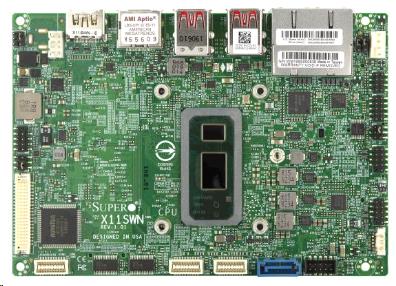

SUPERMICRO MBD-X11SWN-E-WOHS SUPERMICRO EU Product - MBD-X11SWN-E-WOHS Motherboard

*Image accuracy is not guaranteed
Please do not rely on the image for your purchase.

** All heavy items above 25KG will be charged shipping cost as per actual.
Please contact us for a shipping quote before placing order.

EU Product - MBD-X11SWN-E-WOHS Motherboard

Introduction

Supermicro motherboards support the latest generation Intel and AMD processors, memories and offer the most advanced technologies in the IT field.which is reflected in the overall quality of the boards. Materials that guarantee a long lifespan are used for manufacturing Supermicro motherboards, thanks to which a minimal failure rate is achieved.Also Supermicro offers the broadest selection of servers designed for industrial use.

Specifications


Physical Stats
Form Factor
  • 3.5" SBC
Dimension
  • 5.7" x 4" (14.6cm x 10.16cm)
Processor
CPU
  • 8th Generation Intel® Core™ i5-8365UE Processor
  • Single Socket FCBGA-1528 supported, CPU TDP supports Up to 15W TDP
Core
  • Up to 4 cores, 8 threads / 6MB Cache
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 64GB Unbuffered non-ECC SODIMM, DDR4-2400MHz
Memory Type
  • 2666/2400/2133MHz non-ECC DDR4 Unbuffered 2400MHz 260pin SODIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • System on Chip
Audio
  • 1x ALC 888S HD Audio port(s)ALC 888S HD Audio
Graphics
  • 1 Intel® UHD Graphics 620 port(s)
  • Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), _x000D_ HDMI 1.4 (max. resolution up to 4096x2160@30Hz), DP++ (max. resolution up to 4096x2304@60Hz)
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
  • Single LAN with Intel® Ethernet Controller I210IT
SATA
  • I-SATA0 (1x SATA 3.0 Port)
Input / Output
SATA
  • 1 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 port(s) (4 via header)
  • 4 USB 3.1 Gen2 port(s) (4 rear type A)
Video Output
  • 1 HDMI port(s), 1 48-bit LVDS port(s), 1 DP++(Dual-Mode DisplayPort) port(s)
Serial Port
  • 6 COM Port(s) (6 header), (4 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
TPM
  • 1 TPM Chip
Others
  • 1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C)
  • 1 8-bit GPIO header
  • 1 SMBus header
  • 1 System Fan
