EU Product - 1 por RJ45 nework crd, PCIe
Introduction

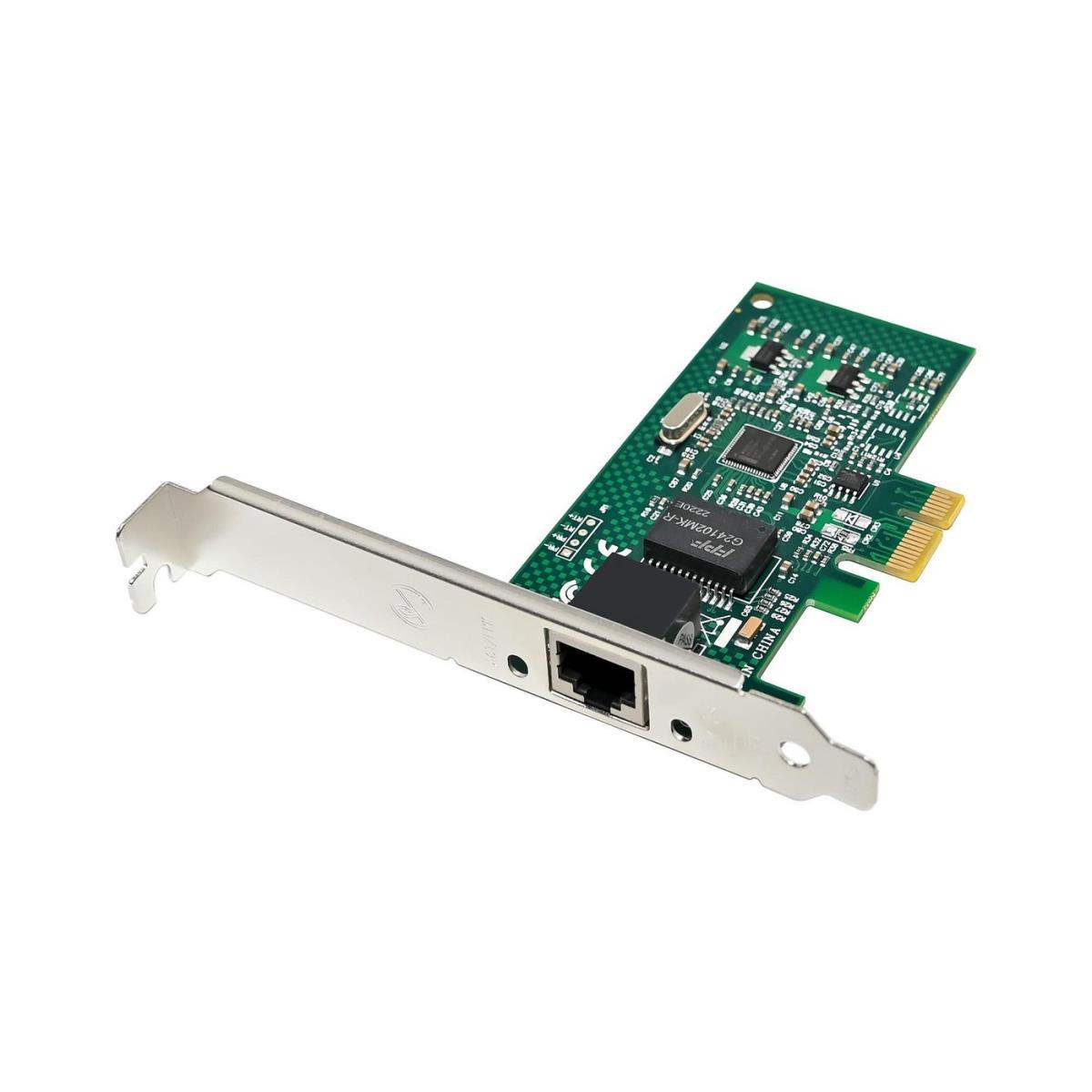

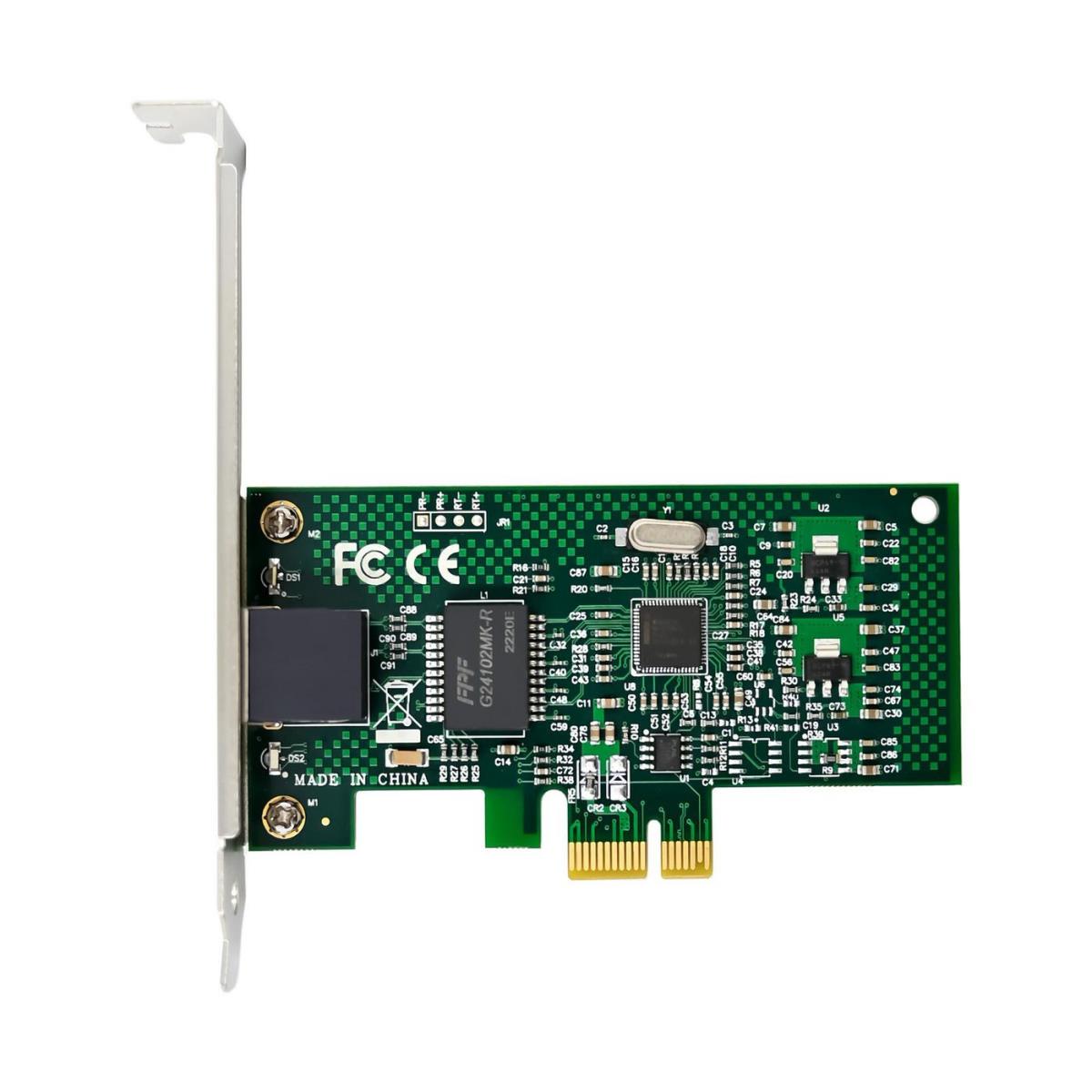

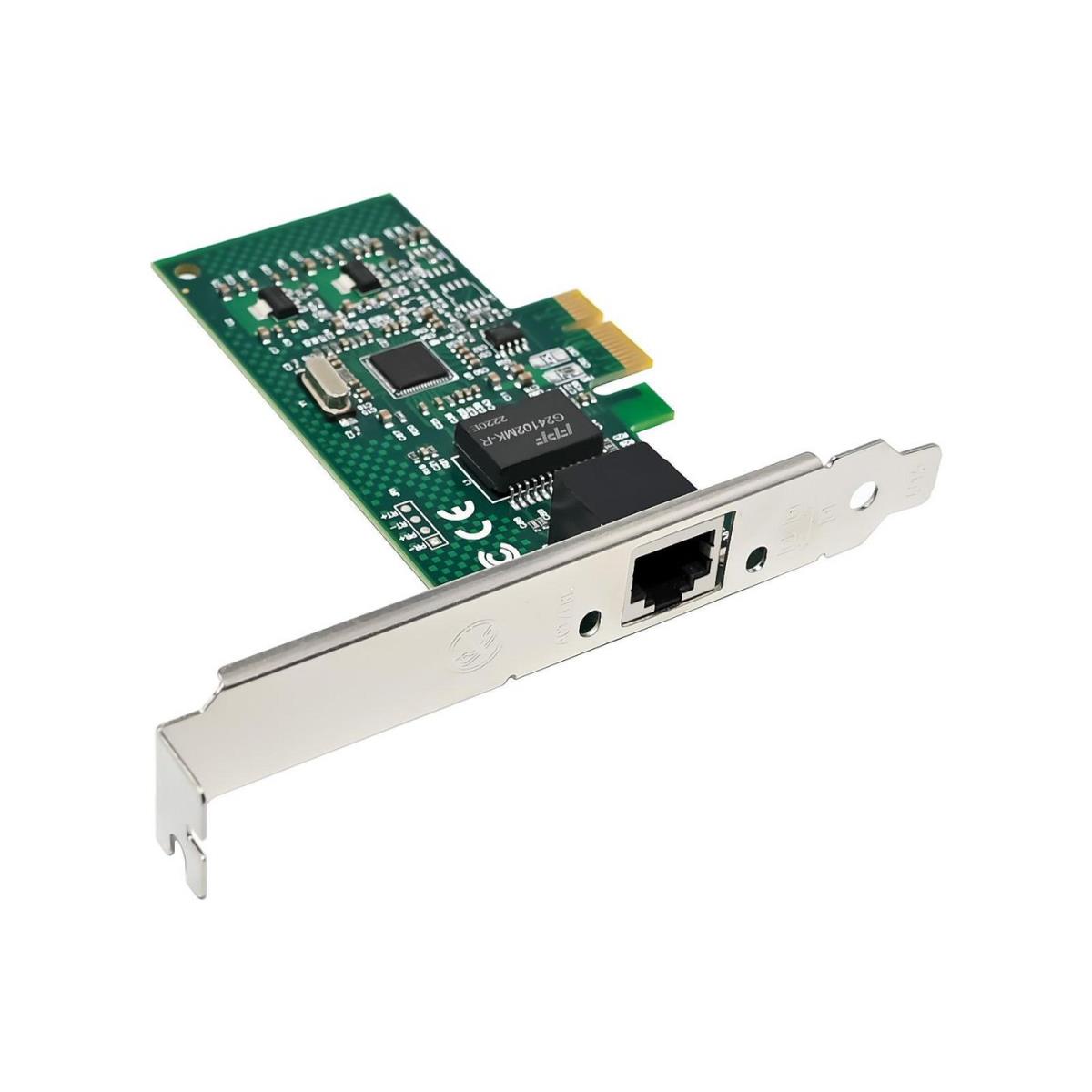

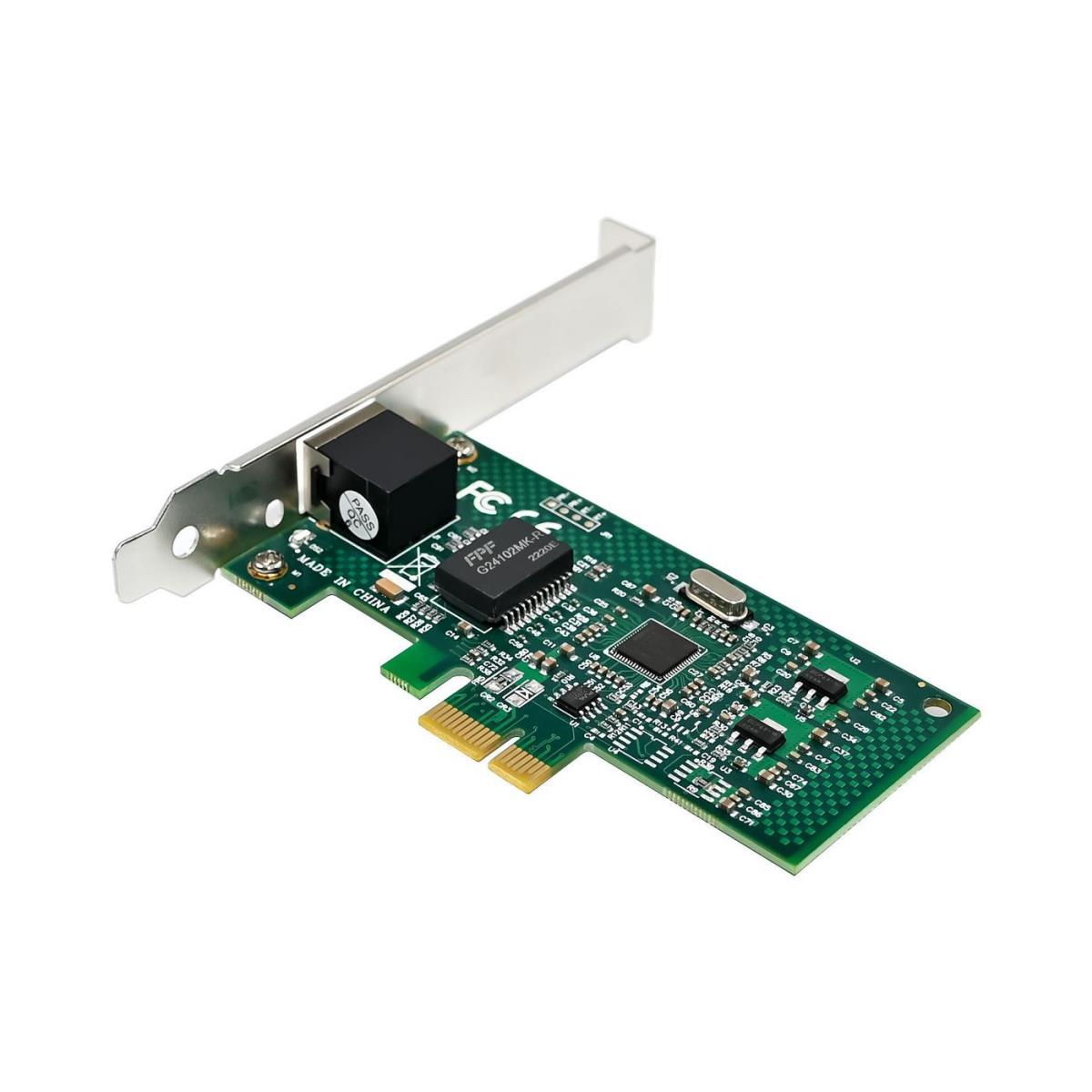

MicroConnect MC-PCIE-82574L PCI-E Network Card offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel Gigabit CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10/100/1000Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI-E input/output (I/O) bus to provide connectivity you can count on. Based on the low power Intel 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a Low-cost, Low-power, Compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry level server adapter as well.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
| Internal | Yes |
| Component for | PC |
| Power | |
| Power consumption (typical) | 1.9 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Weight | 10 g |
| Package width | 174 mm |
| Package depth | 130 mm |
| Package height | 34 mm |
| Package weight | 110 g |
| Packaging data | |
| Drivers included | Yes |
| Package width | 174 mm |
| Package depth | 130 mm |
| Package height | 34 mm |
| Package weight | 110 g |
| Quantity per pack | 1 pc(s) |
| Manual | Yes |
| Packaging content | |
| Manual | Yes |
| Drivers included | Yes |
| Technical details | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
