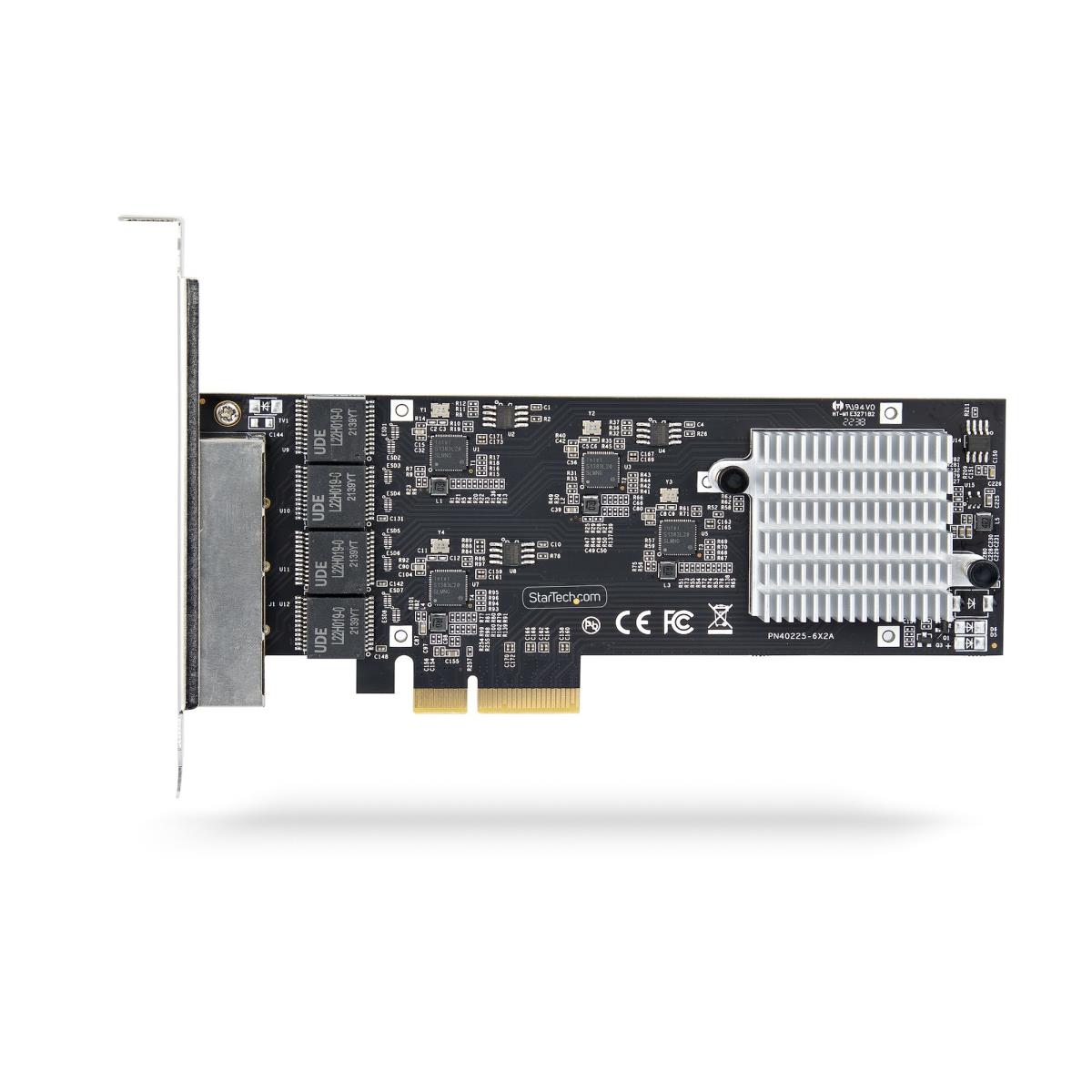

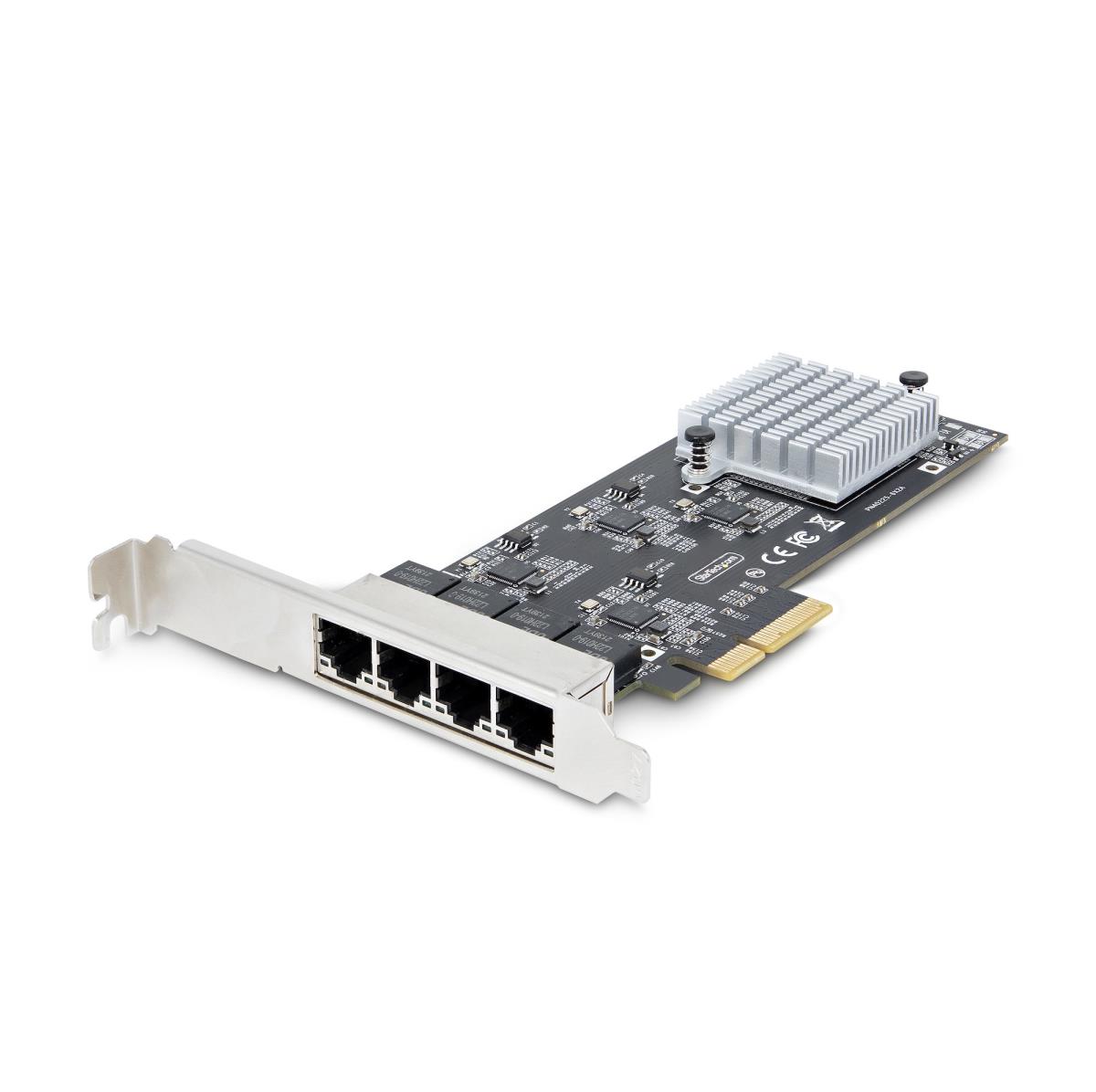

STARTECH.COM PR42GI-NETWORK-CARD STARTECH.COM 4-PORT 2.5G PCIE NETWORK CARD

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

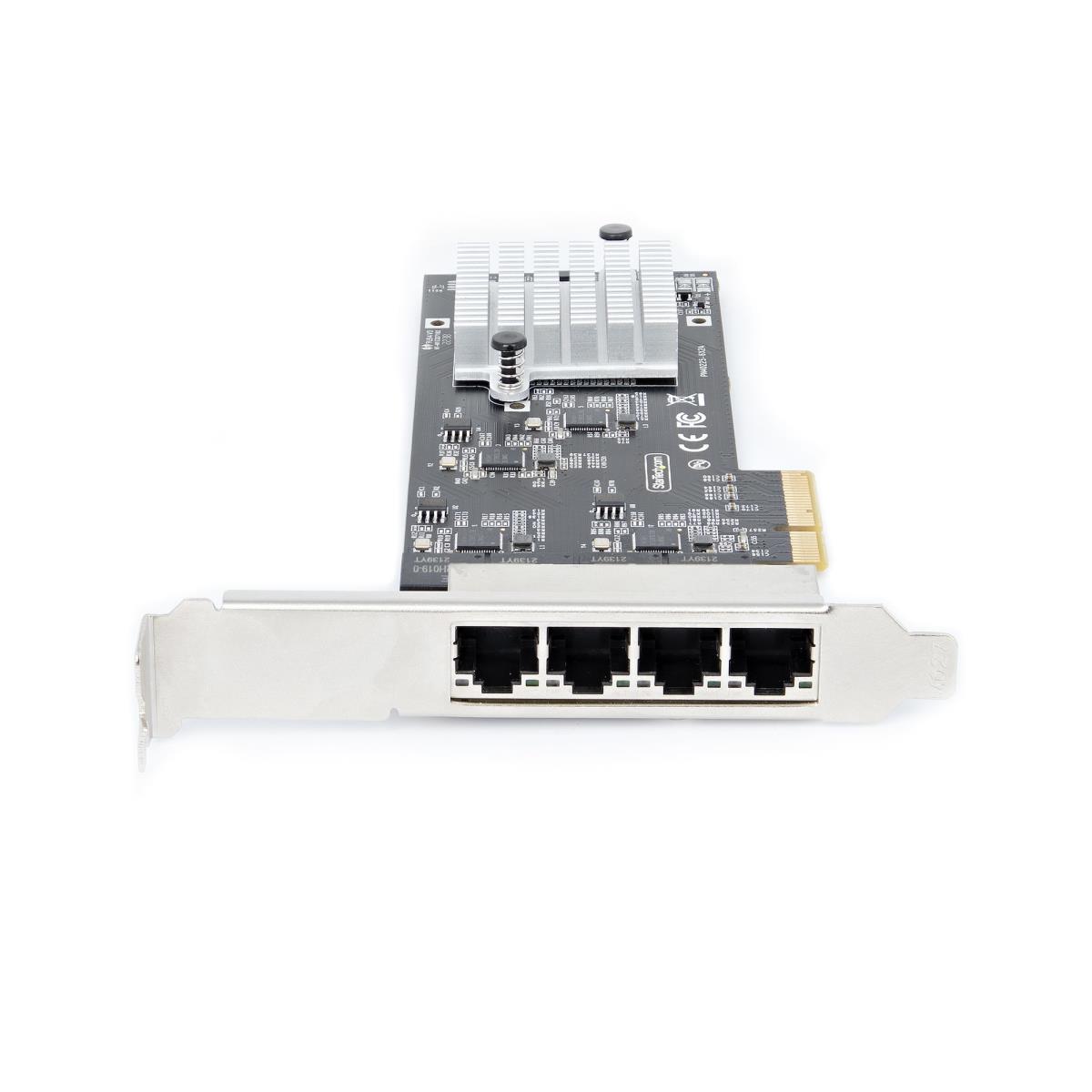

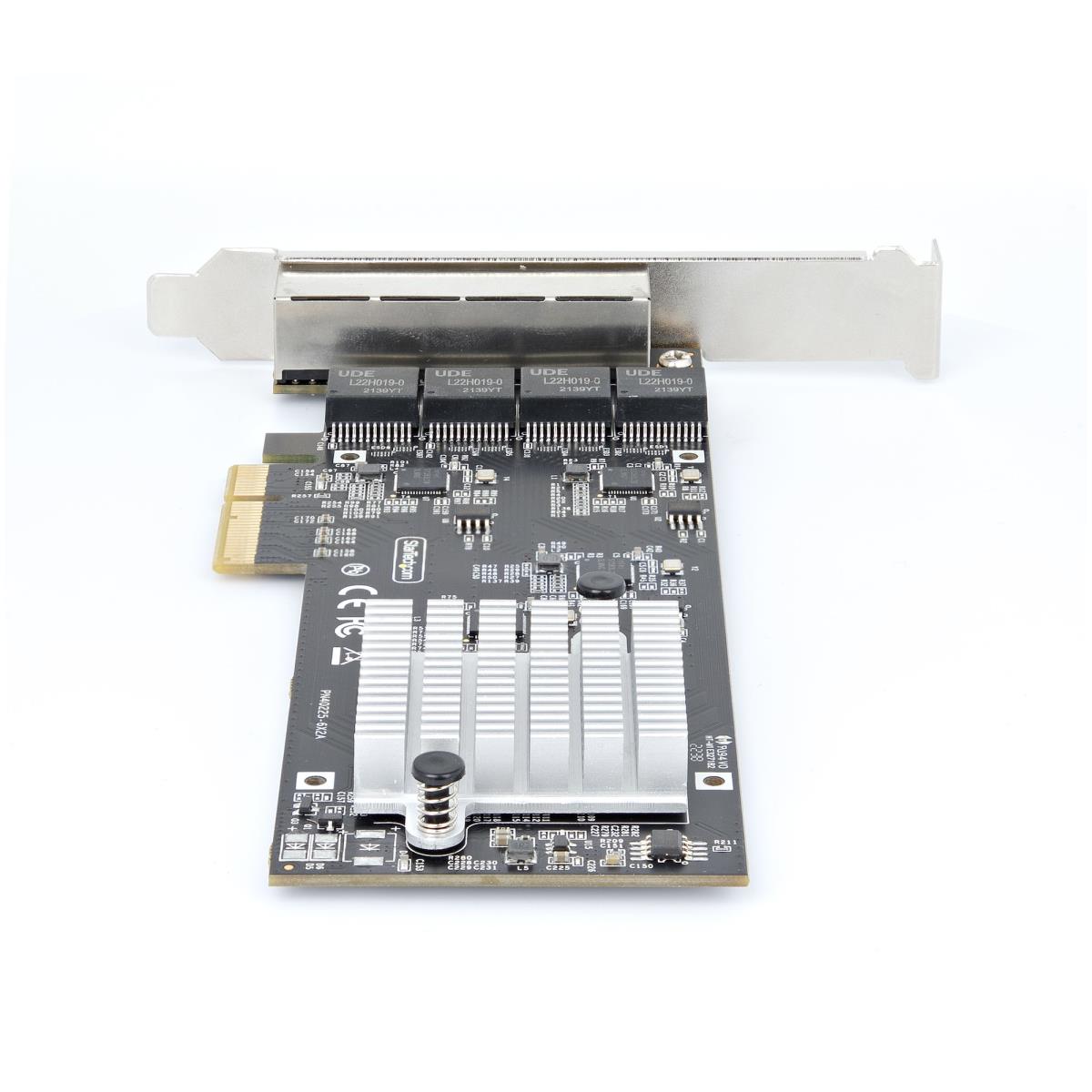

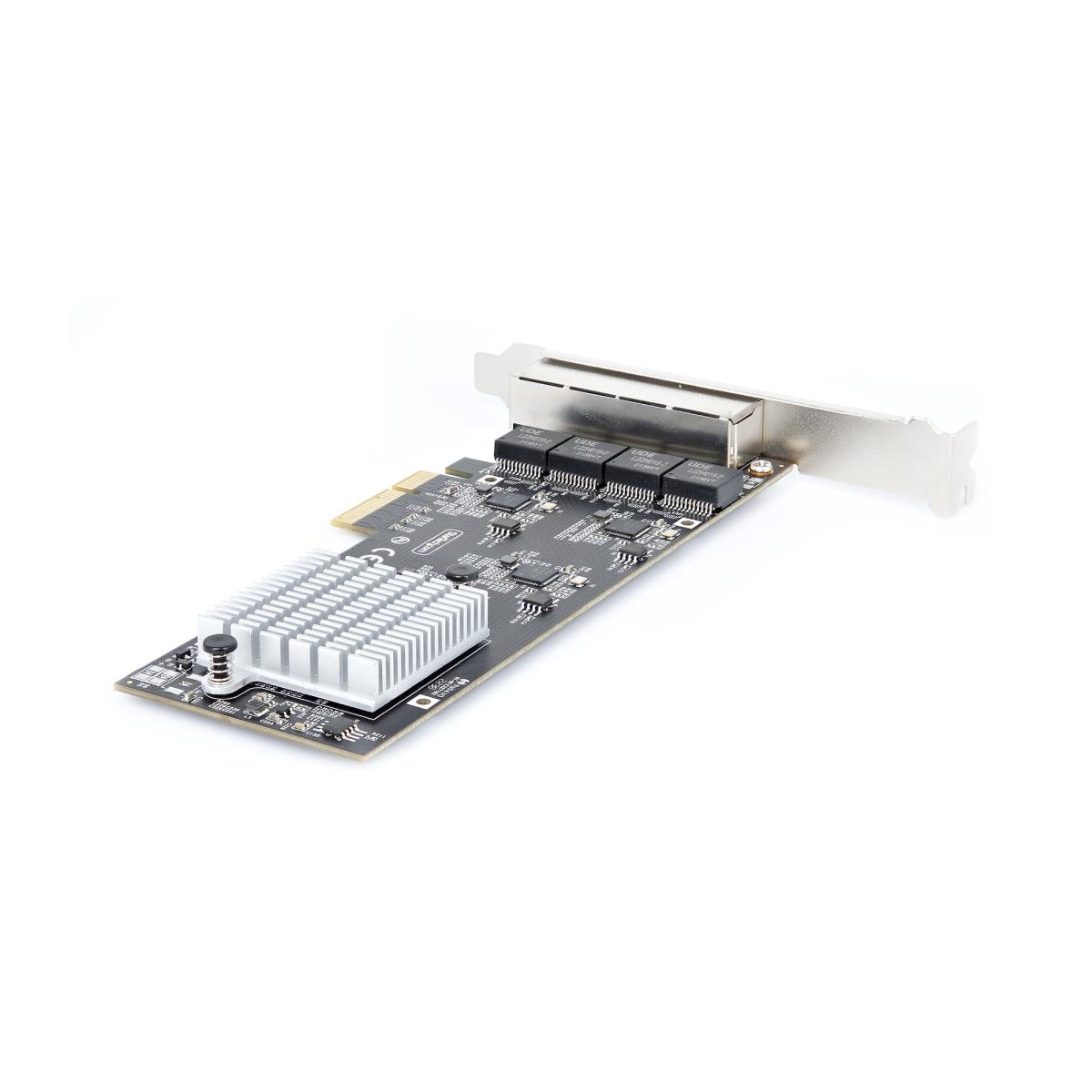

PR42GI-NETWORK-CARD STARTECH.COM 4-PORT 2.5G PCIE NETWORK CARD

Part No:PR42GI-NETWORK-CARD

Stock:4 In Stock

EAN Code:0065030898157

£181.82 Excl. VAT

£218.18 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

4-PORT 2.5G PCIE NETWORK CARD

Introduction

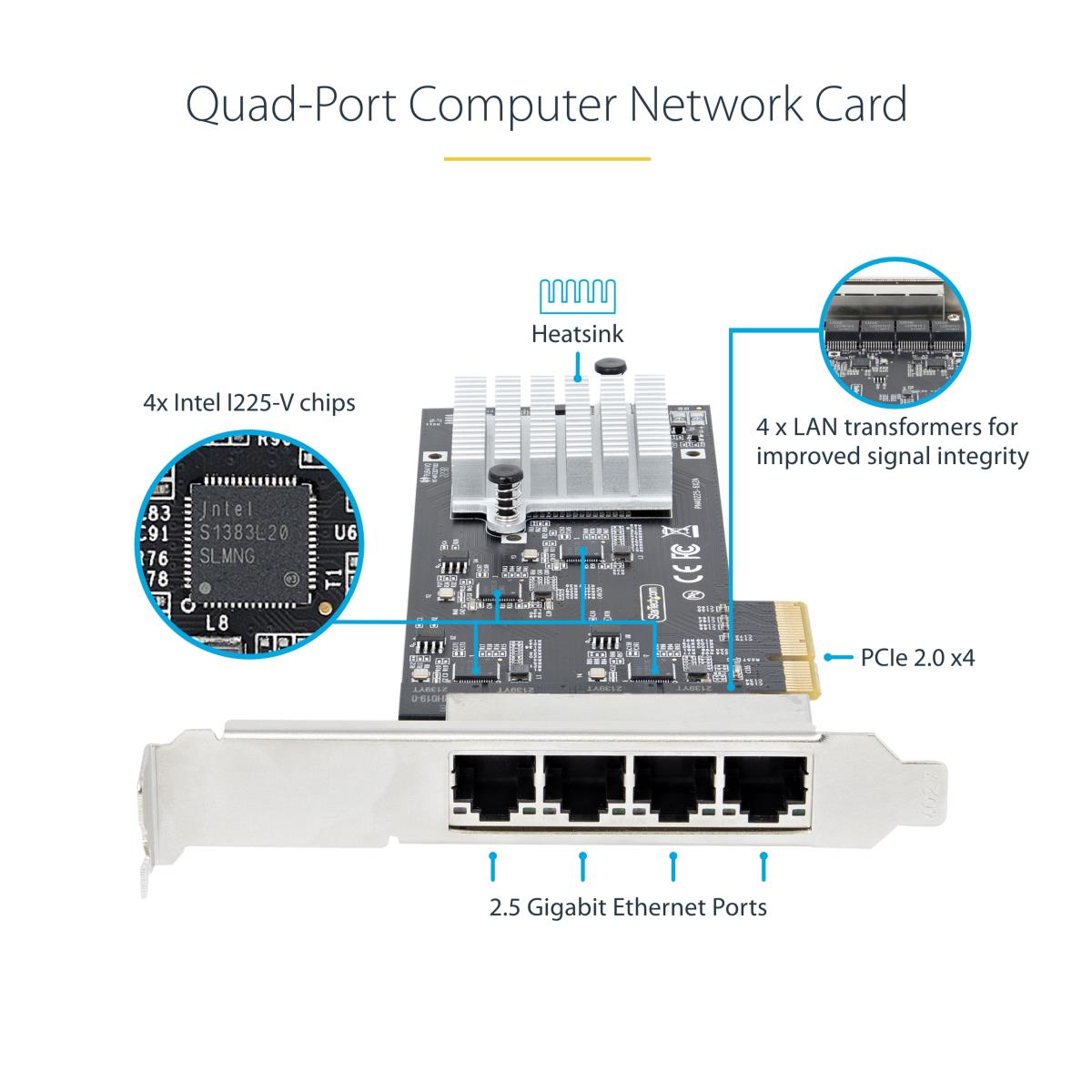

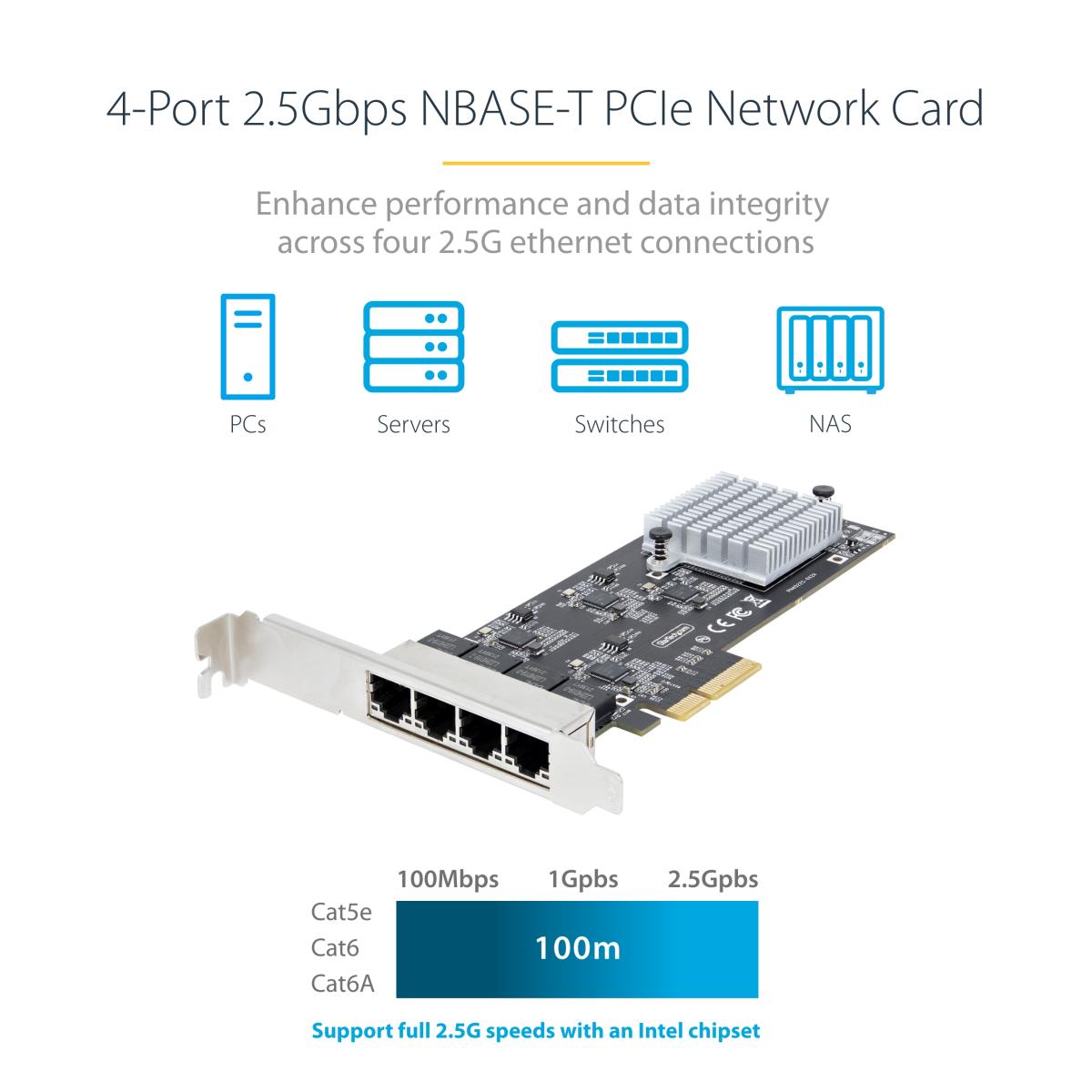

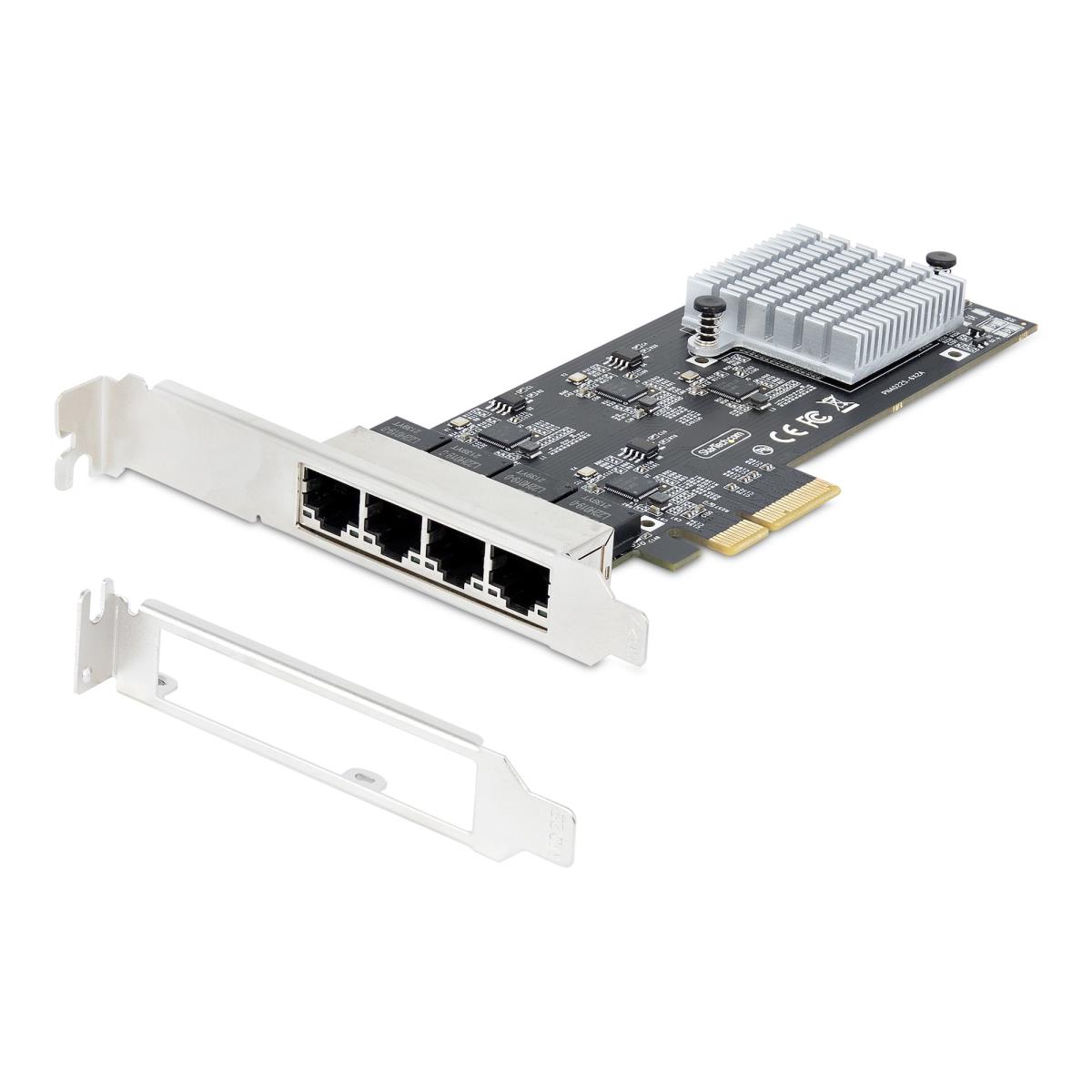

Quad-port PCIe network card with IntelŪ I225-V chip features multi-Gigabit speeds with NBASE-T supportThis quad-port 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity across four 2.5G ethernet connections. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.Increased Network SpeedThe PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.Enhance Existing HardwareThe network interface card connects via an available x4 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.The StarTech.com Advantage

Specifications

Ports & interfaces
InternalYes
PCI version2.0
Ethernet LAN (RJ-45) ports4
InterfaceEthernet
Host interfacePCI Express
Connectivity technologyWired
Bandwidth
Full duplexYes
Maximum data transfer rate2500 Mbit/s
Network
ChipsetIntel I225-V
VLAN taggingYes
Ethernet interface type2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Jumbo frames9000
Quality of Service (QoS) supportYes
Ethernet LANYes
Networking standardsIEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Wake-on-LAN readyYes
Auto MDIX IEEEYes
Jumbo frames supportYes
Full duplexYes
Ethernet LAN data rates10,100,1000,2000,2500 Mbit/s
Copper ethernet cabling technology10BASE-TX, 100BASE-TX, 1000BASE-T, 2500BASE-T
Maximum data transfer rate2500 Mbit/s
Antenna
Quality of Service (QoS) supportYes
Technical details
Quality of Service (QoS) supportYes
Product colourBlack
Wake-on-LAN readyYes
Auto MDIX IEEEYes
Design
Product colourBlack
ChipsetIntel I225-V
InternalYes
LED indicatorsActivity, Link
Component forPC/Server
Software

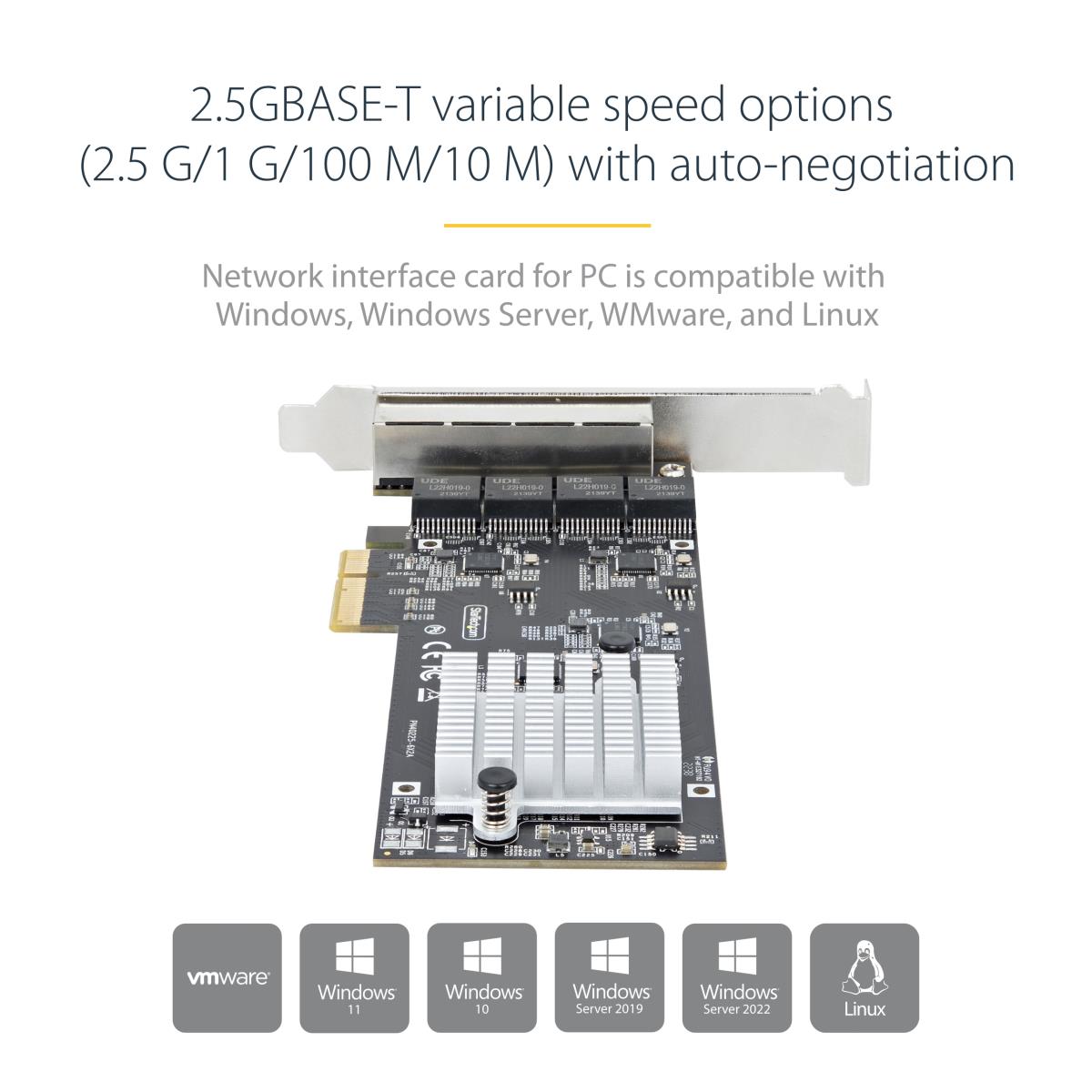

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supportedYes
Indication
LED indicatorsActivity, Link
System requirements
Server operating systems supportedWindows Server 2019, Windows Server 2022
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supportedYes
Operational conditions
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)5 - 90%

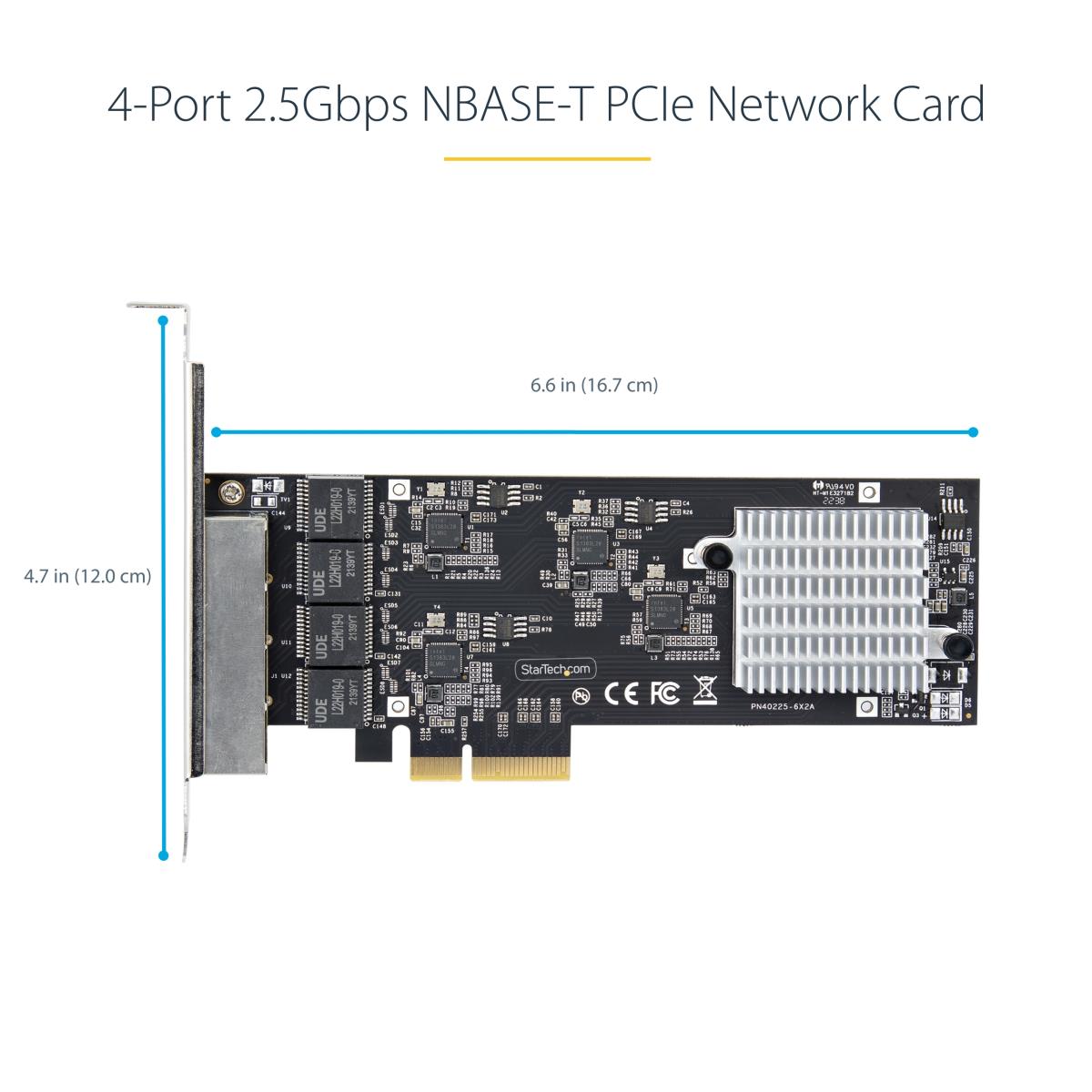

Weight & dimensions
Width180 mm
Depth120 mm
Height22 mm
Weight100 g
Package width170 mm
Package depth142 mm
Package height30 mm
Package weight130 g
Packaging data
Low-profile bracketYes
Package width170 mm
Package depth142 mm
Package height30 mm
Package weight130 g
Quick installation guideYes

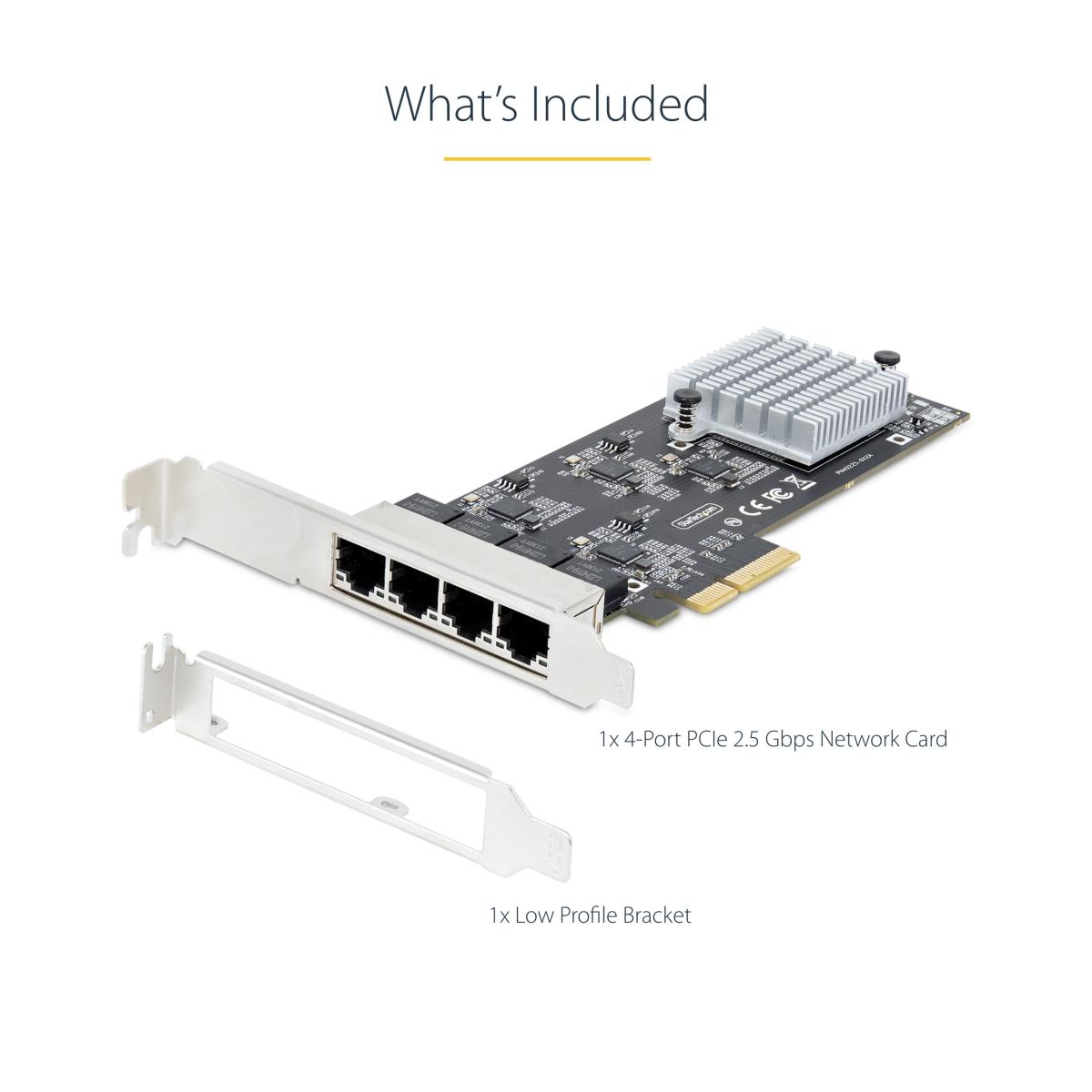

Packaging content
Quick installation guideYes
Low-profile bracketYes
Performance
Server operating systems supportedWindows Server 2019, Windows Server 2022
Wake-on-LAN readyYes
Auto MDIX IEEEYes
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supportedYes
Other features
ChipsetIntel I225-V
Jumbo frames9000
Logistics data
Master (outer) case width605 mm
Master (outer) case length325 mm
Master (outer) case height385 mm
Products per master (outer) case80 pc(s)
