STARTECH.COM ST1000SPEX2 STARTECH.COM 1 PORT PCIE NETWORK CARD LAN

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

ST1000SPEX2 STARTECH.COM 1 PORT PCIE NETWORK CARD LAN

Part No:ST1000SPEX2

Stock:140 In Stock

EAN Code:0065030849265

£23.64 Excl. VAT

£28.37 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

1 PORT PCIE NETWORK CARD LAN

Introduction

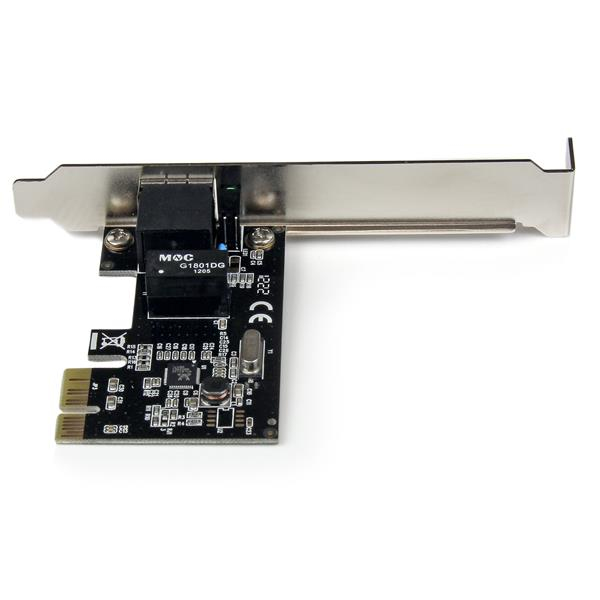

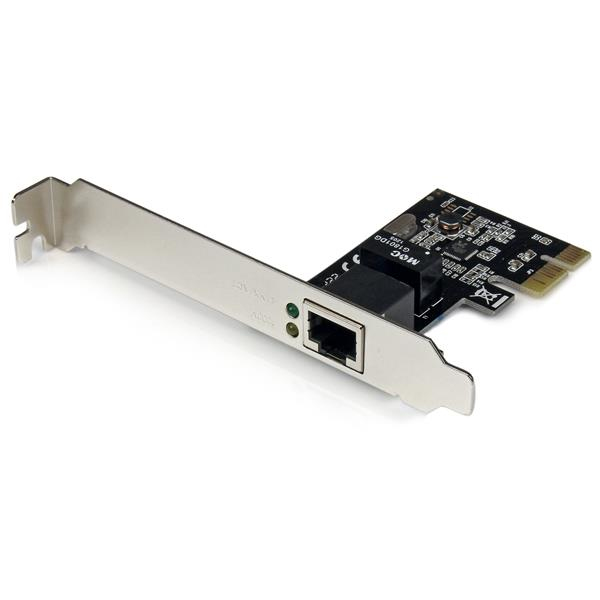

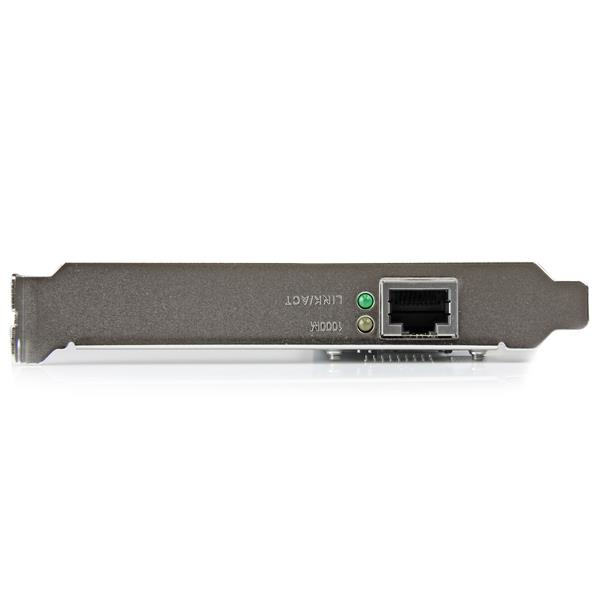

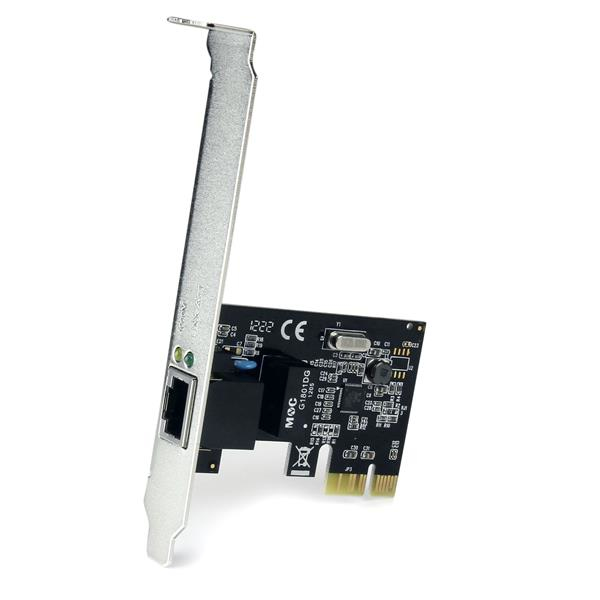

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.

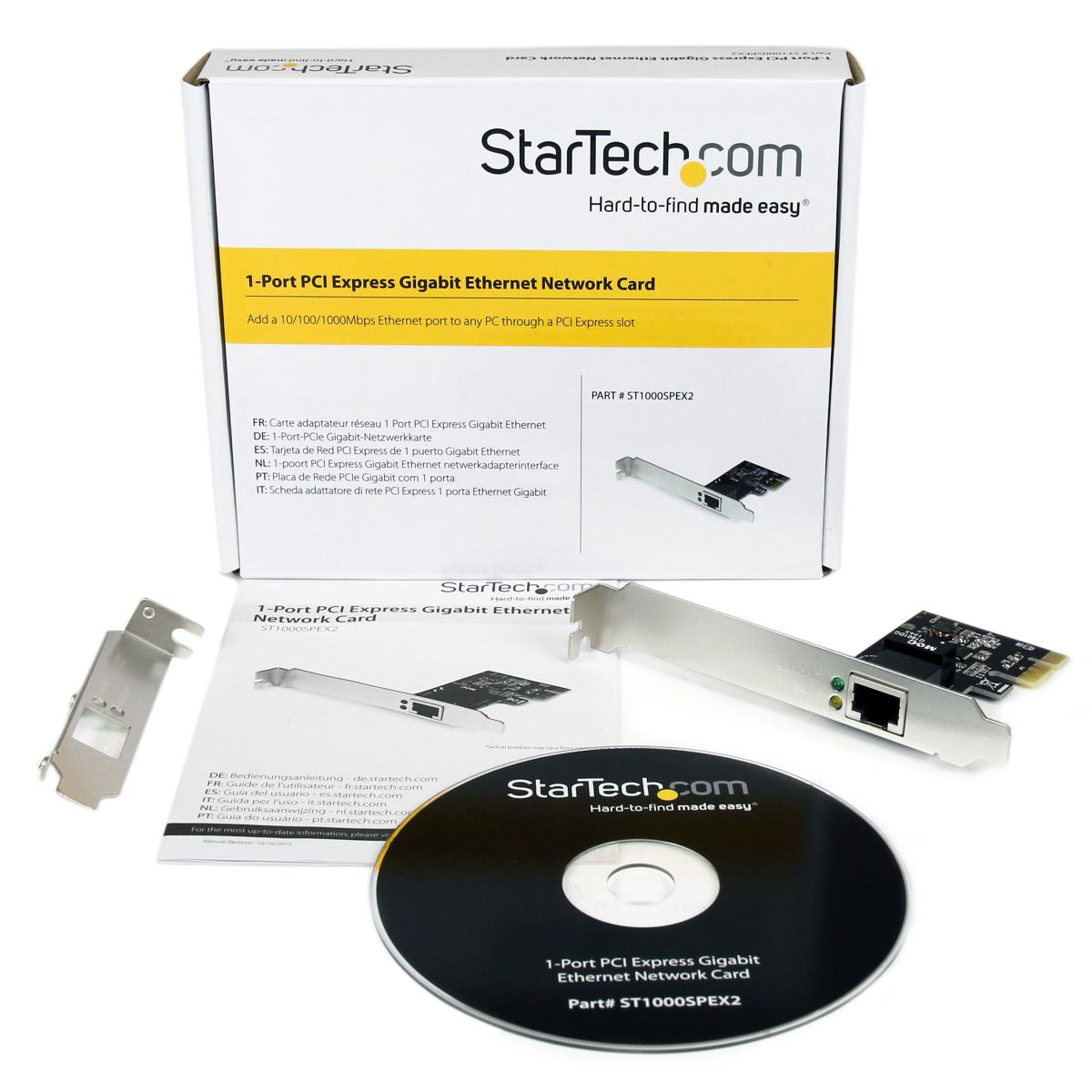

Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.

The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage
- Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket
- Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX

Specifications

Ports & interfaces
InternalYes
Ethernet LAN (RJ-45) ports1
InterfaceEthernet
Host interfacePCI Express
Connectivity technologyWired
Bandwidth
Supported data transfer rates10/100/1000 Mbit/s
Full duplexYes
Maximum data transfer rate1000 Mbit/s
Wireless LAN features
Wi-FiNo
Network
Supported data transfer rates10/100/1000 Mbit/s
ChipsetRealtek RTL8111E
Ethernet interface typeGigabit Ethernet
Jumbo frames9000
Wi-FiNo
Ethernet LANYes
Cabling technology10/100/1000BaseT(X)
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN readyYes
Auto MDIX IEEEYes
Supported network protocolsCSMA/CD
Jumbo frames supportYes
Full duplexYes
Ethernet LAN data rates10,100,1000 Mbit/s
Maximum data transfer rate1000 Mbit/s
Technical details
Wake-on-LAN readyYes
Auto MDIX IEEEYes
Mean time between failures (MTBF)376212 h
Harmonized System (HS) code85176990
Sustainability certificatesRoHS
Design
ChipsetRealtek RTL8111E
CertificationCE, FCC
InternalYes
Mean time between failures (MTBF)376212 h
LED indicatorsActivity, Link
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supportedMac OS X 10.4 Tiger, Mac OS X 10.5 Leopard
Linux operating systems supportedYes
Indication
LED indicatorsActivity, Link
System requirements
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supportedMac OS X 10.4 Tiger, Mac OS X 10.5 Leopard
Linux operating systems supportedYes
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)0 - 100 °C
Operating relative humidity (H-H)10 - 90%
Sustainability
Sustainability certificatesRoHS
Weight & dimensions
Width120.3 mm
Depth67.9 mm
Height18 mm
Weight40 g
Package width142 mm
Package depth171 mm
Package height32 mm
Package weight126 g
Protocols
Supported network protocolsCSMA/CD
Packaging data
Drivers includedYes
Low-profile bracketYes
Package width142 mm
Package depth171 mm
Package height32 mm
Package weight126 g
ManualYes
Packaging content
ManualYes
Drivers includedYes
Low-profile bracketYes
Performance
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Wake-on-LAN readyYes
Auto MDIX IEEEYes
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supportedMac OS X 10.4 Tiger, Mac OS X 10.5 Leopard
Linux operating systems supportedYes
Mean time between failures (MTBF)376212 h
Certificates
CertificationCE, FCC
Other features
ChipsetRealtek RTL8111E
ManualYes
Jumbo frames9000
Supported data transfer rates10/100/1000 Mbit/s
Harmonized System (HS) code85176990
Logistics data
Harmonized System (HS) code85176990
