STARTECH.COM ST1000PEXPSE STARTECH.COM 1 PORT POE NETWORK CARD ADAPTER

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

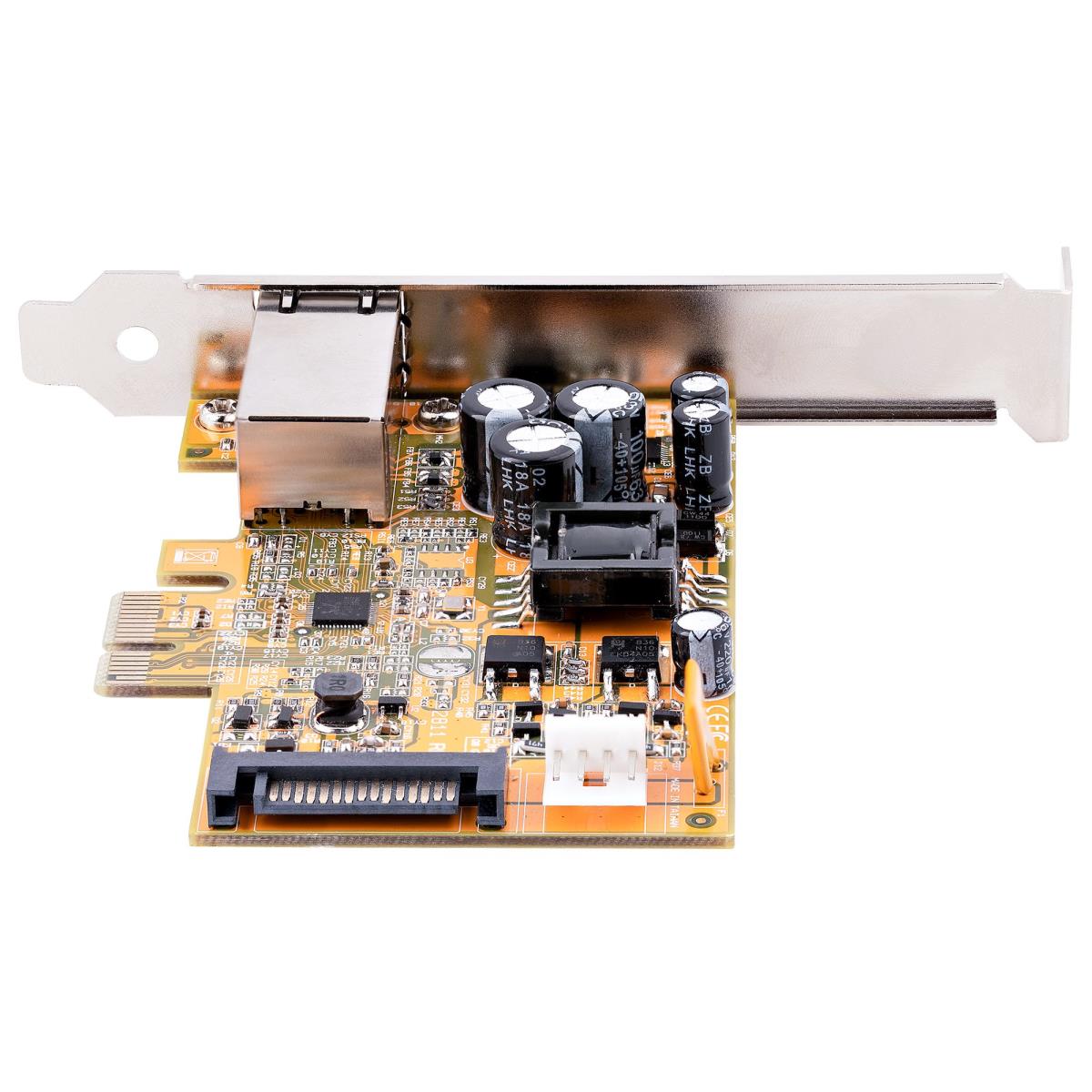

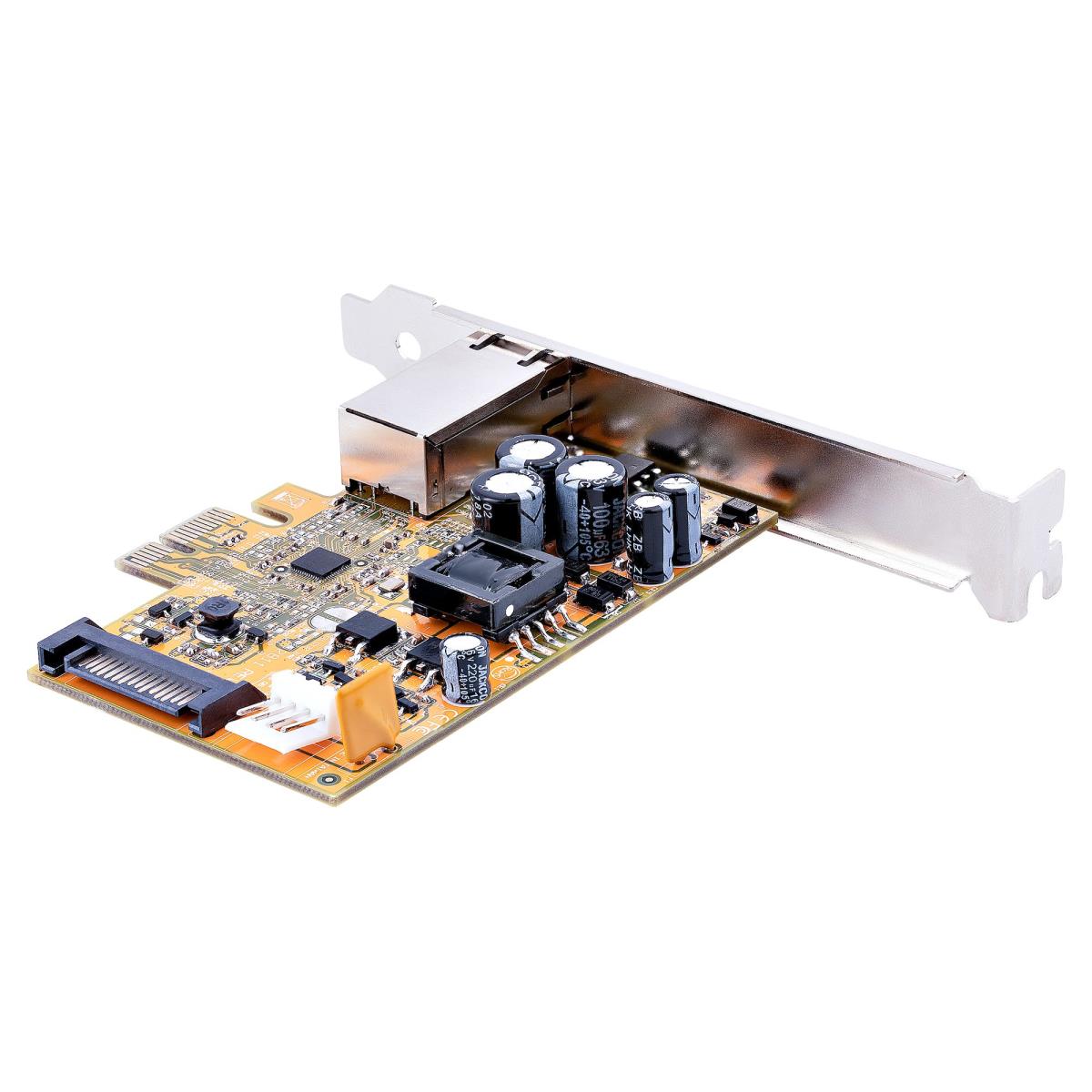

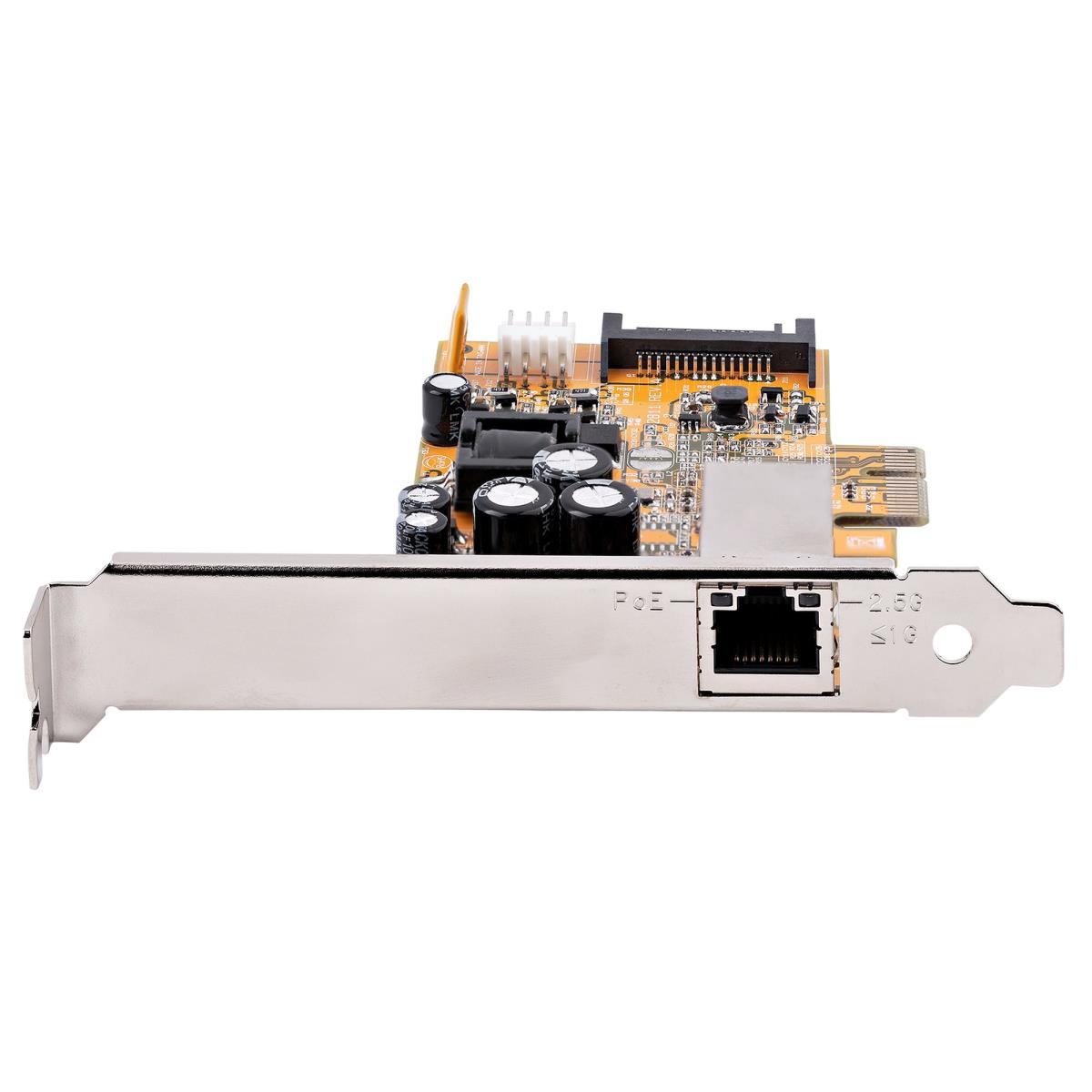

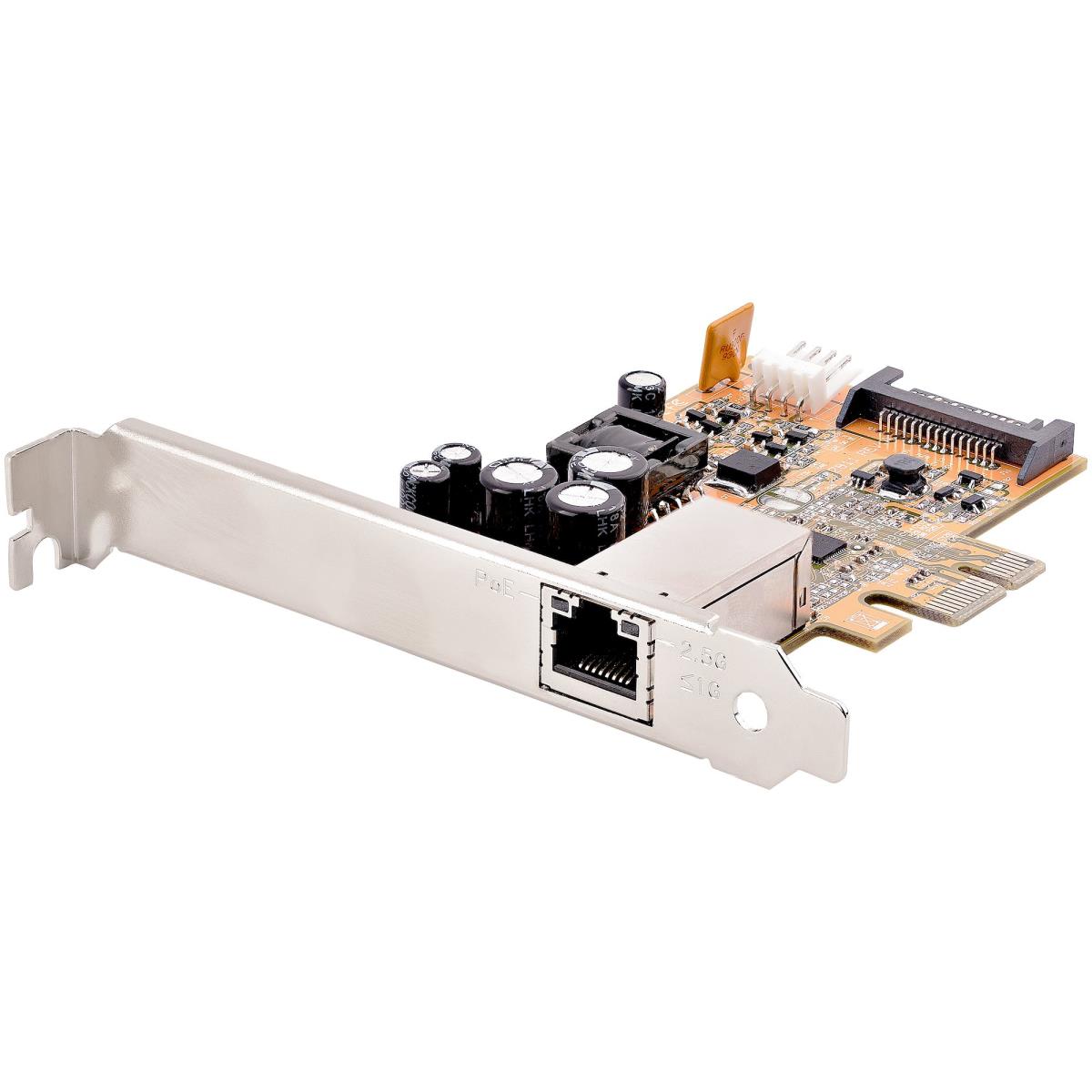

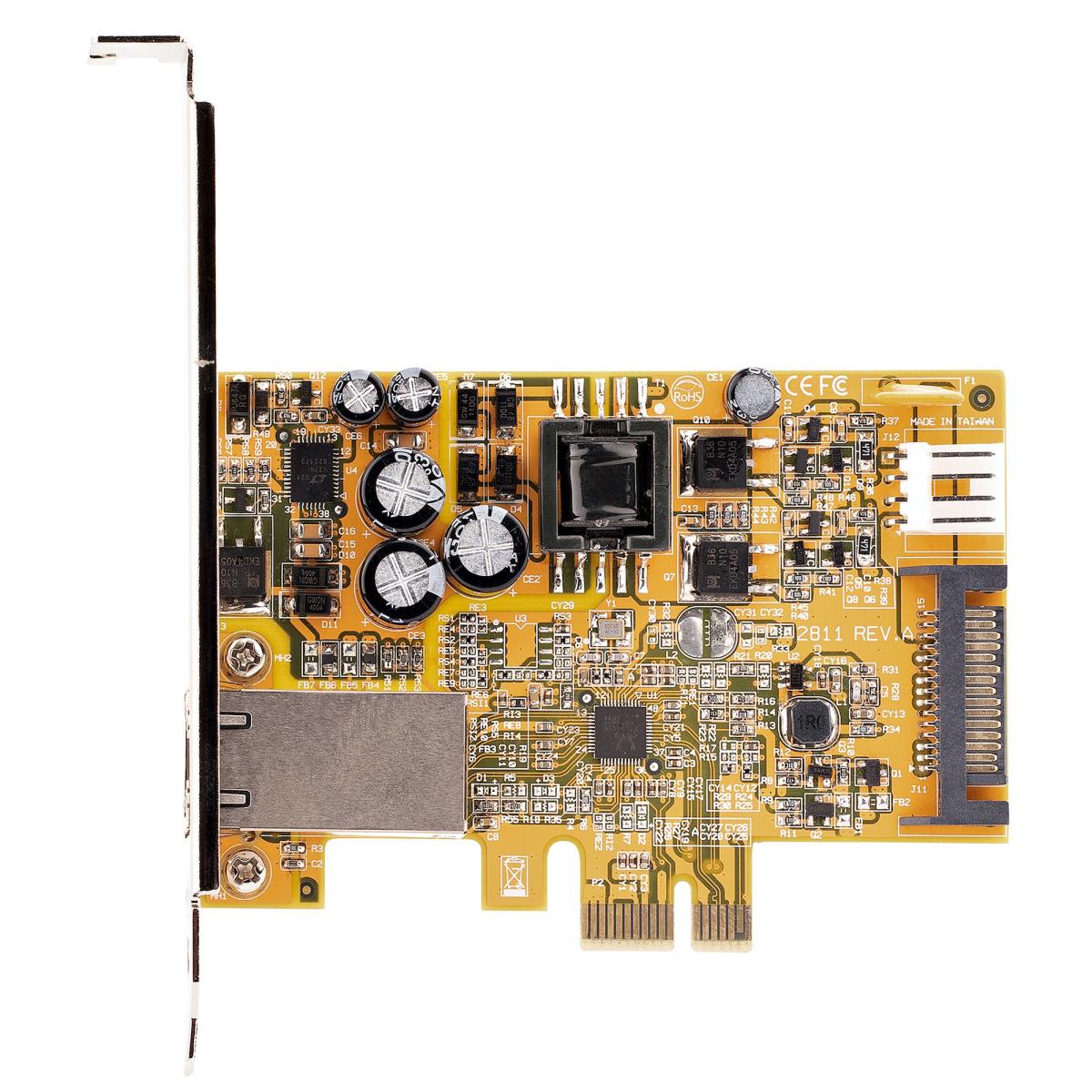

ST1000PEXPSE STARTECH.COM 1 PORT POE NETWORK CARD ADAPTER

Part No:ST1000PEXPSE

Stock:1 In Stock

EAN Code:0065030893107

£81.36 Excl. VAT

£97.63 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

1 PORT POE NETWORK CARD ADAPTER

Introduction

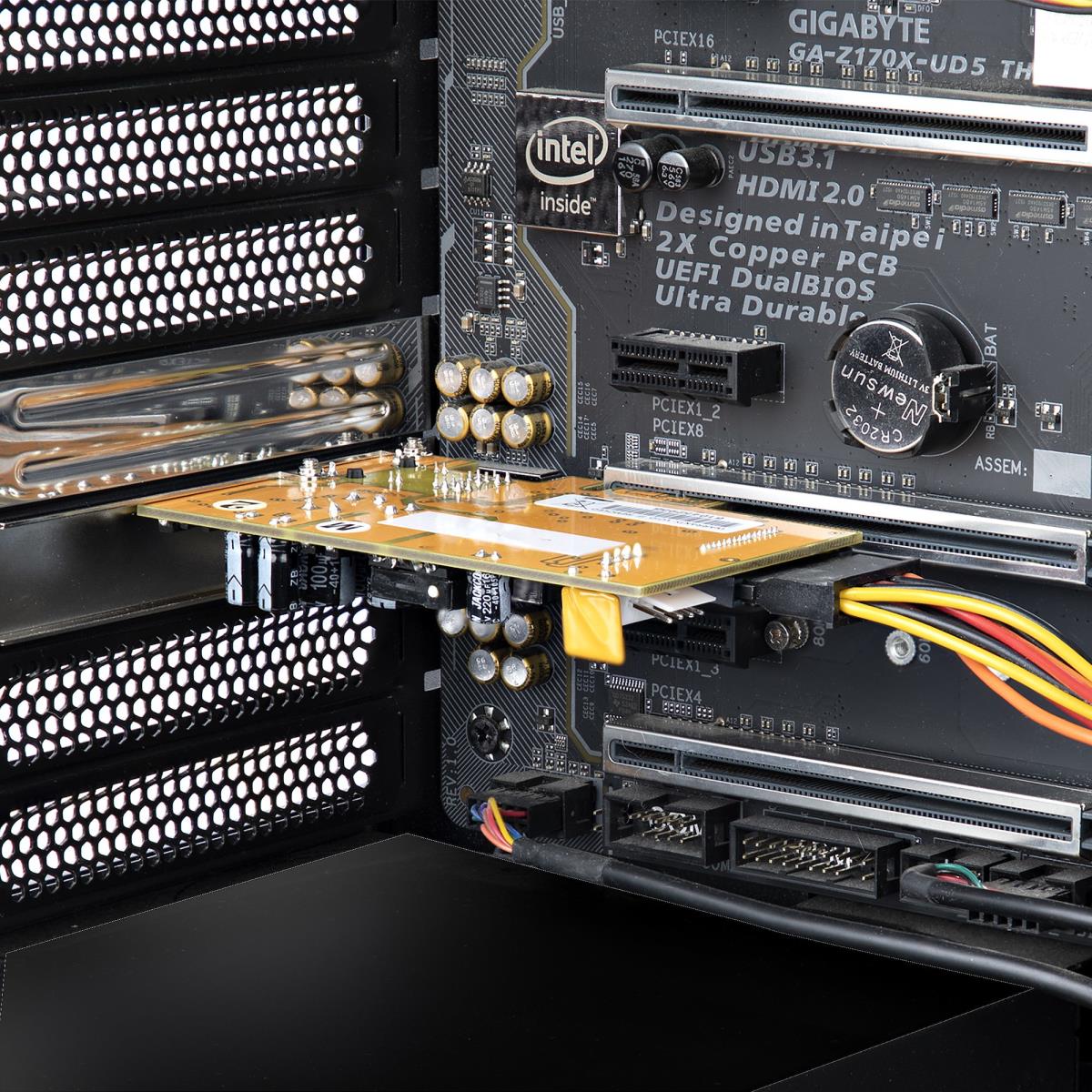

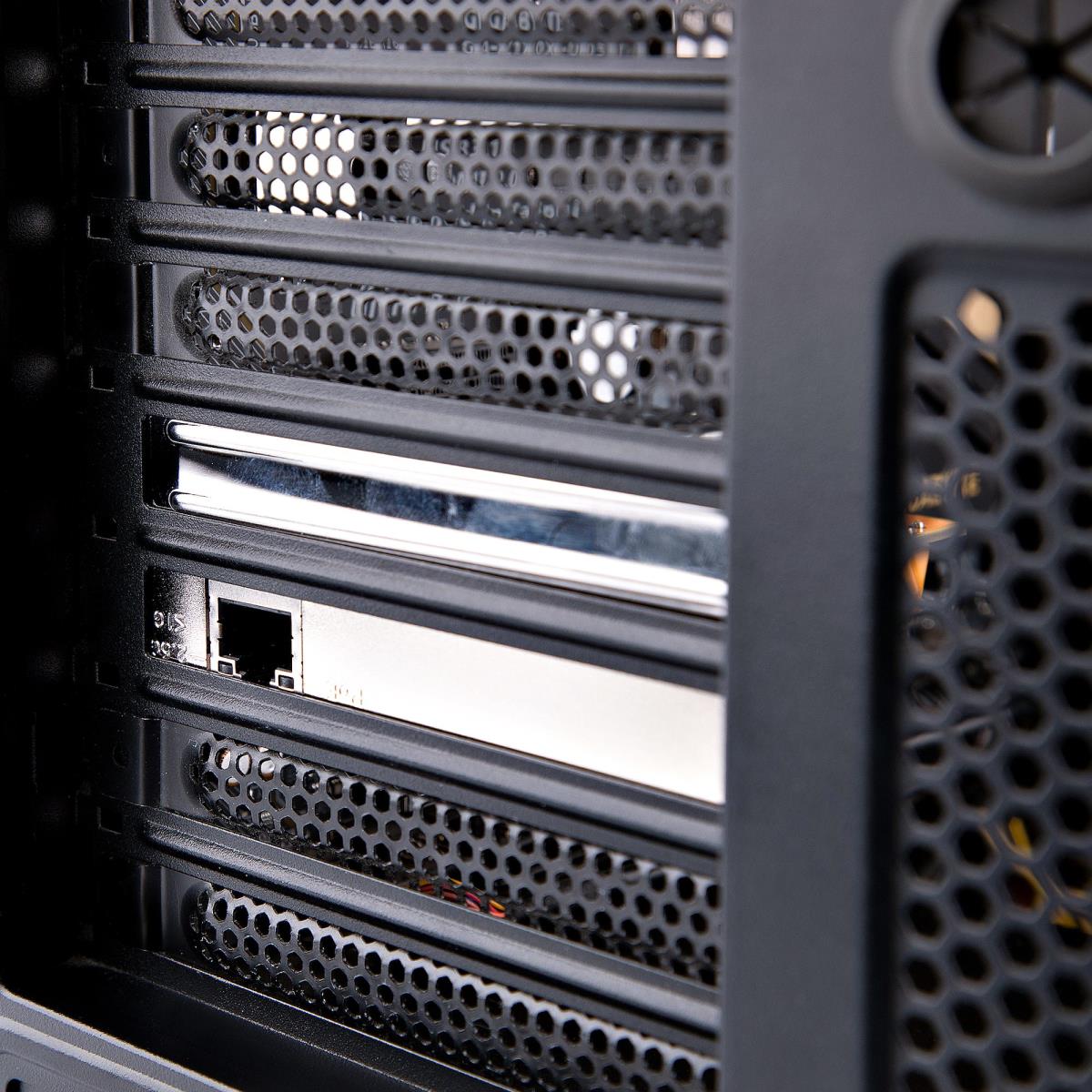

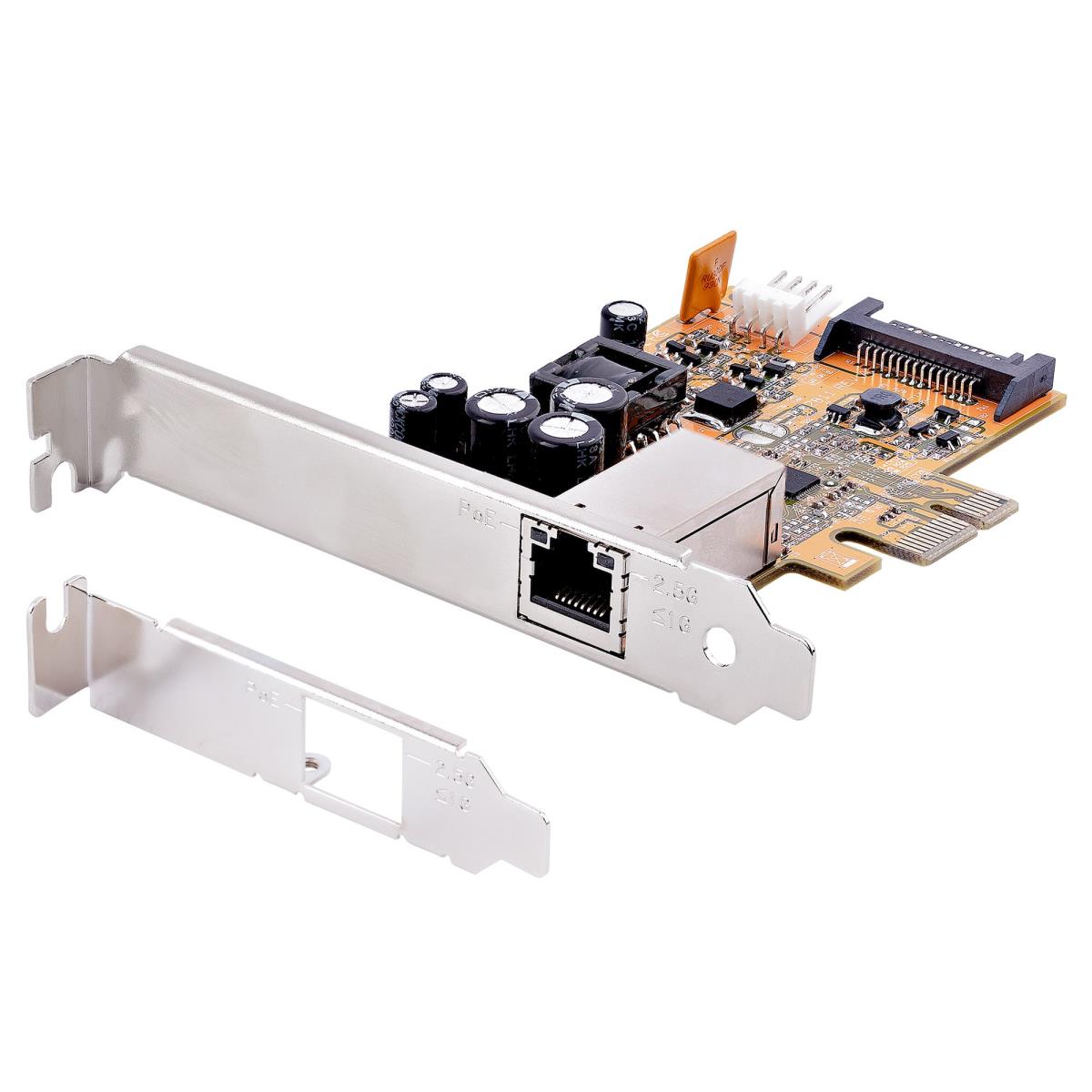

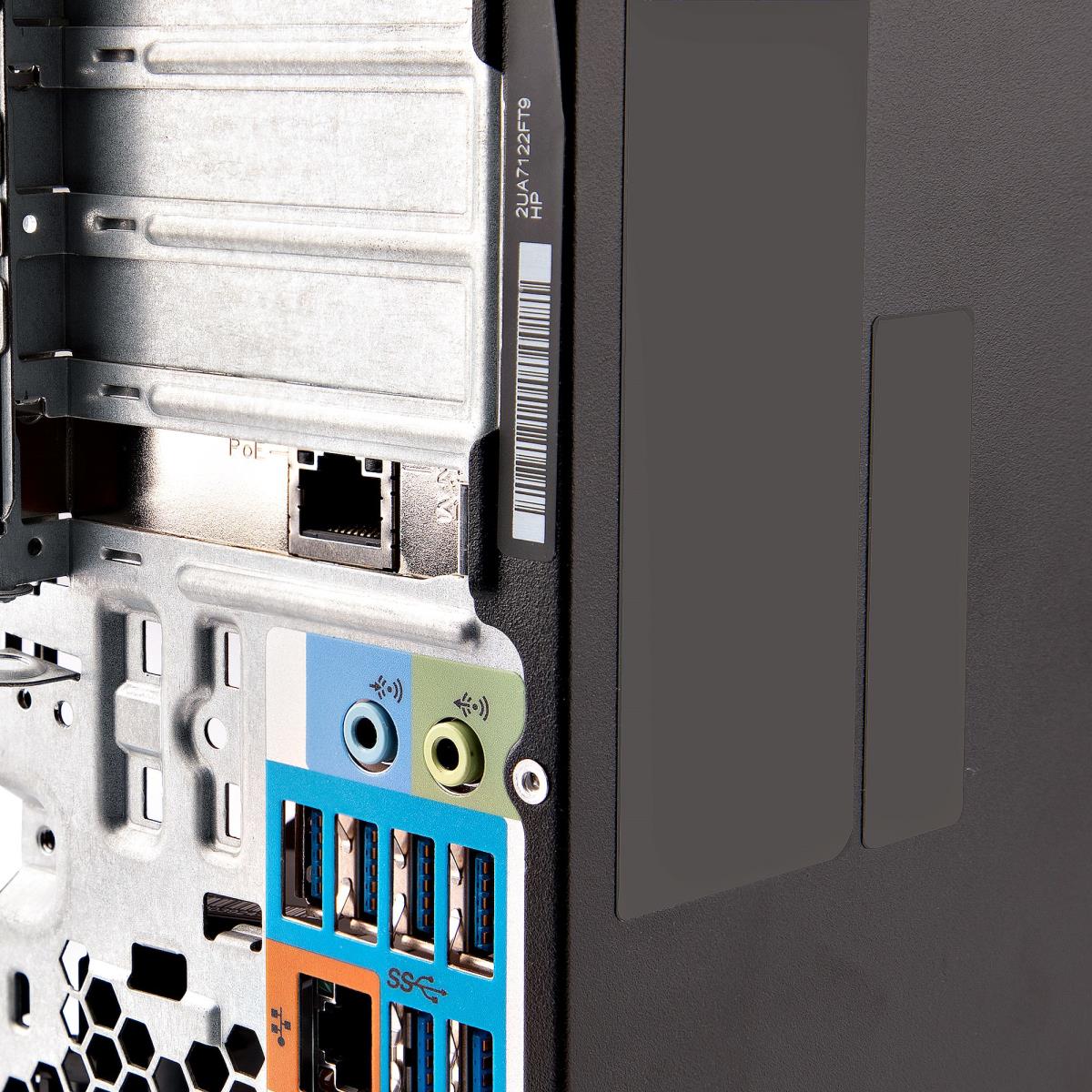

IEEE 802.3af and IEEE 802.3at (PoE/PoE+) | 2.5GBASE-TThe Power over Ethernet PCIe network card enables multigigabit speeds of 2.5/1Gbps and 100/10Mbps. This PoE LAN adapter can provide up to 25.5 W of power to a connected device. It combines a network data connection and power over a single Cat5e (or better) Ethernet cable. This PoE NIC is the ideal solution to provide both power and network communication to a remote installation.Versatile Network PoE CardThe PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48 V DC and 25.5 W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.Enhance Existing HardwareThe network interface card connects to an available x1 PCIe 2.1 (or higher) expansion slot. The card is shipped with a standard-profile bracket. It includes a low-profile bracket for installation in various computer chassis. Access up to 2.5 Gbps (NBASE-T) speeds using Cat5e cabling to utilize existing networks and equipment.Take advantage of advanced features such as Audio-Video Bridging (AVB) for transmitting real-time content over Ethernet, VLAN tagging, 16K jumbo frame, full-duplex, and PXE.This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Specifications

Ports & interfaces
InternalYes
PCI version2.1
Power over Ethernet (PoE) ports quantity1
Ethernet LAN (RJ-45) ports1
PCI Card form factorFull-height (low-profile)
InterfaceEthernet
Host interfacePCI Express
Connectivity technologyWired
Bandwidth
Full duplexYes
Maximum data transfer rate2500 Mbit/s
Network
ChipsetRealtek RTL8125B
VLAN taggingYes
Ethernet interface type2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Jumbo frames16000
Ethernet LANYes
Networking standardsIEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Wake-on-LAN readyYes
Auto MDIX IEEEYes
Maximum operating distance100 m
Jumbo frames supportYes
Full duplexYes
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Maximum data transfer rate2500 Mbit/s
Technical details
Wake-on-LAN readyYes
Auto MDIX IEEEYes
PCI Card form factorFull-height (low-profile)
Sustainability complianceYes
Sustainability certificatesCE, RoHS
Design
ChipsetRealtek RTL8125B
InternalYes
PCI Card form factorFull-height (low-profile)
LED indicatorsYes
Component forPC/Server
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supportedYes
Power
Output voltage48 V
Indication
LED indicatorsYes
System requirements
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supportedYes
Operational conditions
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Sustainability
Sustainability complianceYes
Sustainability certificatesCE, RoHS
Weight & dimensions
Width63 mm
Depth95 mm
Height15 mm
Weight220 g
Package width207 mm
Package depth144 mm
Package height38 mm
Package weight220 g
Packaging data
Package width207 mm
Package depth144 mm
Package height38 mm
Package weight220 g
Mounting brackets includedYes
Quick installation guideYes
Packaging content
Mounting brackets includedYes
Quick installation guideYes
Performance
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019
Wake-on-LAN readyYes
Auto MDIX IEEEYes
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supportedYes
Other features
ChipsetRealtek RTL8125B
Jumbo frames16000
Logistics data
Master (outer) case width530 mm
Master (outer) case length440 mm
Master (outer) case height340 mm
Products per master (outer) case50 pc(s)
