Part No:560443
Stock:8 In Stock
EAN Code:0766623560443
Deliver Power over Ethernet to remote devices. _x000D_
_x000D_

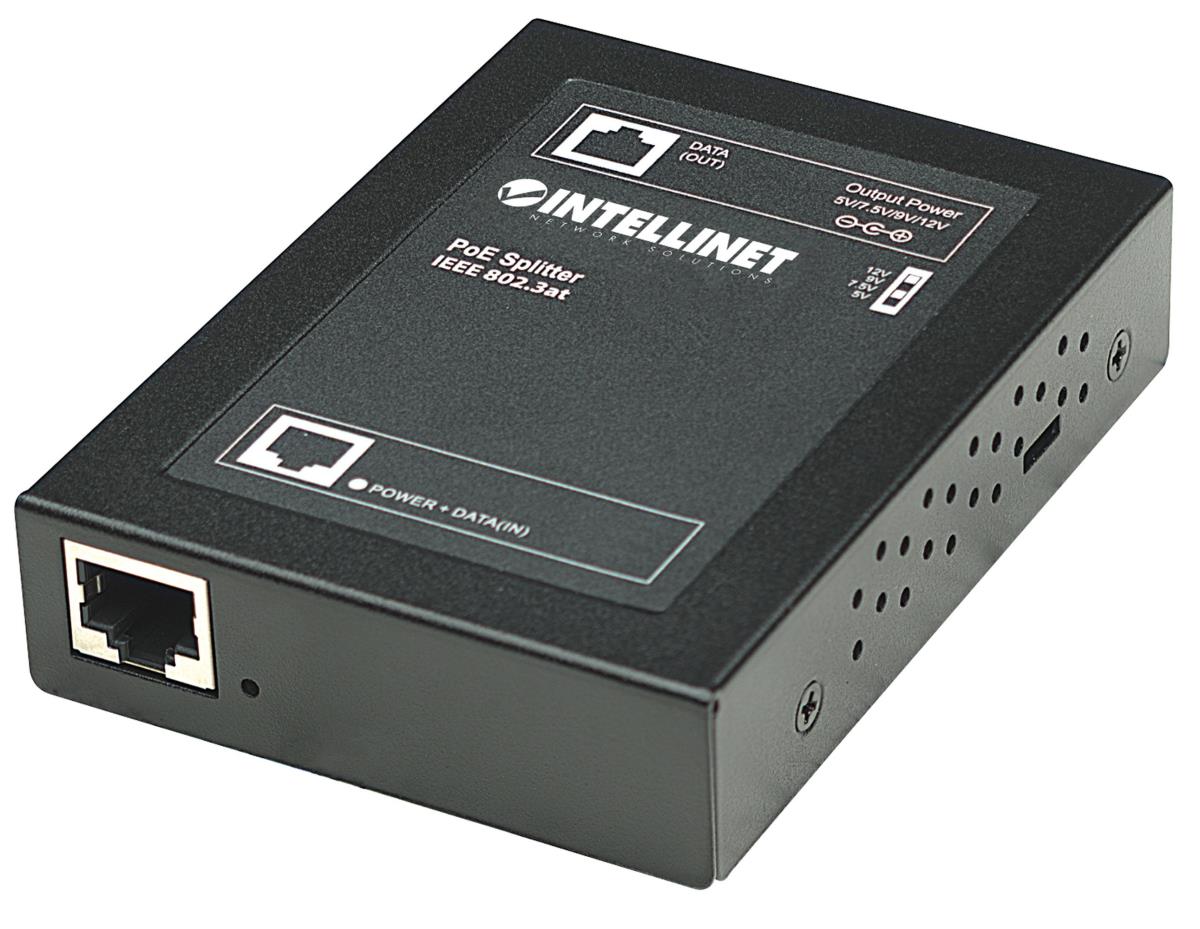

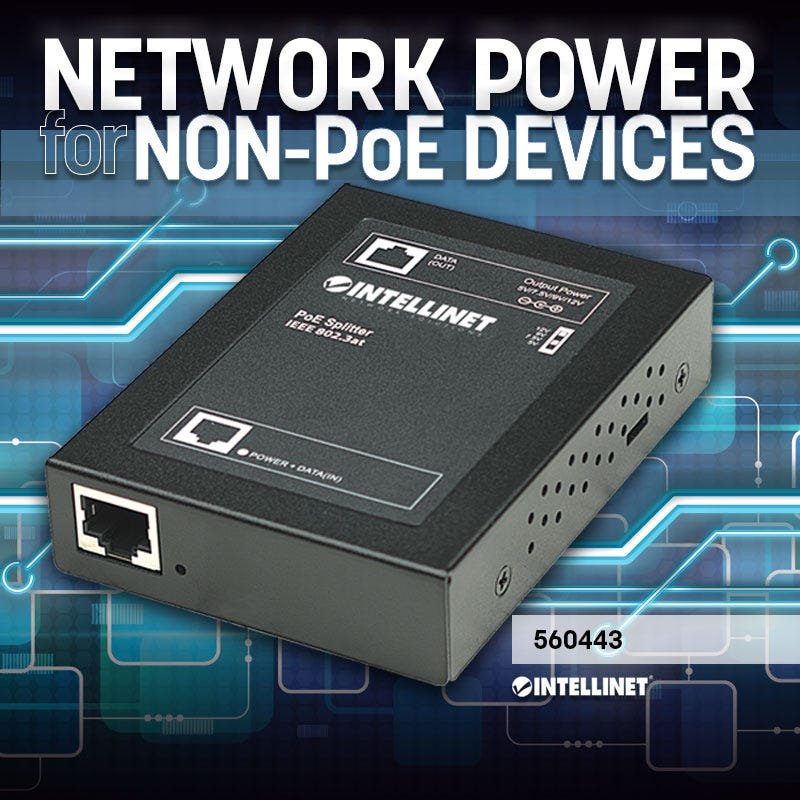

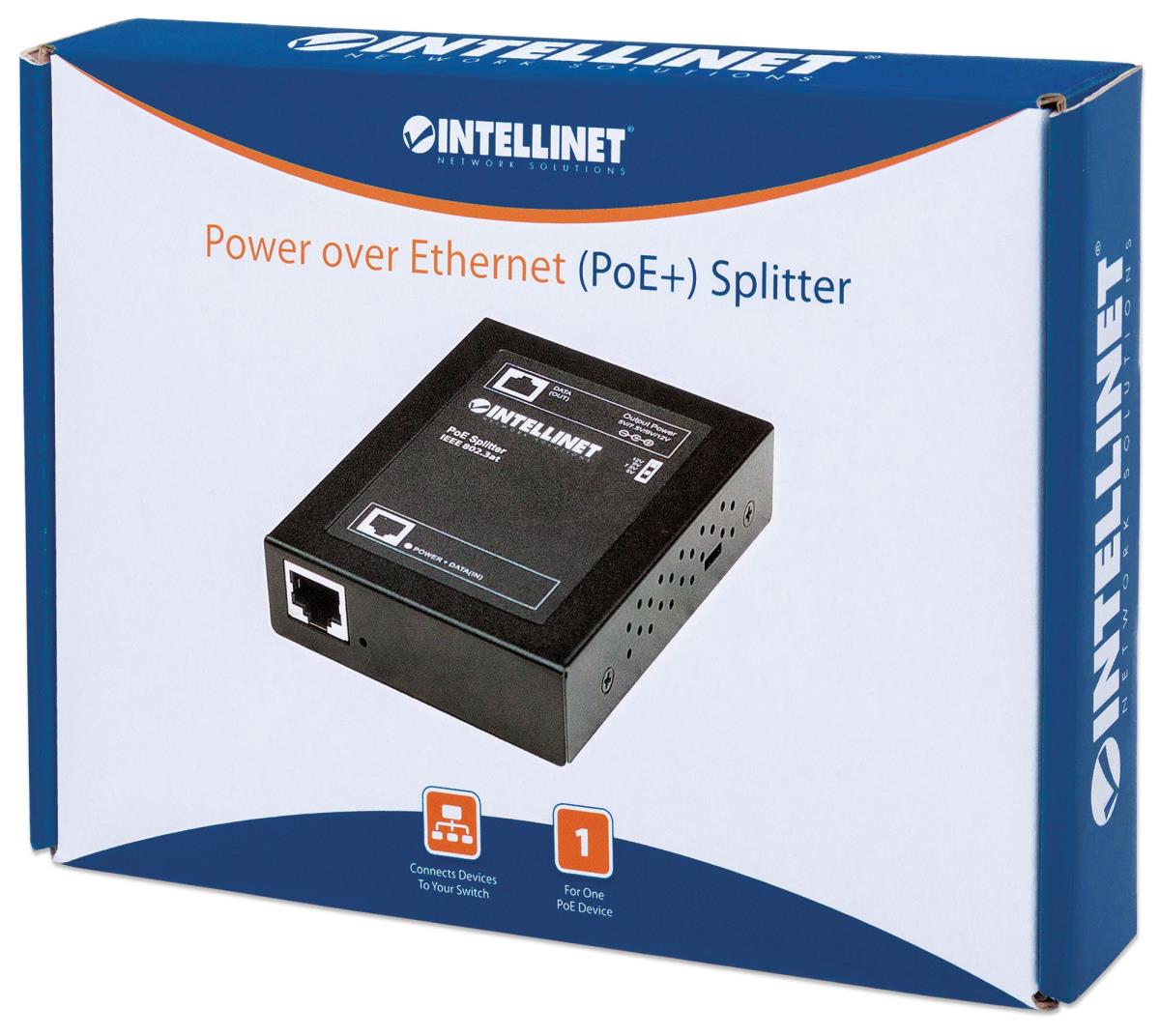

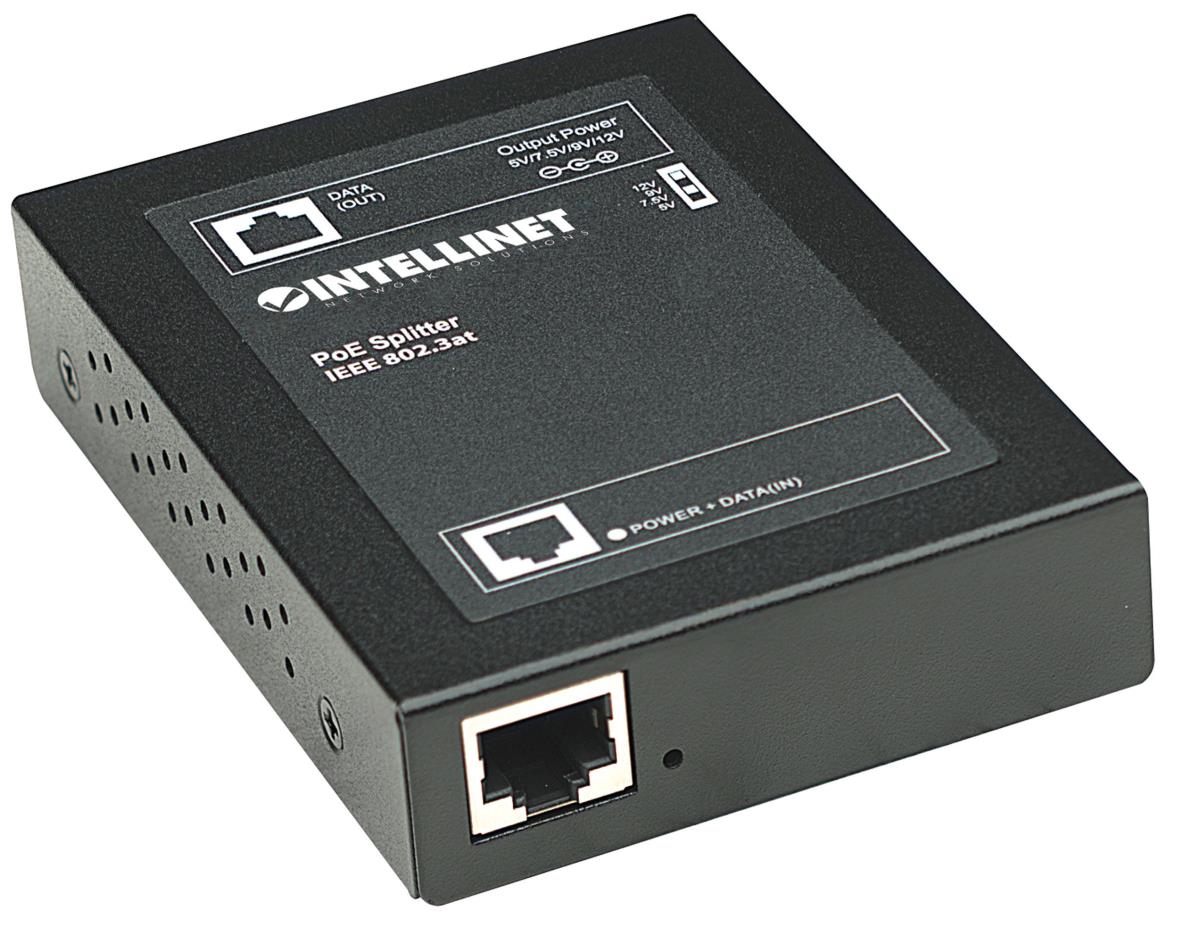

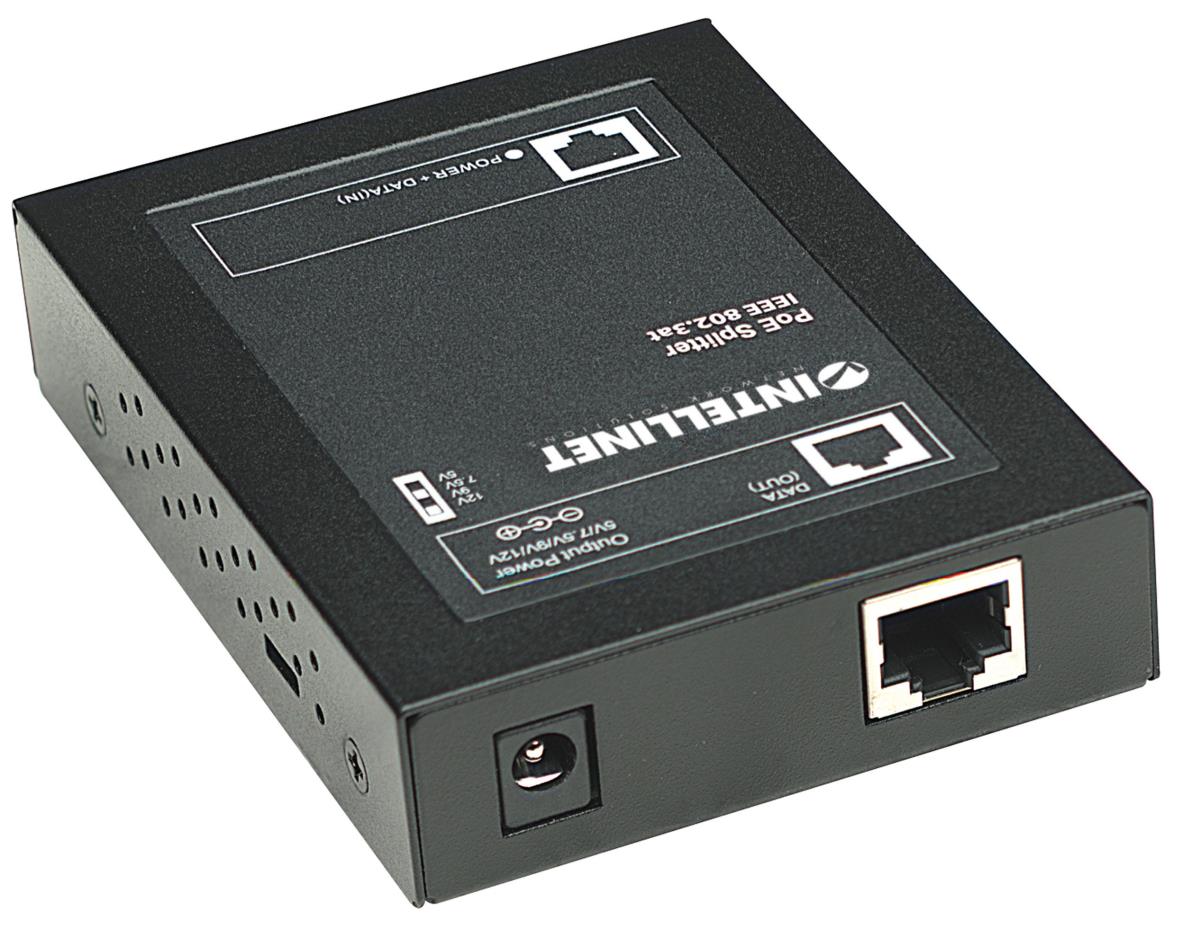

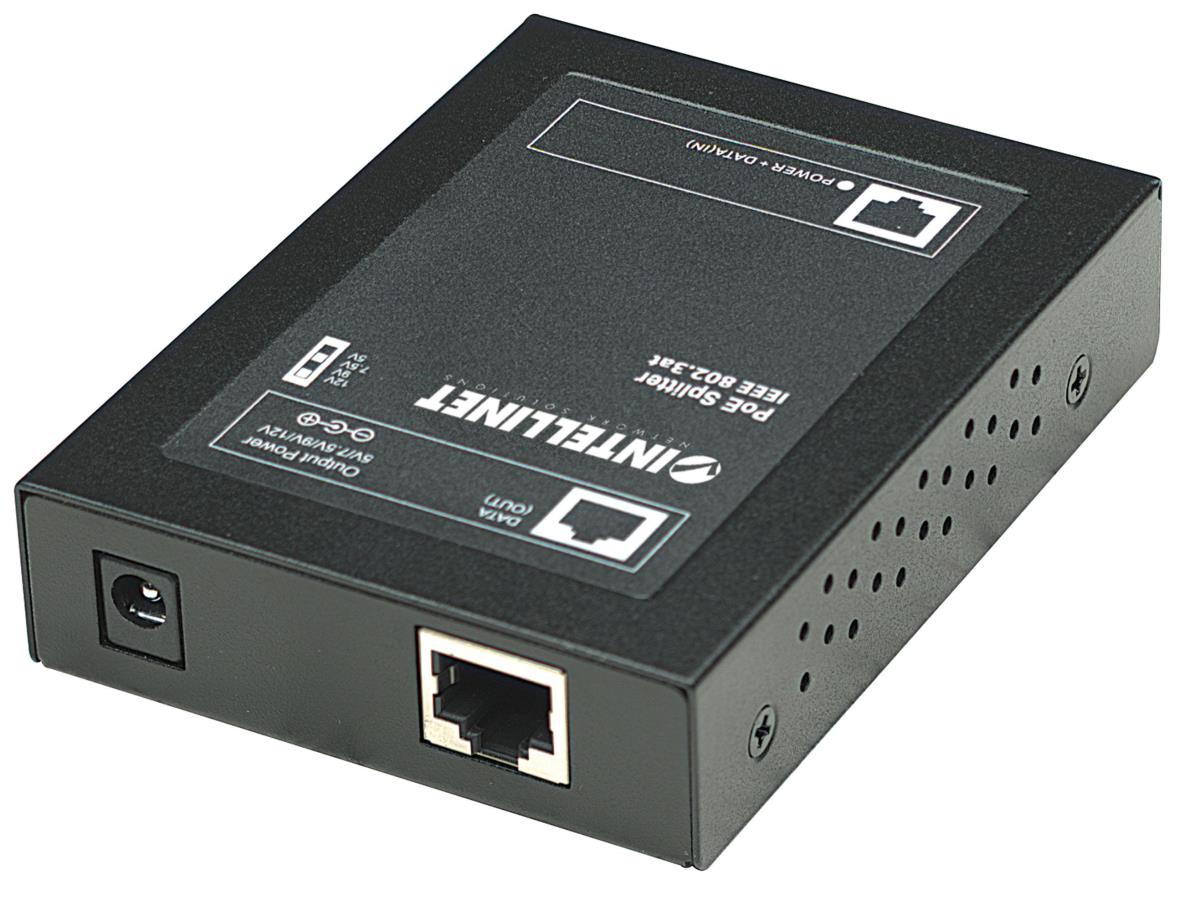

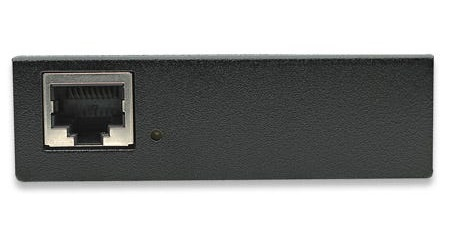

The INTELLINET NETWORK SOLUTIONS PoE+ Splitter allows you to deliver both data and electrical power to non-PoE Ethernet-enabled products using the Cat5 Ethernet cable. Using the PoE Splitter, you can take advantage of Power over Ethernet and place Ethernet-enabled products, such as Network Cameras and Wireless Access Points*, where power outlets are not readily available. _x000D_
_x000D_
Simplify Installation for an Ethernet-based Device _x000D_
Having to manage only an Ethernet cable simplifies the physical installation of the device. Without having to worry about the availability of a power source, you can mount Ethernet-enabled products on a ceiling or outdoors, up to 100m (328 feet)** from a power source. The PoE Splitter is simple to install and requires no tools or software. _x000D_
_x000D_
802.3af Compliant Power over Ethernet _x000D_
The PoE Splitter can be used to complement any PoE injector unit or midspan switch to provide small to medium-sized businesses a complete end-to-end PoE solution. This unit supports 802.3af and 802.3at, ensuring compatibility with other 802.3af/t PoE-compliant injector units or PSE switches. _x000D_
_x000D_
Adjustable Power Output _x000D_

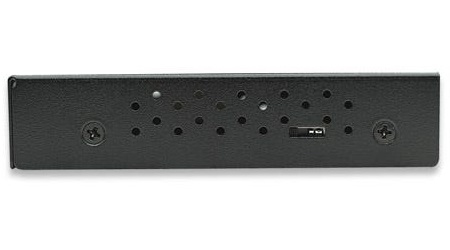

During the setup, the PoE Splitter can be set to power any compatible 5 V, 7.5 V, 9 V or 12 V Ethernet-enabled device via the volt selector located on the side. _x000D_
_x000D_
* Contact your INTELLINET NETWORK SOLUTIONS reseller for ordering information. _x000D_
** Maximum distance per 802.3u specifications.
Features | |
---|---|
Certification | FCC Class A, CE |
Product colour | Black |
Network | |
Cable standard | Cat5 |
Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Cabling technology | 10Base-T, 100Base-TX |
Power over Ethernet (PoE) | Yes |
Performance | |
Cable standard | Cat5 |
Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Cabling technology | 10Base-T, 100Base-TX |
Design | |
Certification | FCC Class A, CE |
Housing material | Metal |
Product colour | Black |
Ports & interfaces | |
Connector gender | Female |
Ethernet LAN (RJ-45) ports | 2 |
Power | |
Power over Ethernet (PoE) | Yes |
Output voltage | 12 V |
Output power | 25.4 W |
Operational conditions | |
Storage temperature (T-T) | -20 - 90 °C |
Operating temperature (T-T) | 0 - 60 °C |
Operating relative humidity (H-H) | 10 - 90% |
Technical details | |
Quantity | 1 |
Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Colour | |
Product colour | Black |
Weight & dimensions | |
Width | 74 mm |
Weight | 445 g |
Height | 22 mm |
Depth | 102 mm |
Packaging content | |
Cables included | AC |
Quantity | 1 |
