Part No:560566-UK
Stock:4 In Stock
EAN Code:0766623560566
Reduce costs by using existing Cat5 cable to provide both power and data.

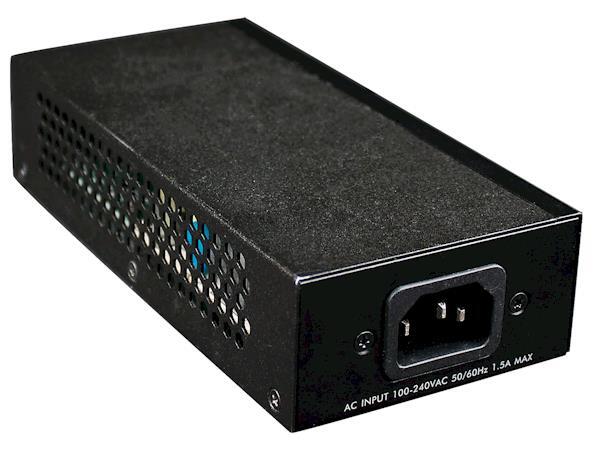

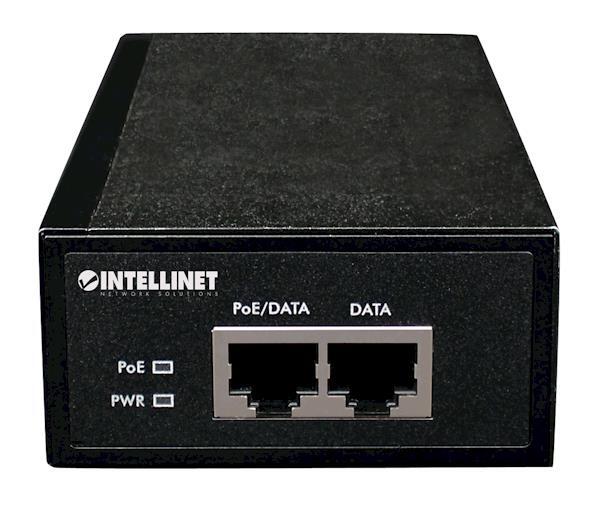

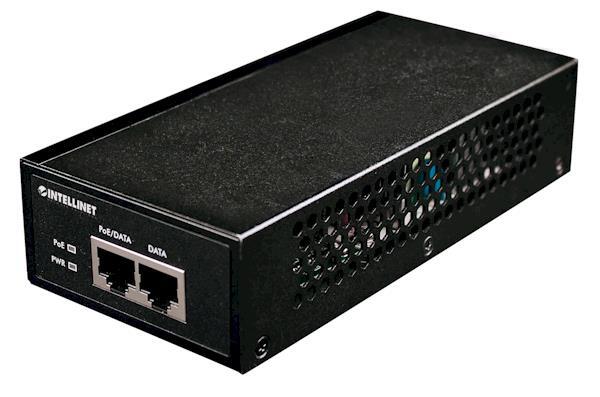

The Intellinet Network Solutions 1-Port Gigabit High-Power PoE+ Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The PoE Injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 30 watts. That's enough for even power-hungry PoE devices.
Reduce Wiring Costs
No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.
Protect Your Equipment
Now that you are running DC power to your networked equipment through the Cat5e/6 cabling, you need to be sure that the products are protected from power problems. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads and high voltages.
Network | |
---|---|
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Power over Ethernet (PoE) | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet interface type | Gigabit Ethernet |
Features | |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Power protection features | Over voltage, Overload, Short circuit |
LED indicators | PoE, Power |
Certification | FCC Class B Part 15, CE 89/336/EEC |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 2 |
Power | |
Power consumption (max) | 42 W |
Input voltage | 100 - 240 V |
Input frequency | 50/60 Hz |
Technical details | |
Number of products included | 1 pc(s) |
Power over Ethernet (PoE) | Yes |
Input voltage | 100 - 240 V |
Input frequency | 50/60 Hz |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet interface type | Gigabit Ethernet |
Operational conditions | |
Storage temperature (T-T) | -20 - 55 °C |
Operating temperature (T-T) | 5 - 45 °C |
Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
Weight | 785 g |
Width | 72 mm |
Depth | 154 mm |
Height | 35 mm |
Packaging content | |
Power cord included | Yes |
Manual | Yes |
Number of products included | 1 pc(s) |
Certificates | |
Certification | FCC Class B Part 15, CE 89/336/EEC |
Indication | |
LED indicators | PoE, Power |
