EU Product - Wln 1201 Mi/S
Introduction
Wi-Fi 6 Upgrades Everything
The latest Wifi technology makes annoying lag and endless loading a thing of the past. Equip your PC with TX20U and enjoy the future of faster network loads and more connections.

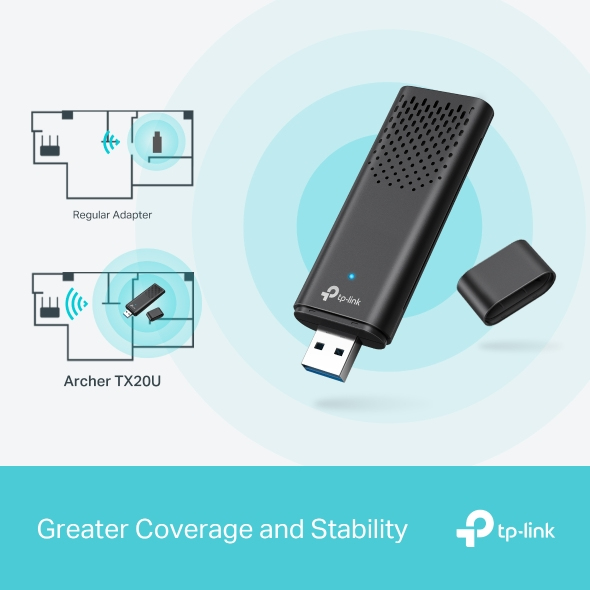

Greater Coverage and Stability
The built-in high-performance antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.

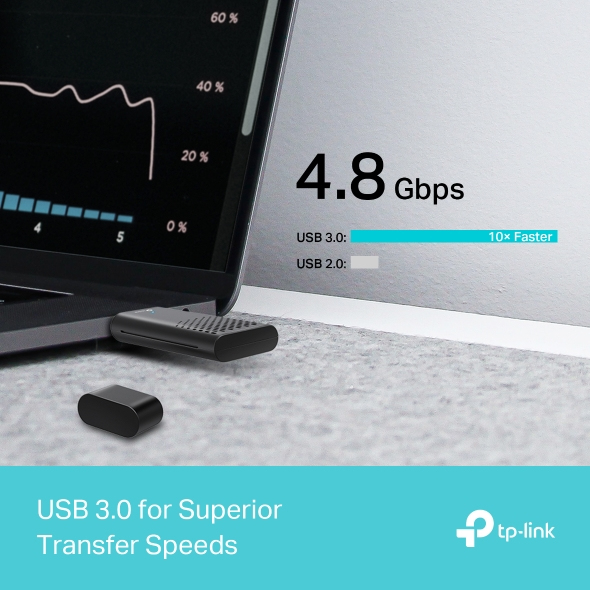

USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20U ideal for HD streaming, online gaming and large file downloads.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | No |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Interface | WLAN |
| Host interface | USB |
| Connectivity technology | Wireless |
| USB connector form factor | Straight |
| Bandwidth | |
| Maximum data transfer rate | 1201 Mbit/s |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 11,54,300,400,574,867 Mbit/s |
| Technical details | |
| Product colour | Black |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Network | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| WLAN data transfer rates supported | 11,54,300,400,574,867 Mbit/s |
| Maximum data transfer rate | 1201 Mbit/s |
| Design | |
| Product colour | Black |
| Internal | No |
| LED indicators | Status |
| Transmitting power (CE) | 18.5 - 21.5 dBm |
| Transmitting power (FCC) | 19 dBm |
| Operating modes | Infrastructure mode |
| Component for | PC |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Indication | |
| LED indicators | Status |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 90.2 mm |
| Depth | 29.2 mm |
| Height | 12.9 mm |
| Package width | 150 mm |
| Package depth | 200 mm |
| Package height | 39 mm |
| Package weight | 110 g |
| Security | |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Packaging data | |
| Package width | 150 mm |
| Package depth | 200 mm |
| Package height | 39 mm |
| Package weight | 110 g |
| Quick installation guide | Yes |
| Packaging content | |
| Quick installation guide | Yes |
| Performance | |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Windows operating systems supported | Windows 10, Windows 11 |
