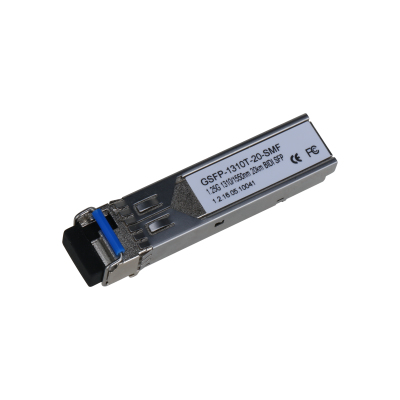

GSFP-1310T-20-SMF
Introduction
Industrial Optical Module Series is a hot-pluggable device with a unique sturdy design. Developed to adapt to even the harshest of environments, it has a wide operating temperature range and is Plug and Play (PnP).
Wide Operating Temperature
Developed to operate in extreme conditions, the device functions in temperatures ranging from –40 °C to +85 °C, easily adapting to harsh environments.
Plug and Play
No configuration is required. Suitable for terminal connection.
Specifications
| Network | |
|---|---|
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Technical details | |
| Wavelength | 1310 nm |
| Transmission distance (max) | 20 km |
| Operating temperature (T-T) | -40 - 185 °F |
| Fiber type | Single-mode |
| Fiber optic connector | LC |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Optical fiber | |
| Wavelength | 1310 nm |
| Transmission distance (max) | 20 km |
| Fiber type | Single-mode |
| Fiber optic connector | LC |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 185 °F |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Width | 55.5 mm |
| Depth | 13.4 mm |
| Height | 8.5 mm |
