HP JL563A COMP -
Introduction
10 Gbps | Copper | RJ-45 | 30 m (98.4 ft) | Lifetime Warranty

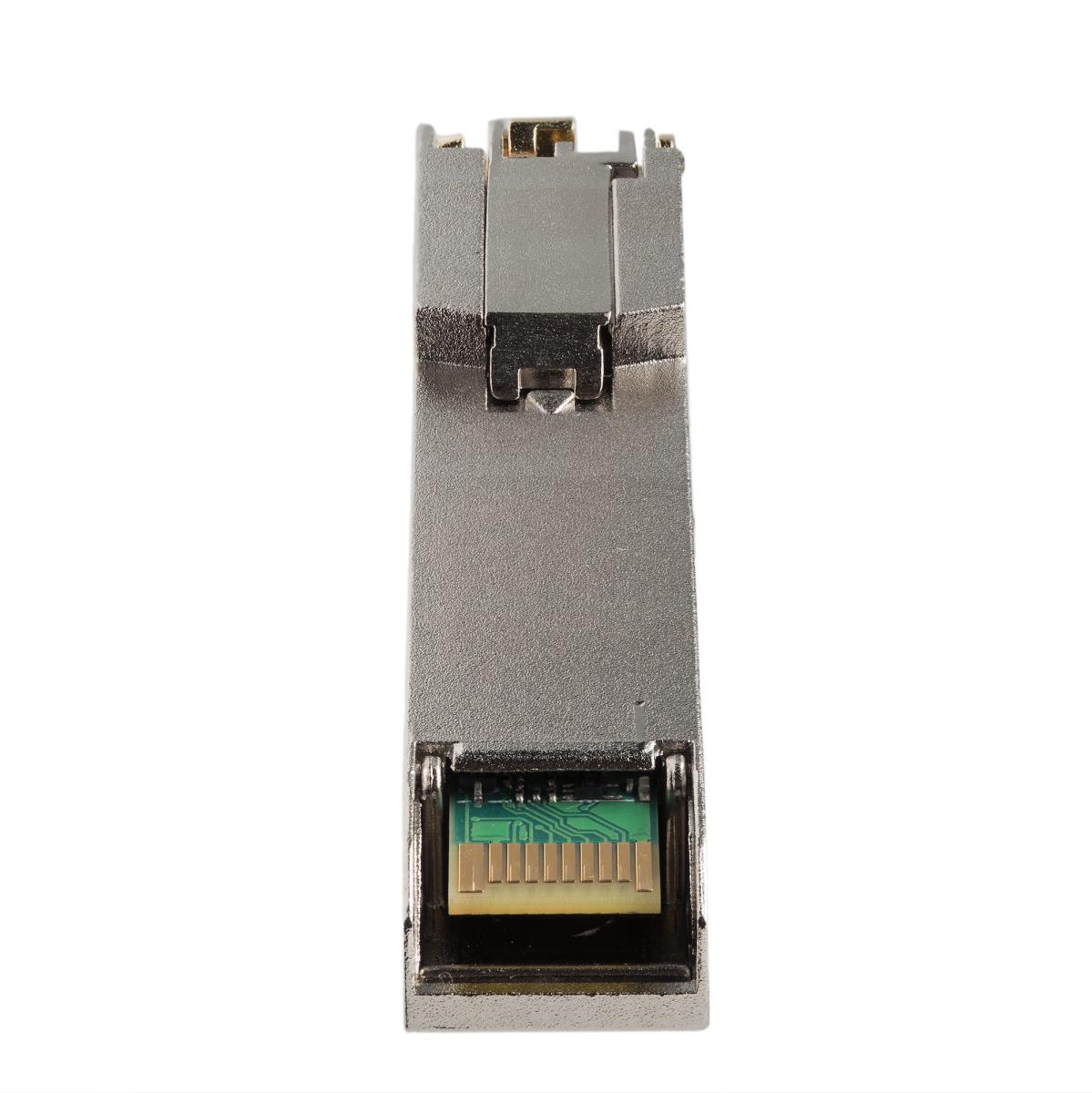

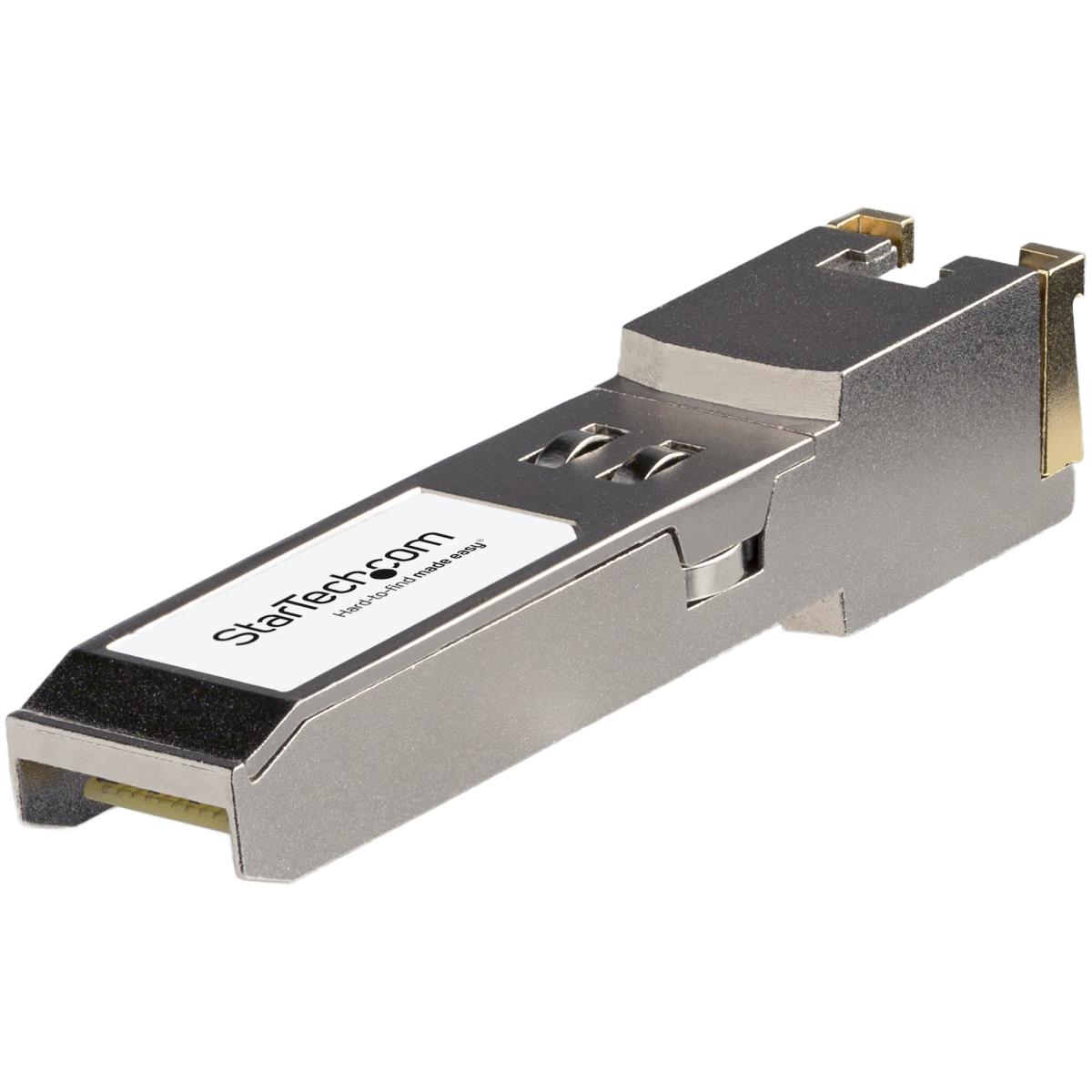

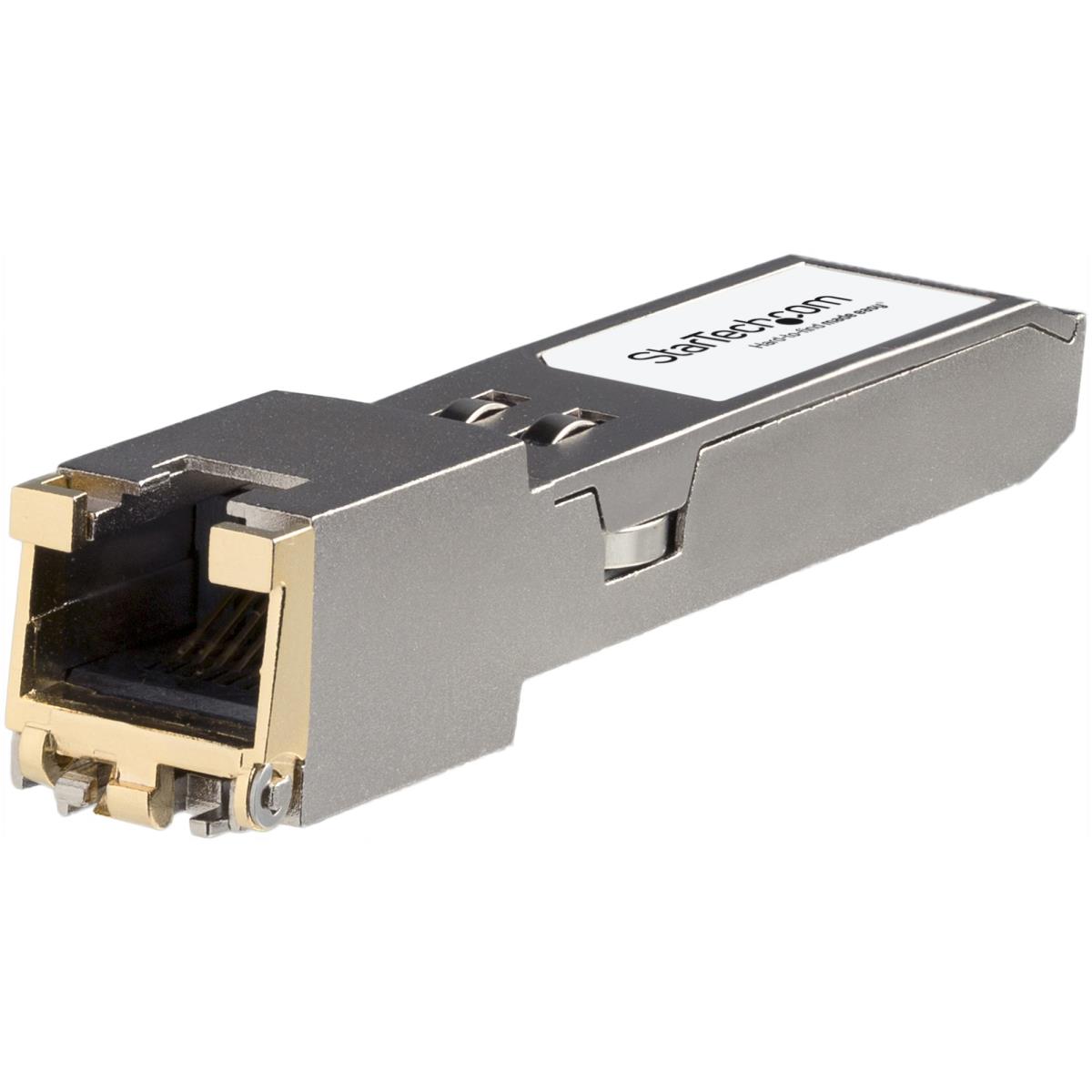

The JL563A-ST is a HPE JL563A compatible copper transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10/100/1000/10000 compliant networks, with a maximum distance of up to 30 m (98.4 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 10 Gbps
• Type: Copper
• Connection Type: RJ-45
• Maximum Transfer Distance: 30 m (98.4 ft)
• MTBF: 510,469,759 hours
This copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Copper |
| Ethernet LAN | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
| Networking standards | IEEE 802.3ae |
| Maximum transfer distance | 30 m |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Product colour | Silver |
| Hot-swap | Yes |
| Compatible products | JL563A |
| Mean time between failures (MTBF) | 510469759 h |
| Brand compatibility | HP |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Compatible products | JL563A |
| Mean time between failures (MTBF) | 510469759 h |
| Brand compatibility | HP |
| Certification | CE, FCC, UR, REACH |
| Certificates | |
| Certification | CE, FCC, UR, REACH |
| Compliance certificates | RoHS |
| Network | |
| SFP transceiver type | Copper |
| Networking standards | IEEE 802.3ae |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Weight & dimensions | |
| Width | 68 mm |
| Depth | 13.7 mm |
| Height | 13.8 mm |
| Weight | 15 g |
| Package depth | 112 mm |
| Package width | 93 mm |
| Package height | 33 mm |
| Package weight | 50 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 93 mm |
| Package height | 33 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 30 m |
| Compatible products | JL563A |
| Ethernet LAN | Yes |
| Compliance certificates | RoHS |
| Packaging data | |
| Package depth | 112 mm |
| Package width | 93 mm |
| Package height | 33 mm |
| Package weight | 50 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Master (outer) case width | 90 mm |
| Master (outer) case length | 115 mm |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
