Part No:SFP10GBTCST
Stock:9 In Stock
EAN Code:0065030880206

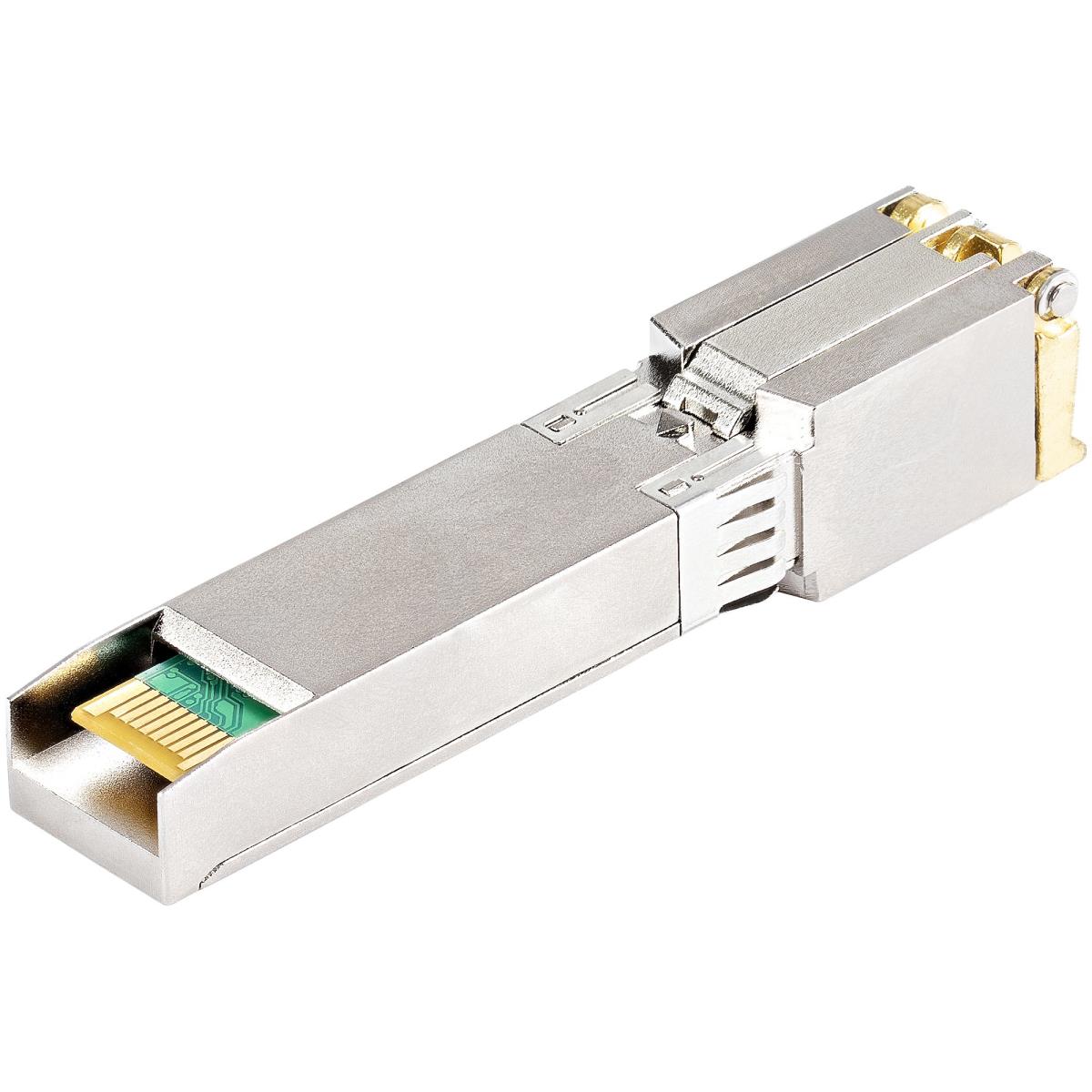

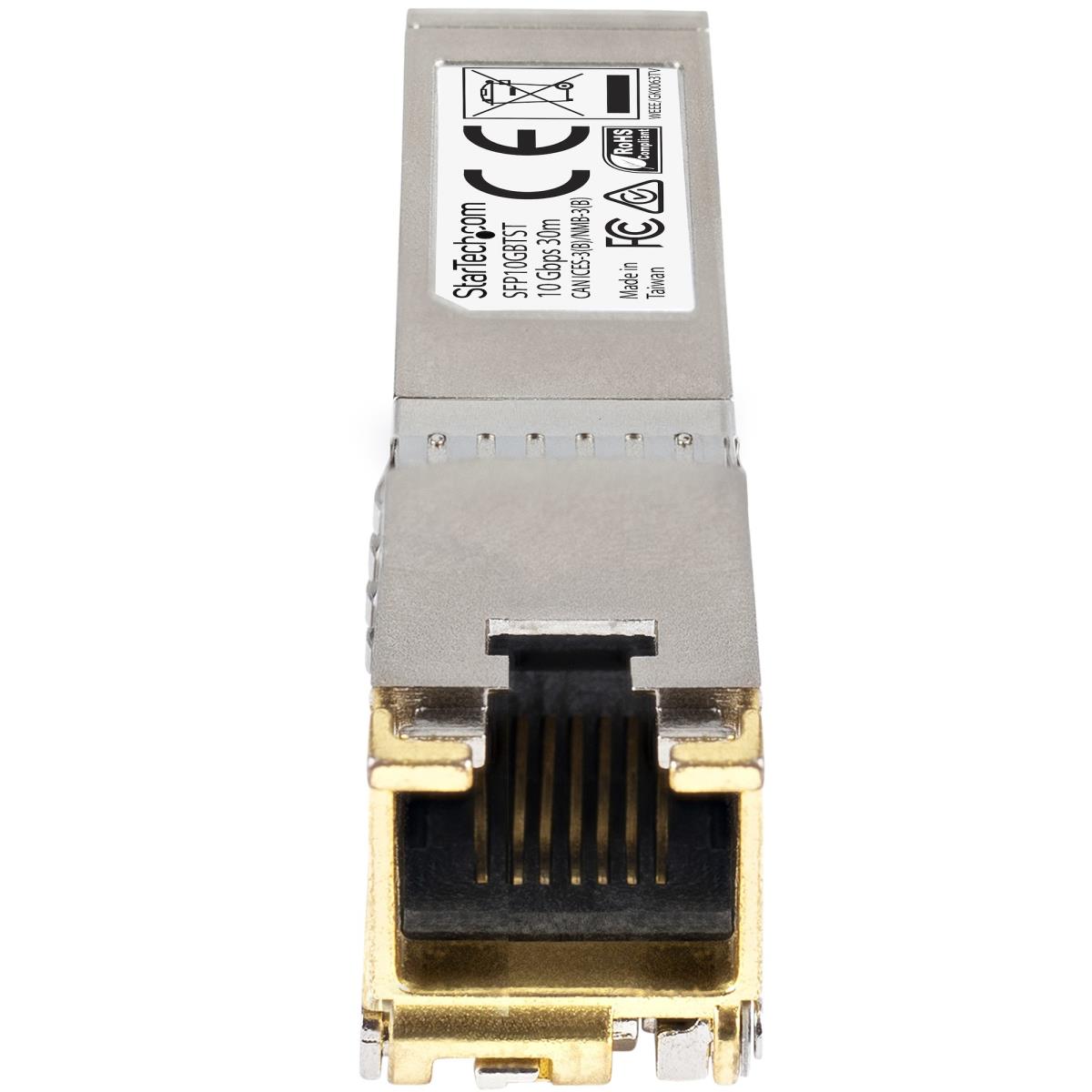

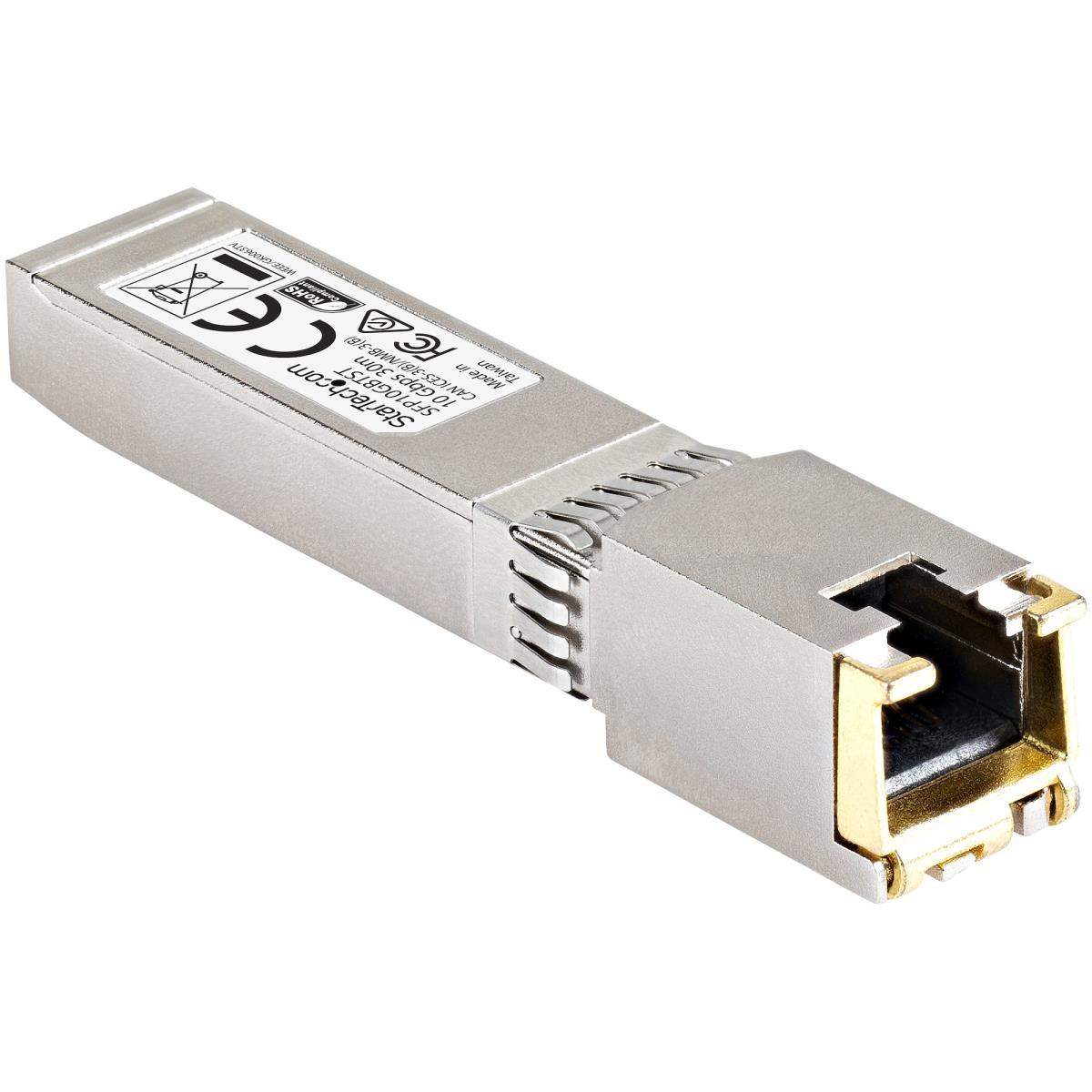

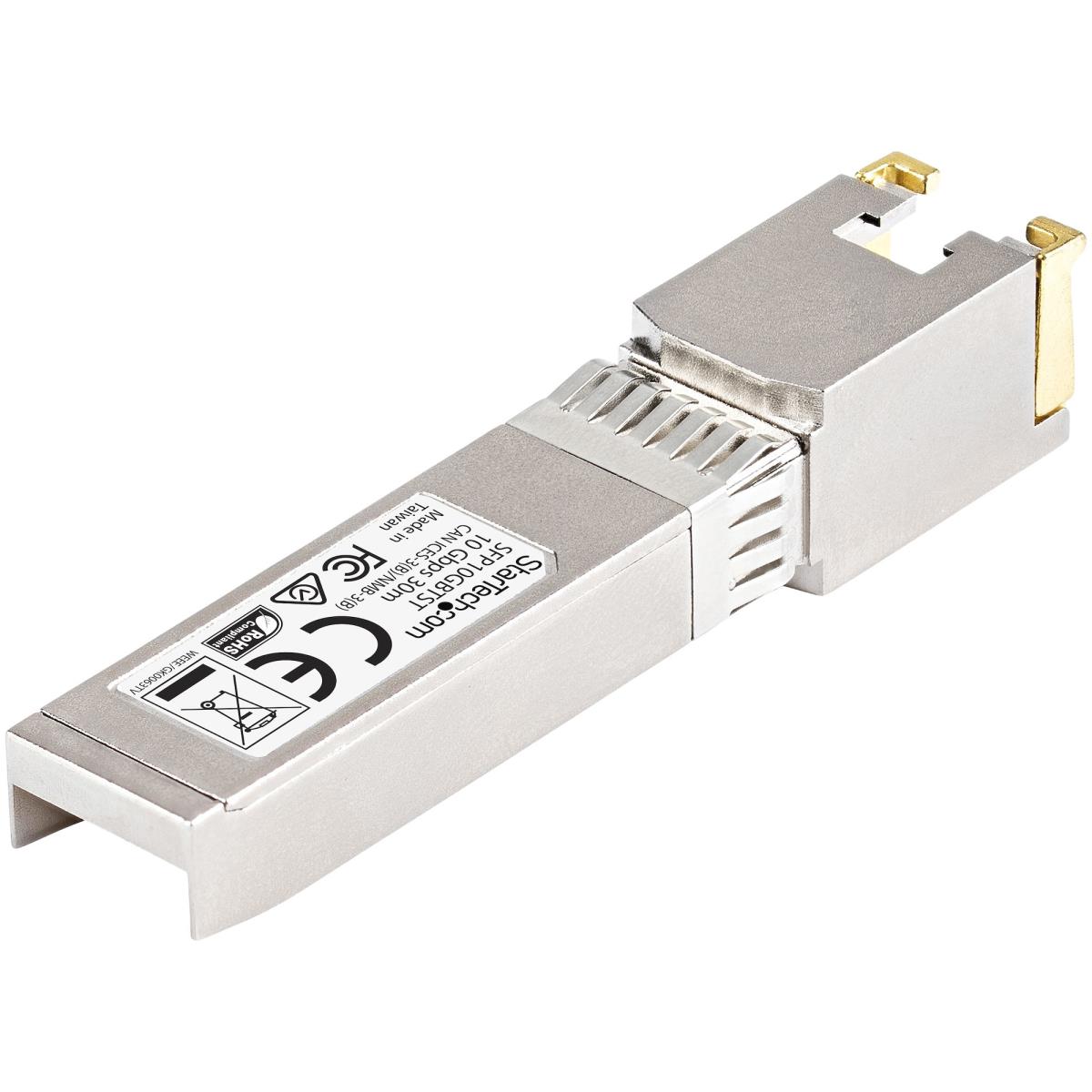

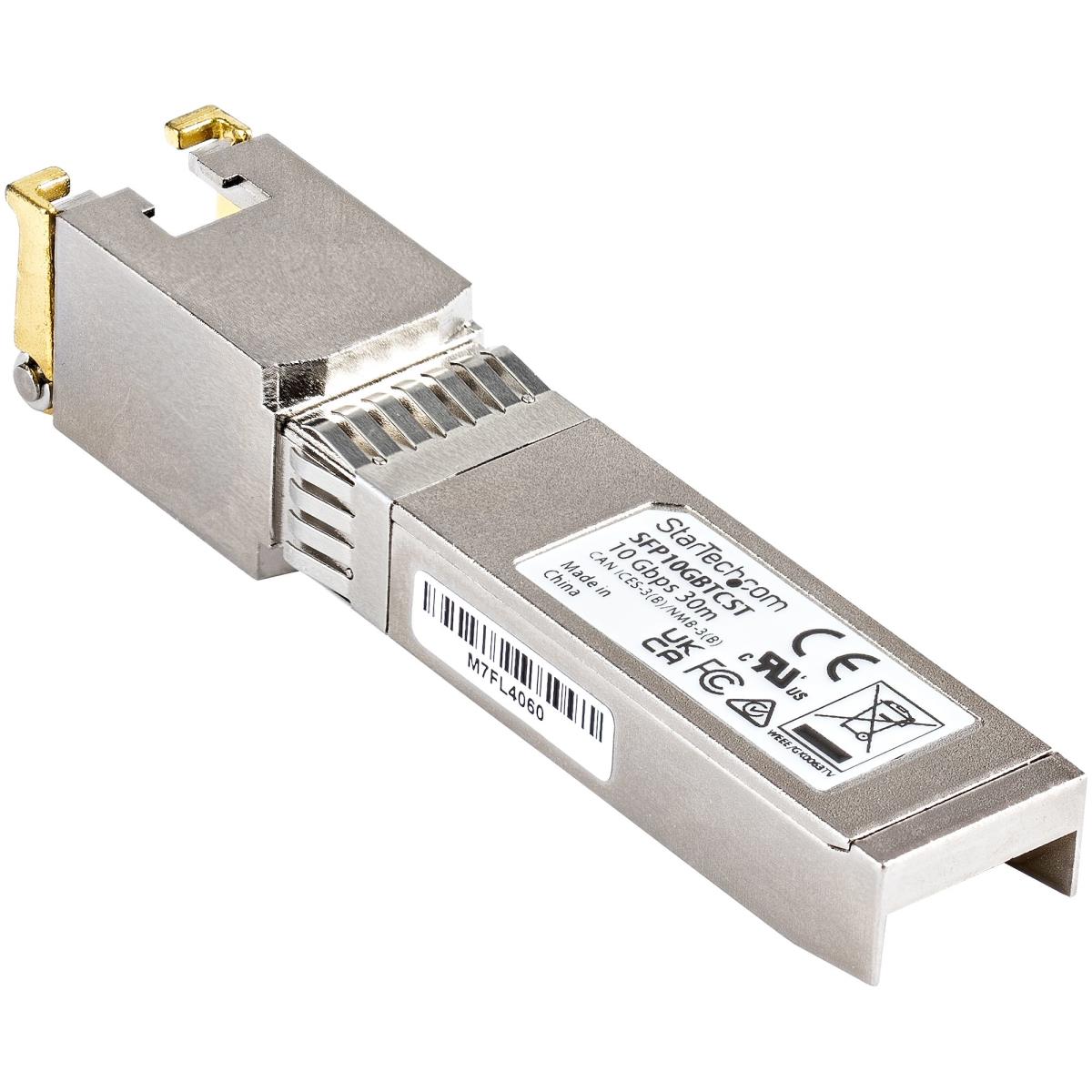

10Gbps | Copper | RJ45 | 30 m (100 ft) | Lifetime WarrantyThe SFP10GBTCST is a Cisco compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).Technical Specifications:• Maximum Data Transfer Rate: 10 Gbps• Type: Copper• Connection Type: RJ45 Connector• Maximum Transfer Distance: 30 m (98.4 ft)• MTBF: 4,598,430 hours• Digital Diagnostics Monitoring (DDM): NoThis SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
Network | |
---|---|
SFP transceiver type | Copper |
Networking standards | IEEE 802.3an |
Maximum data transfer rate | 10000 Mbit/s |
Interface type | SFP+ |
Technical details | |
Package width | 75 mm |
Package height | 33 mm |
Hot-swap | Yes |
Auto MDI/MDI-X | Yes |
Maximum transfer distance | 30 m |
Duplex system | Full, Half |
Sustainability certificates | RoHS |
Performance | |
Product colour | Silver |
Housing material | Zinc steel |
Hot-swap | Yes |
Mean time between failures (MTBF) | 4598430 h |
Brand compatibility | Cisco |
SFP transceiver type | Copper |
Digital Diagnostics Monitoring (DDM) | No |
Networking standards | IEEE 802.3an |
Auto MDI/MDI-X | Yes |
Maximum transfer distance | 30 m |
Duplex system | Full, Half |
Maximum data transfer rate | 10000 Mbit/s |
Interface type | SFP+ |
Harmonized System (HS) code | 85369010 |
Features | |
Product colour | Silver |
Housing material | Zinc steel |
Hot-swap | Yes |
Certification | CE, FCC |
Mean time between failures (MTBF) | 4598430 h |
Brand compatibility | Cisco |
Power | |
Power consumption (typical) | 2.3 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -40 - 90 °C |
Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
Width | 13.4 mm |
Depth | 69.8 mm |
Height | 14 mm |
Weight | 58 g |
Package depth | 120 mm |
Package width | 75 mm |
Package height | 33 mm |
Packaging data | |
Package depth | 120 mm |
Number of products included | 1 pc(s) |
Package width | 75 mm |
Package height | 33 mm |
Certificates | |
Certification | CE, FCC |
Packaging content | |
Number of products included | 1 pc(s) |
Logistics data | |
Master (outer) case width | 340 mm |
Master (outer) case length | 638 mm |
Master (outer) case height | 290 mm |
Products per master (outer) case | 150 pc(s) |
Harmonized System (HS) code | 85369010 |
