Specifications

Performance
PTZ modes	5 Pattern, 8 Tour, Auto scan
PTZ protocols	Pelco-P/D, DH-SD

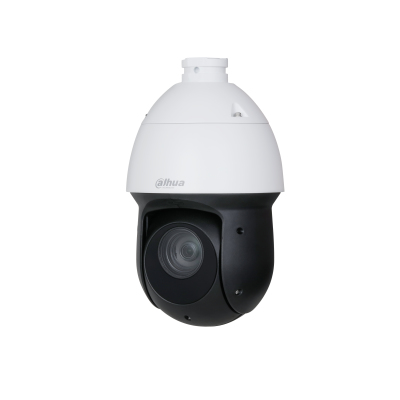

Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Indoor & outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Certification	CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4 UL: UL62368-1
Design
Form factor	Dome
Product colour	White
Mounting type	Ceiling/wall
International Protection (IP) code	IP66
Camera
Tilt preset speed	200 °/sec
Pan preset speed	240 °/sec
Tilt angle range	-15 - 90°
Tilt speed	120 °/sec
Pan range	0 - 360°
Pan speed	200 °/sec
White balance	Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp
Camera shutter type	Electronic
Camera shutter speed	1/1 - 1/30000 s
Lens viewing angle, horizontal	53.1°
Lens viewing angle, vertical	30.4°
Lens viewing angle, diagonal	59.3°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Lens system
Maximum aperture number	3.6
Auto focus	Yes
Detect distance	2161.4 m
Observe distance	864.6 m
Recognize distance	432.3 m
Identify distance	216.1 m
Closest focusing distance	9 m
Minimum aperture number	1.6
Zoom capability	Yes
Optical zoom	25x
Focal length range	5 - 125 mm
Night vision
Night vision	Yes
Night vision distance	100 m
LED type	IR
Number of illumination LEDs	4
Video
Noise reduction	Yes
Privacy masking	Yes
Flip & mirror	Yes
Image stabilizer	Yes
Gain control type	Auto/Manual
Smart IR	Yes
Region of Interest (ROI) encoding	Yes
Highlight Compensation (HLC)	Yes
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Back Light Compensation (BLC)	Yes
Noise reduction technology	2D noise reduction, 3D noise reduction
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Maximum resolution	2560 x 1440 pixels
Video formats supported	H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions	352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Supported video modes	720p, 1080p
Frame rate	30 fps
Video streaming	Yes
Total megapixels	4 MP
Audio
Voice codecs	G.711Mu, G.711a, G.722.1, G.726, G.729
Audio formats supported	G.722.1, G.723, G.726, G.729
Network
Ethernet interface type	Fast Ethernet
Quality of Service (QoS) support	Yes
Number of users	20 user(s)
Streaming method	Multicast, Unicast
Ethernet LAN	Yes
Supported network protocols	FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
Storage
ROM capacity	4096 MB
Maximum memory card size	512 GB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Internal memory	1024 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
Intelligent Video Surveillance (IVS) system features	Abandoned object, Face detection, Missing object
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Active tampering alarm	Yes
Power
Power source type	DC, PoE
Power consumption (max)	20 W
Power consumption (typical)	9 W
DC output voltage	12
DC output current	3 A
Certificates
Certification	CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4 UL: UL62368-1
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Height	270.4 mm
Diameter	16 cm
Weight	2.4 kg
Package weight	3.9 kg
Packaging content
Number of cameras	1
Other features
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
