OUTDOOR DUAL LENS PAN/TILT SEC CAM
Introduction
Wide View, Sharp Zoom, Full Protection

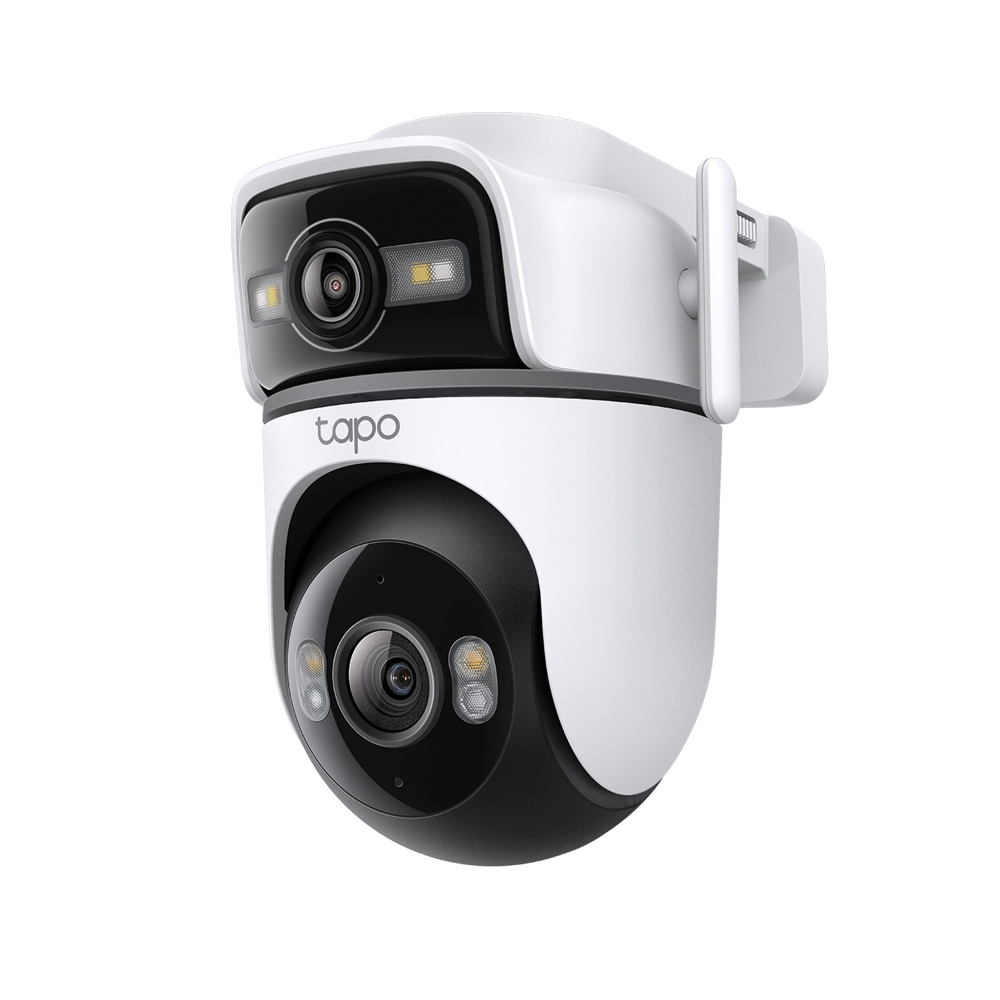

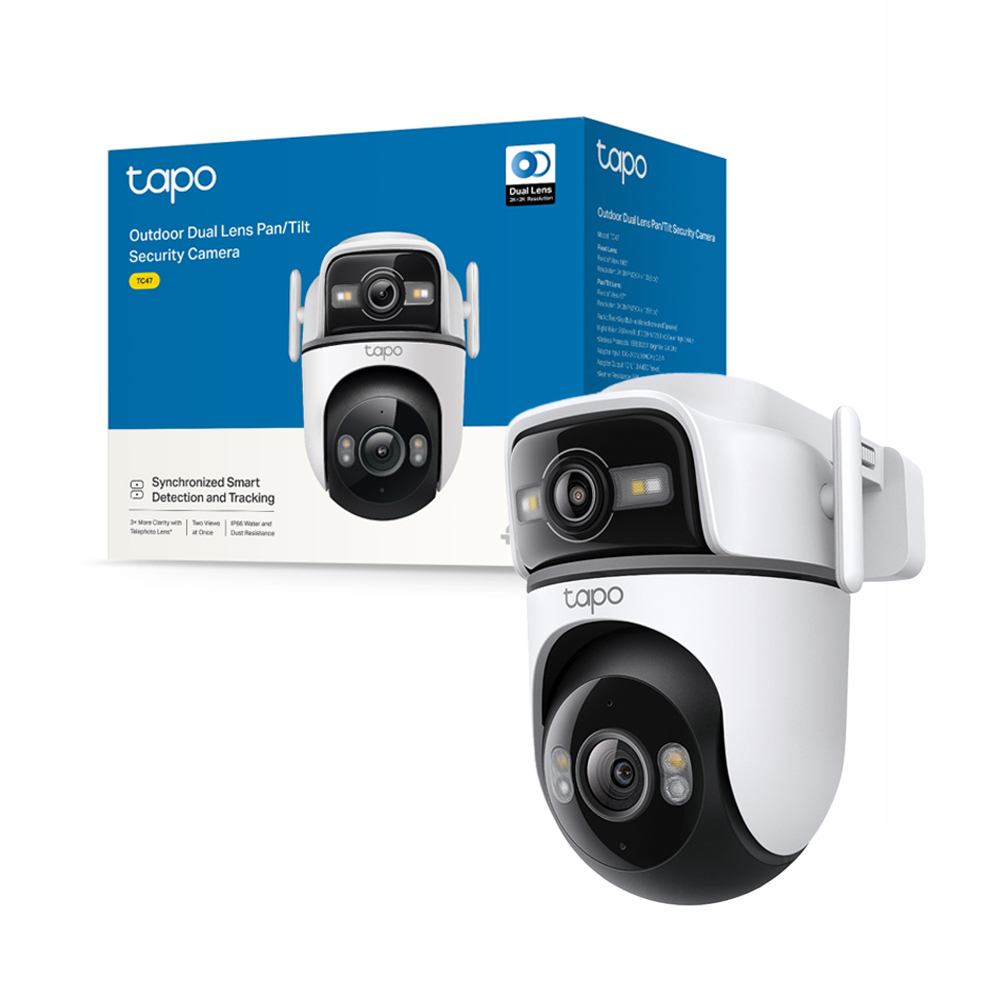

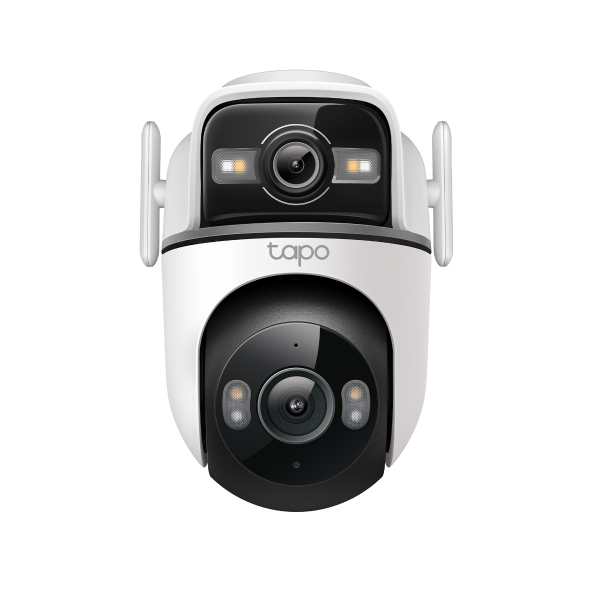

Outdoor Dual Lens Pan/Tilt Security Camera
Pan, Tilt, and Capture It All
The top wide-angle lens is fixed in place but supports manual Pan (270°) and Tilt (-30° to -10°) adjustment for the best viewing angle. The bottom telephoto lens features automatic pan and tilt to follow motion or shift focus between different areas as needed.
Synchronized Smart Tracking
The two cameras dynamically work together to seamlessly follow movement–when the fixed lens detects events like motion, people, and pets, the pan/tilt lens will automatically pivot to focus on and track the moving object.
Magnify Details with Telephoto Lens
The 6mm telephoto lens delivers 3× clarity compared to standard lens and supports up to 10.8× digital zoom, ensuring every detail is clearly visible when you zoom in.
Panoramic Coverage of Two Areas, Simultaneously
Monitor two separate areas at the same time with just one powerful camera. Reduce blind spots and get a more thorough, comprehensive overview of your home.
Instant Detail with One-Tap Smart Focus
One tap for instant clarity: select an area in the wide-angle view, and the pan/tilt lens will focus on it instantly.
Smarter, More Accurate Notifications Powered by AI
Stay informed with smart AI detection that recognizes and notifies you of people, pets, and vehicles – all without any subscription fees. Tailor your alerts by selecting which types of detection will trigger notifications.
Smart & Versatile Night Vision Modes
Choose from vibrant full-color with spotlights, discreet black-and-white infrared, or an automatic Smart Mode based on AI light detection for optimal clarity in any nighttime scenario.
Reliable Connectivity with Ethernet Support
Ensure a more stable and consistent connection for your camera with Ethernet support. Ideal for areas with weak Wi-Fi, an Ethernet connection guarantees smooth live streaming and faster data transmission.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired & Wireless |
| Placement supported | Indoor & outdoor |
| Design | |
| Country of origin | China |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling |
| LED indicators | Yes |
| International Protection (IP) code | IP66 |
| Camera | |
| Lens viewing angle, horizontal | 360° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 1.6 |
| Fixed focal length | 6 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 29.9 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 2304 x 1296 pixels |
| Video formats supported | H.264 |
| Frame rate | 15 fps |
| Total megapixels | 3 MP |
| Audio | |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 6 (802.11ax) |
| Supported network protocols | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Storage | |
| Maximum memory card size | 512 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired & Wireless |
| Security | |
| Security algorithms | 128-bit AES, WPA-PSK, WPA2-PSK |
| Management features | |
| Reset button | Yes |
| Power | |
| Power source type | DC |
| Power consumption (max) | 11.2 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 5.3 W |
| DC-in jack | Yes |
| DC output voltage | 12 |
| DC output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| System requirements | |
| Mobile operating systems supported | Android 5.0, iOS 5.0 |
| Weight & dimensions | |
| Width | 235 mm |
| Depth | 196 mm |
| Height | 136 mm |
| Weight | 0.58 g |
| Package width | 202 mm |
| Package height | 136 mm |
| Package depth | 241 mm |
| Package weight | 980 g |
| Packaging data | |
| Package width | 202 mm |
| Package height | 136 mm |
| Package depth | 241 mm |
| Package weight | 980 g |
| Packaging content | |
| Number of cameras | 1 |
| Logistics data | |
| Customs product code (TARIC) | 8525890000 |
