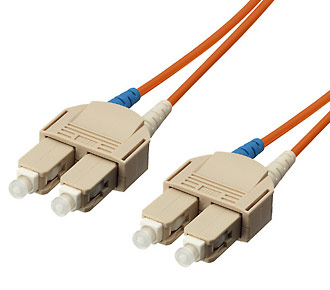

5 meter LWL Patch Cable, LSOH SC/SC 50/125?, Fiberglass Multi-mode, Orange - 253315
Introduction
The equip®Fiber Optic Patch Cord is made of superior materials to ensure an insertion loss, return loss, and endface geometry connection. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
- Multi-mode, duplex
- Connector: ceramic-ferrule
- Cladding: low smoke and zero halogen
- Cable spec: I-VH 2 x 1G
- Cable jacket color: orange
- Each cable includes a measure protocol
- OM1 = 62.5/125mµ, OM2 = 50/125mµ
Specifications
| Features | |
|---|---|
| Fibre optic type | OM2 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | SC |
| Connector 2 | SC |
| Cable length | 5 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.5 dB |
| Product colour | Orange |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | SC |
| Connector 2 | SC |
| Cable length | 5 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Connector(s) | SC/SC |
| Insertion loss | 0.5 dB |
| Compliance certificates | REACH, RoHS |
| Weight & dimensions | |
| Cable length | 5 m |
| Other features | |
| Connector(s) | SC/SC |
| Core / cladding diameter | 50/125 µm |
