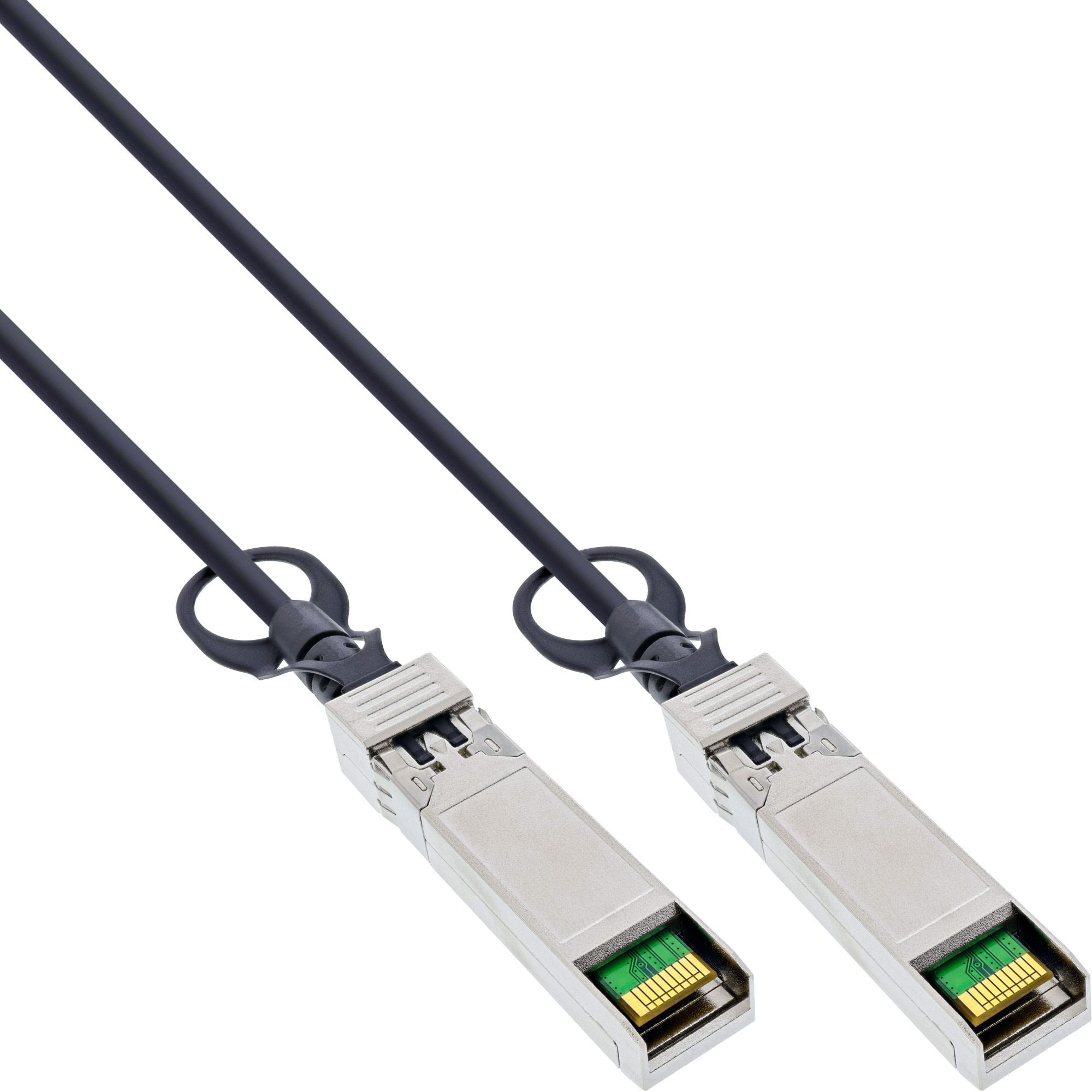

EU Product - - SFP+ auf SFP+ DAC Kabel passiv, 10Gb, 3m
Introduction
High transmission reliability:The passive SFP+ DAC cable supports stable data rates up to 10.5 Gb/s and offers a bit error rate better than 10E-12.
Reliable point-to-point connections:The hot-plug-capable SFP 20-PIN footprint enables fast, direct connections without additional transceivers.
Robust signal integrity:The double-shielded 30AWG cable reduces interference and is ideal for dense rack environments.
Flexible usability:The cable is backward compatible to 1 Gb/s and is suitable for a wide range of high-speed applications.
Standard-compliant performance:Compliance with SFF-8431, SFF-8432, MSA, and EIA-364 ensures smooth integration.
The InLine SFP+ to SFP+ DAC cable offers a reliable solution for high-speed connections within professional network environments. It supports data rates up to 10.5 Gb/s and is backward compatible down to 1 Gb/s. This makes it suitable for numerous applications that require high performance and efficiency. Generic coding allows for flexible integration.
The passively constructed twinax cable ensures energy-efficient operation without additional heat generation. The hot-plug-capable SFP 20-PIN footprint enables quick installation and ensures short conversion times. The double-shielded 30AWG cable reduces external interference and offers stable signal integrity, even in high-density environments.
Compliance with SFF-8431, SFF-8432, MSA, and EIA-364 ensures that the cable meets the technical requirements of current high-speed components. With reliable electrical performance and a bit error rate of better than 10E-12, the cable provides a stable connection for demanding applications. It is suitable for both short uplink distances and direct point-to-point connections in performance-oriented network architectures.
DDM support: no
Cable type: Twinax
Encoding: generic
Specifications
| Features | |
|---|---|
| Connector 1 | SFP+ |
| Connector 2 | SFP+ |
| Cable length | 3 m |
| Data transfer rate | 10 Gbit/s |
| Product colour | Black |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| InfiniBand protocol | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
| Weight | 120 g |
| Cable length | 3 m |
| Package width | 240 mm |
| Package depth | 240 mm |
| Package height | 20 mm |
| Package weight | 133 g |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 240 mm |
| Package height | 20 mm |
| Package weight | 133 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Connector 1 | SFP+ |
| Connector 2 | SFP+ |
| Cable length | 3 m |
| Data transmission | |
| Data transfer rate | 10 Gbit/s |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Dimensions (WxDxH) | 15 x 3000 x 12 mm |
