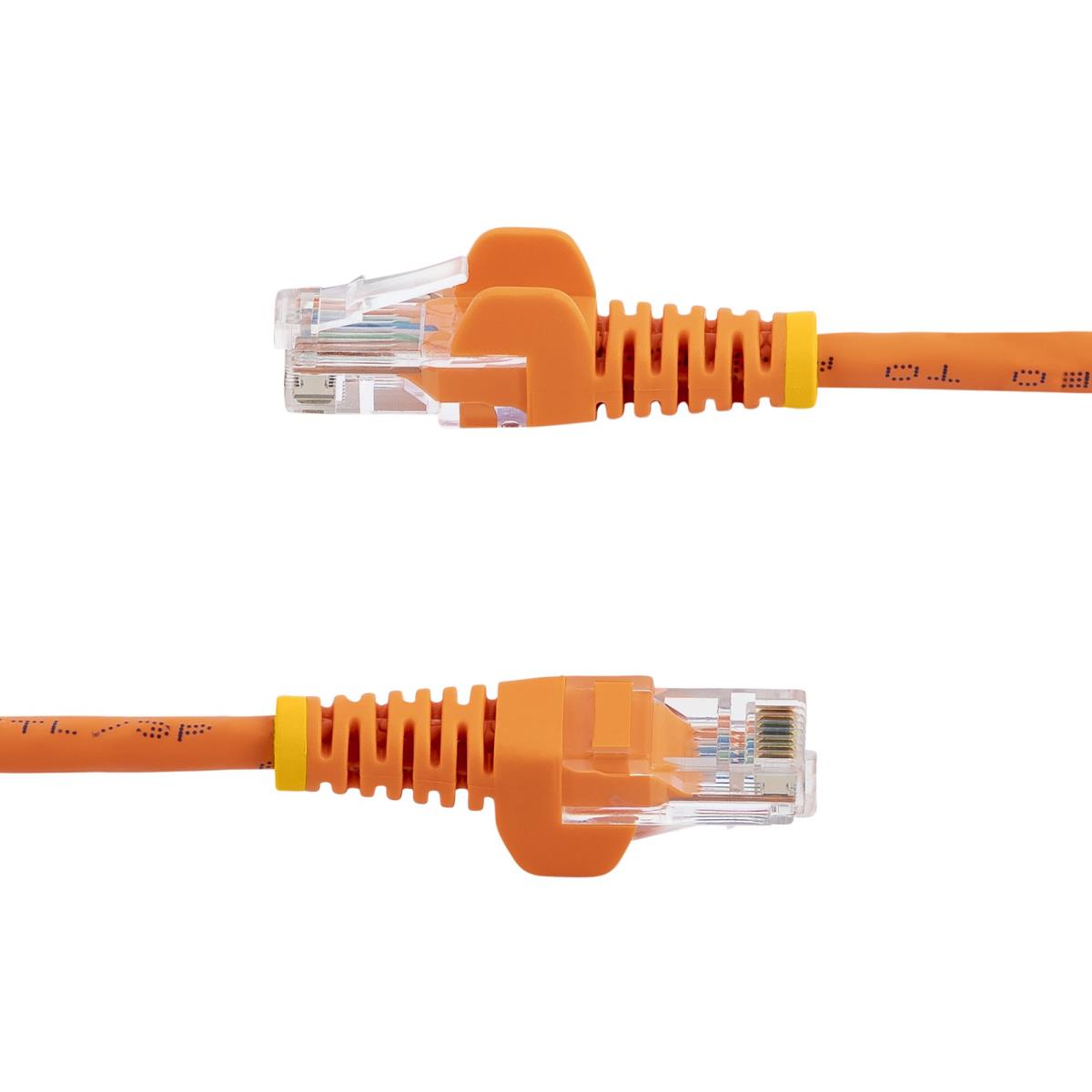

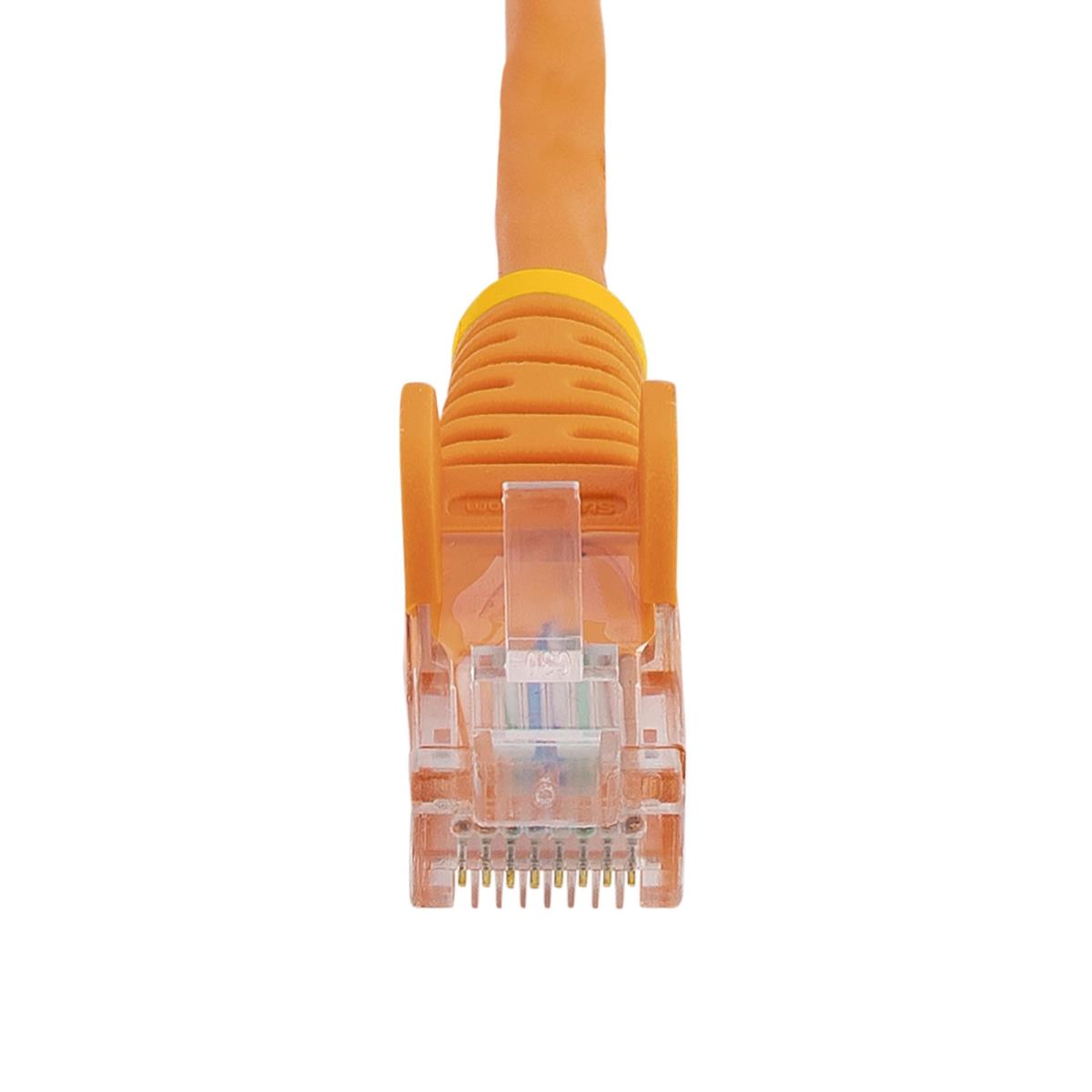

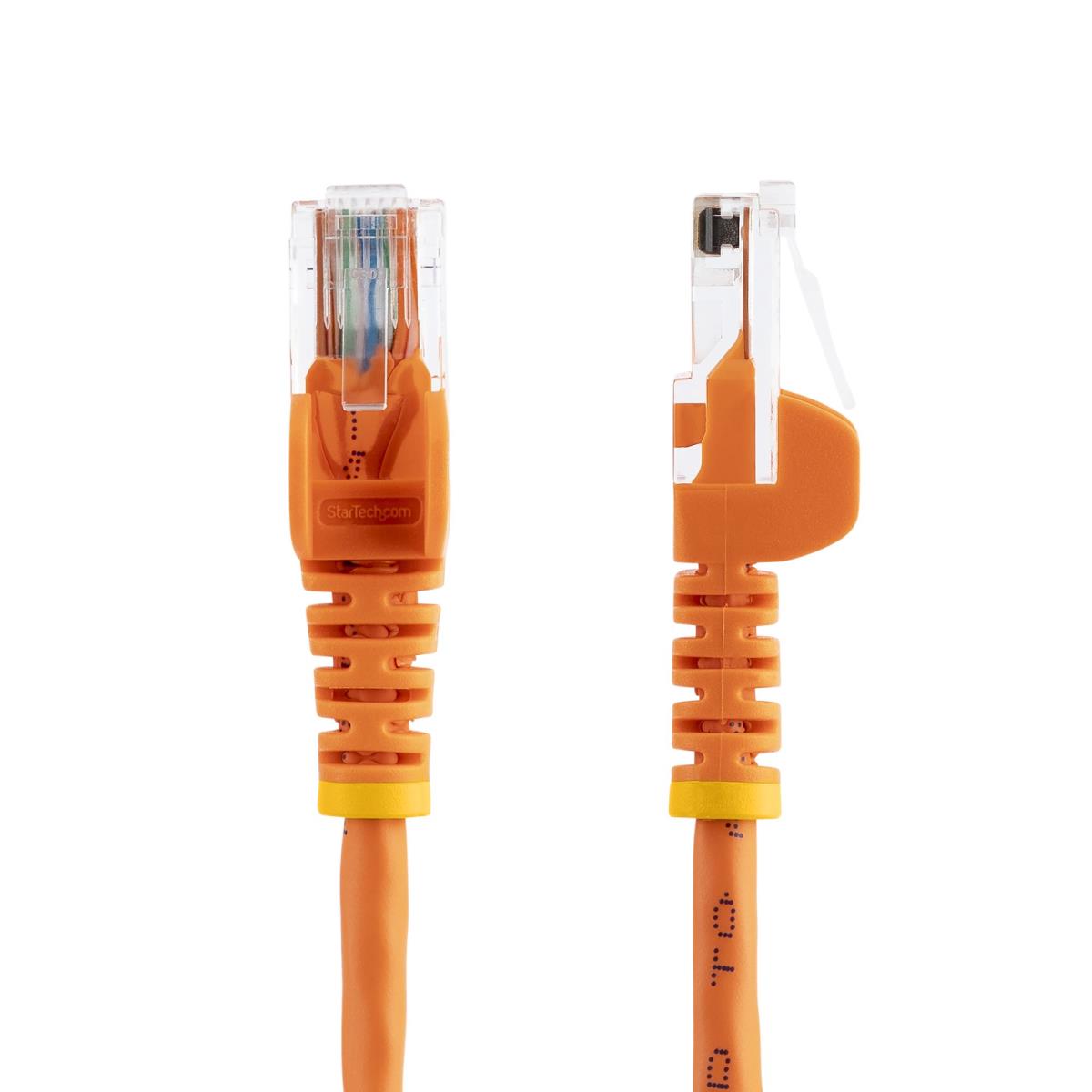

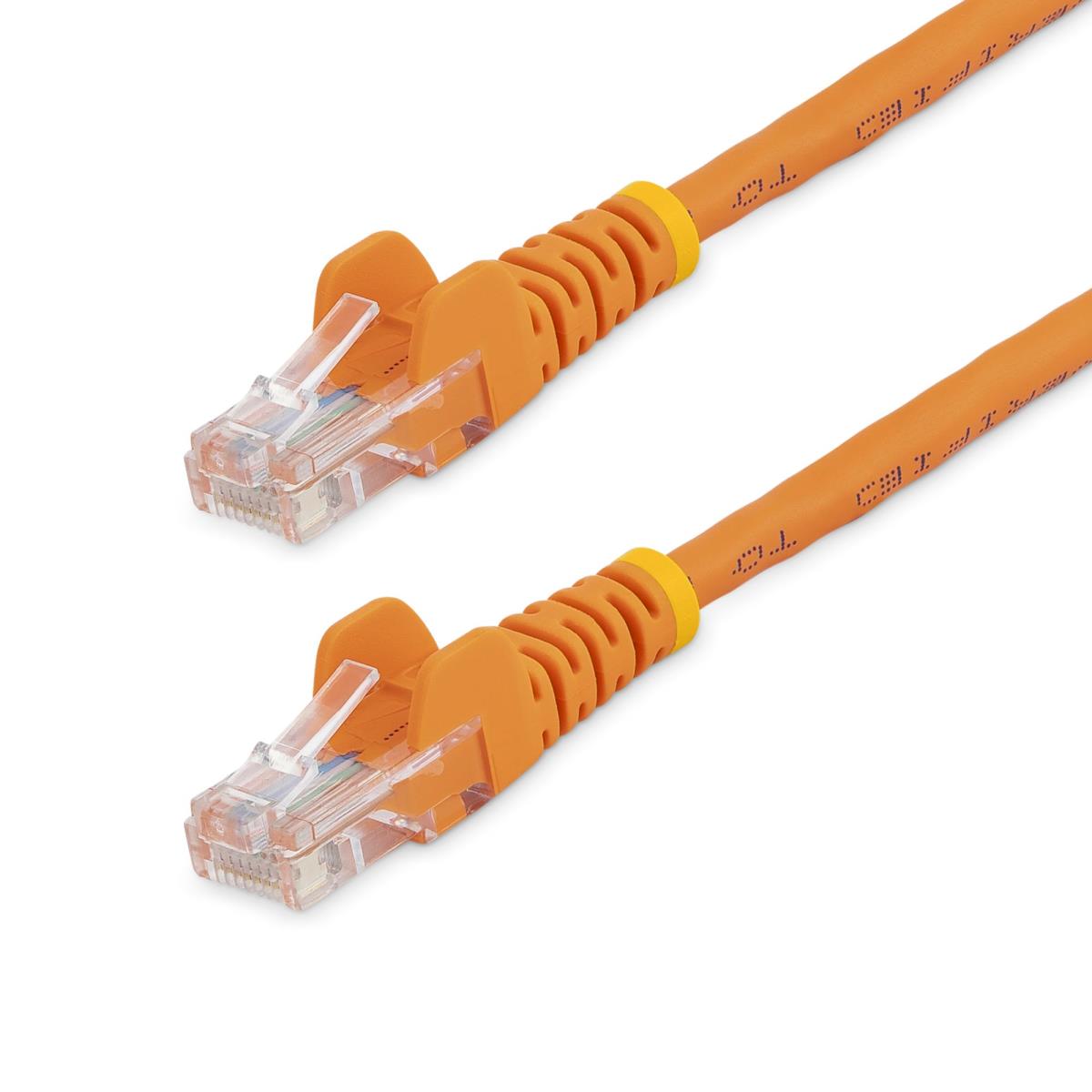

0.5M ORANGE CAT5E CABLE
Introduction
Make Fast Ethernet connections with support for PoE
Get reliable Ethernet connectivity with this Cat5e Snagless Patch Cable, designed to keep networks organized and running smoothly. Color-coded jacket options help simplify cable management and reduce identification errors, while the snagless boot protects RJ45 clips during installation and prevents unwanted snags. Molded strain relief reinforces connector points to reduce wear over time. Built with 100% copper conductors, 24 AWG wire, and 50-micron gold-plated connectors, it delivers consistent signal integrity and power support for data and PoE applications.
Specifications
| Features | |
|---|---|
| Product colour | Orange |
| Cable rating | CMG (CM) |
| Snagless cable boot | Yes |
| Conductor material | Copper |
| Frequency | 350 MHz |
| AWG wire size | 24 |
| Plug and Play | Yes |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Cabling technology | 10/100Base-T(X) |
| Data transfer rate | 100 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| Cable length | 0.5 m |
| Ethernet interface type | Fast Ethernet |
| Power over Ethernet (PoE) | Yes |
| Cable shape | Round |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Compliance certificates | RoHS, CE |
| Weight & dimensions | |
| Weight | 24 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 14 mm |
| Package weight | 32 g |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Orange |
| Plug and Play | Yes |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Cabling technology | 10/100Base-T(X) |
| Data transfer rate | 100 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| Cable length | 0.5 m |
| Cable rating | CMG (CM) |
| Compliance certificates | RoHS, CE |
| Logistics data | |
| Products per master (outer) case | 320 pc(s) |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 268 mm |
| Harmonized System (HS) code | 84733080 |
