15MCAT6U/UTPGIGABITNETWORKCABLEYELL
Introduction

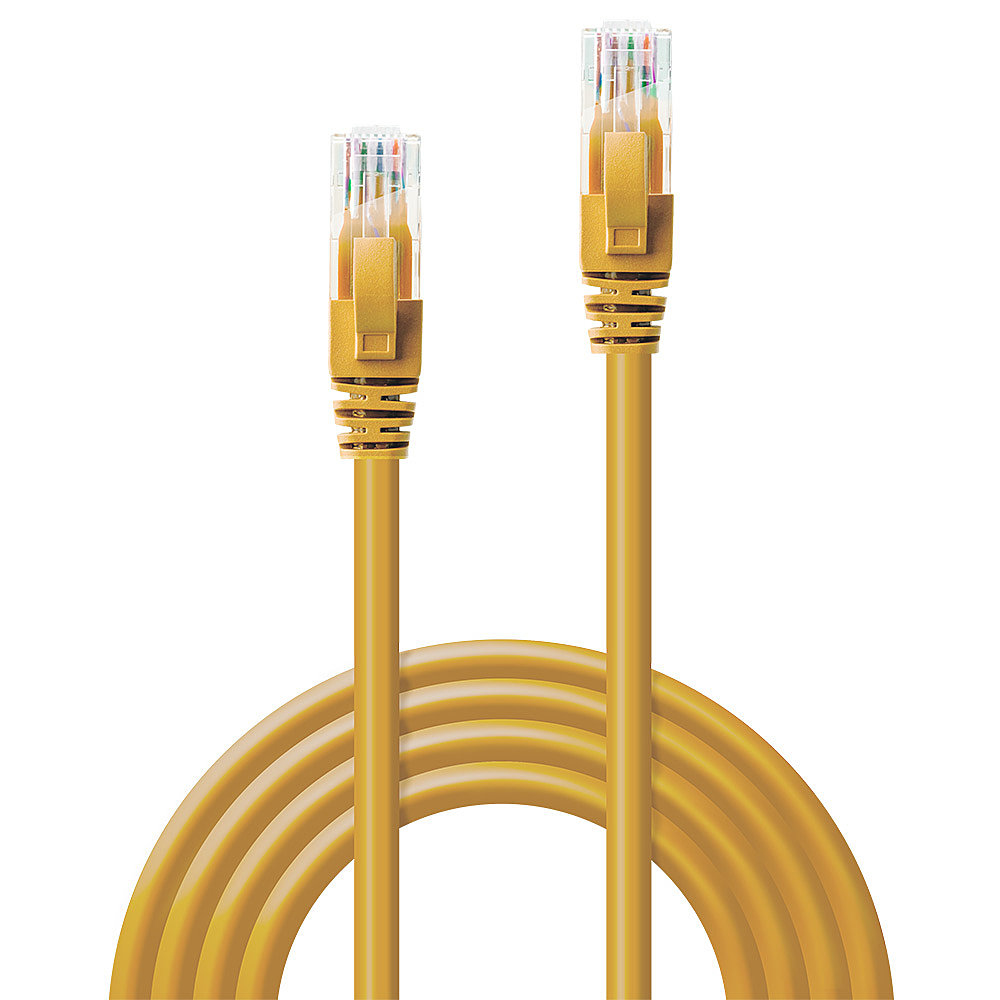

Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

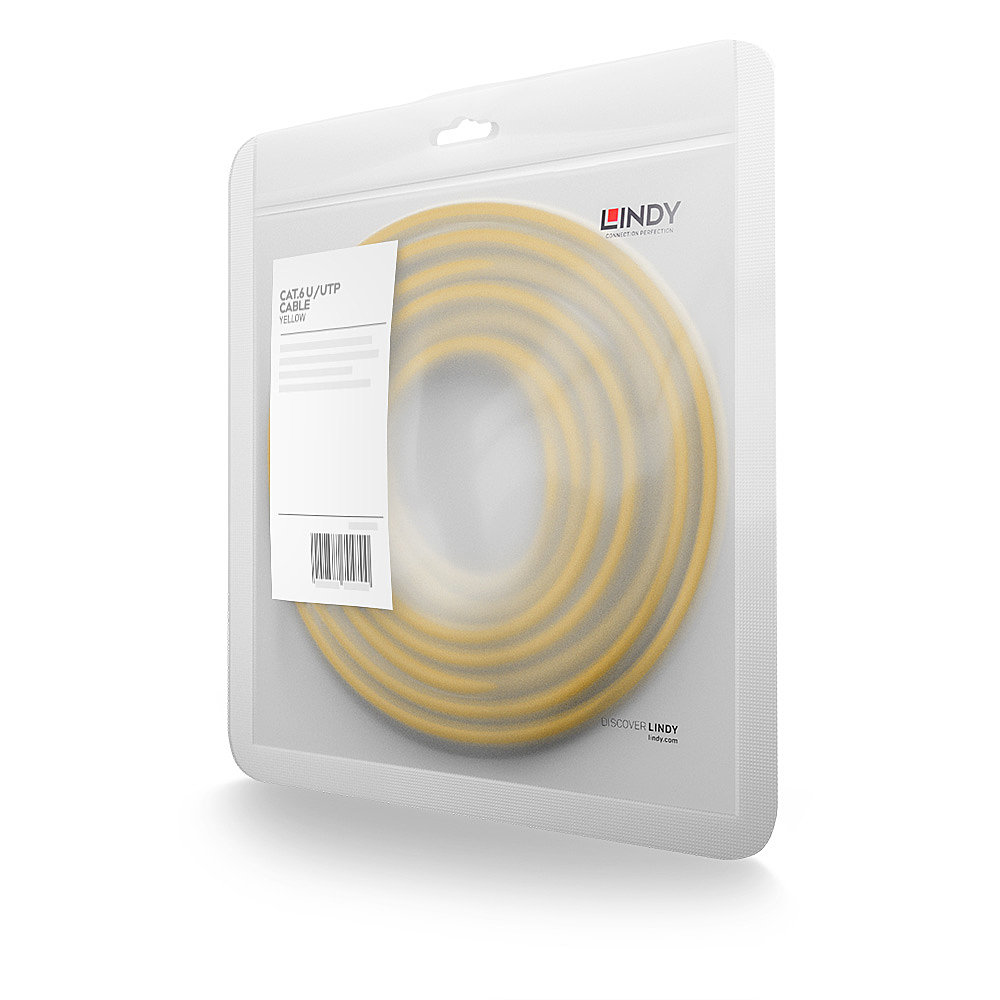

Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

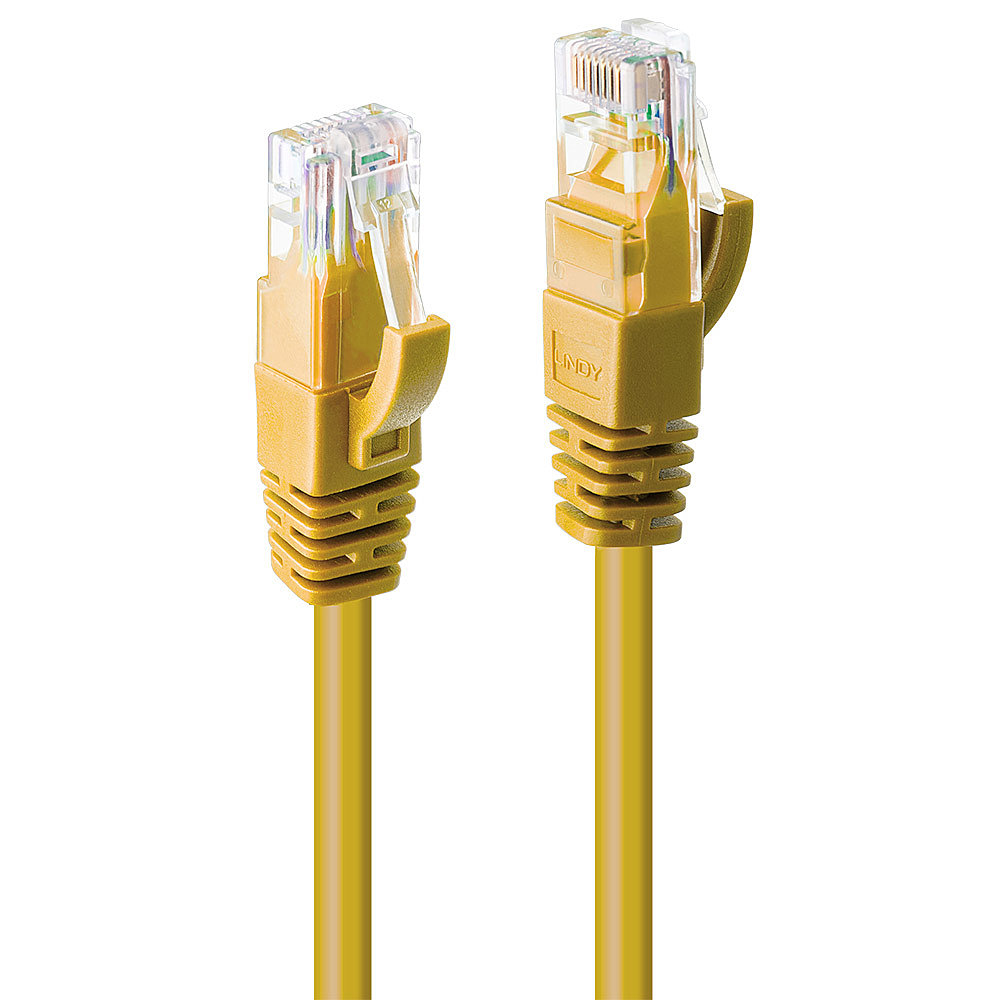

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.
Specifications
| Features | |
|---|---|
| Product colour | Yellow |
| Conductor material | Copper |
| Frequency | 250 MHz |
| AWG wire size | 24 |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Cabling technology | 10/100/1000Base-T(X) |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable length | 15 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Bend radius (min) | 6.9 cm |
| Category | 6 |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Certificates | |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Weight & dimensions | |
| Outer diameter | 5.8 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Packaging data | |
| Package type | Polybag |
| Technical details | |
| Product colour | Yellow |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Cabling technology | 10/100/1000Base-T(X) |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable length | 15 m |
| Category | 6 |
| Other features | |
| Category | 6 |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
