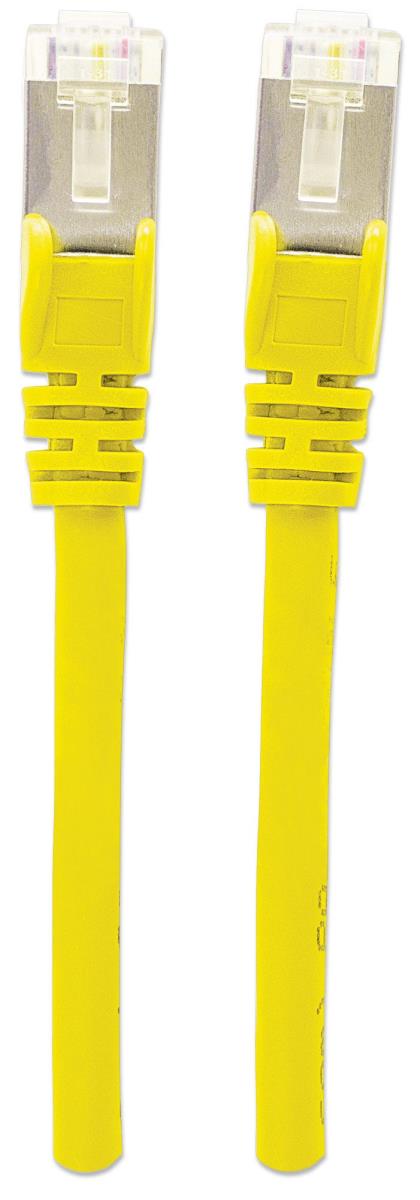

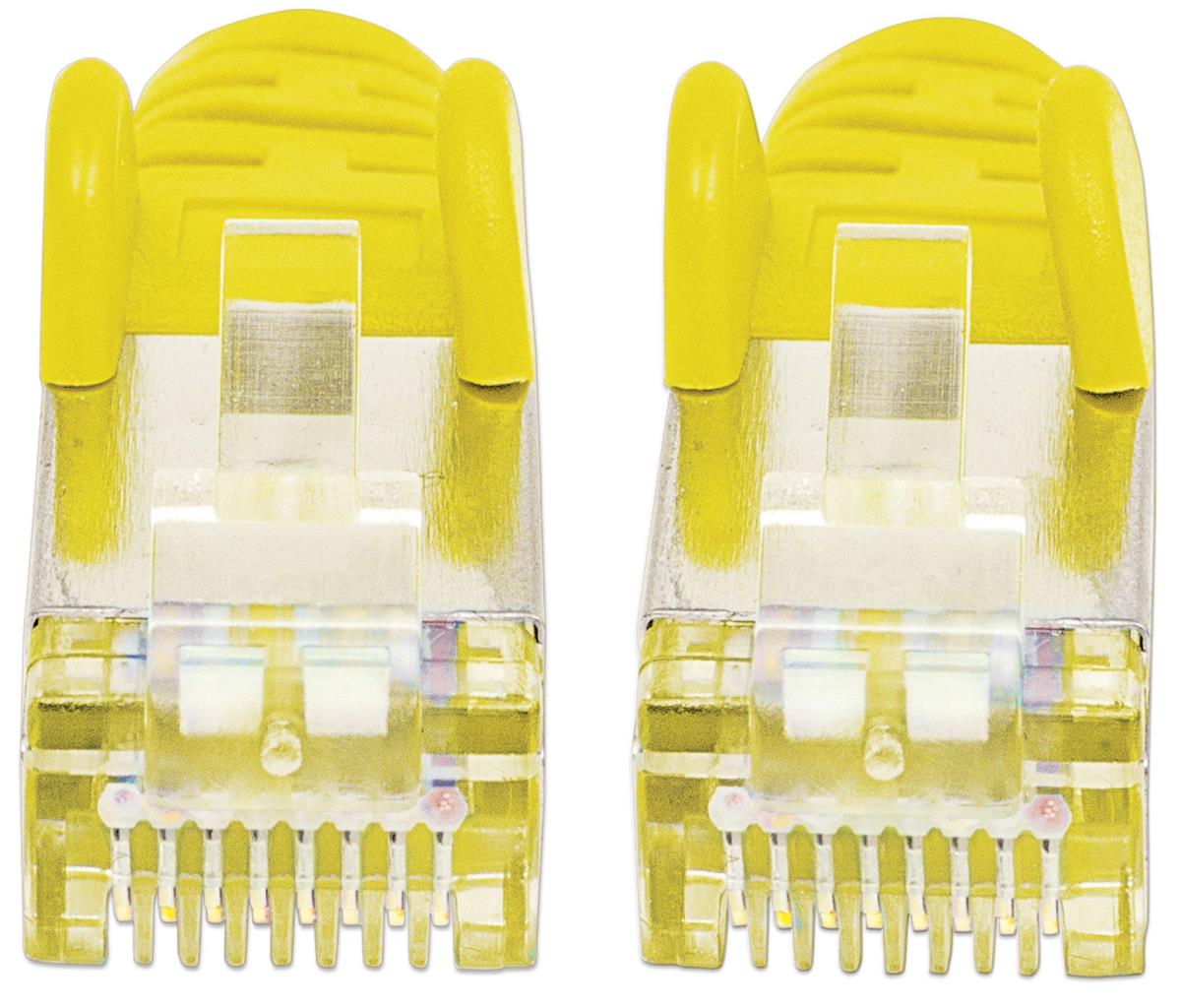

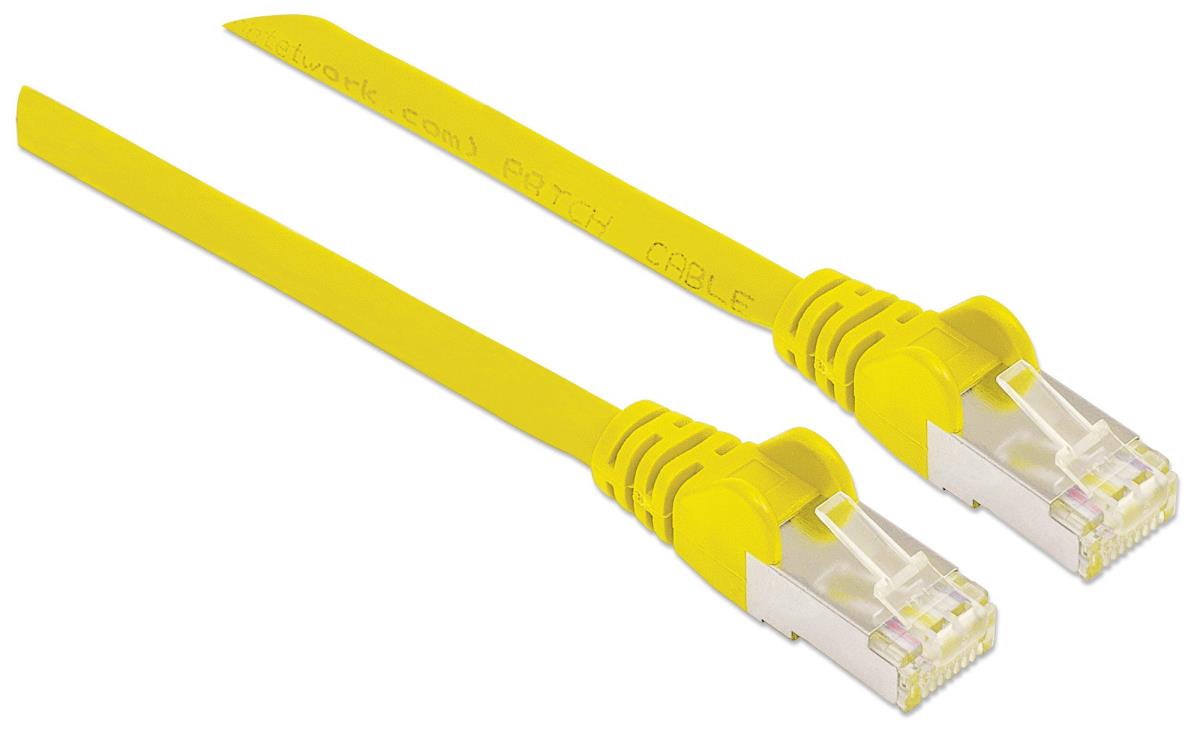

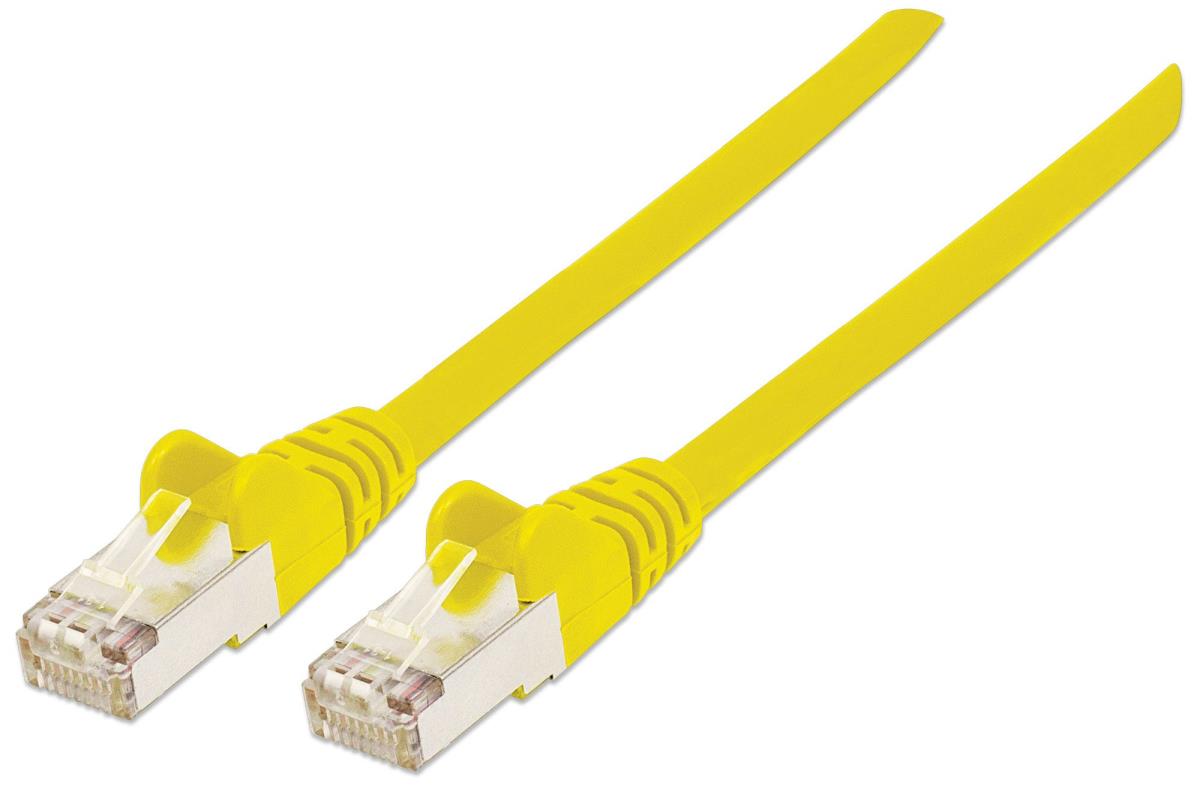

NETWORK CABLE CAT6 COPPER 2M-
Introduction
Cat6 performance for a variety of applications.
This Intellinet Network Solutions Cat6 network cable is commonly used for networking and audio/video installations in both SOHO and SMB applications. Made from 28-AWG copper cable and shielded to virtually eliminate interference, this cable supports Gigabit Ethernet speeds (1000 Mbps) and is ideal for HDMI repeaters and extenders, as well as high-speed data and PoE.
Low-Smoke, Zero-Halogen (LSZH)
In a fire, typical plastics can release hydrogen chloride and other caustic gases. Low-smoke, zero-halogen cable is made of a thermoplastic compound that emits a limited amount of smoke and no halogens when exposed to fire or high heat.
Specifications
| Features | |
|---|---|
| Product colour | Yellow |
| Snagless cable boot | Yes |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Copper |
| Frequency | 350 MHz |
| AWG wire size | 28/7 |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Stranded |
| Cable length | 2 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Certification | EIA/TIA 568B |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Certification | EIA/TIA 568B |
| Compliance certificates | CE, RoHS, REACH |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Yellow |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Stranded |
| Cable length | 2 m |
| Compliance certificates | CE, RoHS, REACH |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
