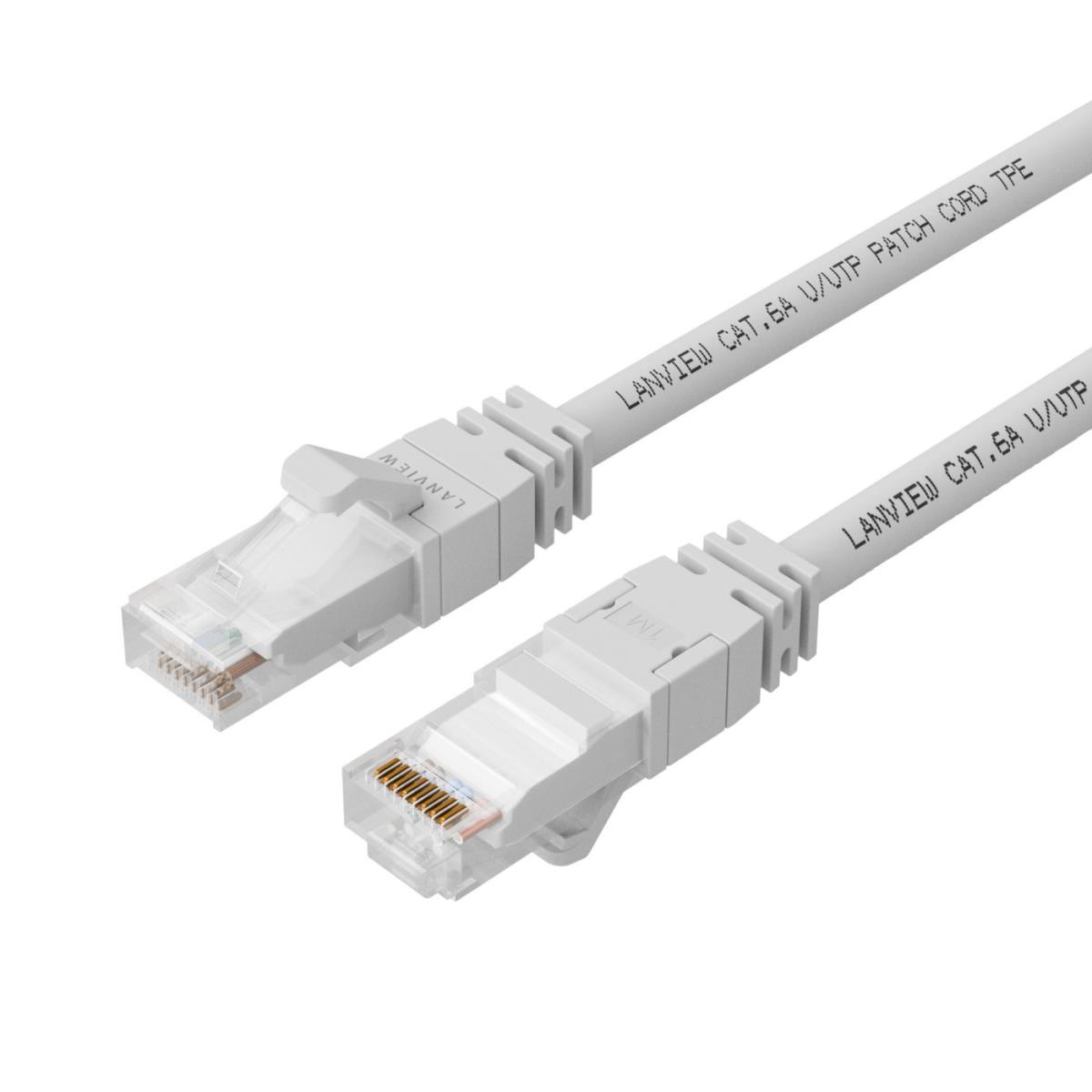

CAT6A S/FTP 25m White LSZH, HIGH-FLEX

Introduction

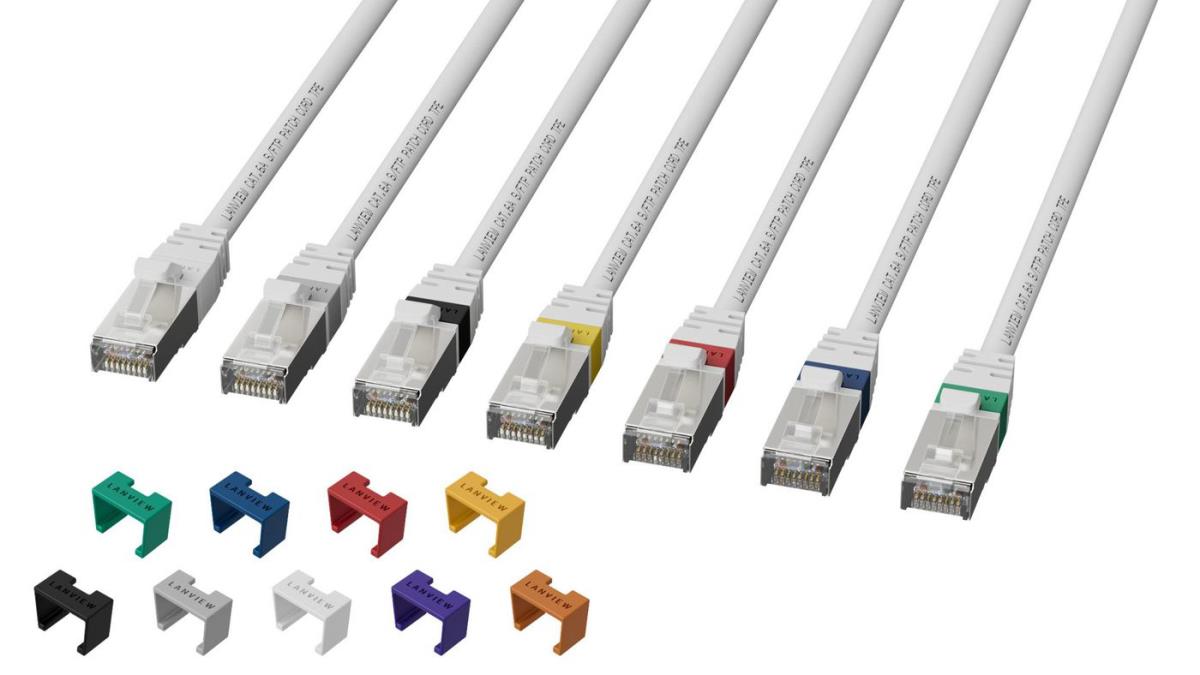

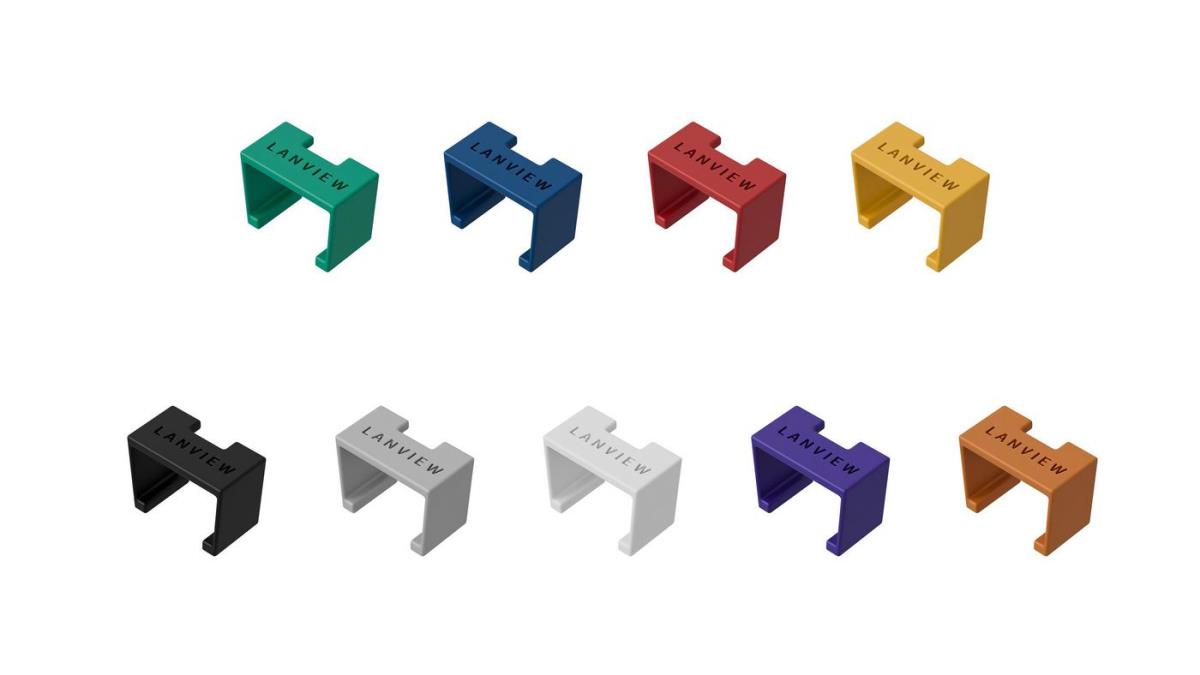

Lanview SmartClick series is an Innovative collection of Cat6A patchcables. The SmartClick series features removable color-coding clips, which makes it much easier to color code configure your wired network. The cables are made with an TPE LSZH jacket, which gives you a much softer & flexible cable that are easier to work with. Furthermore we have added length marking on the plug, for easy length identification. The cables are Halogenfree and features the PoE up to 100W and are optimized for all kind of applications (Audio, Video and Data). The SmartClick clips comes in 8 different colors.

Specifications

Features
Product colour	White
Snagless cable boot	Yes
Connector shielding	Yes
Connector shield material	Zinc alloy
Conductor material	Oxygen-Free Copper (OFC)
Suitable for outdoor use	No
Molded cable boot	Yes
Connector gender	Male
AWG wire size	26
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10GBase-T
Jacket material	Low smoke zero halogen (LSZH)
Cable length	25 m
Ethernet interface type	10 Gigabit Ethernet
Power over Ethernet (PoE)	Yes
Connector 2 gender	Male
Connector 1 gender	Male
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Power over Ethernet (PoE) type supported	PoE+
Weight & dimensions
Depth	130 mm
Weight	820 g
Jacket thickness	5 mm
Packaging data
Package weight	824 g
Technical details
Product colour	White
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10GBase-T
Jacket material	Low smoke zero halogen (LSZH)
Cable length	25 m
Cable diameter	5 mm
Jacket thickness	5 mm
Other features
Cable diameter	5 mm
