Introduction

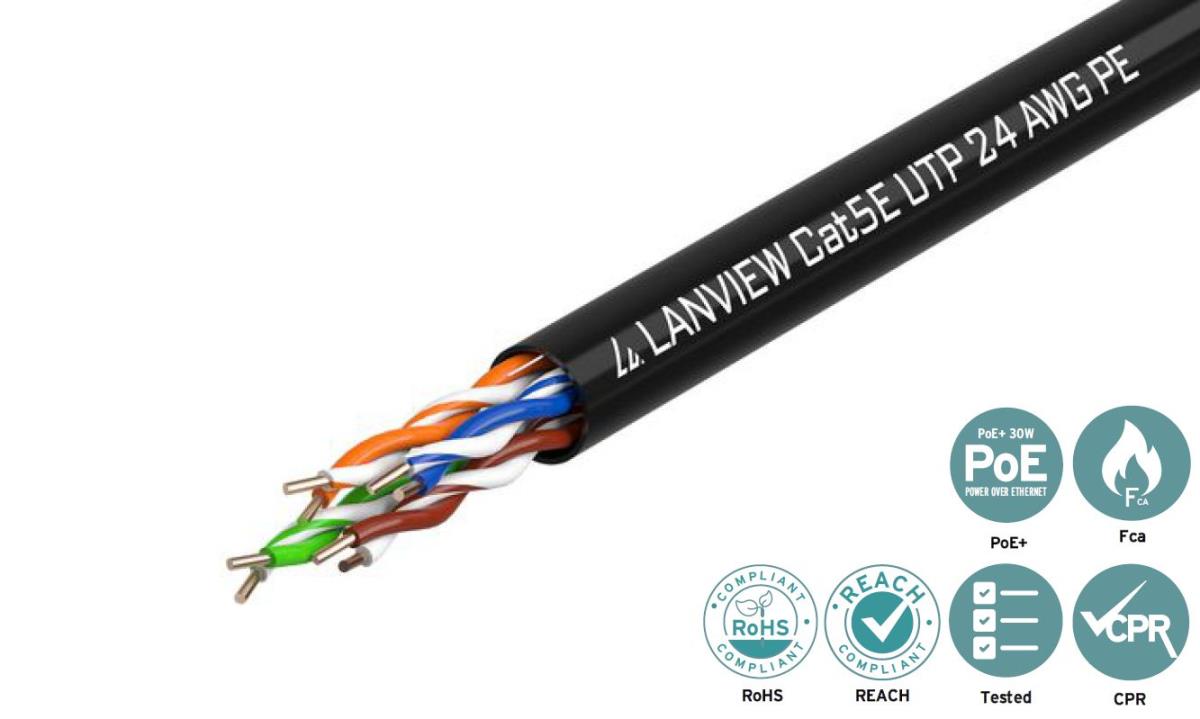

Lanview Cat5e Unshielded PE cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. and can be used for outdoor installations, Each cable consists of 4x2 color coded PE insulated conductors.
This is currently the most common and basic method of cable construction, consisting of pairs of wires twisted together.
The cable has no shielding, instead the symmetrical twist in the wires create a balanced transmission line, helping to reduce electrical noise and EMI.
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Conductor material | Copper |
| Frequency | 100 MHz |
| AWG wire size | 24 |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Polyethylene (PE) |
| Conductor type | Solid |
| Cable length | 305 m |
| Ethernet interface type | Gigabit Ethernet |
| Cable shape | Round |
| Cable fire class | Fca |
| Weight & dimensions | |
| Width | 195 mm |
| Depth | 345 mm |
| Height | 345 mm |
| Weight | 8.3 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 195 mm |
| Package depth | 345 mm |
| Package height | 345 mm |
| Package type | Box |
| Package weight | 9.2 kg |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Black |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Polyethylene (PE) |
| Conductor type | Solid |
| Cable length | 305 m |
| Products per pallet (sea) | 90 pc(s) |
| Other features | |
| Package type | Box |
| Logistics data | |
| Products per pallet (sea) | 90 pc(s) |
