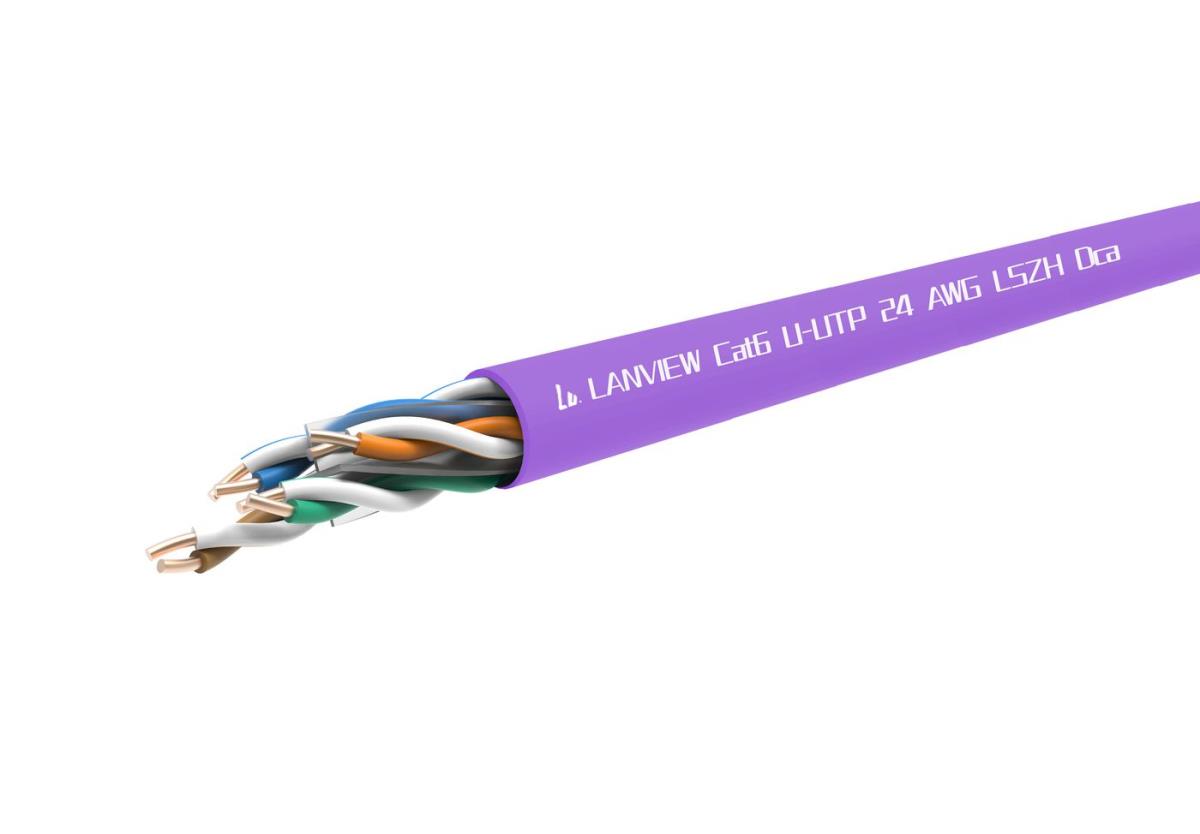

EU Product - C6 U-UP Nework Cle
Introduction
Used in structured cabling systems. For transmission of telecommunications and high speed data.
? ?
Lanview Cat6 Unshielded LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards.
Specifications
| Features | |
|---|---|
| Product colour | Purple |
| Conductor material | Copper |
| Frequency | 250 MHz |
| AWG wire size | 24 |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 305 m |
| Cable fire class | Dca |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 420 mm |
| Height | 420 mm |
| Weight | 12 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 210 mm |
| Package depth | 420 mm |
| Package height | 420 mm |
| Package weight | 13 kg |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Purple |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 305 m |
| Cable diameter | 5.5 mm |
| Products per pallet (sea) | 50 pc(s) |
| Compliance certificates | RoHS |
| Other features | |
| Cable diameter | 5.5 mm |
| Logistics data | |
| Products per pallet (sea) | 50 pc(s) |
