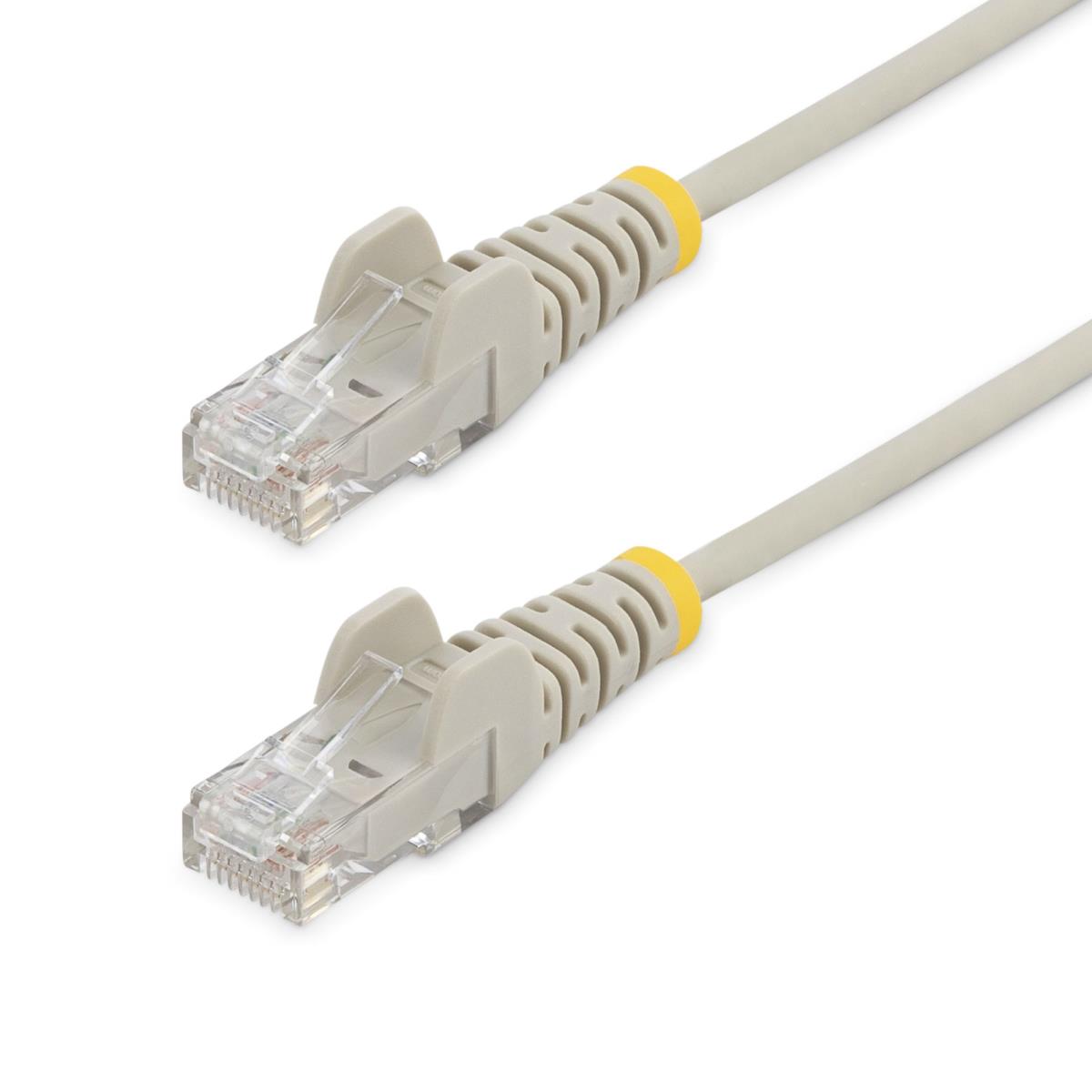

0.5M SLIM CAT6 CABLE - GREY
Introduction
Slim CAT6 Patch Cable | Snagless | 28 AWG Copper Wire | LSZH
This slim CAT6 cable meets all Category 6 patch cable specifications to deliver a reliable Gigabit and Power over Ethernet (PoE) network connection in high-density network installations.
Improved Airflow

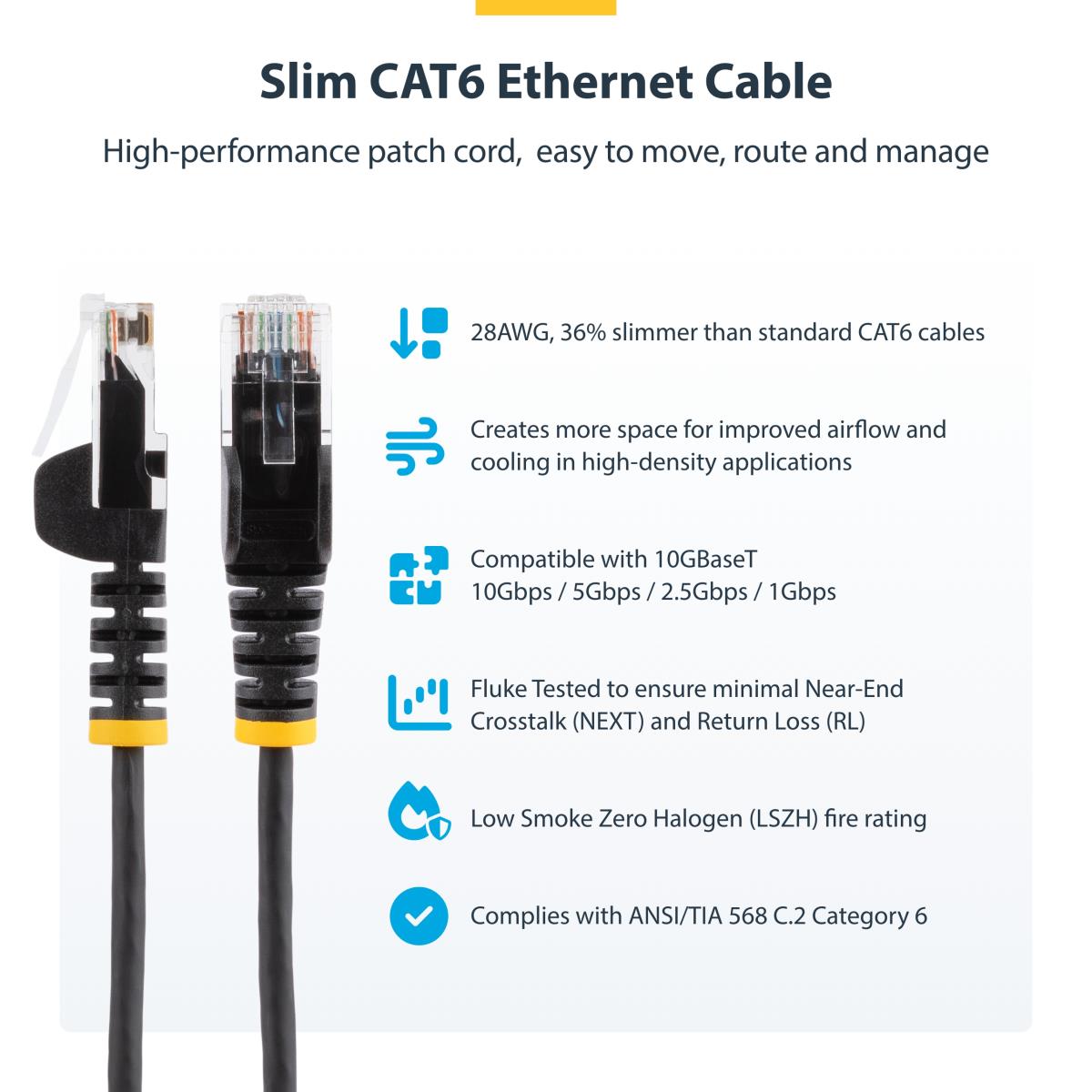

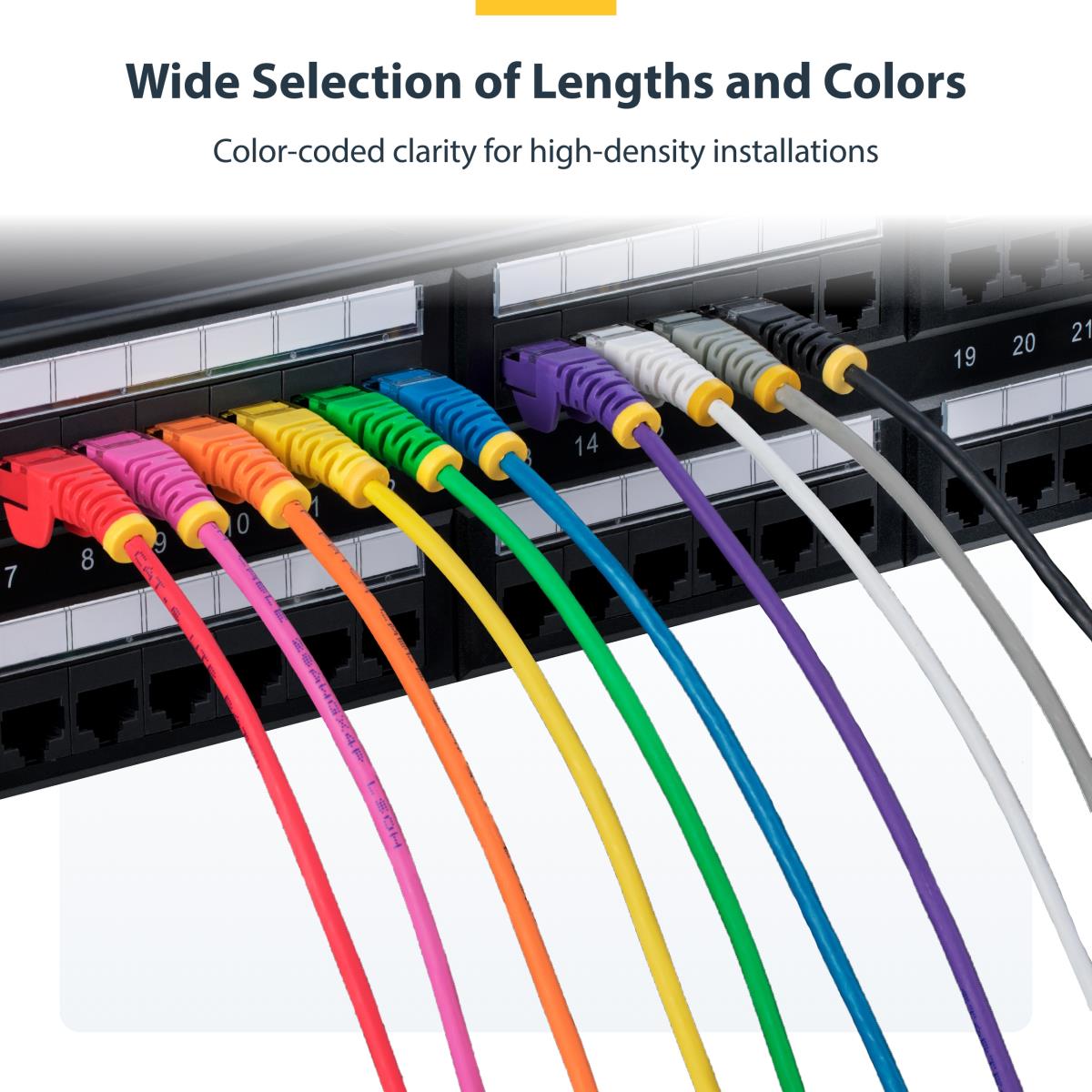

The Slim Cat6 Patch Cord is 36% thinner than standard Cat6 Ethernet cables, enabling greater airflow and heat dissipation in confined spaces. The Slim Cat6 Ethernet cable is also more flexible, for easier cable routing in crowded network racks and patch panels.

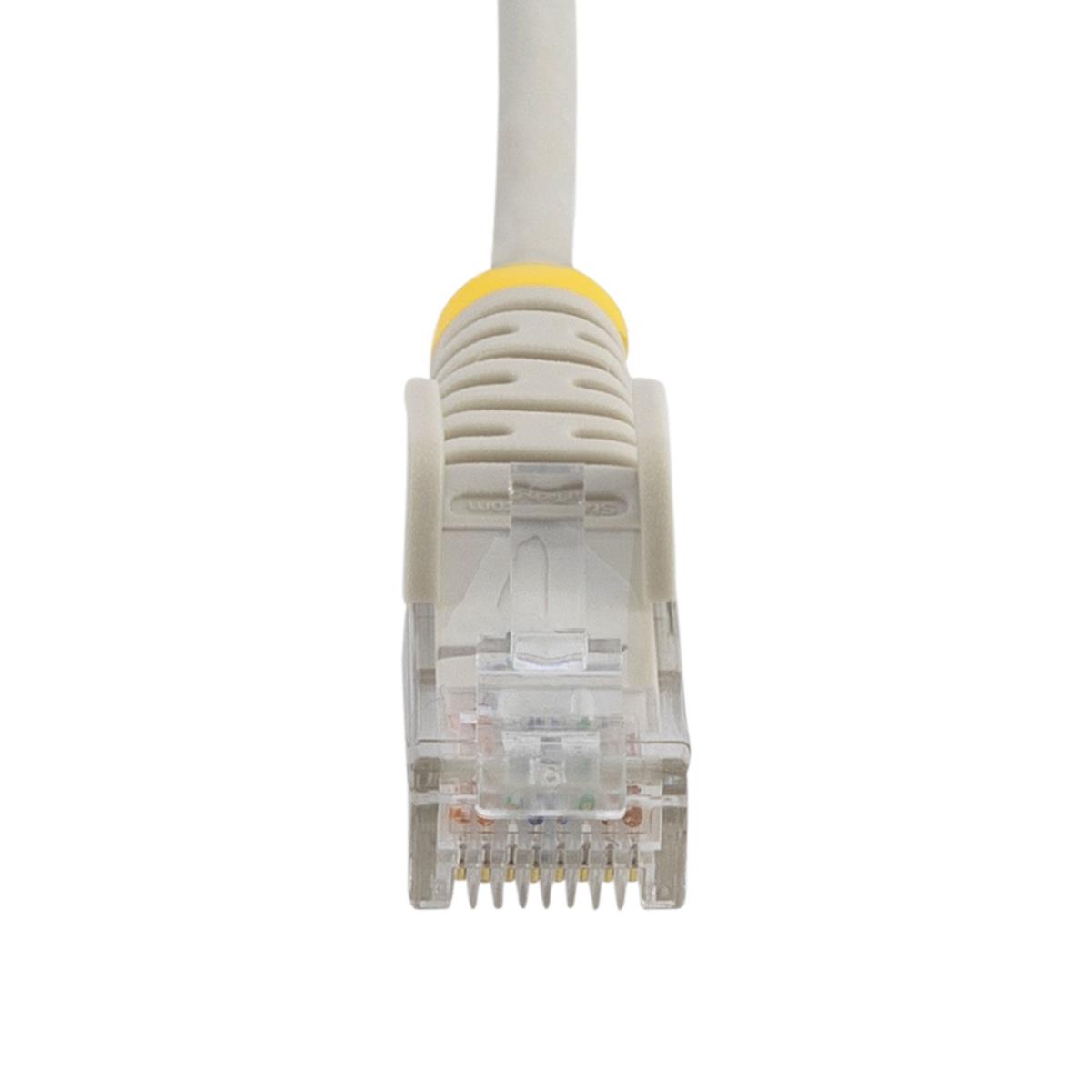

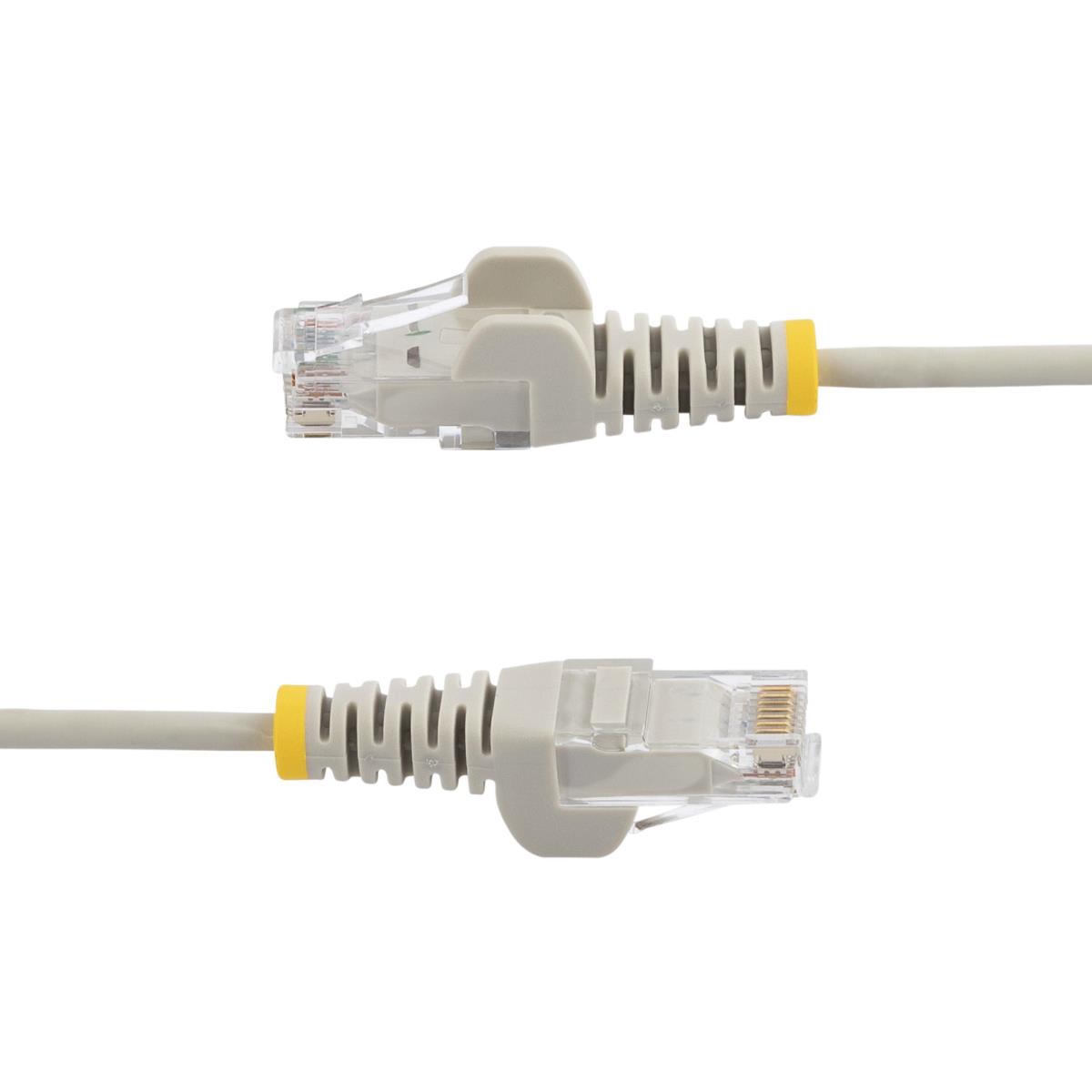

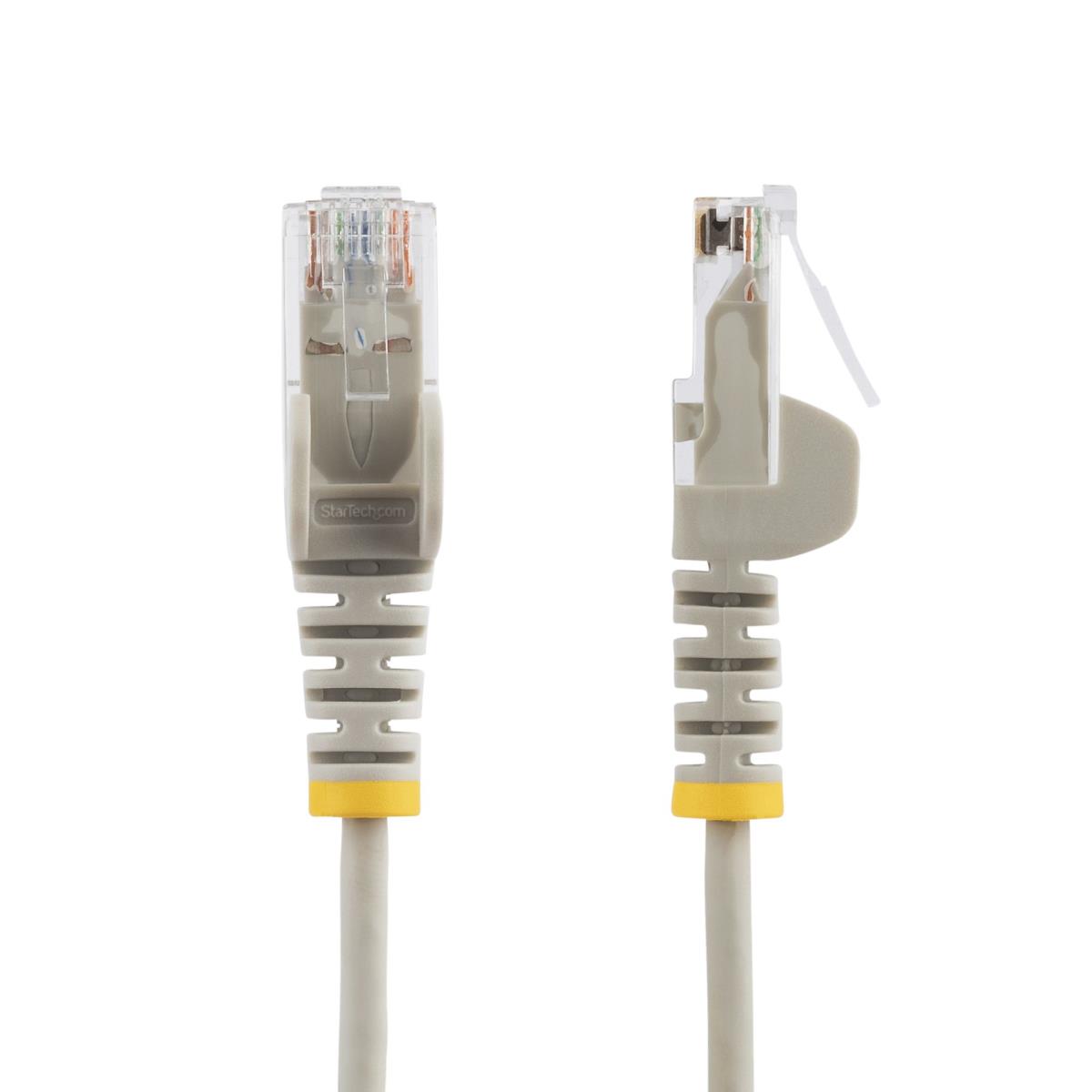

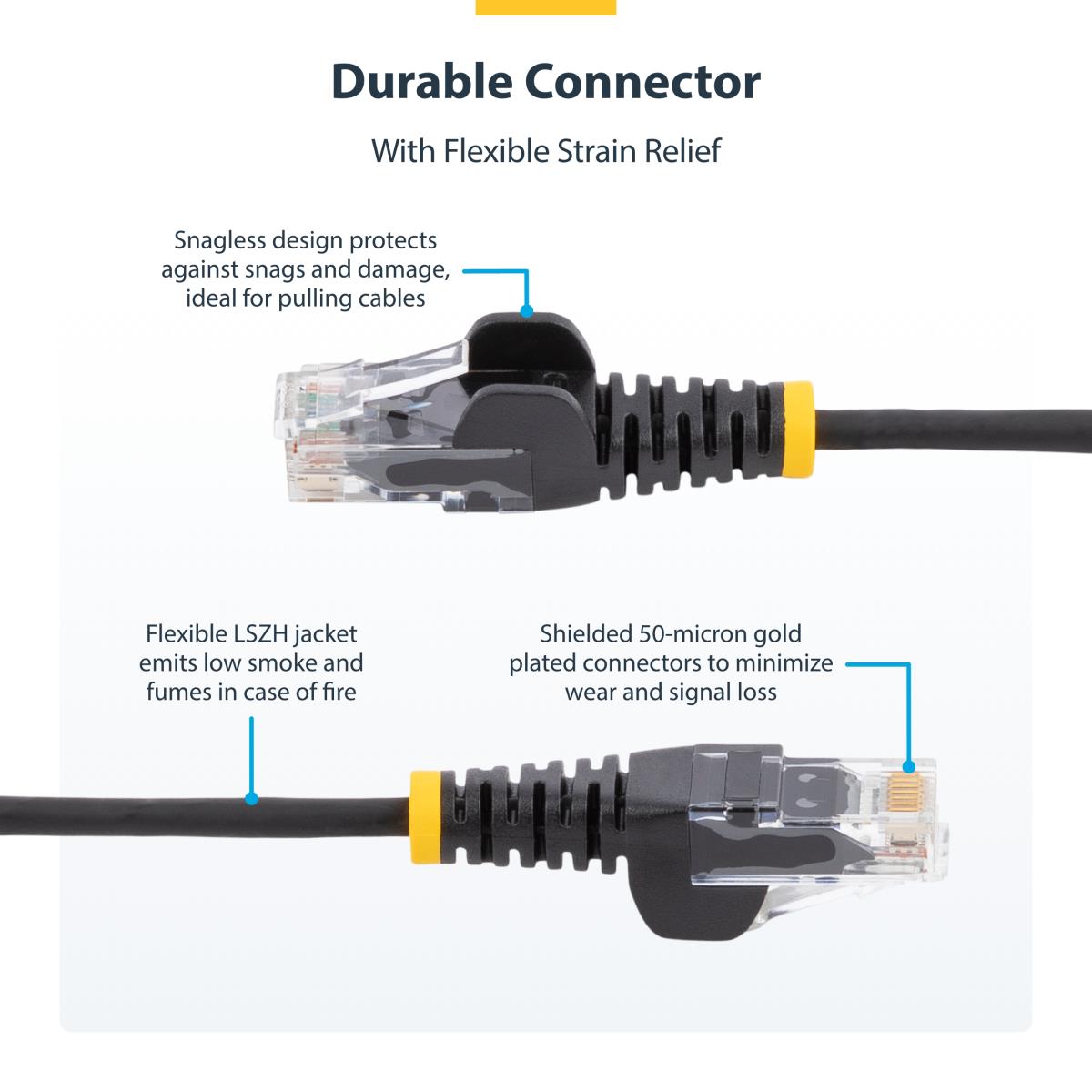

This cable features snagless connectors that protect the RJ45 clips during installation, reducing snags or breakage when routing through narrow gaps or in between devices.
Durable Construction

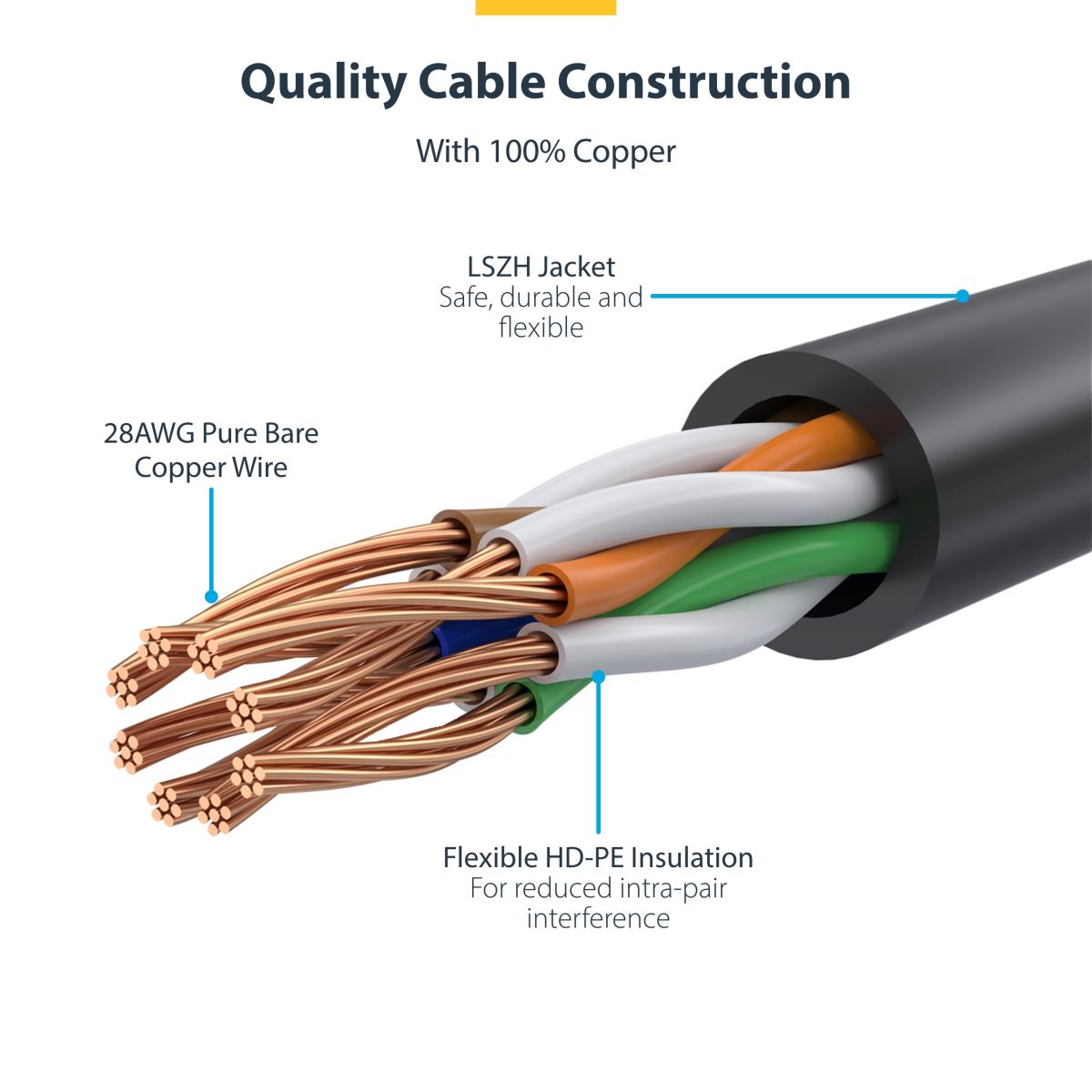

The Slim Cat6 Cable features 50-micron gold RJ45 contacts that ensure a precise fit to minimize wear and signal loss. The 4-pair Unshielded Twisted Pair (UTP) construction utilizes 28AWG Pure Bare Copper Wire for improved conductivity and low resistance. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Tested for Reliability
Each cable is individually tested using a Fluke® DSX2-8000 CableAnalyzer™ to meet ANSI/TIA-568.2-D Category 6 specifications, ensuring consistent signal integrity with minimal Near-End Crosstalk (NEXT) and Retun Loss (RL). Reliably deliver up to 100W of PoE++ to power a remote networking devices, including PoE switches and boardroom cameras. This Slim Cat6 Patch Cable complies with IEEE 802.3bt Type 4 PoE++ specifications.
Specifications
| Features | |
|---|---|
| Product colour | Grey |
| Snagless cable boot | Yes |
| Conductor material | Copper |
| Frequency | 250 MHz |
| AWG wire size | 28 |
| Plug and Play | Yes |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| Cable length | 0.5 m |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Certification | REACH, CE |
| Harmonized System (HS) code | 84733080 |
| Sustainability | |
| Doesn't contain | Halogen |
| Certificates | |
| Certification | REACH, CE |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 20 mm |
| Height | 10 mm |
| Weight | 14 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 220 mm |
| Package depth | 200 mm |
| Package weight | 22 g |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Grey |
| Plug and Play | Yes |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| Cable length | 0.5 m |
| Doesn't contain | Halogen |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 400 pc(s) |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 250 mm |
| Harmonized System (HS) code | 84733080 |
