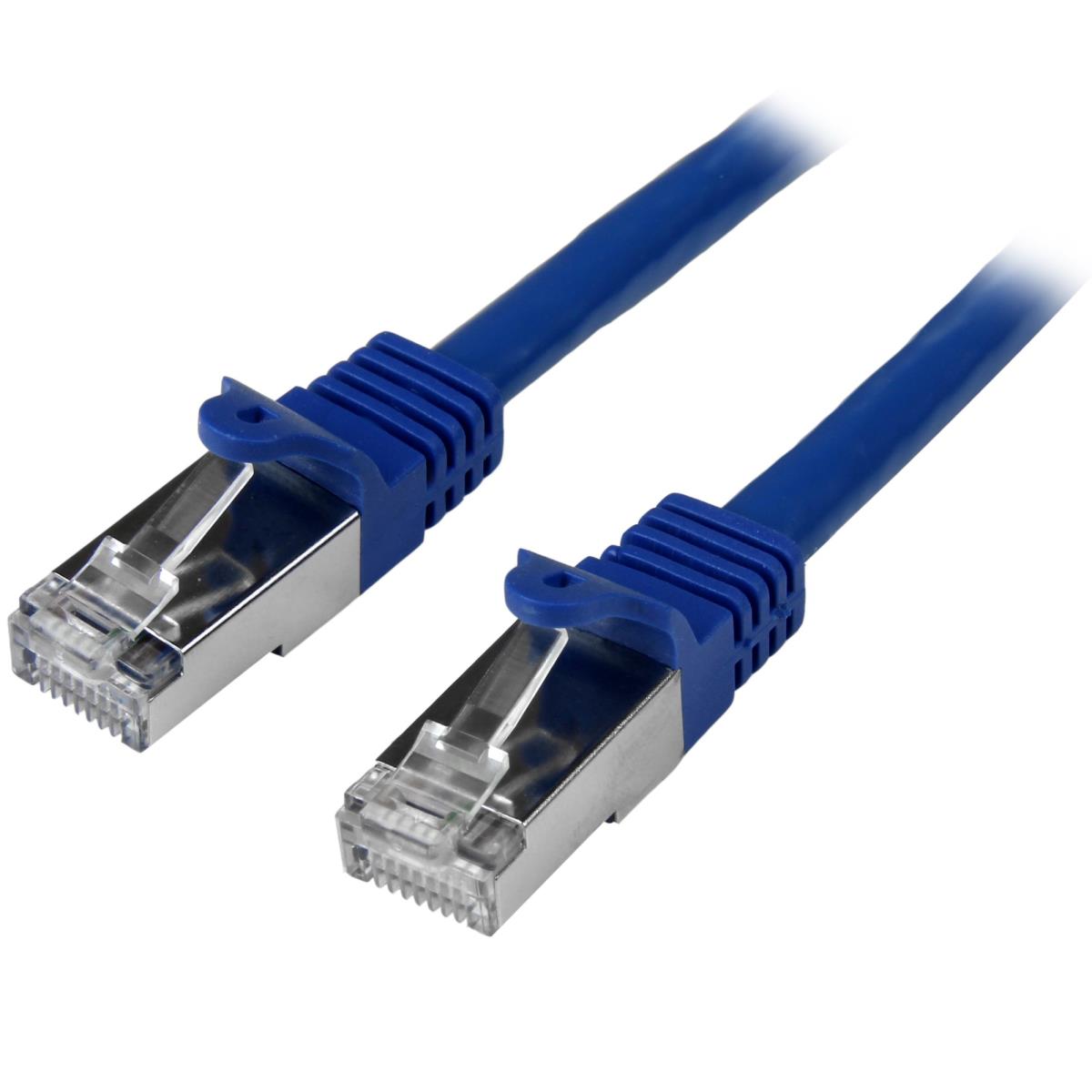

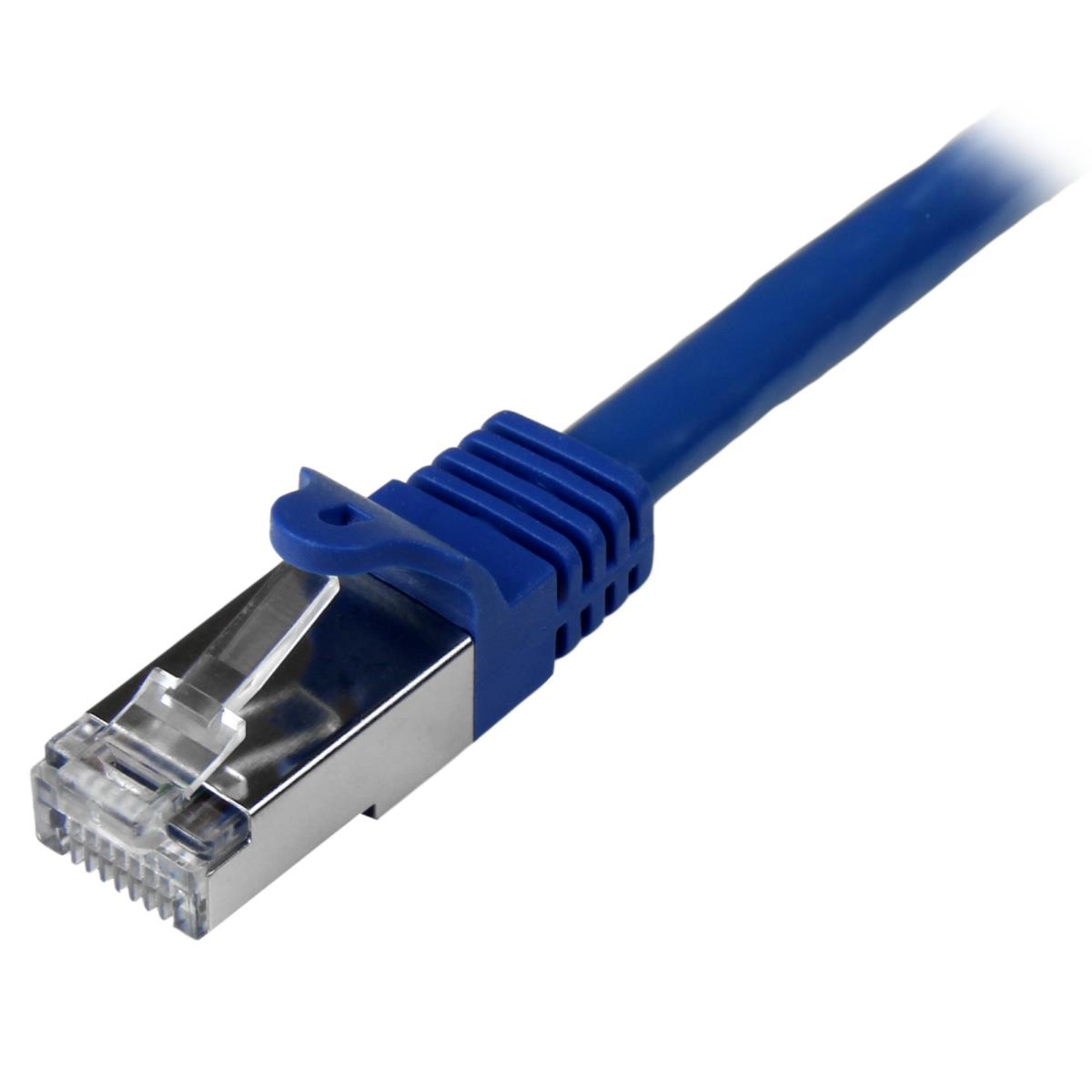

3M CAT6 SHIELDED GIGABIT
Introduction
Deliver high-performance Gigabit network connections, free of noise and EMI/RFI interference
This Shielded Cat6 cable meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections. And the cable is shielded to protect your network against electromagnetic interference (EMI/RFI) and system noise to provide the perfect solution for fast and safe network connections.
Reliable Cat 6 Gigabit connections
Constructed with 100% copper and foil-shielded twisted-pair wiring, this cable delivers high-quality performance. It’s designed to keep the data signals traveling through your network free from interference, so it's perfect in environments that are prone to large amounts of EMI.
The 50-micron gold connectors deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.
Secured network connections
For easier cable runs, the snagless connectors protect the RJ45 clips during installation, making them less prone to snagging or breaking. This ensures a sturdy connection by preventing the cable from becoming loose from the plug.
Plus, the moulded boots offer strain relief that stops the RJ45 connector termination points from bending at sharp angles, which reduces the risk of damage to the cable that could decrease network performance.
Specifications
| Features | |
|---|---|
| Product colour | Blue |
| Cable rating | CMG (CM) |
| Snagless cable boot | Yes |
| Conductor material | Copper |
| Frequency | 500 MHz |
| AWG wire size | 26 |
| Plug and Play | Yes |
| Cable standard | Cat6 |
| Cable shielding | SF/UTP (S-FTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Cabling technology | 10/100/1000Base-T(X) |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| Cable length | 3 m |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 133 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 10 mm |
| Package weight | 133 g |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Blue |
| Plug and Play | Yes |
| Cable standard | Cat6 |
| Cable shielding | SF/UTP (S-FTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Cabling technology | 10/100/1000Base-T(X) |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| Cable length | 3 m |
| Cable rating | CMG (CM) |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 70 pc(s) |
| Master (outer) case width | 374 mm |
| Master (outer) case length | 416 mm |
| Master (outer) case height | 274 mm |
| Harmonized System (HS) code | 84733080 |
