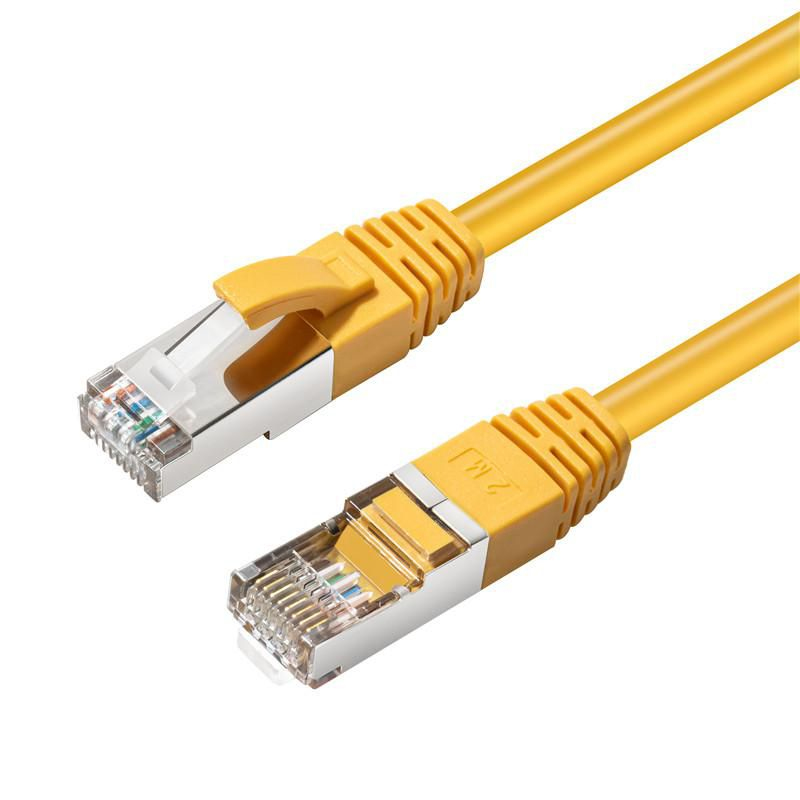

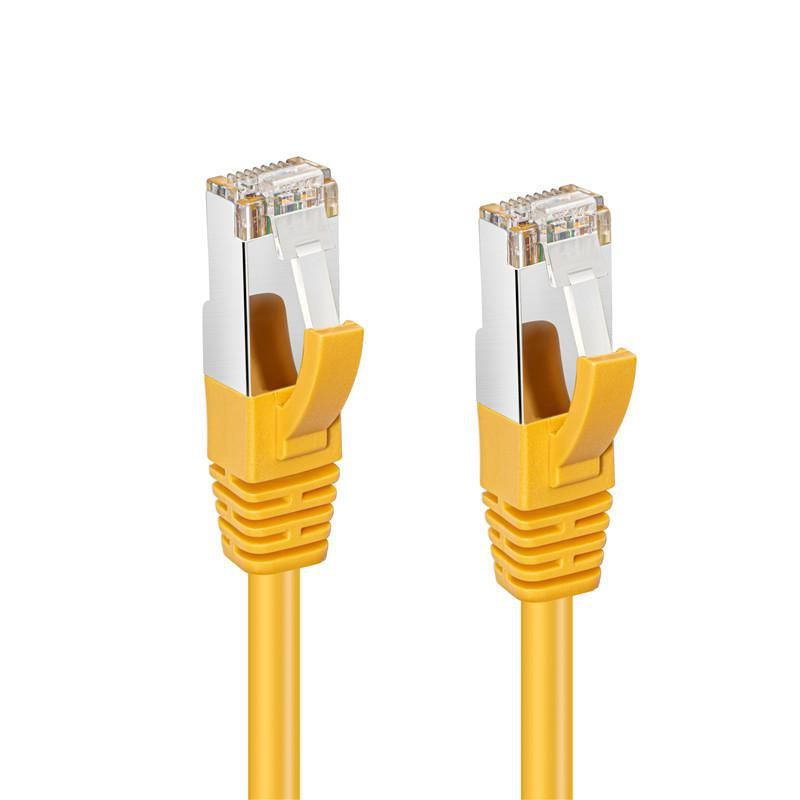

EU Product - S/FP C6 1.5m Yellow LSZH
Introduction
CAT6 cables enables a convenient and reliable connection from one network device, such as switch, modem or router, to another or to the infrastructure at large through a patch panel, keystone jack or wall outlet. This cable are also used a lot in small office and home network and entertainment applications. These cables are tested up to 250Mhz (CAT6 standard) and are backwards compatible with CAT5e and CAT5 cables. They are produced with latch protection, which prevents the connector do be damaged when you install the cable through an installation with very less space. Furthermore this cable is manufactured with shielding. This protects against both EMI (electromagnetic interference). EMI can cause crosstalk between circuits, resulting in degradation of data, increased errors and slower transmission rates, but by using this shielded cable you will avoid this problem.
Specifications
| Features | |
|---|---|
| Product colour | Yellow |
| Conductor material | Copper |
| Frequency | 250 MHz |
| AWG wire size | 27 |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Stranded |
| Cable length | 1.5 m |
| Cable shape | Round |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Certification | LSZH |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Certificates | |
| Certification | LSZH |
| Weight & dimensions | |
| Weight | 42 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 128 mm |
| Package depth | 125 mm |
| Package height | 31 mm |
| Package weight | 52 g |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Yellow |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Stranded |
| Cable length | 1.5 m |
| Technical features | Kink Protection, strain relief and Latch Protection |
| Other features | |
| Technical features | Kink Protection, strain relief and Latch Protection |
