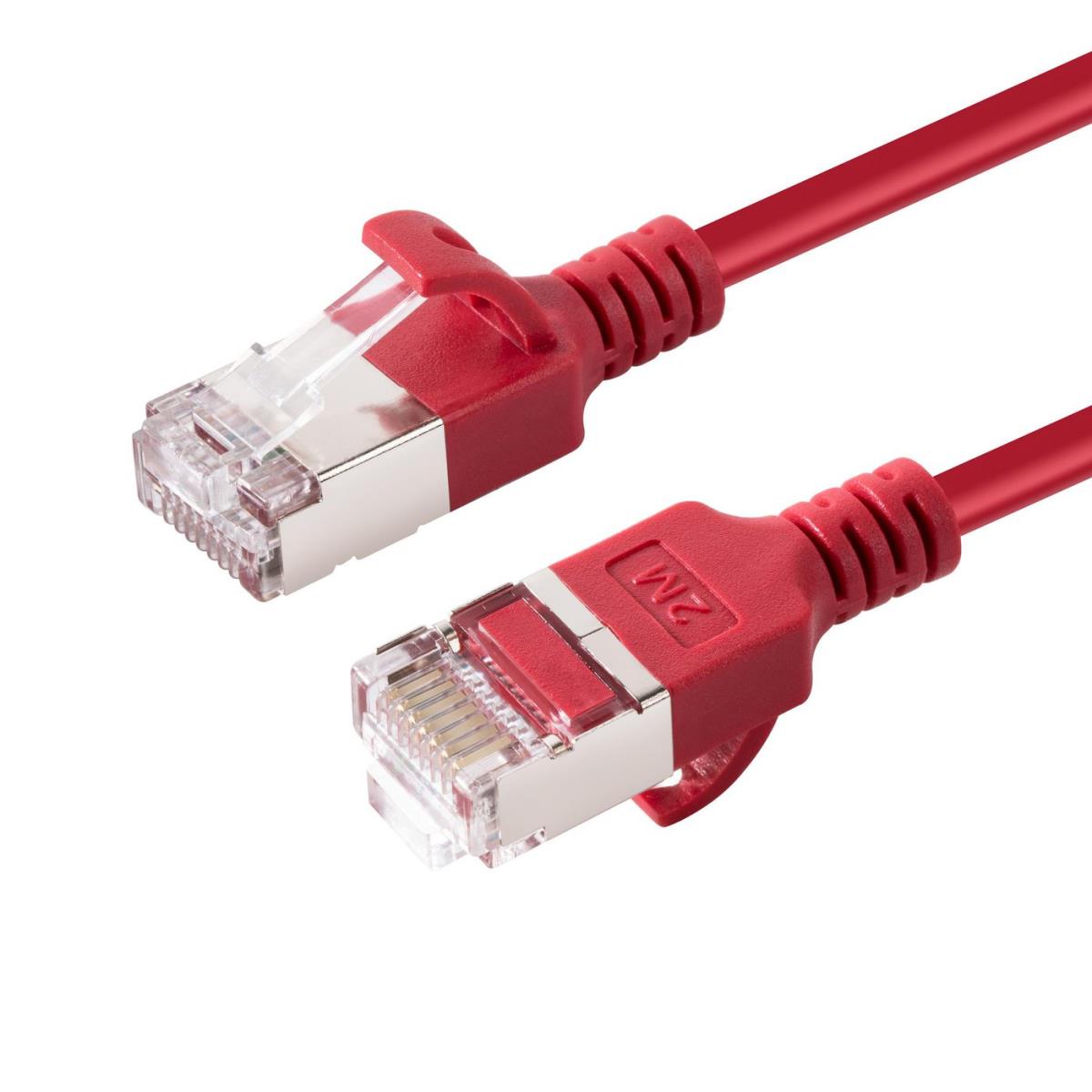

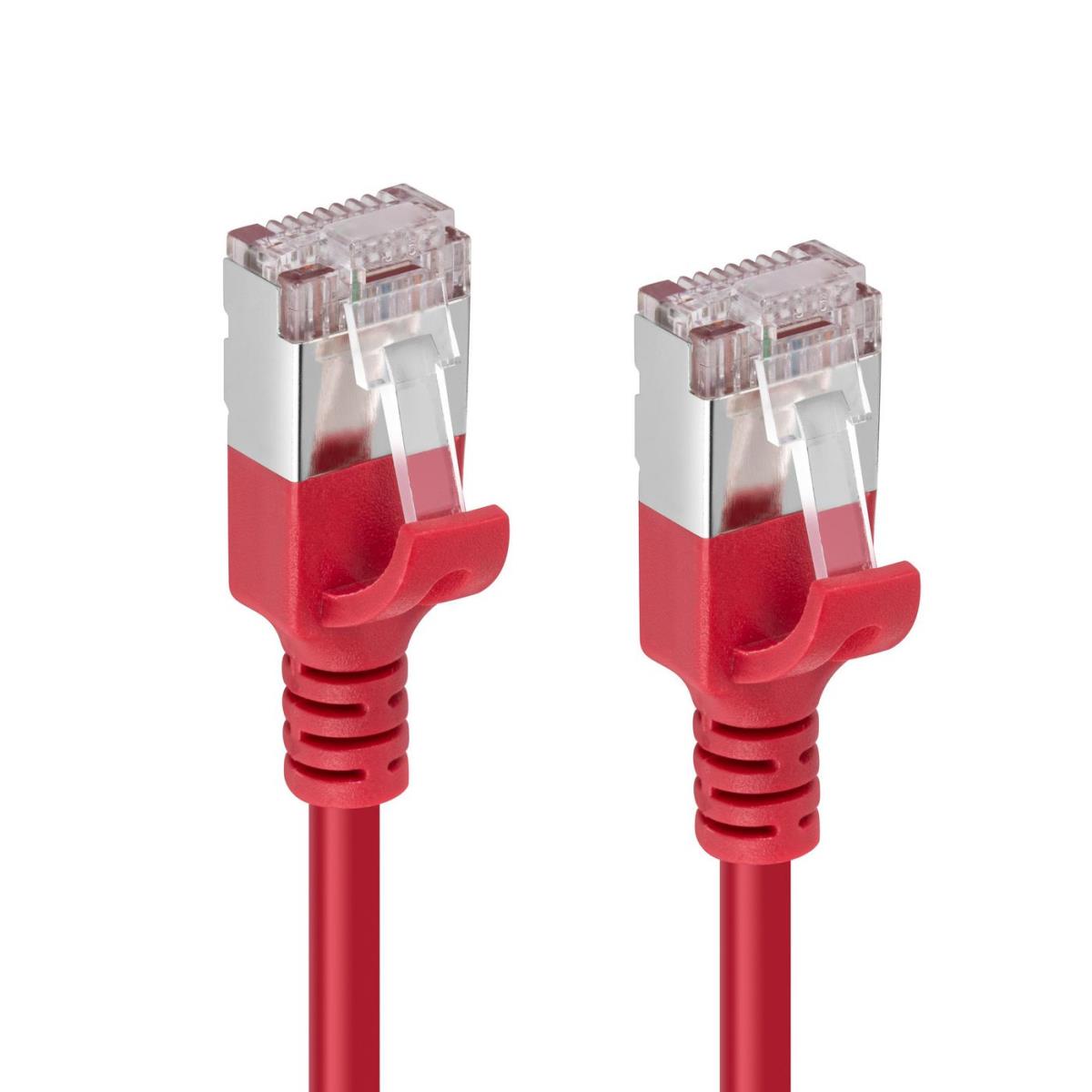

EU Product - C6 U-FP Slim, LSZH, 1m

Introduction

These CAT6a cables are perfect for installations where you need to save space in IT Racks and Cabinets. They cables are thinner and very flexible which provides the installer a better accessibility and quick and easy switching. Furthermore, it improves the Airflow, and thereby reducing the risk of down-time. All the cables are Channel link tested up to 500Mhz (CAT6a) standard). Each cable is manufactured with a snaggles to prevents the connector to be damaged when you install the cable through an installation with very less space.

Specifications

Features
Product colour	Red
Snagless cable boot	Yes
Connector shielding	Yes
Conductor material	Copper
AWG wire size	32
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Data transfer rate	10000 Mbit/s
Jacket material	Low smoke zero halogen (LSZH)
Cable length	1 m
Connector 2 gender	Male
Connector 1 gender	Male
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Weight & dimensions
Width	158 mm
Depth	120 mm
Height	17 mm
Weight	14 g
Packaging data
Package width	158 mm
Package depth	120 mm
Package height	17 mm
Package weight	24 g
Technical details
Product colour	Red
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Data transfer rate	10000 Mbit/s
Jacket material	Low smoke zero halogen (LSZH)
Cable length	1 m
Other features
Connector(s)	RJ45
