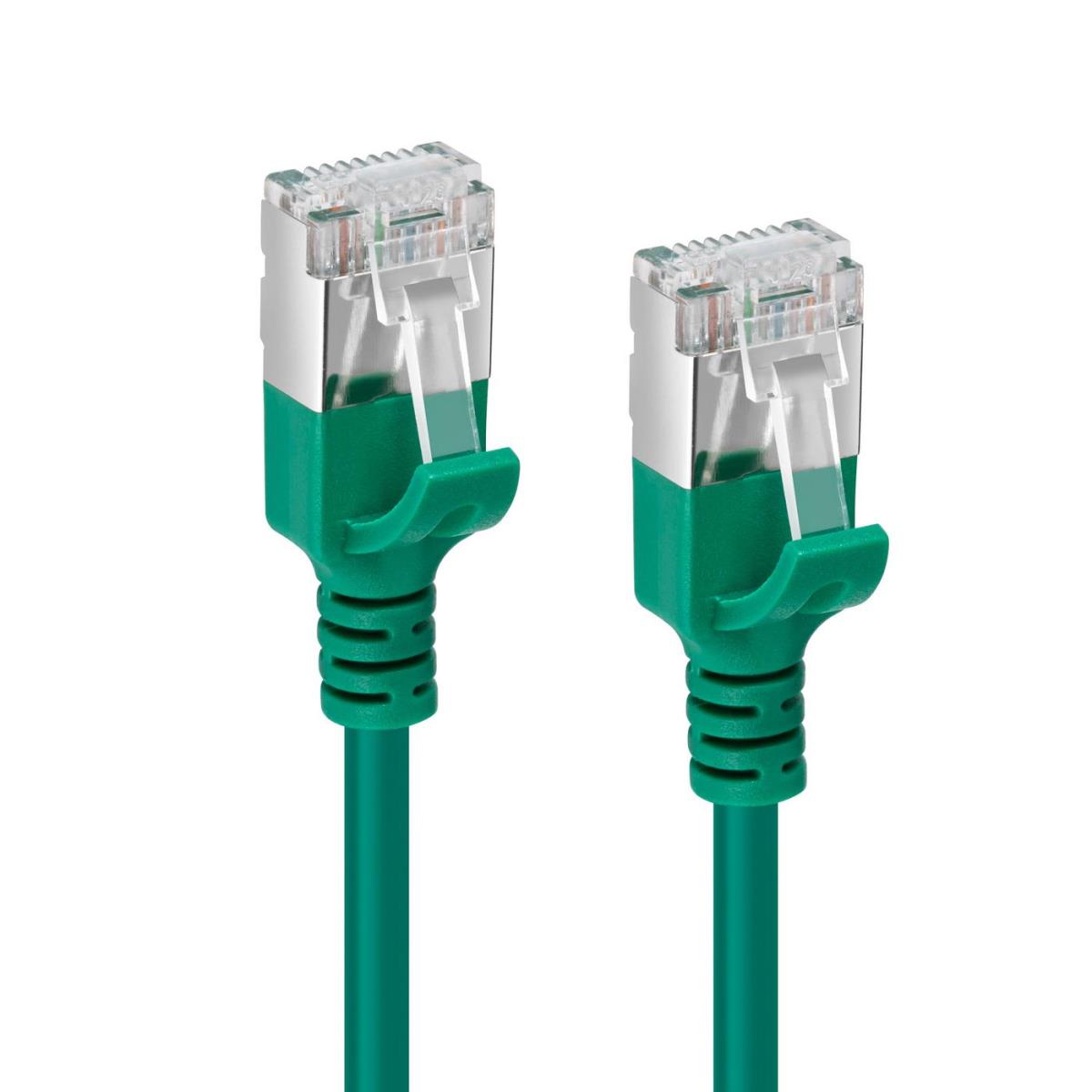

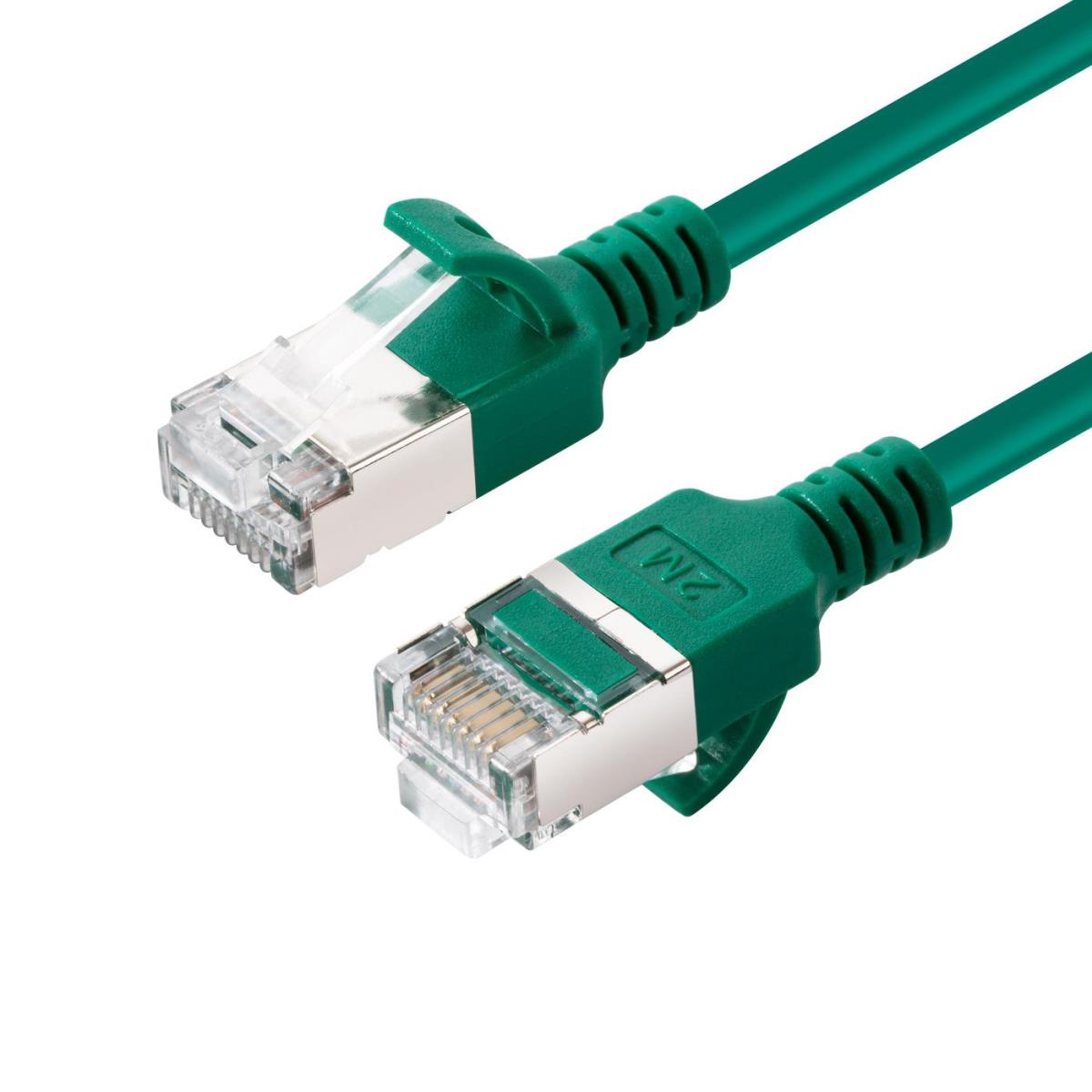

EU Product - C6 U-FP Slim, LSZH, 10m

Introduction

These CAT6a cables are perfect for installations where you need to save space in IT Racks and Cabinets. They cables are thinner and very flexible which provides the installer a better accessibility and quick and easy switching. Furthermore, it improves the Airflow, and thereby reducing the risk of down-time. All the cables are Channel link tested up to 500Mhz (CAT6a) standard). Each cable is manufactured with a snaggles to prevents the connector to be damaged when you install the cable through an installation with very less space.

Specifications

Features
Product colour	Green
Snagless cable boot	Yes
Connector shielding	Yes
Conductor material	Copper
AWG wire size	32
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Data transfer rate	10000 Mbit/s
Jacket material	Low smoke zero halogen (LSZH)
Cable length	10 m
Connector 2 gender	Male
Connector 1 gender	Male
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Weight & dimensions
Width	197 mm
Depth	166 mm
Height	44 mm
Weight	62 g
Packaging data
Package width	197 mm
Package depth	166 mm
Package height	44 mm
Package weight	162 g
Technical details
Product colour	Green
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Data transfer rate	10000 Mbit/s
Jacket material	Low smoke zero halogen (LSZH)
Cable length	10 m
Other features
Connector(s)	RJ45
