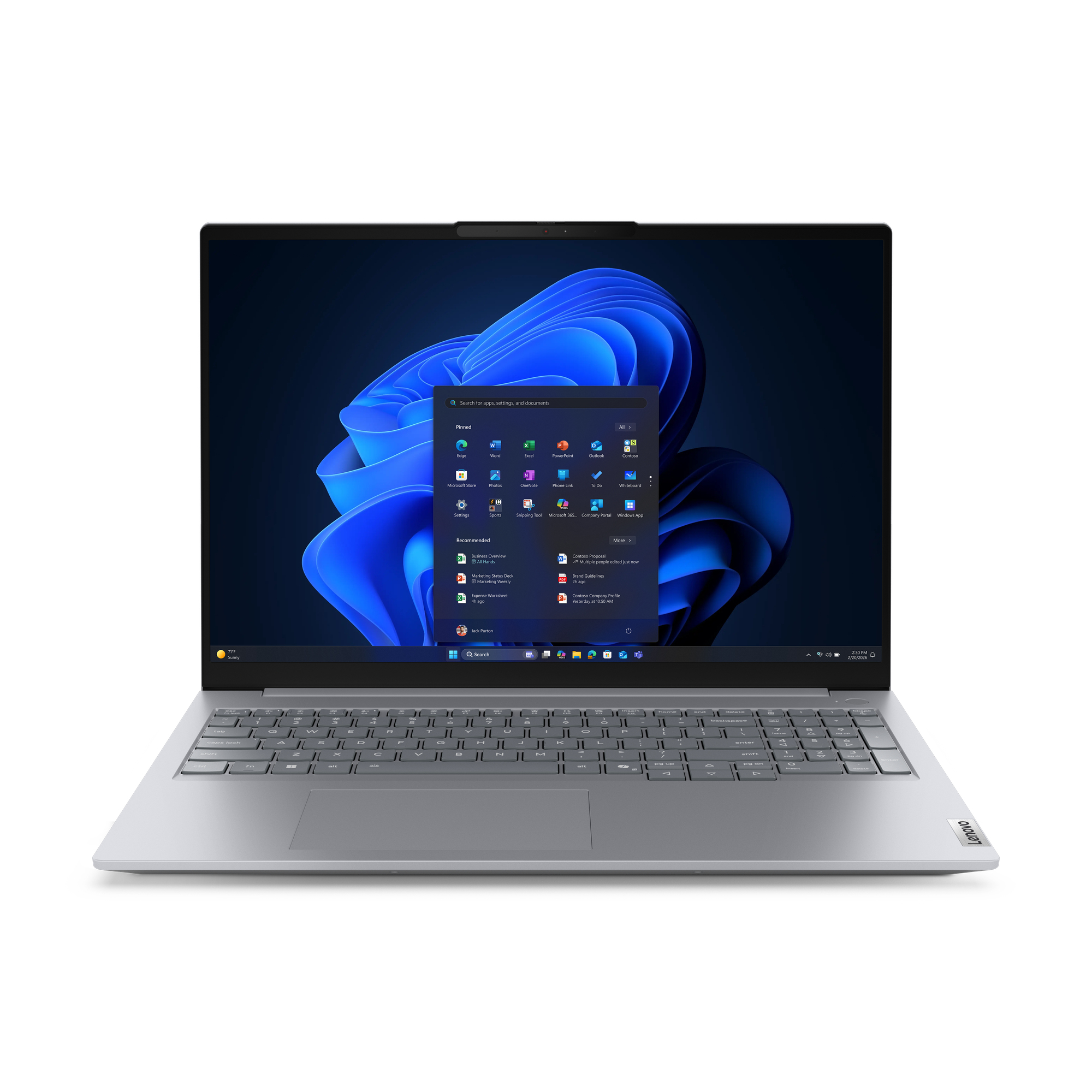

EU Product - - ThinkBook 16 Gen 9
Introduction
AUTOMATE SIMPLE TASKS
Elevate Your Workday With an AI PC
This AI PC enables a range of productivity-rich tasks. Enjoy enhanced video conferencing and collaboration tools, robust security, document automation including scanning and summarizing, and email management and scheduling. Plus, with speedy response times, it’s ideal for multitasking.
LENOVO AI NOW
AI-Precision Like Never Before
With our AI Now app, you will enjoy a productivity assistant that can generate meeting summaries, manage personal knowledge bases, optimize settings, and deliver smart support — all directly on your device. The ThinkBook 16 Gen 9 laptop transforms everyday tasks into fast, more intelligent workflows that will boost your productivity.
ENTERPRISE-LEVEL SECURITY
360° Protection for Business
Safeguard sensitive data with Discrete Trusted Platform Module (dTPM) encryption, an optional infrared (IR) camera with facial recognition, fingerprint login, and a built-in privacy shutter. These layers combine to protect business information while keeping access quick and convenient.
CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.
Specifications
| Design | |
|---|---|
| Colour name | Arctic Grey |
| Product type | Laptop |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Form factor | Clamshell |
| Product colour | Grey |
| Display back cover material | Aluminium |
| Display | |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Display brightness | 400 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 40.6 cm (16") |
| Anti-glare screen | Yes |
| Maximum refresh rate | 60 Hz |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Native aspect ratio | 16:10 |
| Processor | |
| Processor cache type | L2 & L3 |
| Processor frequency | 3.2 GHz |
| Processor model | 220 |
| Processor boost frequency | 4.9 GHz |
| Processor cores | 6 |
| Processor threads | 12 |
| L3 cache | 16 MB |
| L2 cache | 6 MB |
| Motherboard chipset | AMD SoC |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Total storage capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| M.2 SSD size | 2242 (22 x 42 mm) |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | AMD Radeon |
| On-board graphics card | Yes |
| On-board graphics card model | AMD Radeon 740M |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| Audio | |
| Audio chip | Realtek ALC3287 |
| Number of microphones | 2 |
| Audio system | Dolby Audio |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Windows Hello | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WWAN | Not installed |
| Antenna type | 2x2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB4 Gen 3x2 ports quantity | 2 |
| Performance | |
| Motherboard chipset | AMD SoC |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Keyboard language | German |
| Copilot key | Yes |
| Software | |
| Operating system language | German |
| Trial software | Office |
| Operating system installed | Windows 11 Pro |
| Technical details | |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Form factor | Clamshell |
| Product colour | Grey |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 48 Wh |
| Fast charging | Yes |
| Fast charging time (50%) | 30 min |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| Security | |
| Password protection | Yes |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | HDD, Power on, Supervisor, User |
| Fingerprint reader | Yes |
| Cable lock slot | Yes |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Maximum shipping altitude | 3048 m |
| Certificates | |
| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Weight & dimensions | |
| Width | 356 mm |
| Depth | 253.5 mm |
| Height | 17.5 mm |
| Weight | 1.7 kg |
| Packaging data | |
| AC adapter included | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| On-board graphics card | Yes |
| Audio system | Dolby Audio |
| Maximum shipping altitude | 3048 m |
| AC adapter included | Yes |
| Anti-glare screen | Yes |
