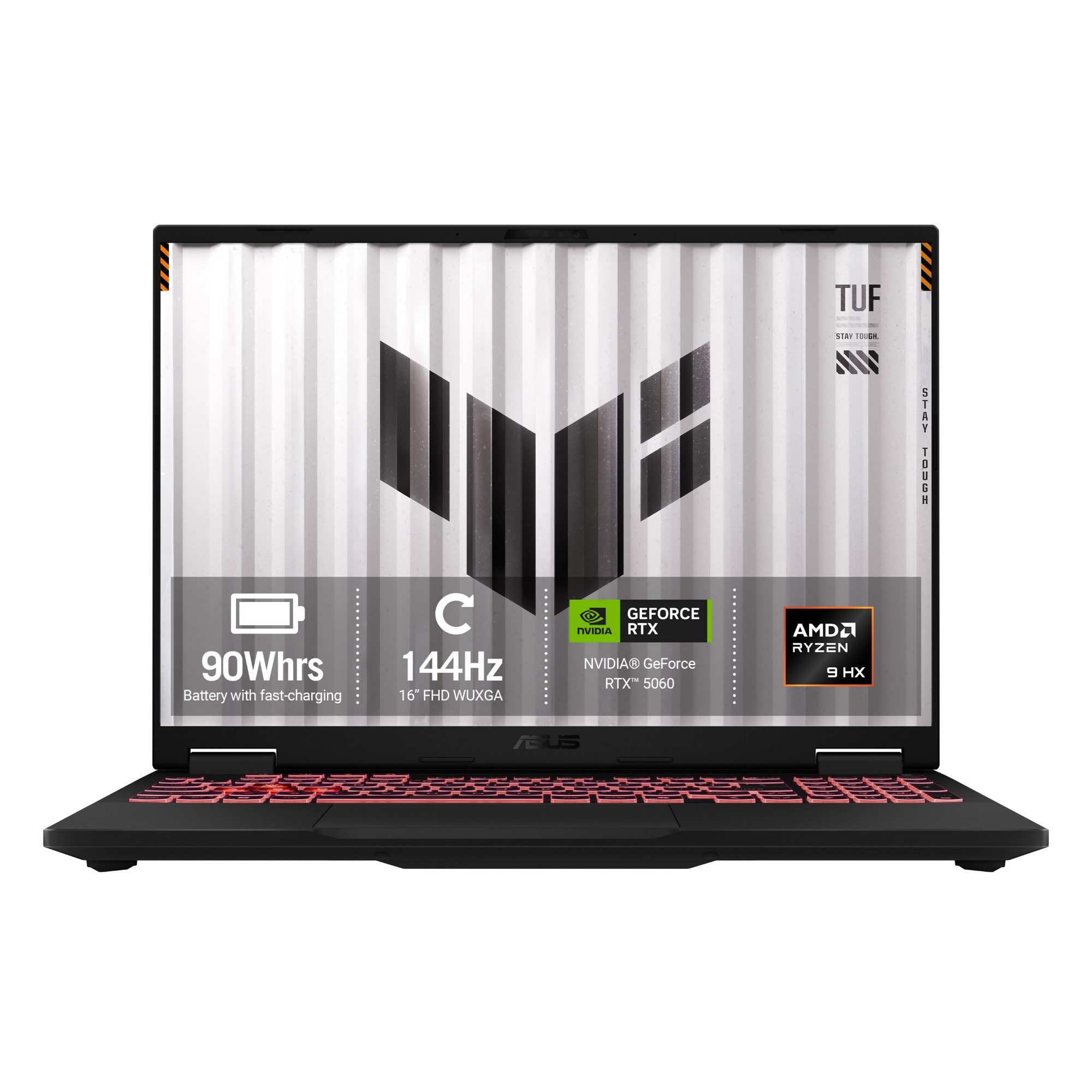

ASUS TUF Gaming A16
Introduction
ASUS TUF Gaming A16
Portable Power, Maximum Impact
The design philosophy behind the TUF Gaming A16 is all about blending power with portability. With this lightweight all-around powerhouse, you can enjoy seamless performance wherever you go.
Specifications
| Design | |
|---|---|
| Colour name | Jaeger Gray |
| Product type | Laptop |
| Market positioning | Gaming |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Product colour | Grey |
| Display back cover material | Plastic |
| Display | |
| HD type | WUXGA |
| Panel type | IPS-Level |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 40.6 cm (16") |
| Anti-glare screen | Yes |
| Maximum refresh rate | 144 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| Processor | |
| Processor generation | AMD Ryzen 8000 Series |
| Processor cache type | L2 & L3 |
| Processor frequency | 2.4 GHz |
| Processor model | 8940HX |
| Processor boost frequency | 5.3 GHz |
| Processor cores | 16 |
| Processor threads | 32 |
| L3 cache | 64 MB |
| L2 cache | 16 MB |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 9 |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| Total storage capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 8 GB |
| NVIDIA G-SYNC | Yes |
| On-board graphics card family | AMD Radeon |
| AMD FreeSync | Yes |
| On-board graphics card 4K support | Yes |
| On-board graphics card | Yes |
| On-board graphics card model | AMD Radeon 610M |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 5060 Laptop GPU |
| Discrete graphics memory type | GDDR7 |
| Discrete GPU manufacturer | NVIDIA |
| On-board GPU manufacturer | AMD |
| On-board graphics card 8K support | Yes |
| Total Graphics Power (TGP) | 115 W |
| Audio | |
| Audio system | Dolby Atmos |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Windows Hello | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Antenna type | 2x2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Performance | |
| Repairability index | 9.8 |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard backlit colour | RGB |
| Keyboard backlit zone | 1-zone RGB |
| Copilot key | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Bundled software | Xbox Game Pass Premium_2 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Premium. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required. |
| Operating system installed | Windows 11 Home |
| Technical details | |
| Market positioning | Gaming |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Product colour | Grey |
| Discrete graphics card memory | 8 GB |
| Repairability index | 9.8 |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 90 Wh |
| Fast charging | Yes |
| Fast charging time (50%) | 30 min |
| Power | |
| AC adapter power | 280 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 14 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (min) | 45 W |
| USB Type-C required charging power (max) | 100 W |
| Security | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | BIOS, User |
| Windows Hello | Yes |
| Weight & dimensions | |
| Width | 354 mm |
| Depth | 269 mm |
| Height (front) | 1.79 cm |
| Height (rear) | 2.73 cm |
| Weight | 2.2 kg |
| Packaging data | |
| AC adapter included | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| On-board graphics card | Yes |
| Audio system | Dolby Atmos |
| AC adapter included | Yes |
| Anti-glare screen | Yes |
