DB9 RS232 SERIAL EXTENSION CABL
Introduction
Extend the connection between your DB9 serial devices by up to 1m

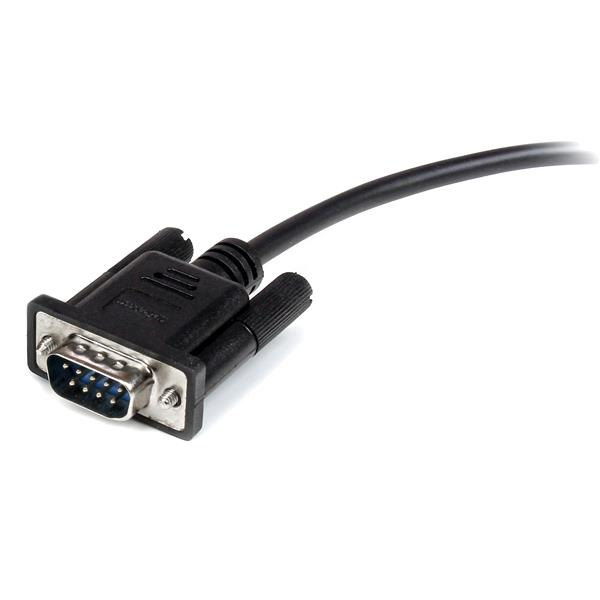

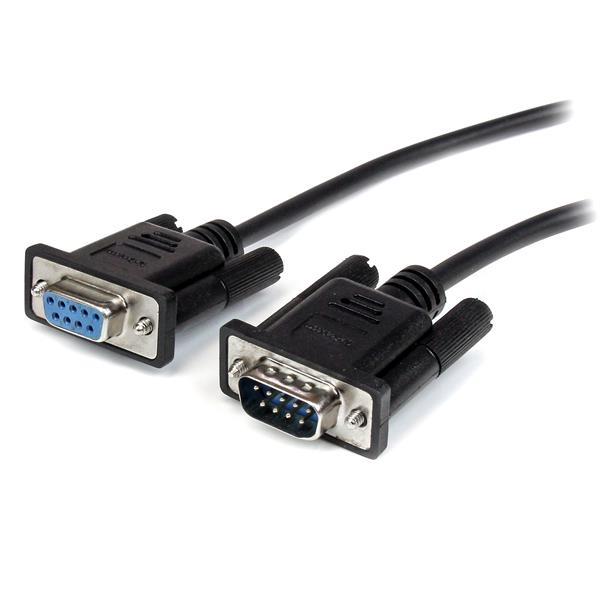

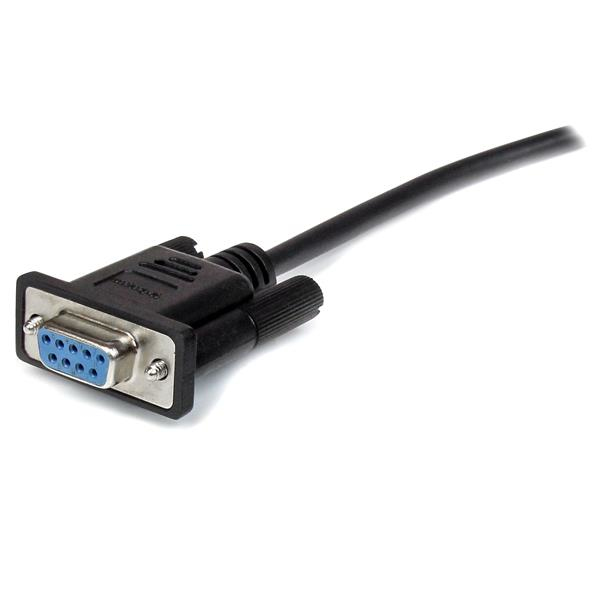

The MXT1001MBK Black Serial Extension Cable (1m) features one DB9 male connector and one DB9 female connector, providing a high quality extension for your RS232 serial devices, which enables you to position your peripheral devices as needed.
Note: This is a Straight-through cable, not a null-modem.
Expertly designed and constructed of top quality materials to ensure durability, this DB9 extension cable is backed by our Lifetime Warranty.
Specifications
| Technical details | |
|---|---|
| Weight | 81 g |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shielding | Aluminum mylar foil |
| Connector 2 | DB-9 |
| Connector 1 | DB-9 |
| Product colour | Black |
| Cable length | 1 m |
| Connector contacts plating | Nickel |
| AWG wire size | 28 |
| Package width | 128 mm |
| Package height | 19 mm |
| Quantity per pack | 1 pc(s) |
| Compliance certificates | CE, RoHS |
| Features | |
| Weight | 81 g |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shielding | Aluminum mylar foil |
| Connector 2 | DB-9 |
| Connector 1 | DB-9 |
| Product colour | Black |
| Cable length | 1 m |
| Connector contacts plating | Nickel |
| AWG wire size | 28 |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Packaging data | |
| Package weight | 87 g |
| Package depth | 189 mm |
| Package width | 128 mm |
| Package height | 19 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Weight | 81 g |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 376 mm |
| Master (outer) case height | 283 mm |
| Products per master (outer) case | 180 pc(s) |
| Harmonized System (HS) code | 84733080 |
