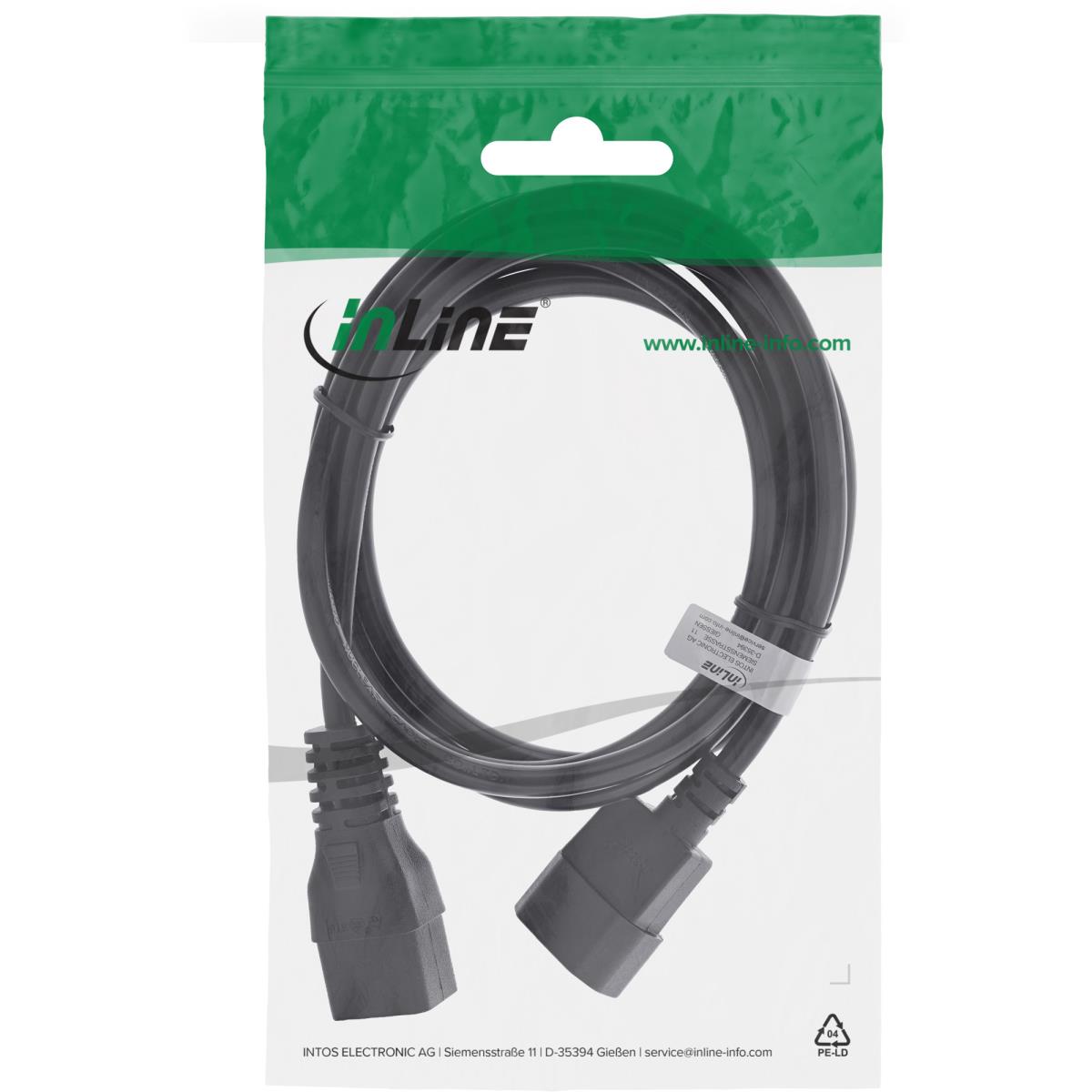

EU Product - - Kaltgeräteverlängerung 16A, C19 auf C20, 2m
Introduction
IEC 60320 C19 to C20 extension cable, 16 A, for professional power connections
Standard-compliant power connection in accordance with IEC 60320:Enables a safe and standardised connection of devices with C19 and C20 connectors.
High current-carrying capacity up to 16 A:Suitable for applications with higher power requirements and ensures a reliable power supply.
Flexible choice of lengths:Offers various cable lengths from 0.30 m to 10 m for installation tailored to your needs.
Reliable extension of existing connections:Ideal for extending existing power connections without replacing existing cables.
Universally applicable in standardised environments:Supports uniform power cabling within existing systems.
This IEC 60320-compliant extension cable enables the reliable extension of power connections with C19 to C20 connectors. It is suitable for applications where existing connection cables are insufficient or need to be flexibly adapted.
By supporting up to 16 A, the cable provides a stable power supply for high-power devices. The various available lengths, ranging from 0.30 m to 10 m, enable neat and structured cabling even in more complex installations.
The standard-compliant design ensures compatibility with existing power infrastructures. This allows the cable to be easily integrated into existing systems and used flexibly.
Connector type: IEC 60320 Type C19 to IEC 60320 Type C20
Current rating: max. 16 A
Colour: black
Standard: IEC 60320
Available lengths: 0.30 m, 0.5 m, 0.75 m, 1 m, 1.5 m, 2 m, 3 m, 5 m, 7.5 m, 10 m
Specifications
| Ports & interfaces | |
|---|---|
| Connector 2 | C20 coupler |
| Connector 1 | C19 coupler |
| Cable length | 2 m |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable type | H05VV-F3G |
| Connector 2 | C20 coupler |
| Connector 1 | C19 coupler |
| Cable length | 2 m |
| Conductor cross section | 1.5 mm² |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Product colour | Black |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Dimensions (WxDxH) | 34 x 2000 x 25 mm |
| Width | 34 mm |
| Depth | 2000 mm |
| Height | 25 mm |
| Weight | 304 g |
| Package width | 190 mm |
| Package depth | 230 mm |
| Package height | 40 mm |
| Package weight | 315 g |
| Packaging data | |
| Package width | 190 mm |
| Package depth | 230 mm |
| Package height | 40 mm |
| Package weight | 315 g |
| Technical details | |
| Conductor cross section | 1.5 mm² |
| Other features | |
| Dimensions (WxDxH) | 34 x 2000 x 25 mm |
