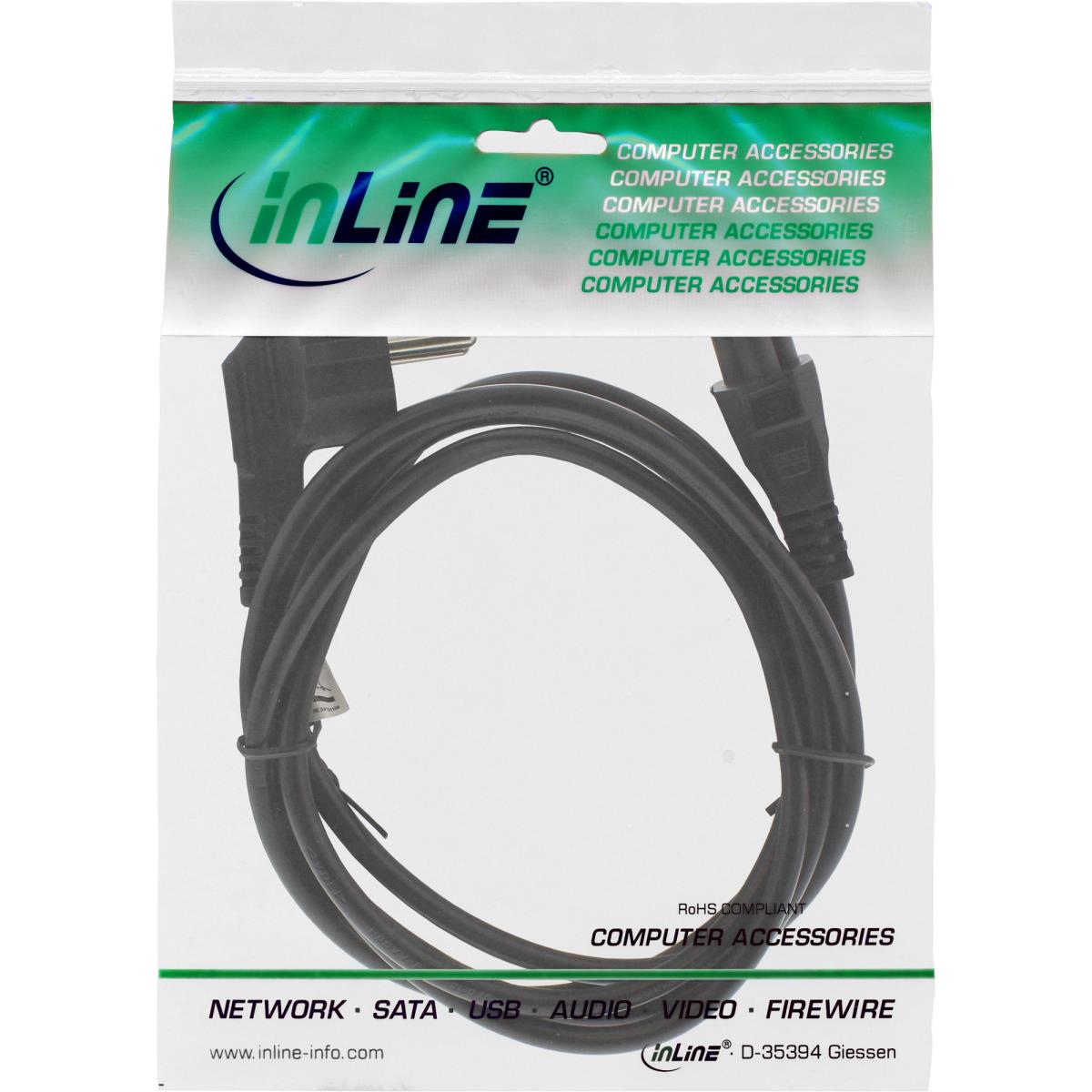

EU Product - - Netzkabel für Notebook, Schutzkontaktstecker gewinkelt auf 3pol Kupplung, schwarz, 2m
Introduction
Safe power supply:Three-wire design with protective contact enables standard-compliant and reliable power supply for external power supplies.
Space-saving installation:The angled protective contact plug reduces the space required on power strips and behind furniture.
High-quality workmanship:Injected plugs in a robust design increase mechanical resilience in daily use.
Compliant with standards and certifications:VDE certification supports professional use in standardised IT environments.

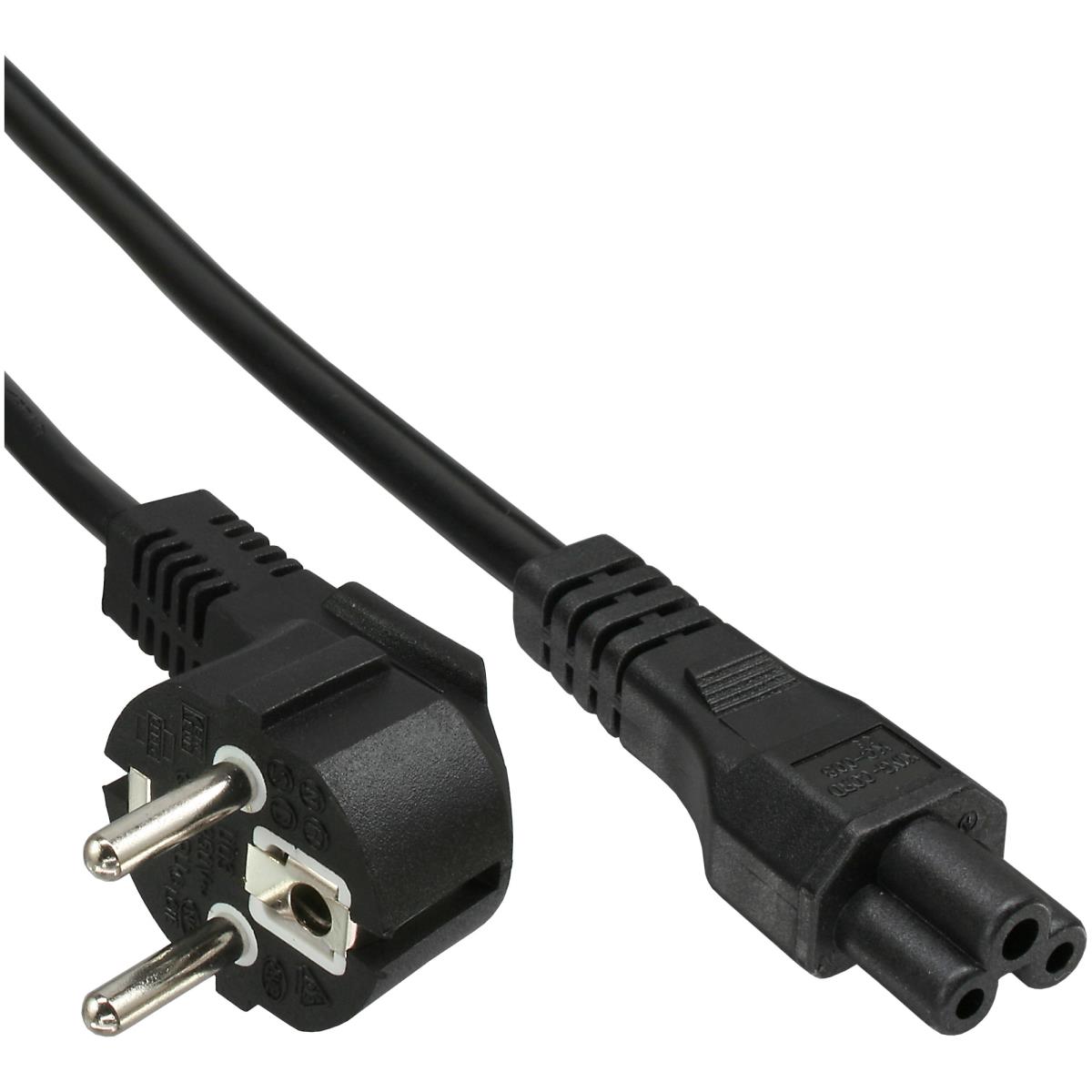

This InLine® power cable is used to supply power to external power supplies for notebooks and similar devices with an IEC 60320 C5 connection. The three-wire cable with protective contact establishes a safe and standard-compliant connection to the 250V mains supply.
The angled safety plug facilitates installation in confined spaces and supports tidy cable management in workplaces and technical facilities. The moulded plugs provide increased mechanical stability, which is particularly beneficial for frequent reconnection or permanent use.
VDE certification underlines its suitability for professional applications where tested quality and electrical safety are required. The power cable is designed for a maximum load of 2.5A and is suitable for continuous indoor use.
Plug type on mains side: CEE 7/7 earthed plug, angled
Plug type on device side: IEC 60320 C5, 3-pin coupling
Cable type: H05VV-F
Conductor cross-section: 3x0.75 mm²
Maximum load: 2.5 A / 250 V
Plug design: moulded
Certification: VDE
Specifications
| Ports & interfaces | |
|---|---|
| Cable length | 2 m |
| Features | |
| Cable length | 2 m |
| Conductor cross section | 0.75 mm² |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Product colour | Black |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Dimensions (WxDxH) | 38 x 2000 x 55 mm |
| Width | 38 mm |
| Depth | 2000 mm |
| Height | 55 mm |
| Weight | 196 g |
| Package volume | 1200 cm³ |
| Package width | 155 mm |
| Package depth | 165 mm |
| Package height | 45 mm |
| Package weight | 203 g |
| Packaging data | |
| Package volume | 1200 cm³ |
| Package width | 155 mm |
| Package depth | 165 mm |
| Package height | 45 mm |
| Package weight | 203 g |
| Technical details | |
| Conductor cross section | 0.75 mm² |
| Other features | |
| Dimensions (WxDxH) | 38 x 2000 x 55 mm |
