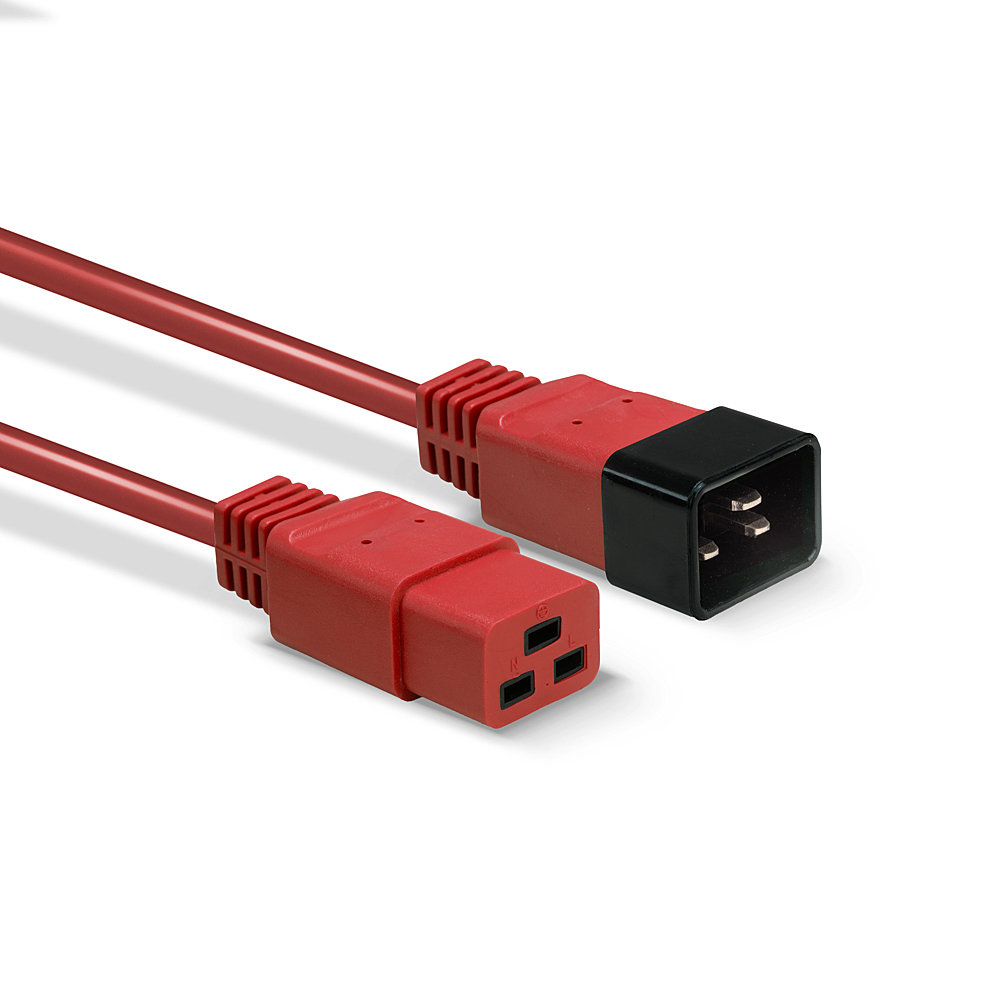

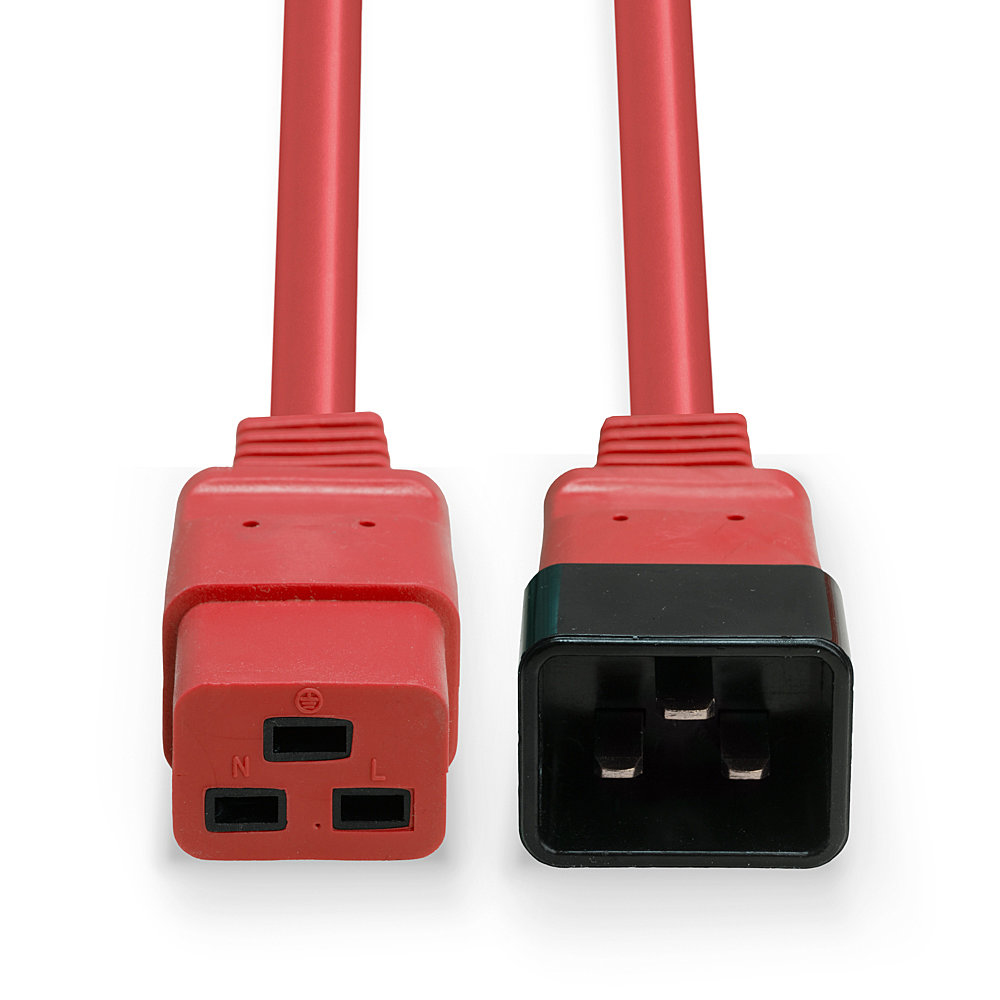

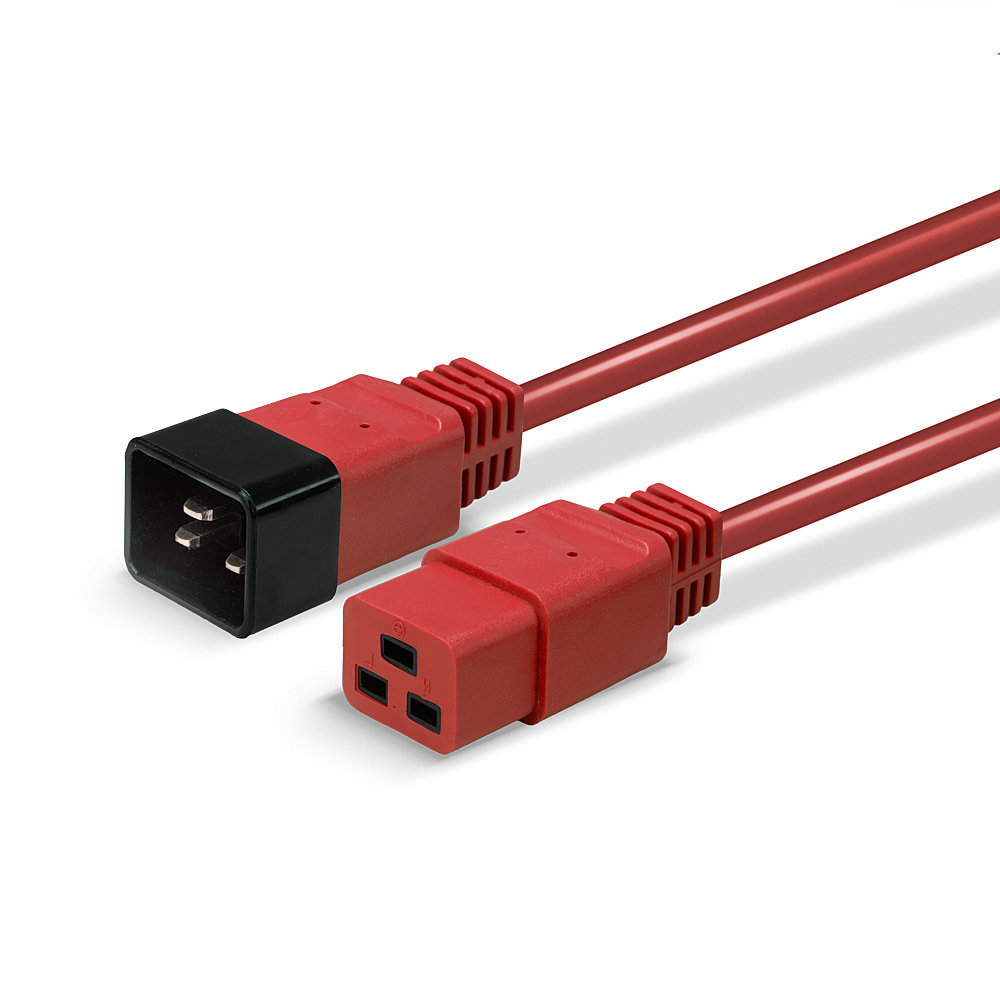

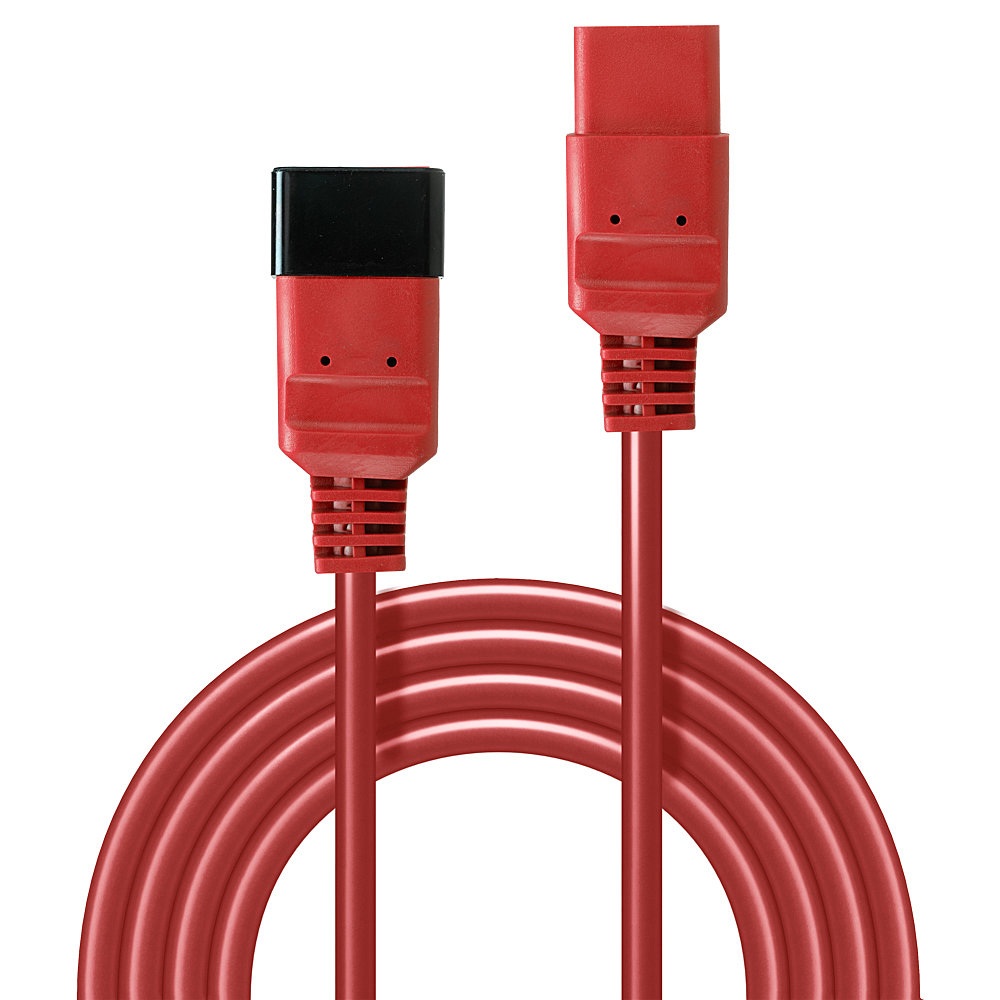

2M EXTENSION CABLE
Introduction
Connector A: IEC C19
Connector B: IEC C20
Cable type: H05-VVF 3G * 1.50mm²
Colour: Red
10 year warranty
Lindy Power Extension Cables are high quality, reliable power delivery connections for use in a wide variety of professional and home environments. These cables are perfect for use in offices, control rooms, digital signage and home theatre setups.
High temperature resistance from -10°C to 70°C during operation allows these cables to be used in non air-conditioned areas.
Please note: Only for the use in dry areas.
Available in lengths of 1m, 2m, 3m.
Specifications
| Ports & interfaces | |
|---|---|
| Connector 2 | C20 coupler |
| Connector 1 | C19 coupler |
| Cable length | 2 m |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Number of cable cores | 3 |
| Core size | 1.5 mm² |
| Connector 2 | C20 coupler |
| Connector 1 | C19 coupler |
| Cable length | 2 m |
| Conductor cross section | 1.5 mm² |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Product colour | Red |
| Plug and Play | Yes |
| Power | |
| Input voltage | 250 V |
| Input current | 16 A |
| Colour | |
| Product colour | Red |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 70 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Conductor cross section | 1.5 mm² |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
