POWER CABLE/CORD MONITOR/CPU-
Introduction

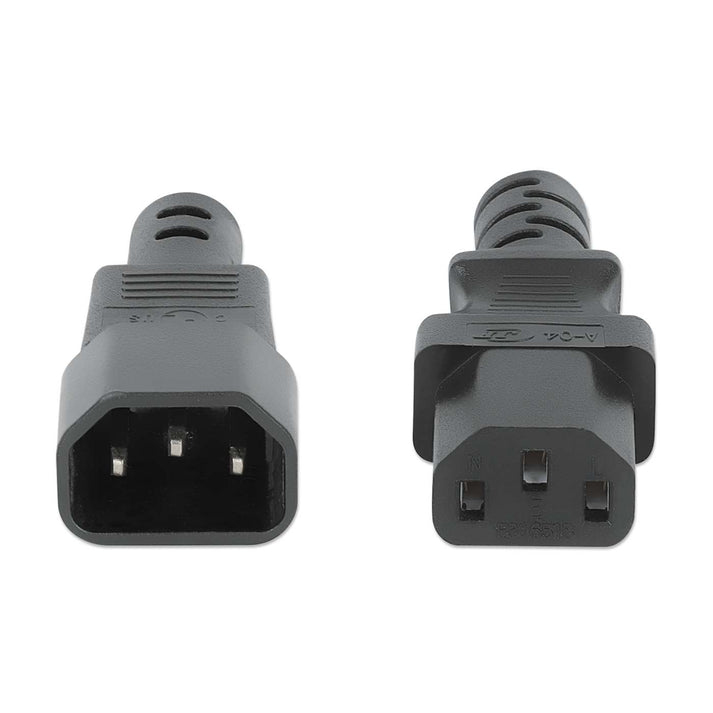

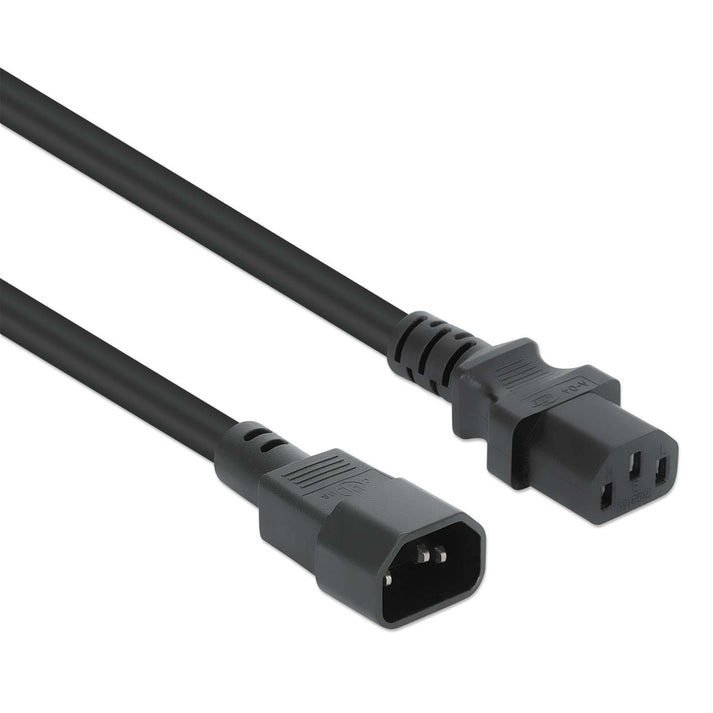

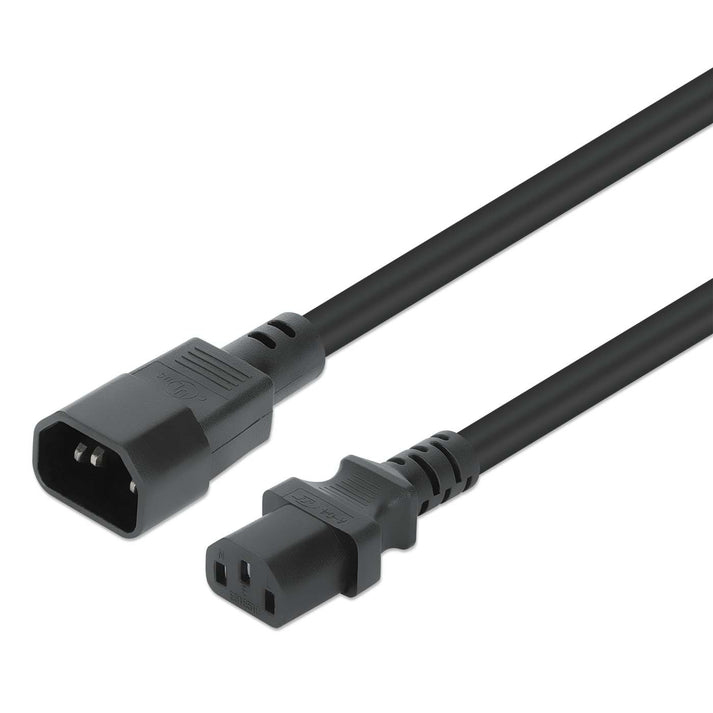

C13 to C14 PDU Power Cable 5m - Extension Cord for Reliable Power Distribution in Rack-Mount Applications and IT environments

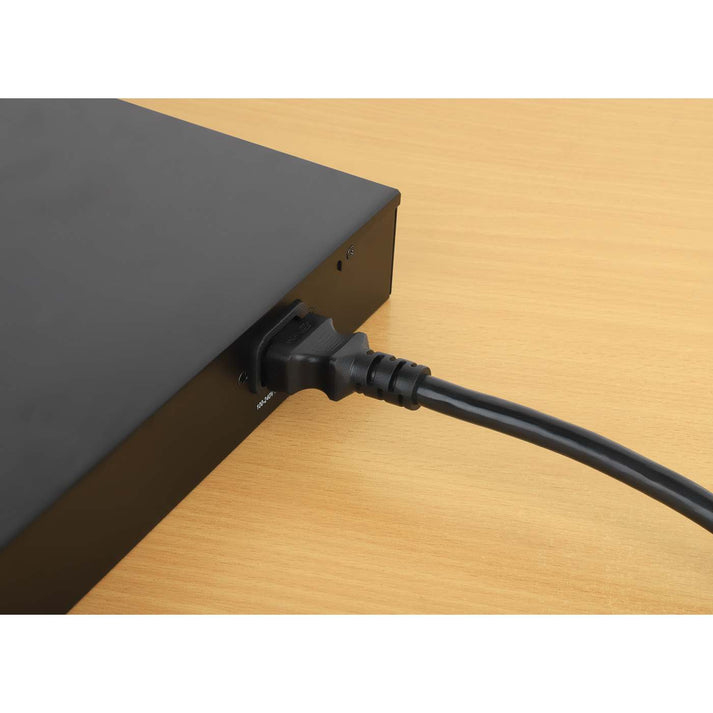

The Power Extension Cable (C13 Female to C14 Male, 10 A, 250 V) from Manhattan is designed to deliver dependable power in IT and networking environments. Whether you're working in a data center, server room, or enterprise rack setup, this cable provides a simple, effective way to connect servers, switches, storage systems, monitors, or printers to a PDU, UPS, or another compatible power source.
Extended Reach and Flexibility

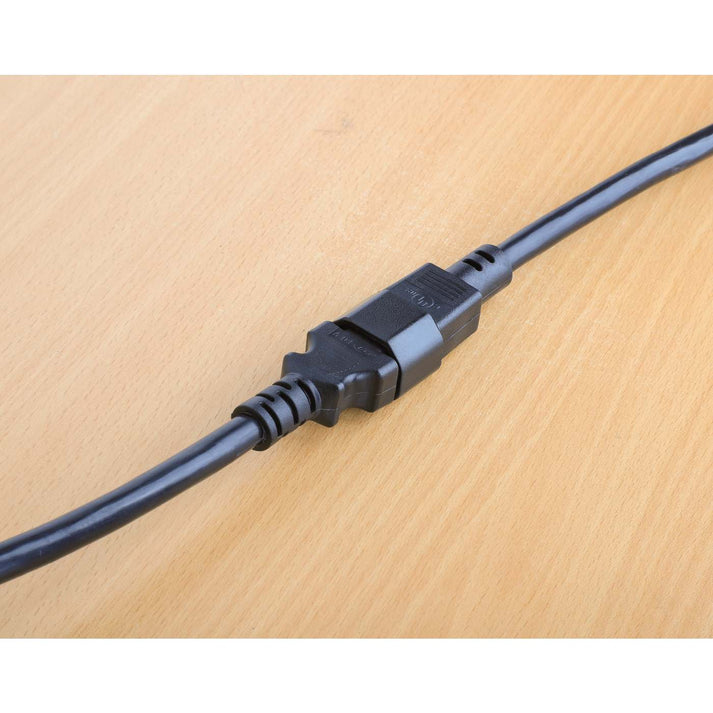

Ideal for rack mount applications, this extension cable helps you reach distant power connections or reposition devices more effectively within tight enclosures. It also serves as a practical solution for extending an existing C13 power cord, allowing you to improve cable routing and maintain a tidy installation.
Specifications
| Ports & interfaces | |
|---|---|
| Connector 2 | C14 coupler |
| Connector 1 | C13 coupler |
| Cable length | 5 m |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Conductor material | Copper |
| Number of conductors | 32 |
| Number of cable cores | 3 |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector 2 | C14 coupler |
| Connector 1 | C13 coupler |
| Cable length | 5 m |
| Conductor cross section | 0.2 mm² |
| Connector 1 standard | IEC 60320 |
| Connector 2 standard | IEC 60320 |
| Connector 2 gender | Male |
| Connector 1 gender | Female |
| Product colour | Black |
| Package type | Polybag |
| Power | |
| Maximum current | 10 A |
| Input voltage | 250 V |
| Colour | |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Certificates | |
| Compliance certificates | CE, REACH, RoHS, UKCA, VDE |
| Weight & dimensions | |
| Width | 48 mm |
| Depth | 5000 mm |
| Height | 40 mm |
| Weight | 430 g |
| Diameter | 6.8 mm |
| Package weight | 440 g |
| Packaging data | |
| Package type | Polybag |
| Package weight | 440 g |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Maximum current | 10 A |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor cross section | 0.2 mm² |
| Compliance certificates | CE, REACH, RoHS, UKCA, VDE |
