EU Product - Power Cord Ki 6 e C13 C14

Introduction

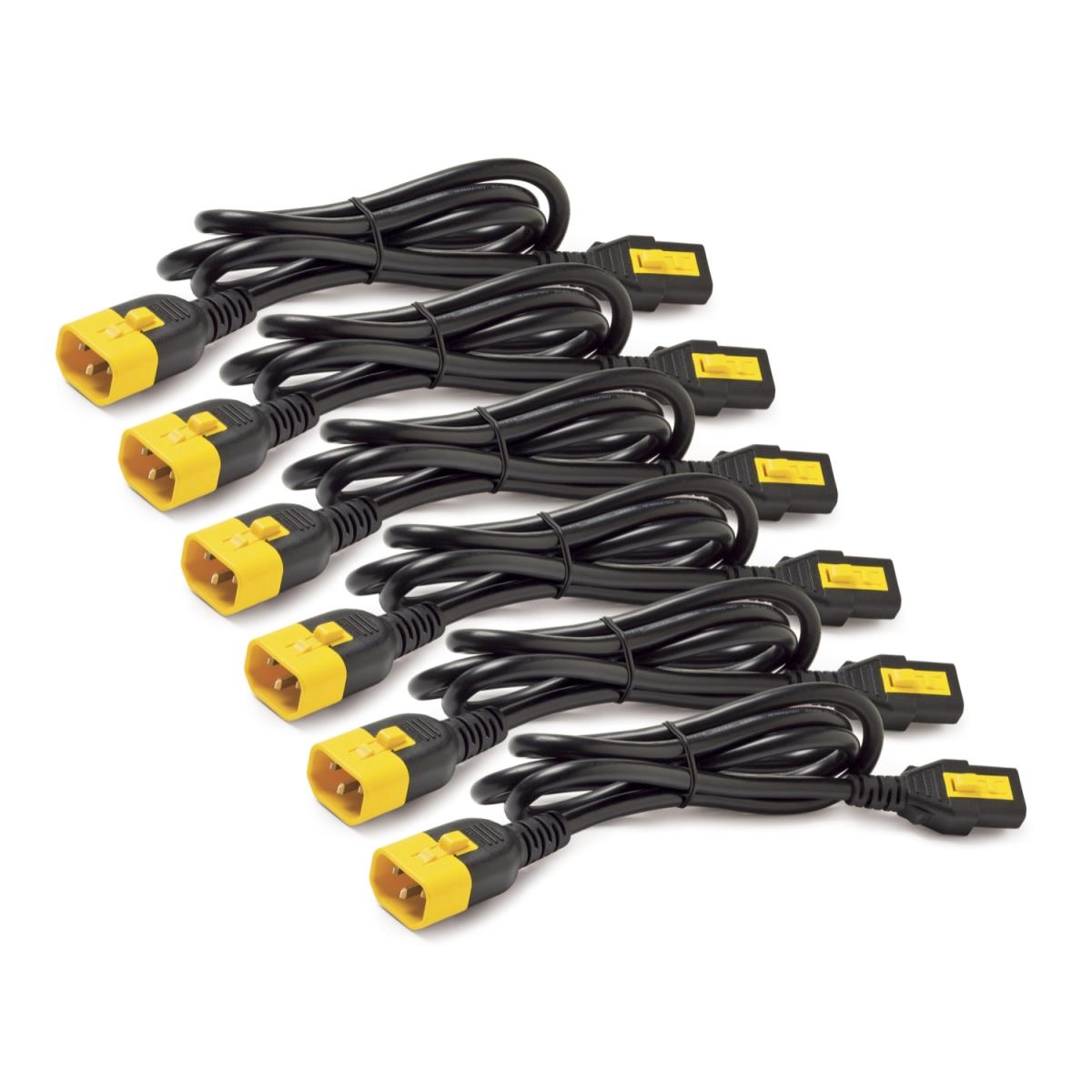

This Series of Rack Power Distribution Units (PDU) comes with Locking IEC Receptacles. The output and input connections are C13 to C14. The cord length is 1.8m. Locking IEC system allows the use of optional locking IEC power cords for added power cord security and enhanced reliability. No tools are required to disengage the locking feature and remove the plug from the locking receptacle.

Specifications

Ports & interfaces
Connector 2	C14 coupler
Connector 1	IEC C14
Cable length	1.82 m
Features
Certification	CCC; PSE; VDE
Connector 2	C14 coupler
Connector 1	IEC C14
Cable length	1.82 m
Connector 2 gender	Male
Connector 1 gender	Female
Product colour	Black
Power
Input current	10 A
Colour
Product colour	Black
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-25 - 75 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%
Non-operating altitude	0 - 15000 m
Certificates
Certification	CCC; PSE; VDE
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	RoHS, REACH, WEEE
Weight & dimensions
Width	75 mm
Height	240 mm
Weight	1.35 kg
Package width	75 mm
Package depth	55 mm
Package height	240 mm
Package weight	1.35 kg
Packaging data
Package width	75 mm
Package depth	55 mm
Package height	240 mm
Package weight	1.35 kg
Technical details
Country of origin	China
Input connection type	IEC 60320 C14
Harmonized System (HS) code	84733080
Total carbon footprint (kg of CO2e)	179.481698924148
Compliance certificates	RoHS, REACH, WEEE
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Logistics data
Customs product code (TARIC)	8544429090
Harmonized System (HS) code	84733080
Total carbon footprint (kg of CO2e)	179.481698924148
Other features
Country of origin	China
Input connection type	IEC 60320 C14
