POWER CORD
Introduction

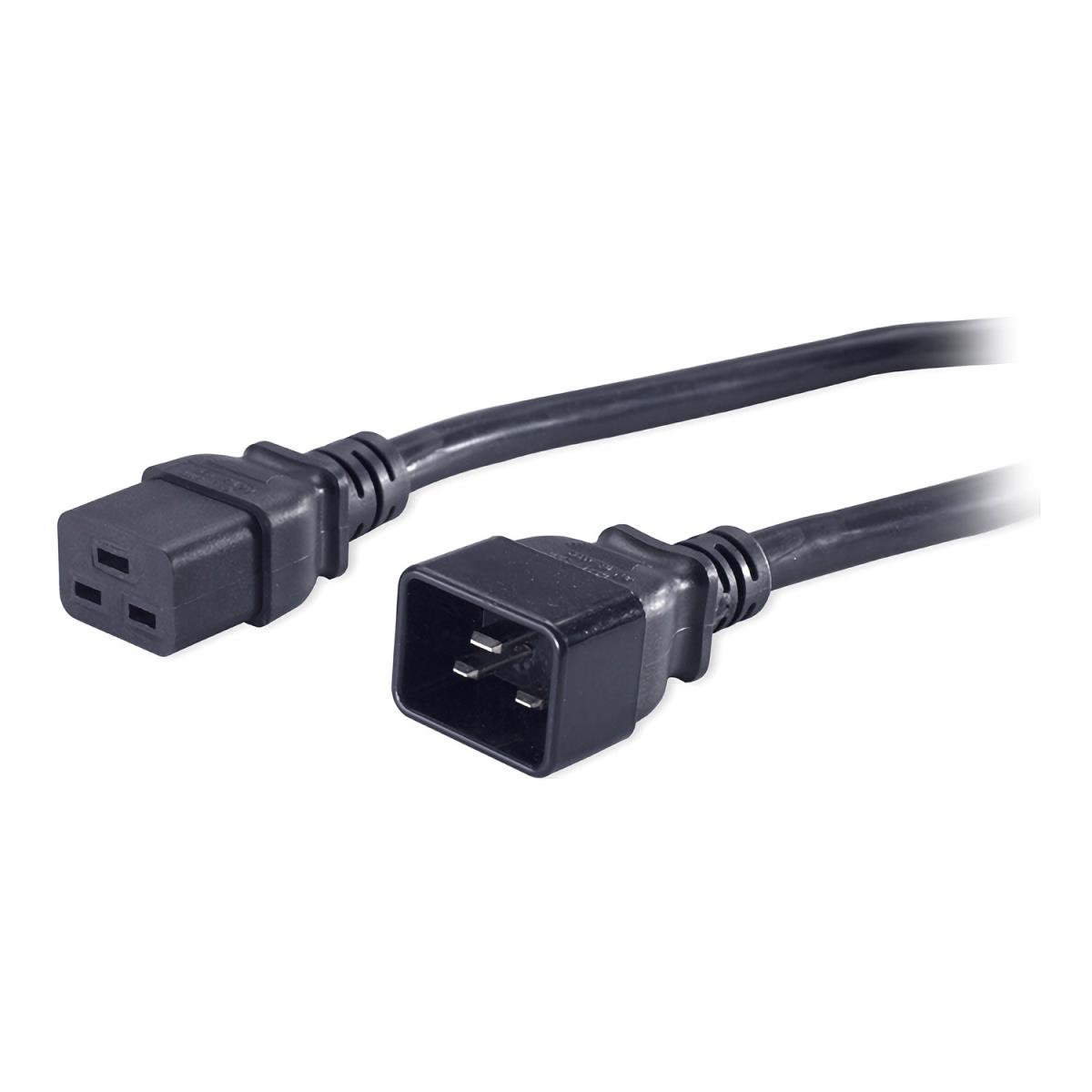

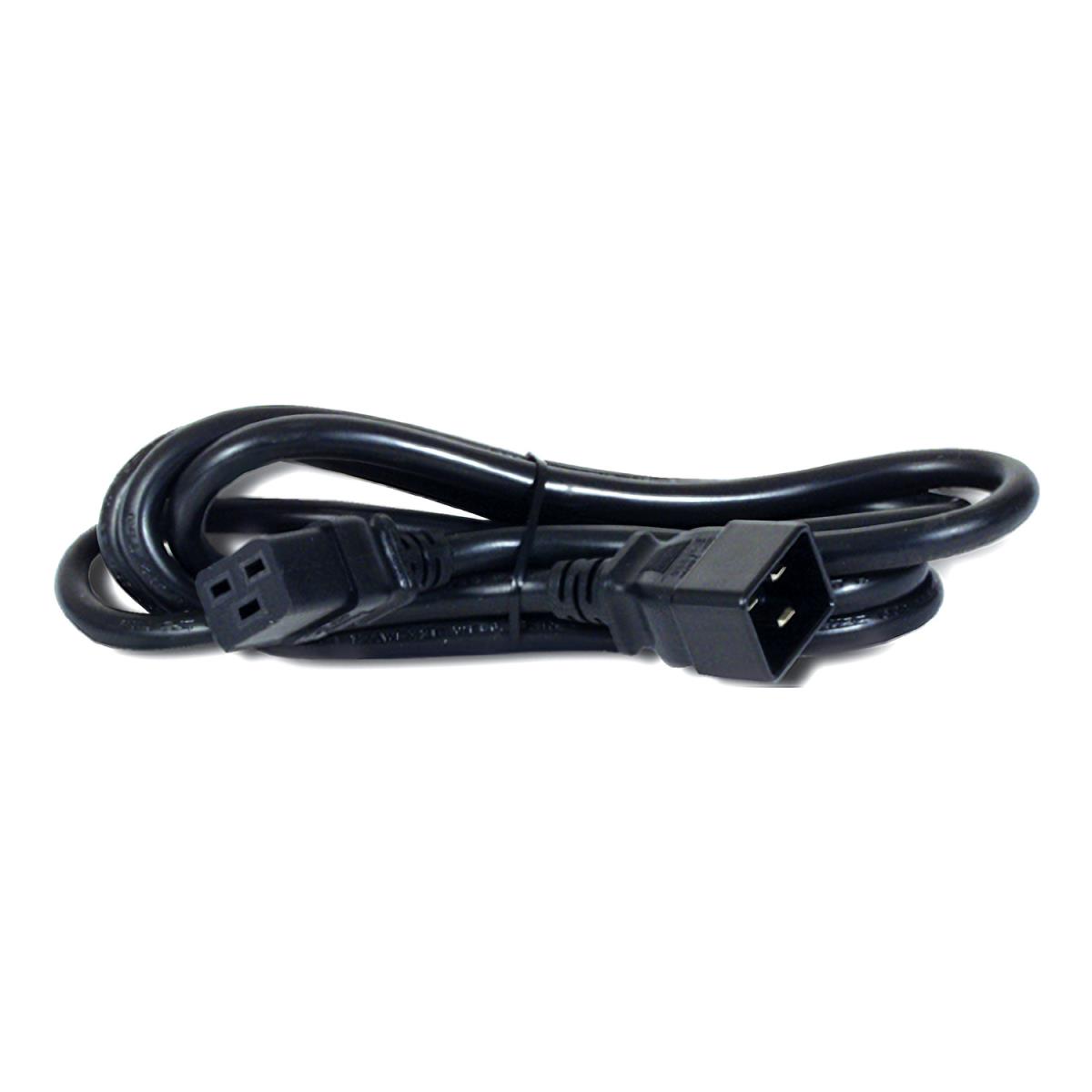

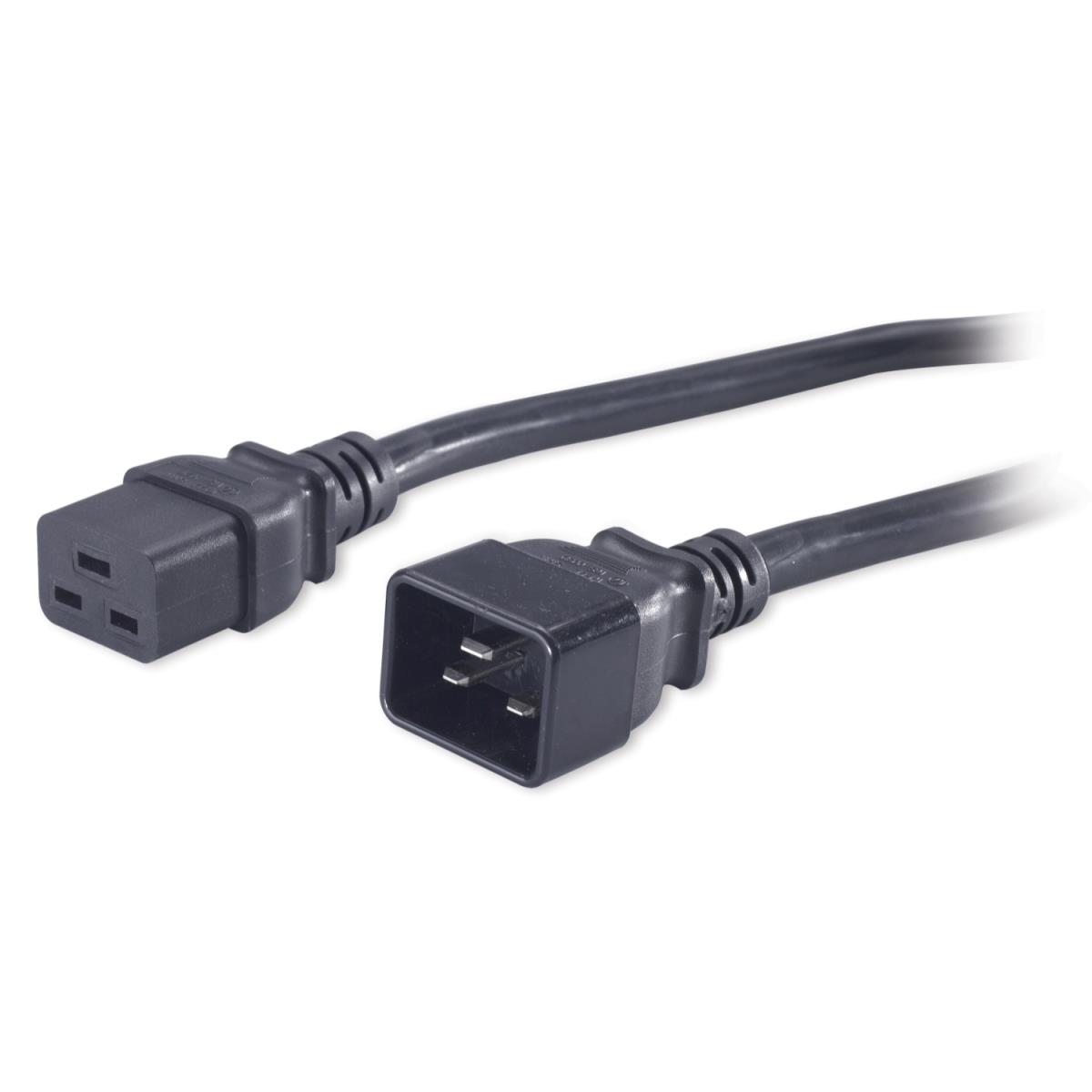

AP9877 is NetShelter range of Power Cord ensuring reliable power delivery and secure connections for your Rack PDUs and servers. It is designed to handle a maximum line current of 20A, making it suitable for high-power applications. It features IEC 60320 C19 outlet and an IEC 60320 C20 connector, allowing it to connect seamlessly with a wide range of power distribution units (PDUs) and equipment. The cord has a length of 2.0 meters, providing flexibility in setup and usage, especially in larger installations.
Specifications
| Ports & interfaces | |
|---|---|
| Connector 2 | C20 coupler |
| Connector 1 | IEC C20 |
| Cable length | 1.98 m |
| Features | |
| Connector 2 | C20 coupler |
| Connector 1 | IEC C20 |
| Cable length | 1.98 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Product colour | Black |
| Power | |
| Input current | 20 A |
| Colour | |
| Product colour | Black |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Weight & dimensions | |
| Weight | 360 g |
| Package width | 102 mm |
| Package depth | 102 mm |
| Package height | 305 mm |
| Package weight | 460 g |
| Packaging data | |
| Package width | 102 mm |
| Package depth | 102 mm |
| Package height | 305 mm |
| Package weight | 460 g |
| Technical details | |
| Country of origin | China |
| Input connection type | IEC 60320 C20 |
| Harmonized System (HS) code | 84733080 |
| Total carbon footprint (kg of CO2e) | 38.60775838121465 |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Logistics data | |
| Customs product code (TARIC) | 8544429090 |
| Harmonized System (HS) code | 84733080 |
| Total carbon footprint (kg of CO2e) | 38.60775838121465 |
| Other features | |
| Country of origin | China |
| Input connection type | IEC 60320 C20 |
