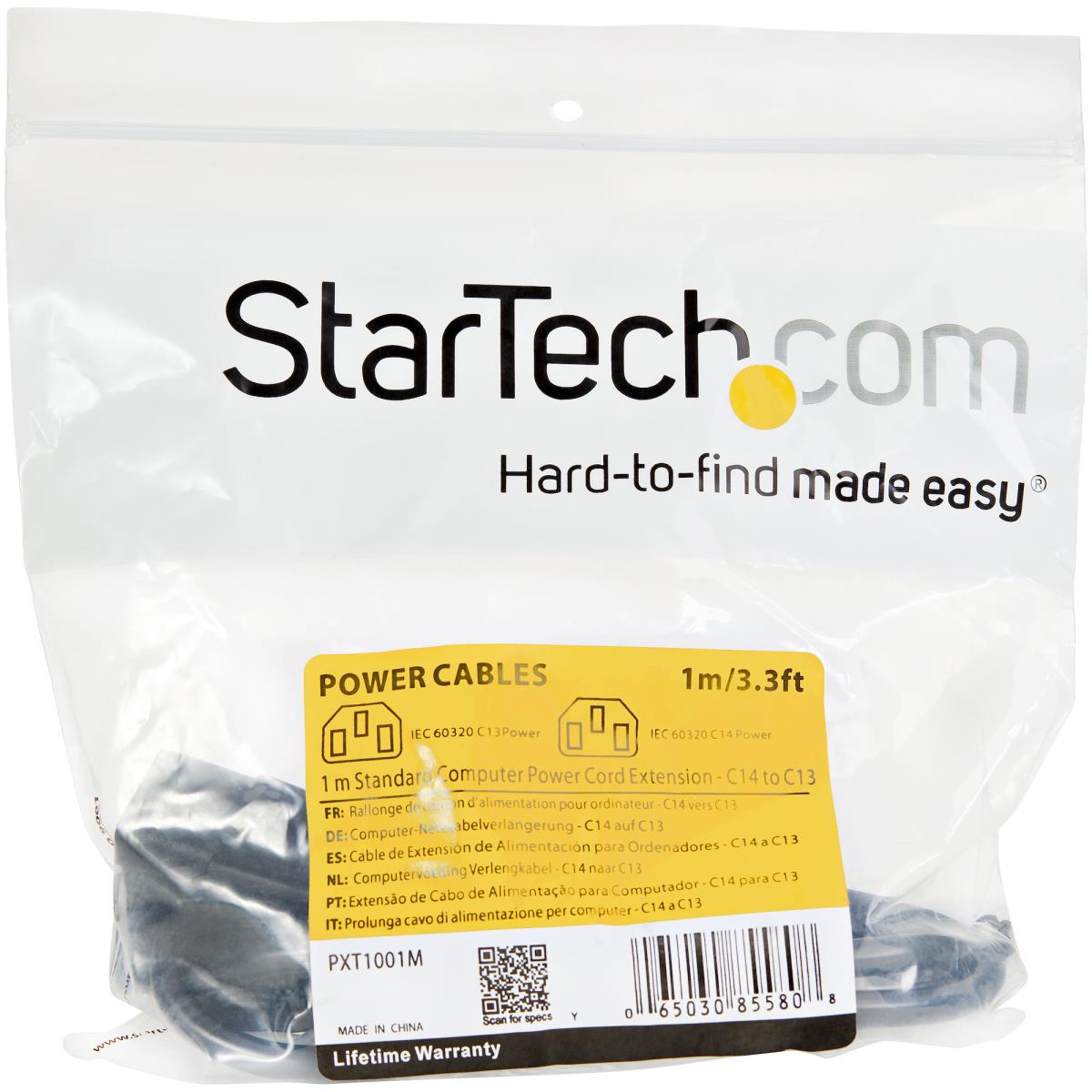

PXT1001M 1m Power Cord C14 to C13 Connectors Power Cable - Black
Introduction
1m Power Extension Cord, C14 to C13, 10A 125V

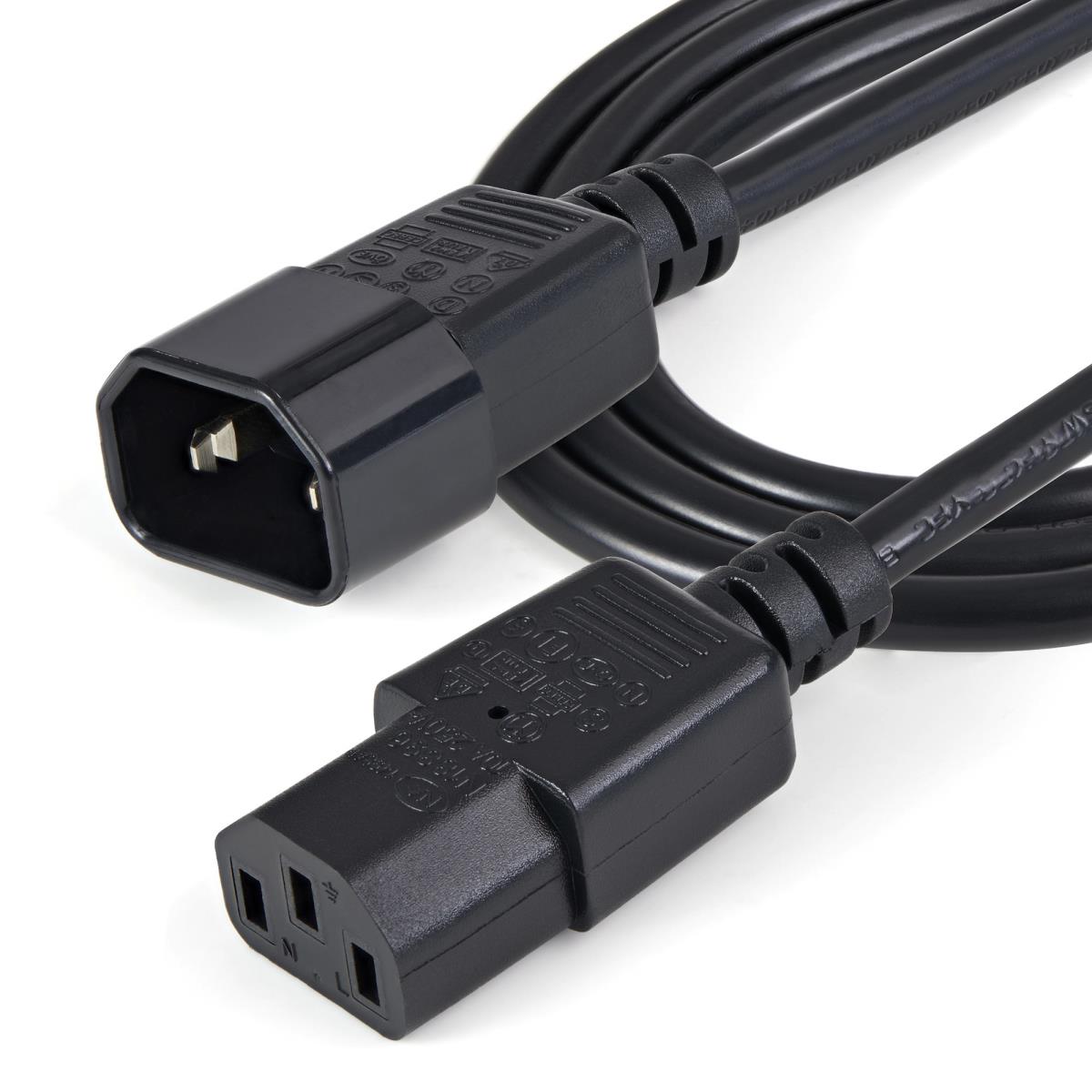

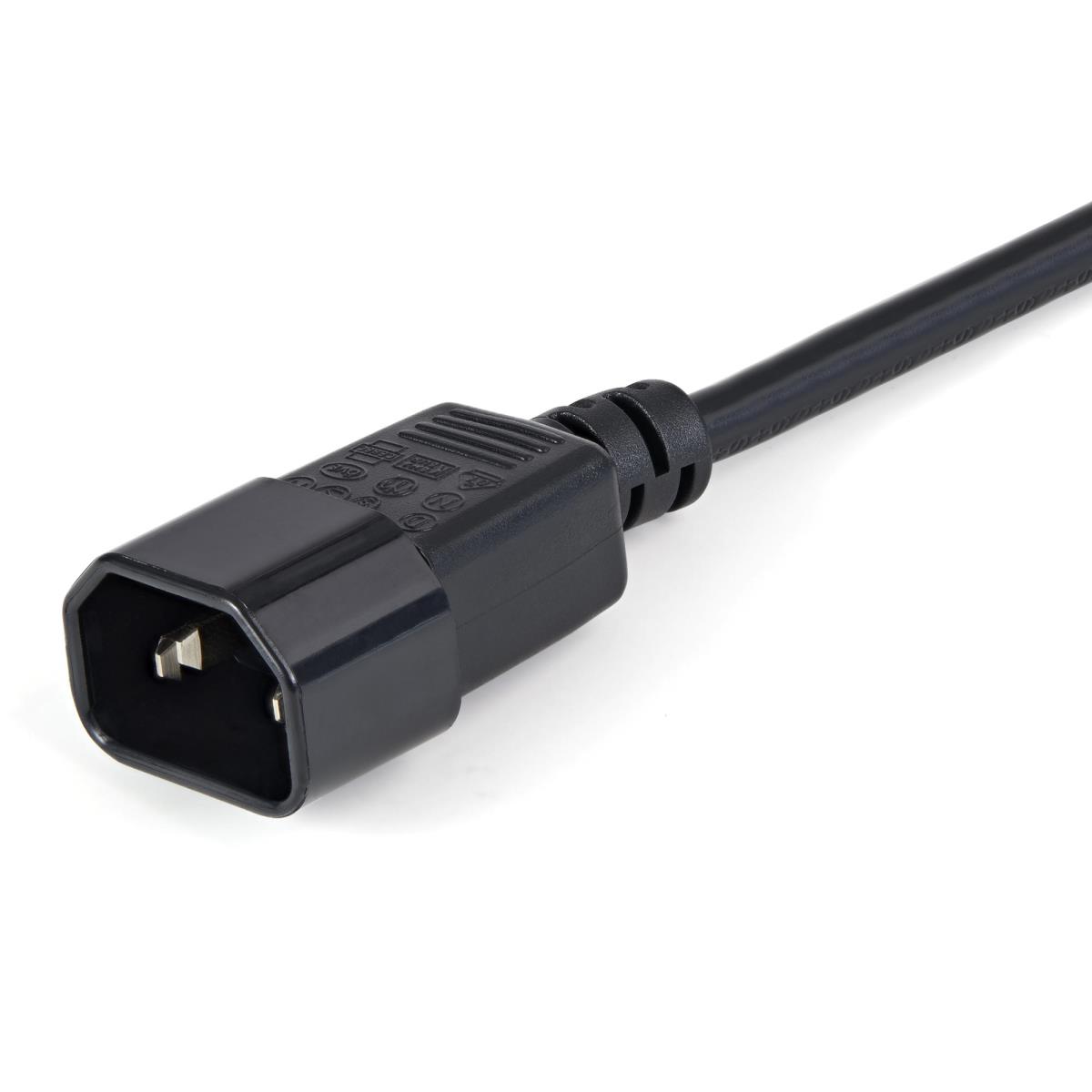

The PXT1001M 1m PDU Style Computer Power Extension Cord features one C13 computer power (female) connector and one C14 hooded (male) power connector, and enables you to connect your server to a C13-equipped UPS or PDU.
This high quality C13 to C14 Power Cord Extension Cable is backed by our Lifetime Warranty.
Specifications
| Ports & interfaces | |
|---|---|
| Connector 2 | C13 coupler |
| Connector 1 | C14 coupler |
| Cable length | 1 m |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Number of conductors | 3 |
| Cable type | SVT |
| AWG wire size | 18 |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector 2 | C13 coupler |
| Connector 1 | C14 coupler |
| Cable length | 1 m |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Product colour | Black |
| Power | |
| Input voltage | 250 V |
| Input current | 5 A |
| Colour | |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 3 - 60 °C |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 100 g |
| Diameter | 6.1 mm |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 10 mm |
| Package weight | 185 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 10 mm |
| Package weight | 185 g |
| Technical details | |
| Jacket material | Polyvinyl chloride (PVC) |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 100 pc(s) |
| Master (outer) case width | 326 mm |
| Master (outer) case length | 498 mm |
| Master (outer) case height | 232 mm |
| Harmonized System (HS) code | 84733080 |
